ESP32 Tiny Smart Controller – T64M (64CH MOSFET)

KinCony T64M tiny ESP32 smart controller based on ESP32-S3-WROOM-1U (N16R8) wifi chip. Support 64 channel MOSFET output, 4 channel 1-wire GPIOs, 3 channel free GPIOs. T64M have RS485 port. You can write any code by Arduino IDE / Micro Python / ESP-IDF development tool to ESP32 module. We will supply Arduino / ESP-IDF demo code for different samples. Everyone can modify and change the code for your own smart home automation system project. it support use by ESPHome for home assistant or tasmota firmware for smart home automation DIY. T64M use KCS v3 firmware, it support home assistant auto discovery function by MQTT, so without write any config code (zero code) for home assistant. KCS v3 support KinCony cloud service (official shop customer free 2 years), remote monitor and control device by webpage in anywhere. KCS v3 support KinCony board integrate to Loxone Miniserver. Support Apple HomeKit for Siri.

Model No. KinCony T64M
Description: KinCony 64 Channel Tiny ESP32-S3 Smart Controller – T64M
Power supply: 12-24V DC
Processor: ESP32-S3-WROOM-1U (N16R8)
Size: 200mm*83mm*56mm
interfaces: Ethernet(RJ45)-LAN 100Mbps IPv4/IPv6,WiFi,RS485,Bluetooth,USB-C

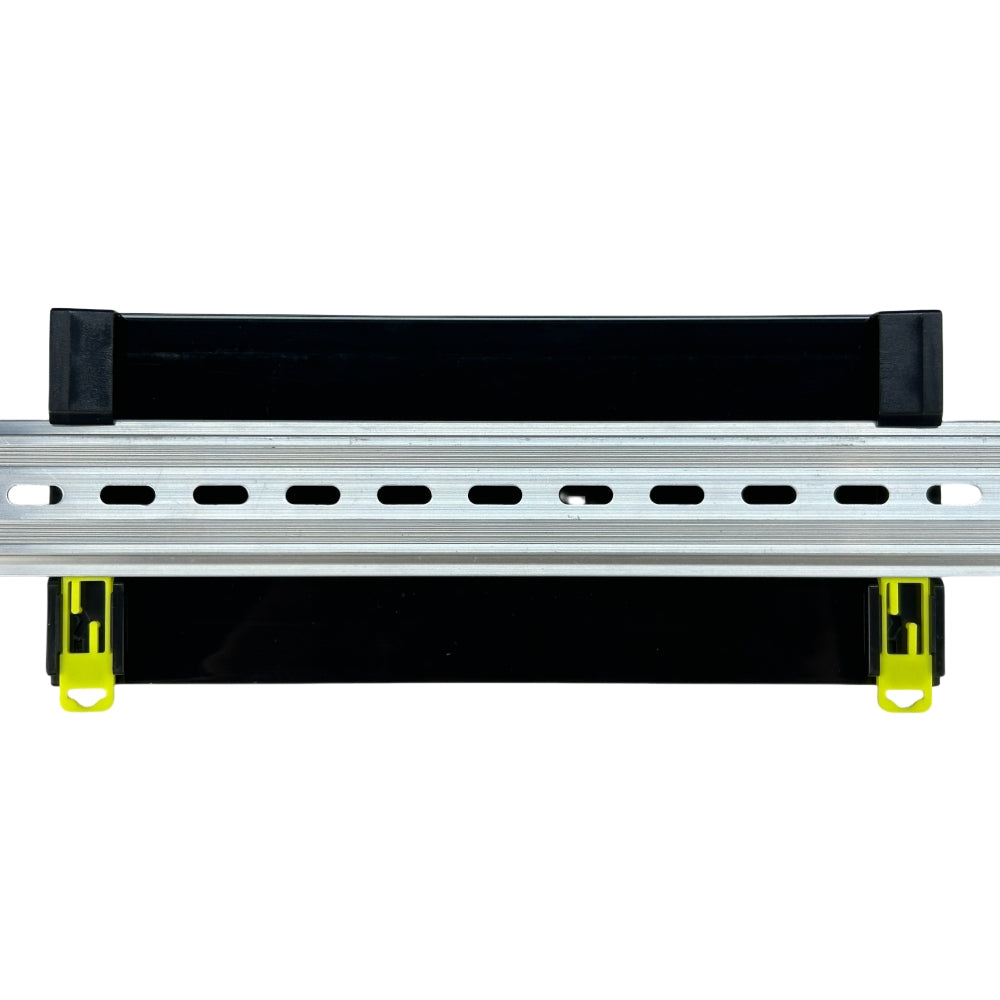

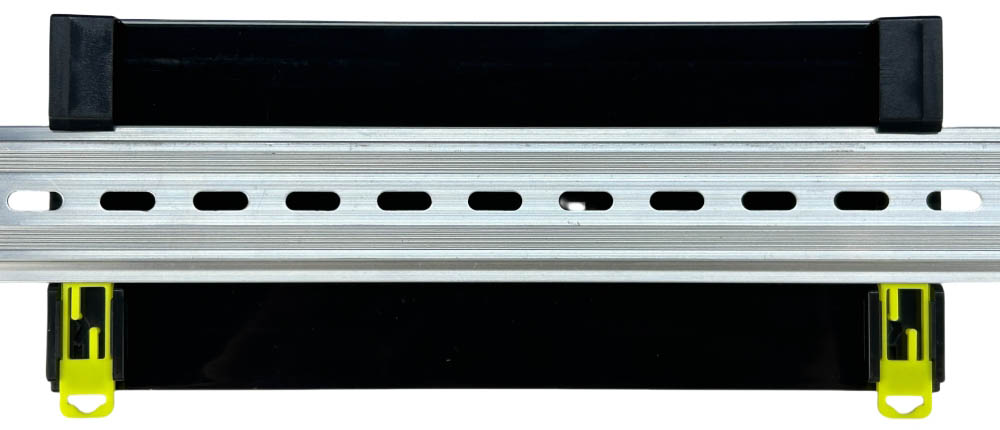

Installation method: DIN RAIL

Outputs:
64CH MOSFET Outputs, every channel use MAX 4A driver IC

Inputs:
64CH dry contact inputs (optocoupler isolation, long distance circuit for MAX 500 meters cable)
2 buttons: 1:ESP32 Reset 2:ESP32 Download
1-Wire GPIO: 4CH (with pull-up resistance on PCB)
free GPIO: 3CH (connect with ESP32S3 pin directly)
2CH analog input DC0-5V (A1,A2) 2CH analog input 4-20mA (A3,A4)

software solution:

1. download KinCony KCS v3 firmware, so that work with multi protocol: HTTP, MQTT, TCP, RS485 modbus, config OUTPUT for “momentary” and “interlock” group functions. if you want local voice control without internet, you can add KinCony AS voice assistant. “KCS” support IFTTT function work locally without internet. It also support use by KinCony cloud server. KCS v3 support home assistant auto discovery function by MQTT, so without any config file for home assistant.

2. download firmware by ESPHome, integrate to home assistant or use by web service.

3. write your own Arduino or ESP-IDF code for your own requirements.

Order bundles:
Bundle A: T64M

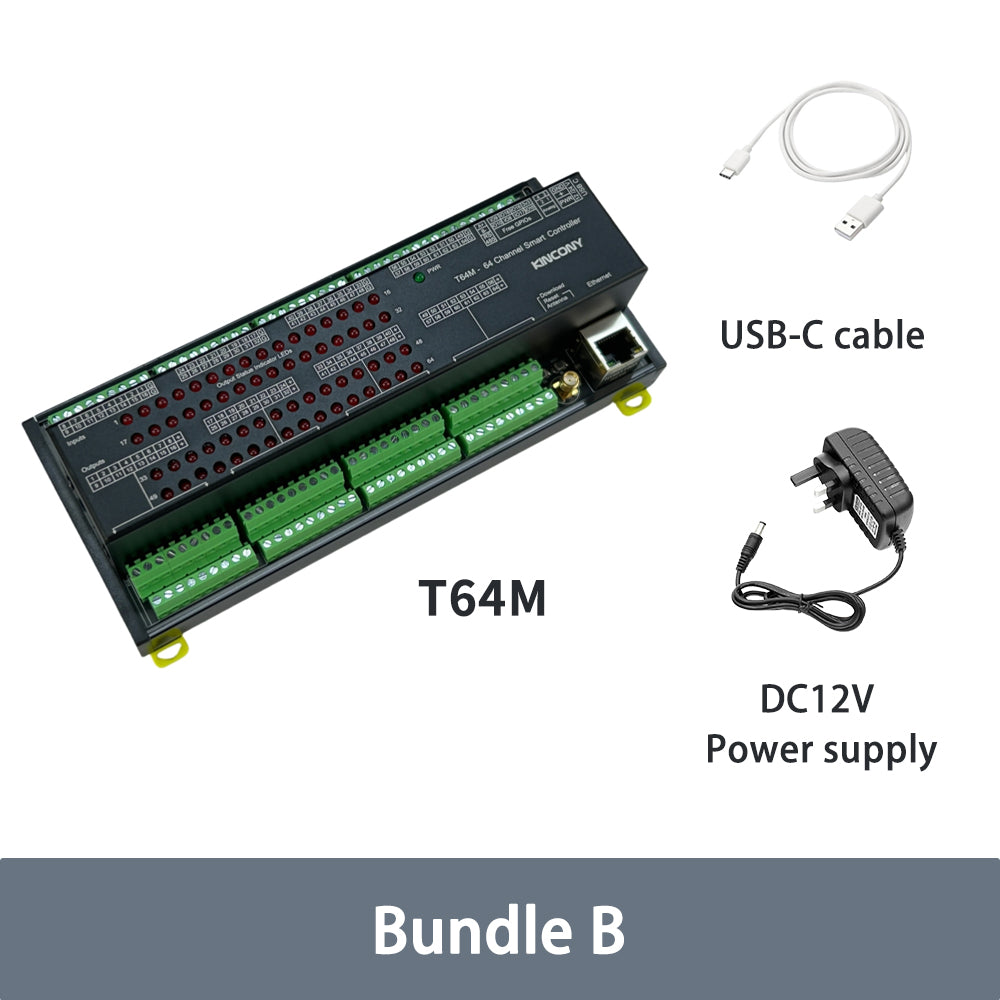

Bundle B: T64M + USB-C cable+ power supply

Related technical information
———————————
ESP32 I/O pin define: https://www.kincony.com/forum/showthread.php?tid=7996
config yaml file for ESPHome: https://www.kincony.com/forum/showthread.php?tid=7997
ESPHome official supportted list:
arduino demo source code: https://www.kincony.com/forum/forumdisplay.php?fid=81
KCS v3 firmware online guide: https://www.kincony.com/how-to-use-kcsv3-firmware-esp32-board.html

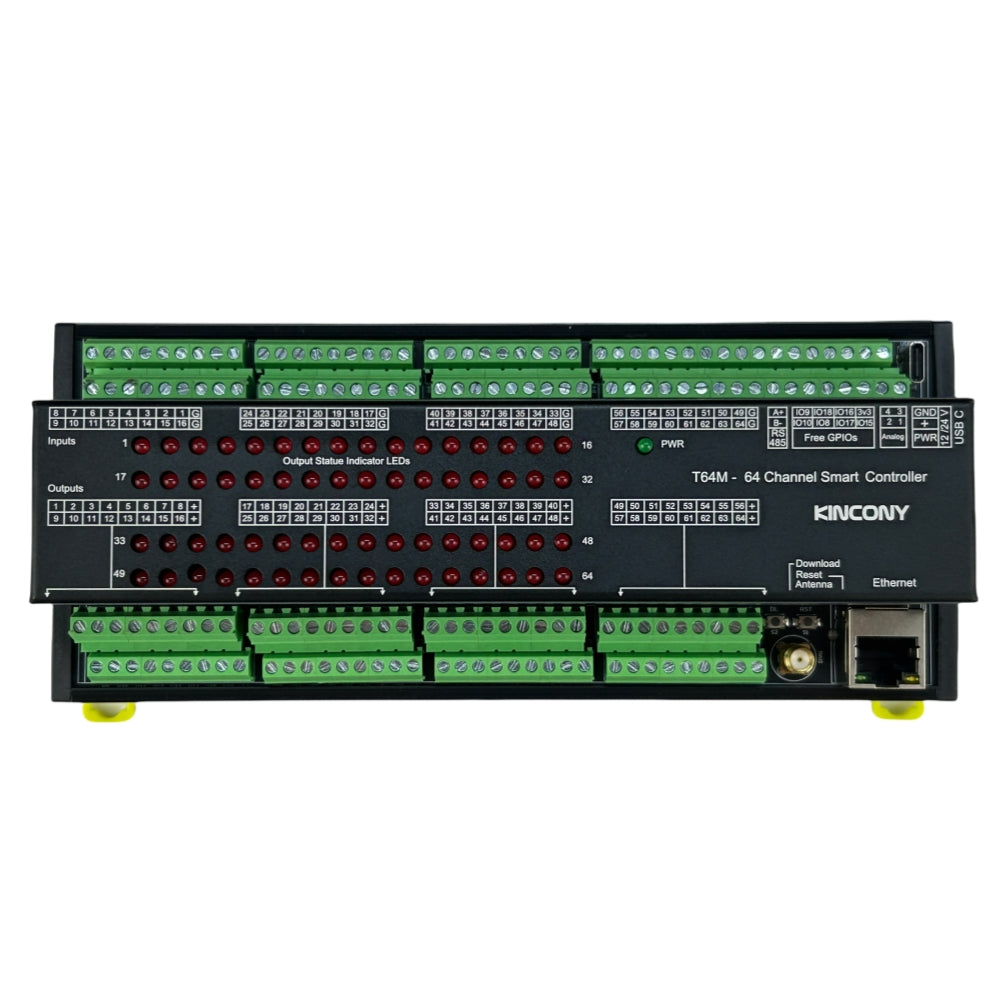

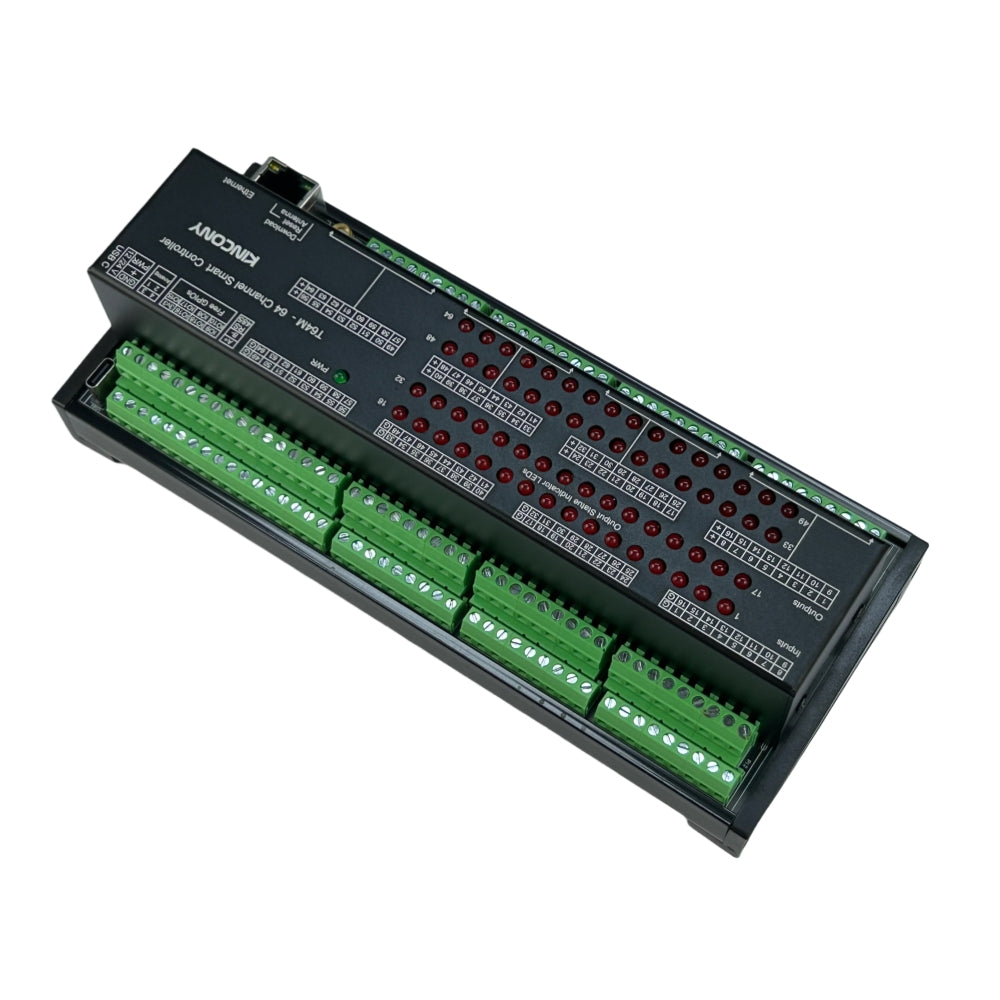

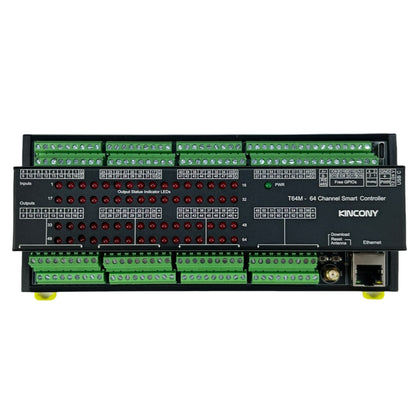

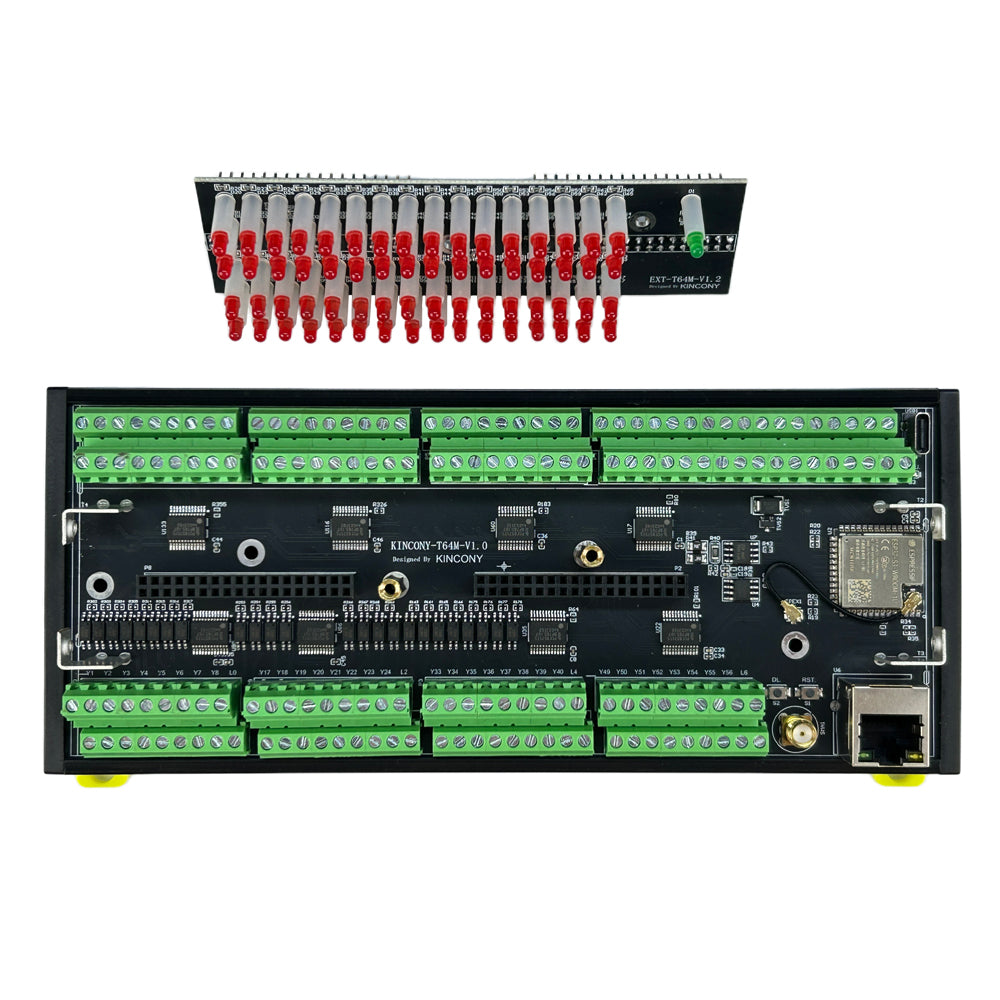

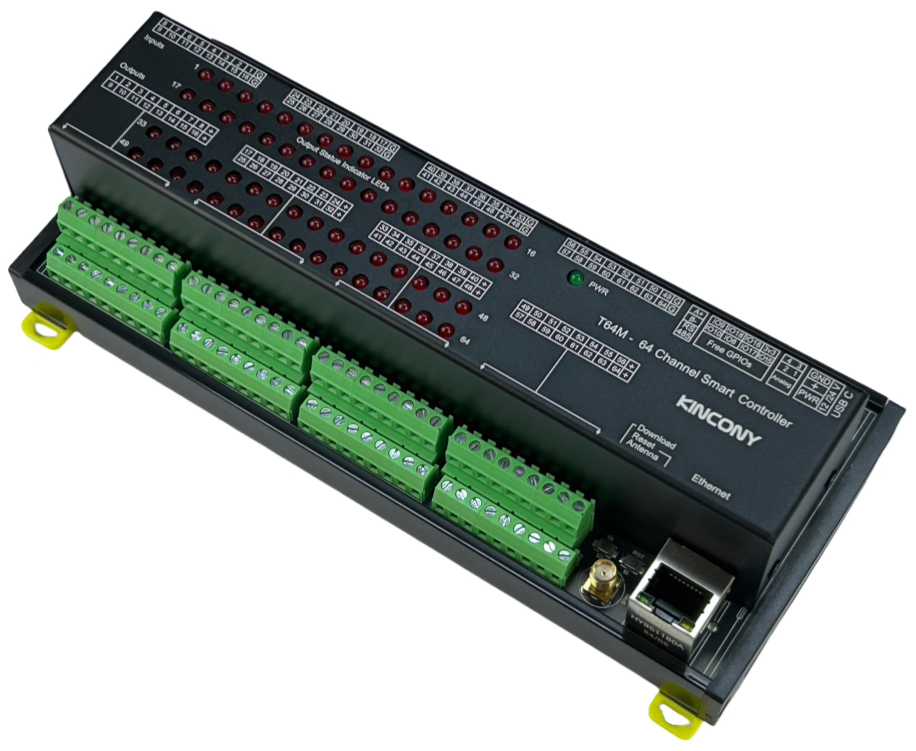

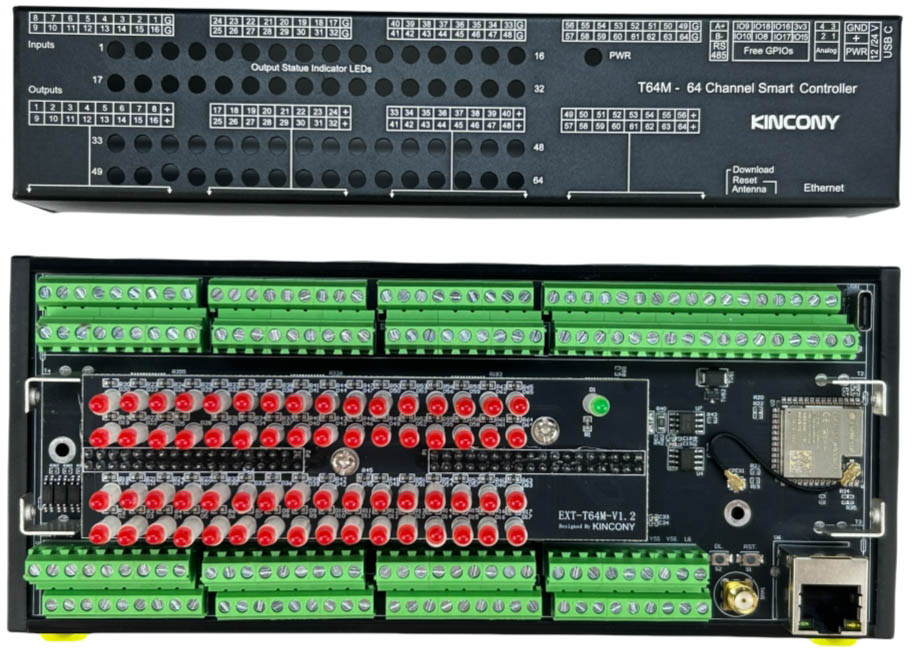

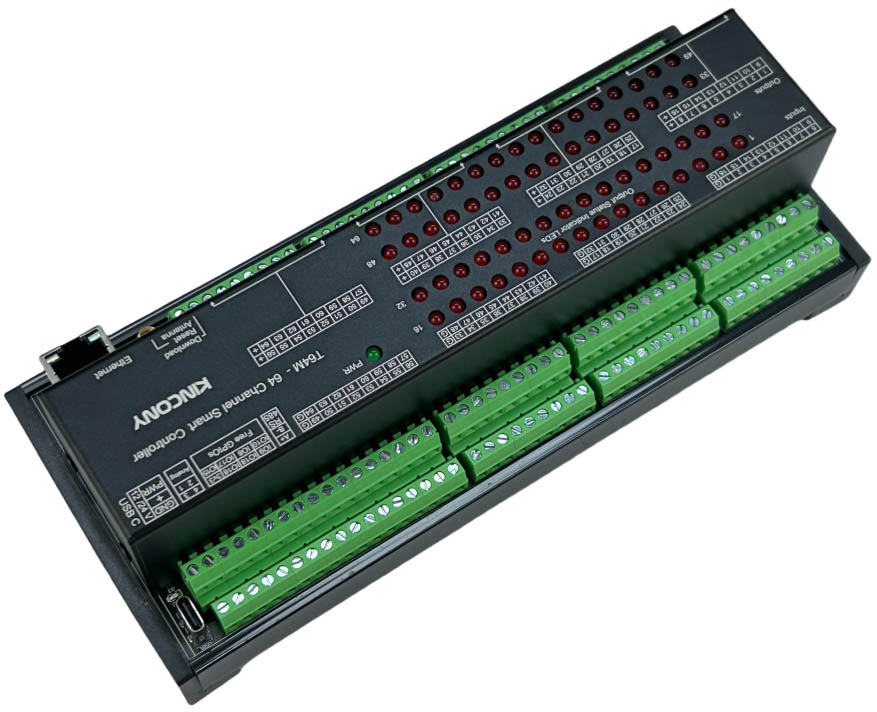

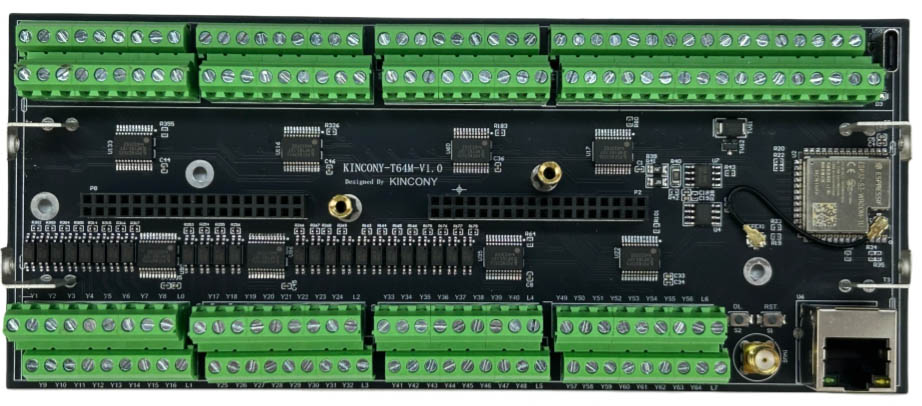

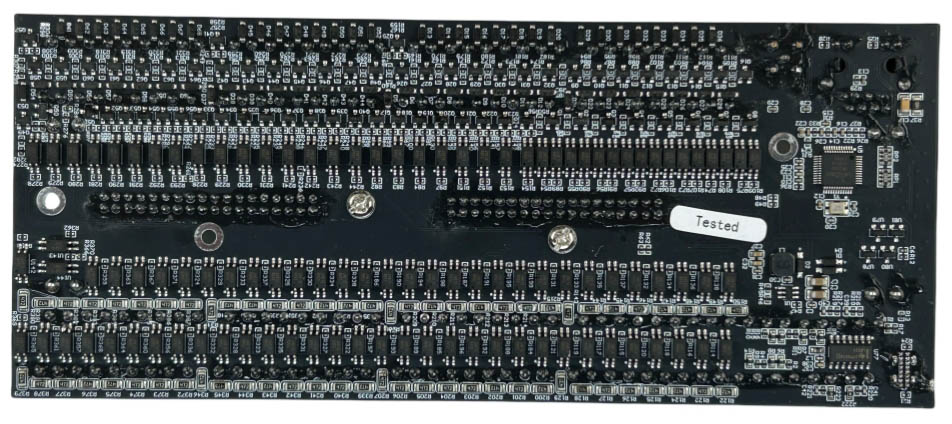

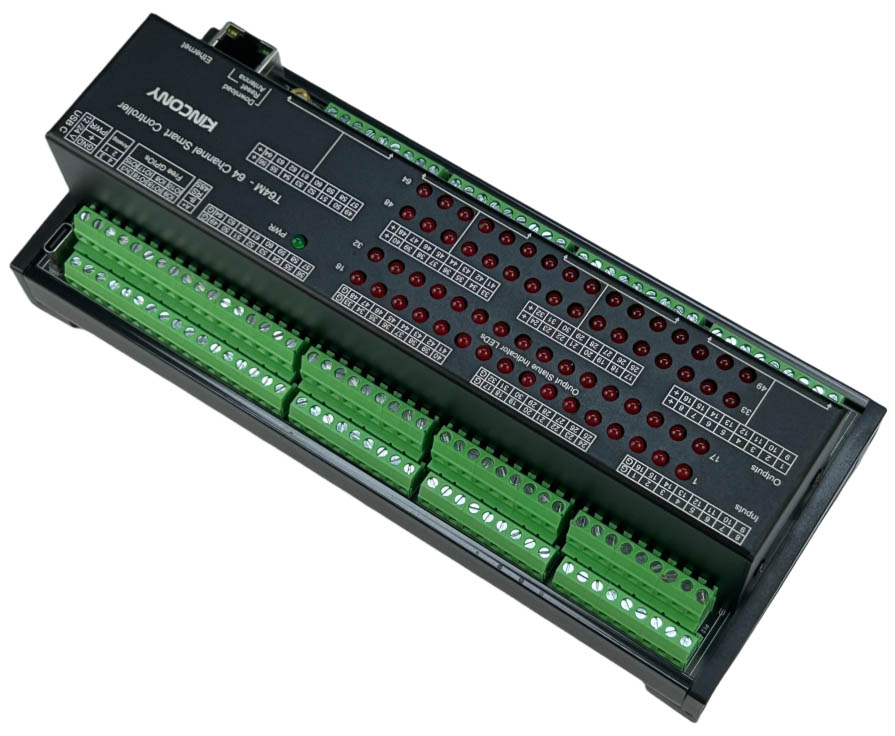

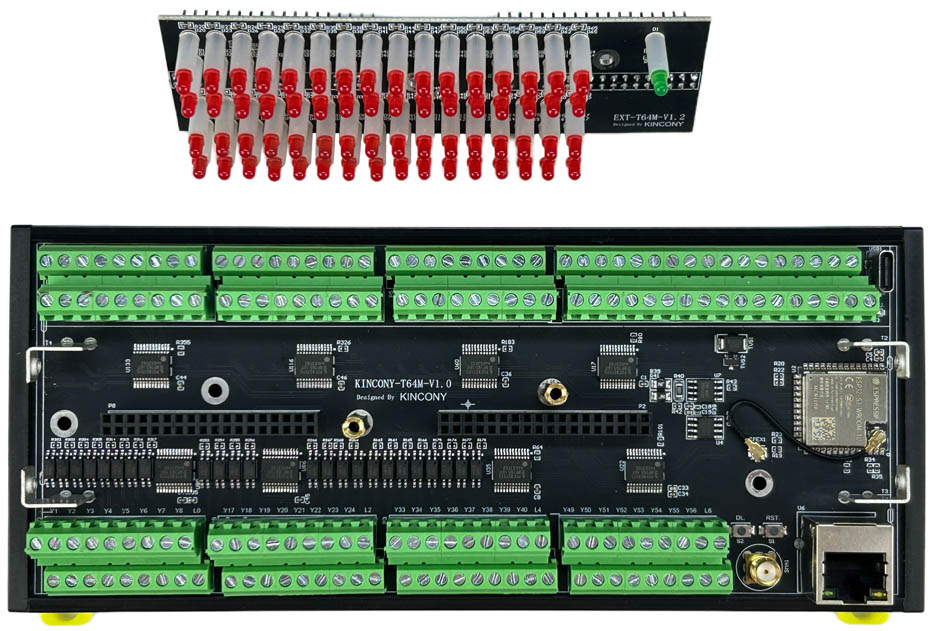

Different views of the T64M:

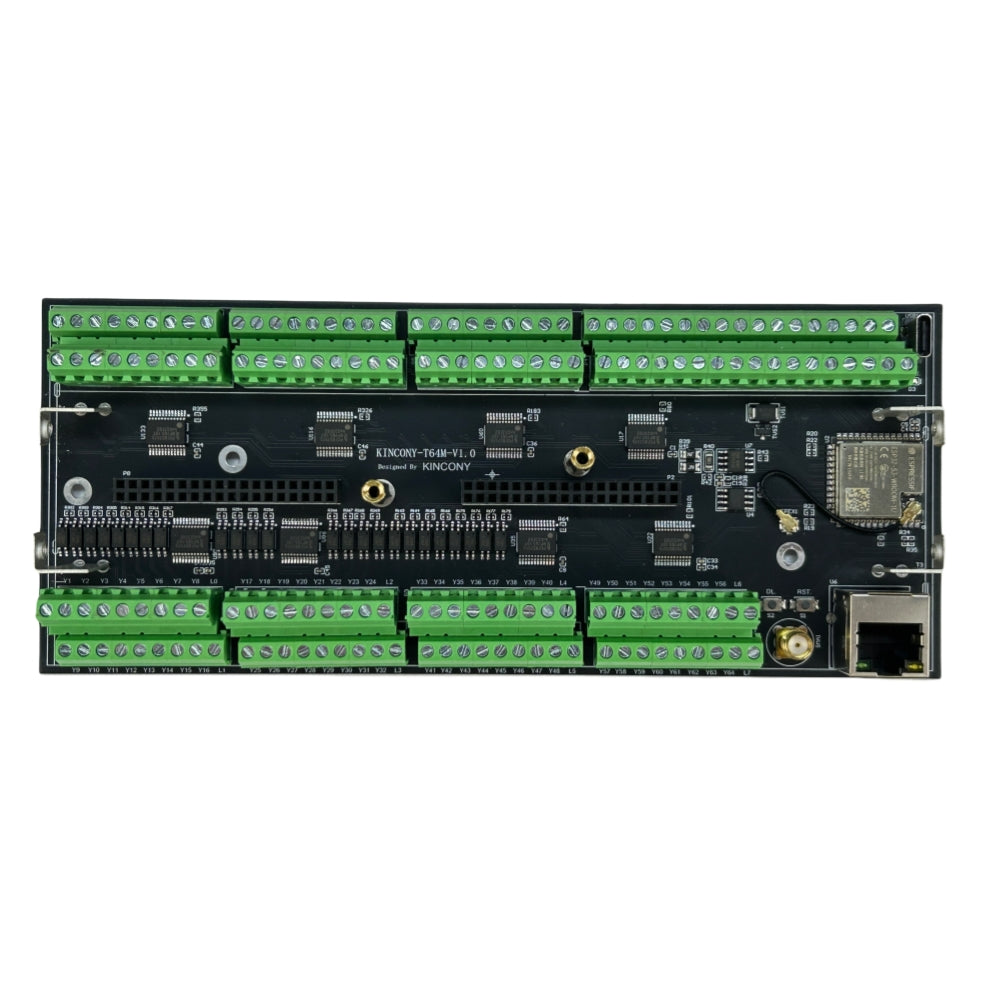

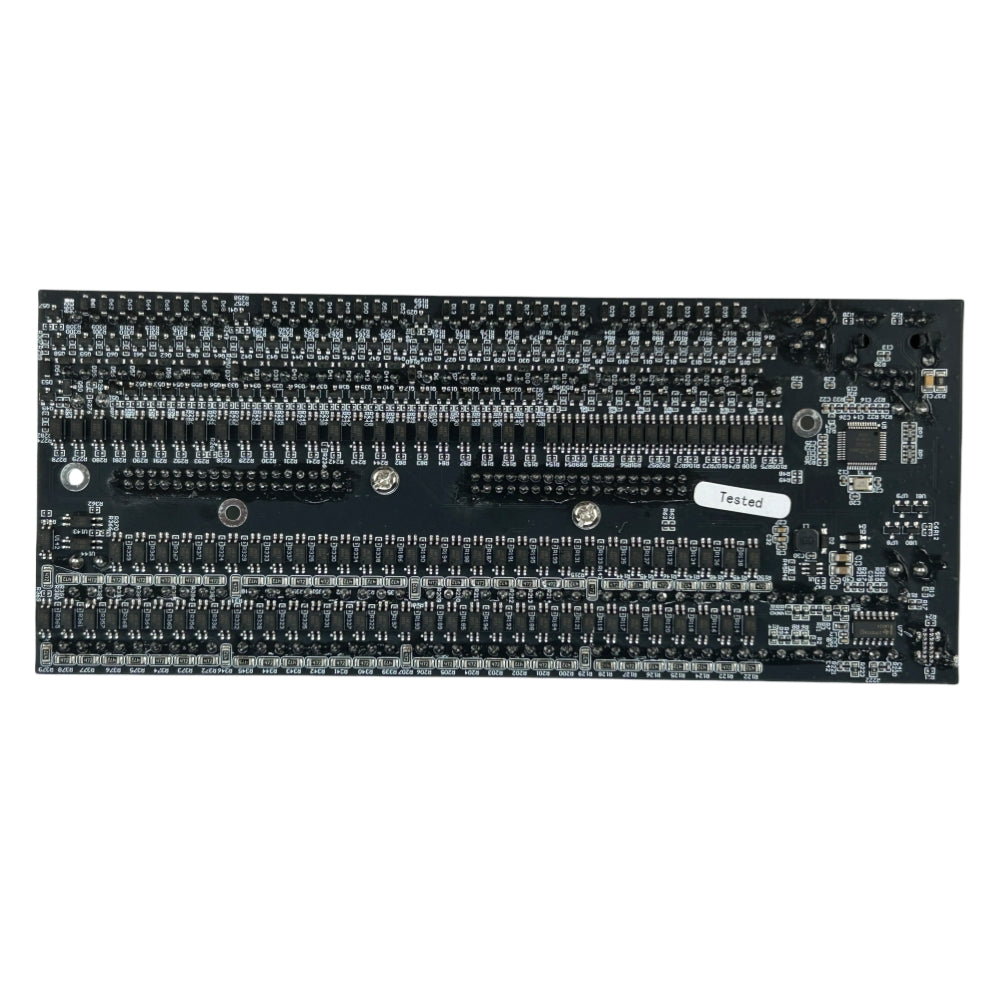

w5500 ethernet chip

ESP32-S3-WROOM-1U (N16R8) large memory PSRAM module.

PCF8575 i2c extender chip.
