KinCony IoT

16CH Raspberry Pi Distribution Panel (Home Assistant+Node Red)

16CH Raspberry Pi Distribution Panel (Home Assistant+Node Red)

Regular price $1,200.00 USD
Regular price Sale price $1,200.00 USD
Sale Sold out
Shipping calculated at checkout.

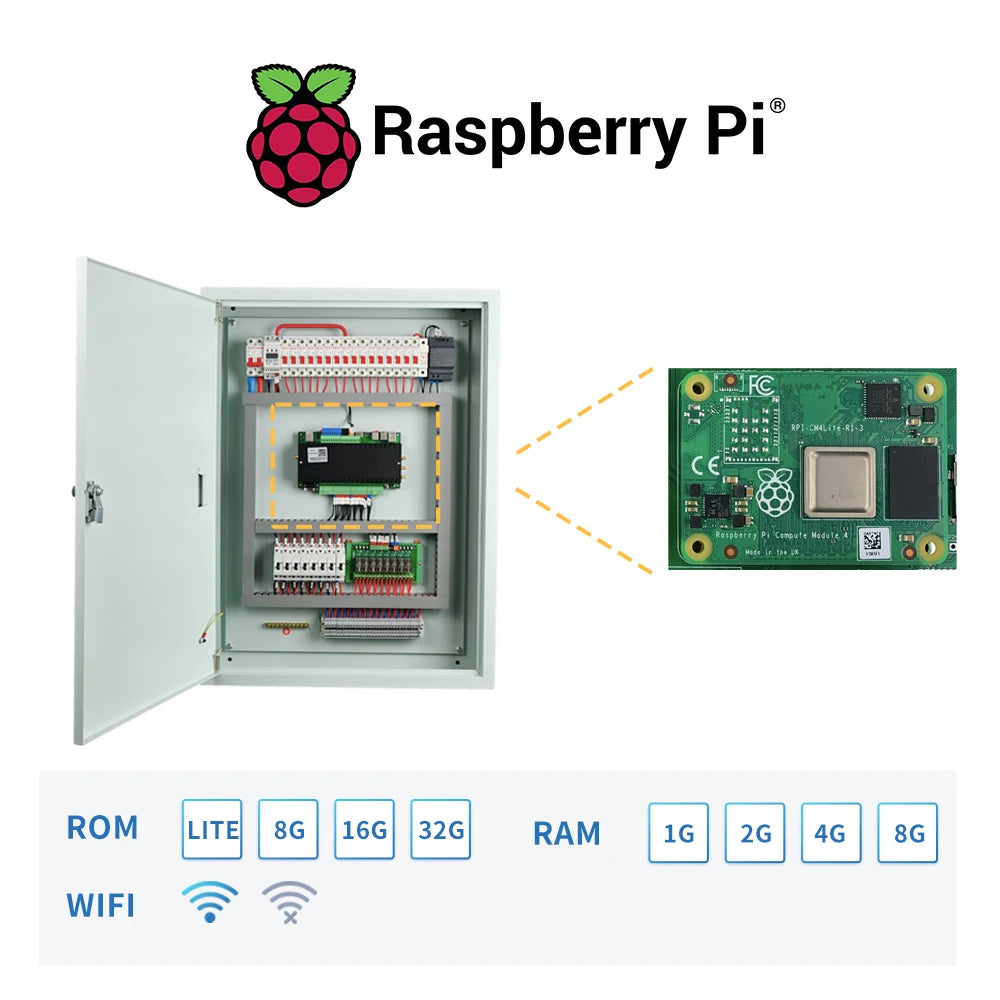

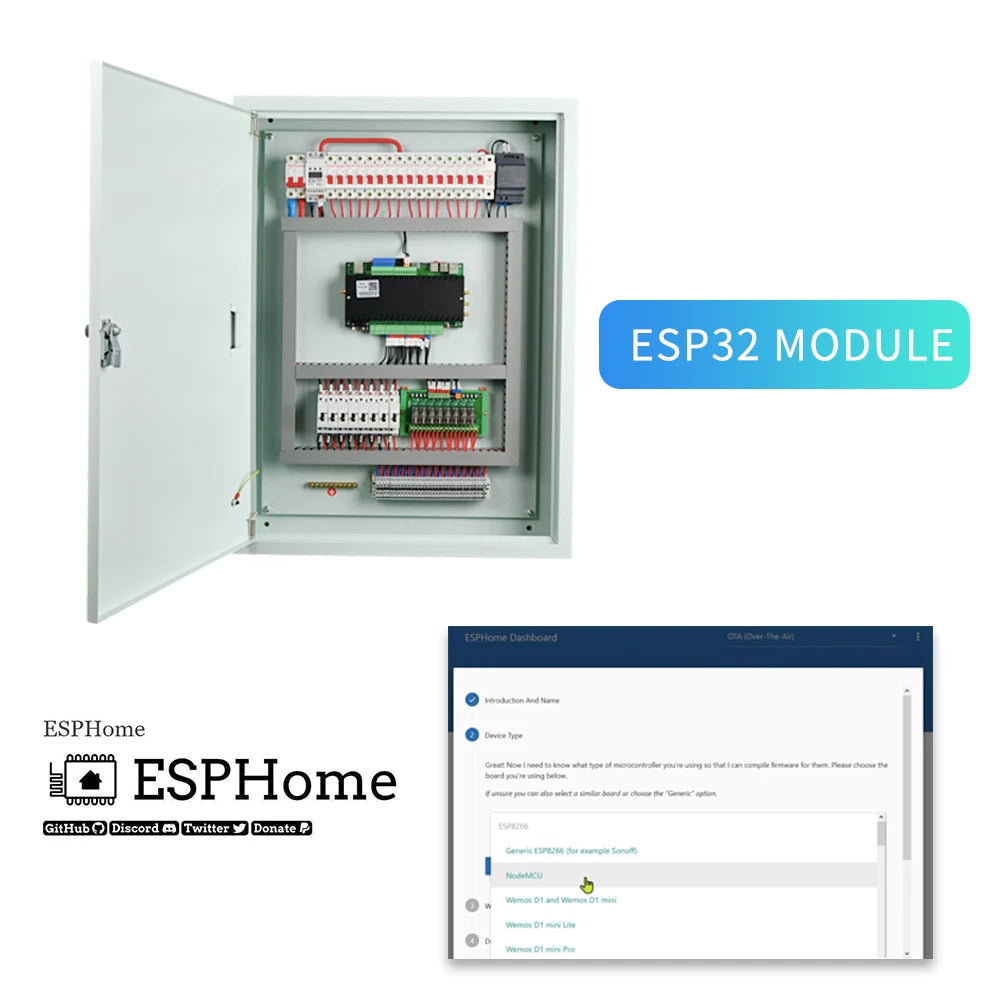

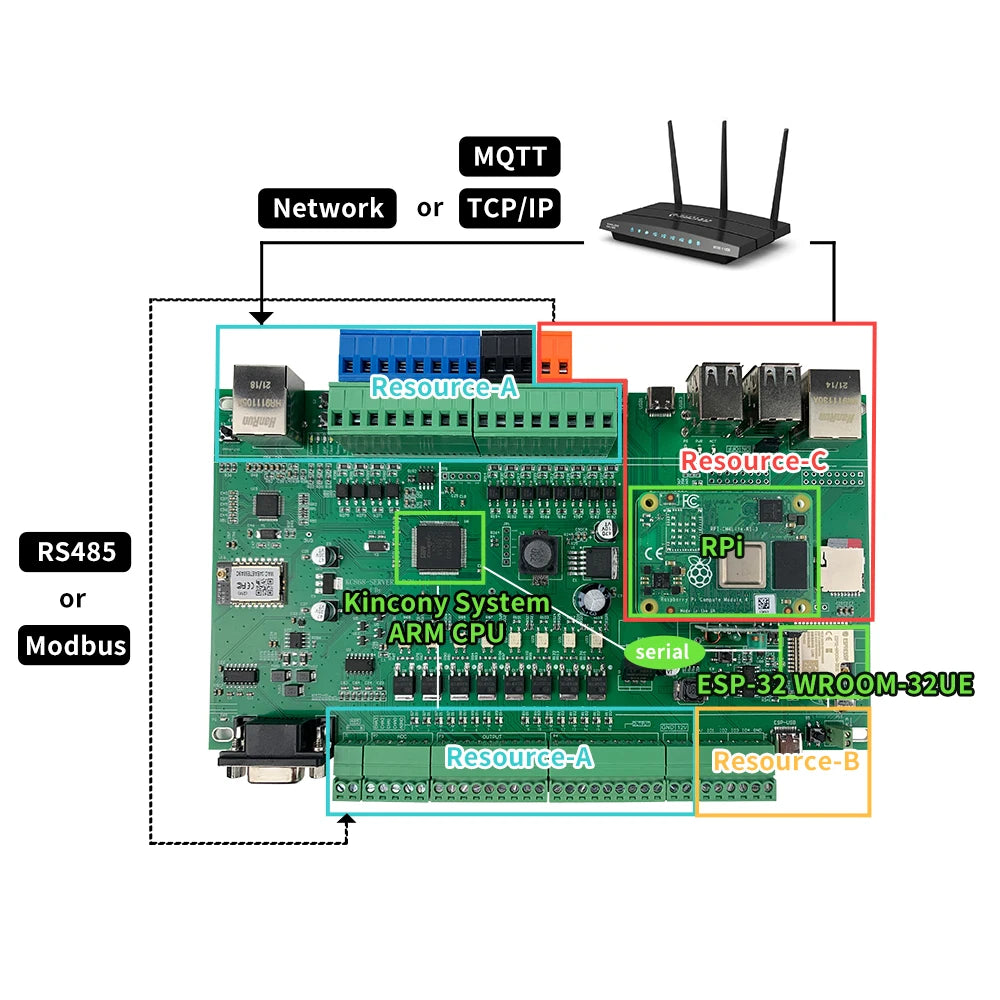

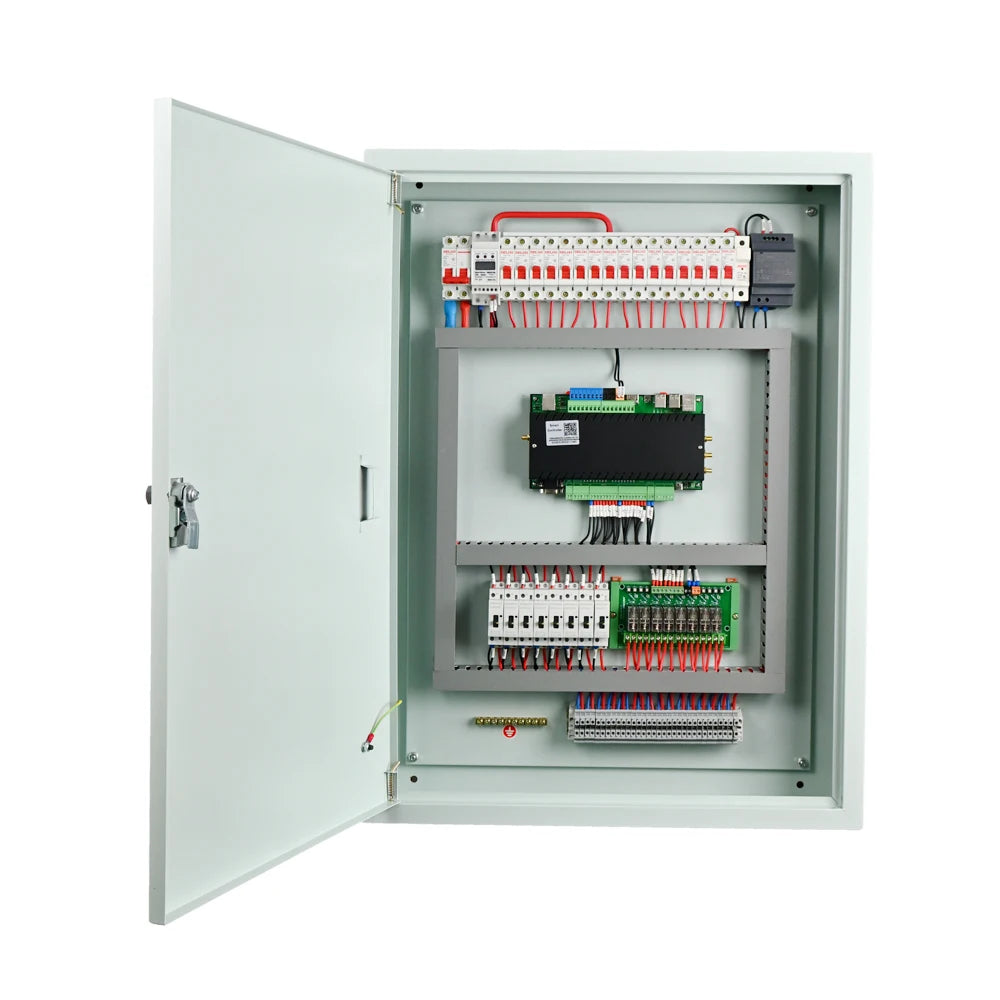

We have designed new 16CH Raspberry Pi distribution panel, it’s very powerful Linux Computer, made by Raspberry Pi CM4, it have 16 channel relay output, 16 digital input ports, ethernet + ESP32 module, work with internet or without internet. support home assistant app, Google home app, Amazon alexa app, Apple homekit app, set by Node-Red. You can install any software to controller. it’s a good smart controller for home automation project. You can DIY for your home automation project. we have take the video on KinCony’s YouTube channel for all details.

Product Size: 80cm*60cm*14cm
Product Weight: 20KG
Working Voltage: DC12V 4.5A

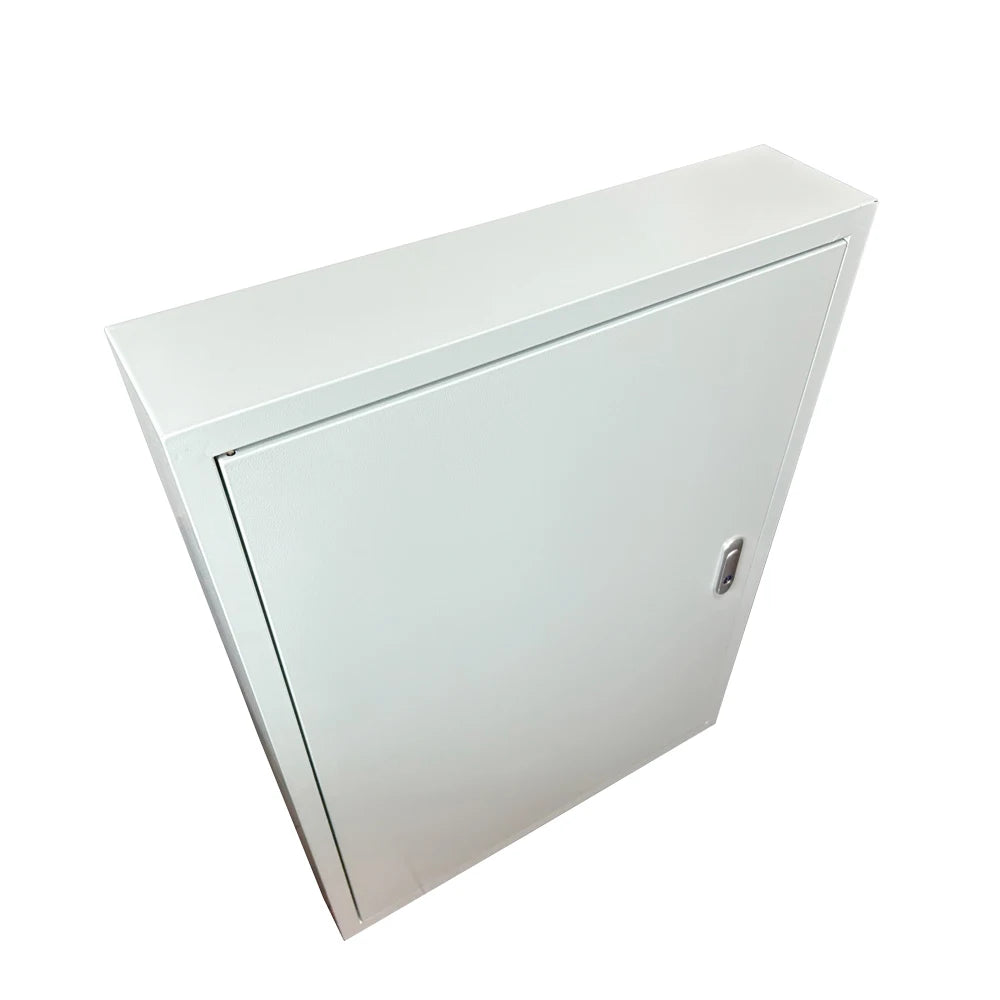

Material: Metal shell
Working Temperature: -20°C--70°C
Working Humidity: 20%--80%
Output Load: 16CH: (P-MOSFET) output DC12V/24V 500mA Per Channel
Communication: Ethernet/WiFi/RS485
Digital Input: 16+8CH dry contact
Analog Input: 4CH DC 0-5V

This is a customized product, after you paid, we will make it need about 2 weeks. Then we will send out. If you want confirm something details, you can contact with us before you order products.
