Current Transformer CT For KinCony M30 M16 Energy Meter Board

Precision Current Transformer
Flame retardant properties: Compliant with UL94-VO
Insulation resistance: greater than 1000MQ under normal conditions
Voltage level: 0.66/0.72KV
Pressure resistance strength: 3KV/50Hz/1min
Working frequency: 50/60Hz
Working temperature: -40 ° C~+85 ° C
Sealing material: epoxy resin

some different range model:

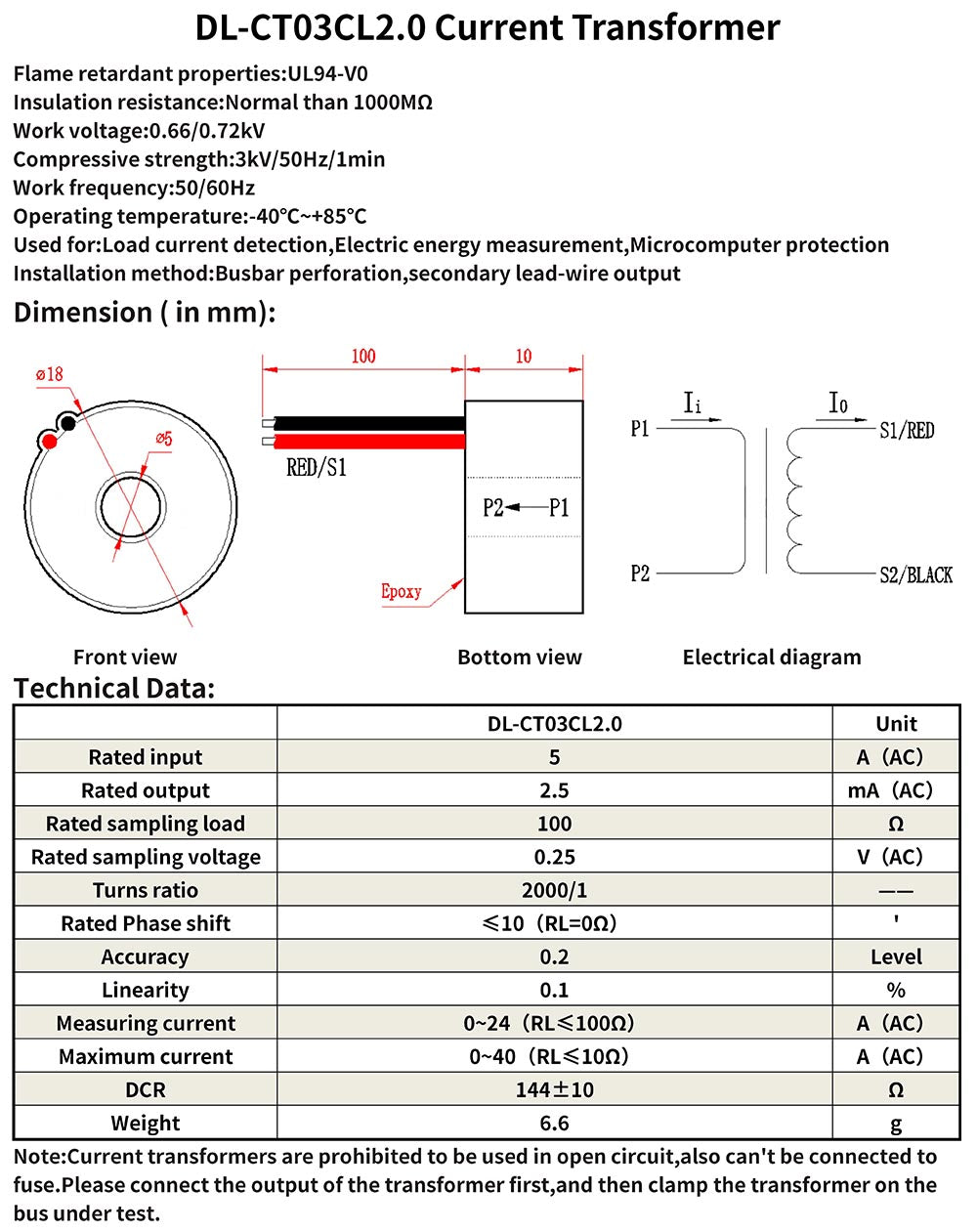

DL-CT03CL2.0            aperture   5mm       0-25A     cable length: 1 meter
DL-CT08CL10-2000/1      aperture   8.4mm     0-60A   cable length: 16cm
DL-CT08CHL18-2000/1     aperture   14.5mm    0-100A   cable length: 30cm

Usage: Load current detection, electrical energy metering, microcomputer protection
