KinCony IoT

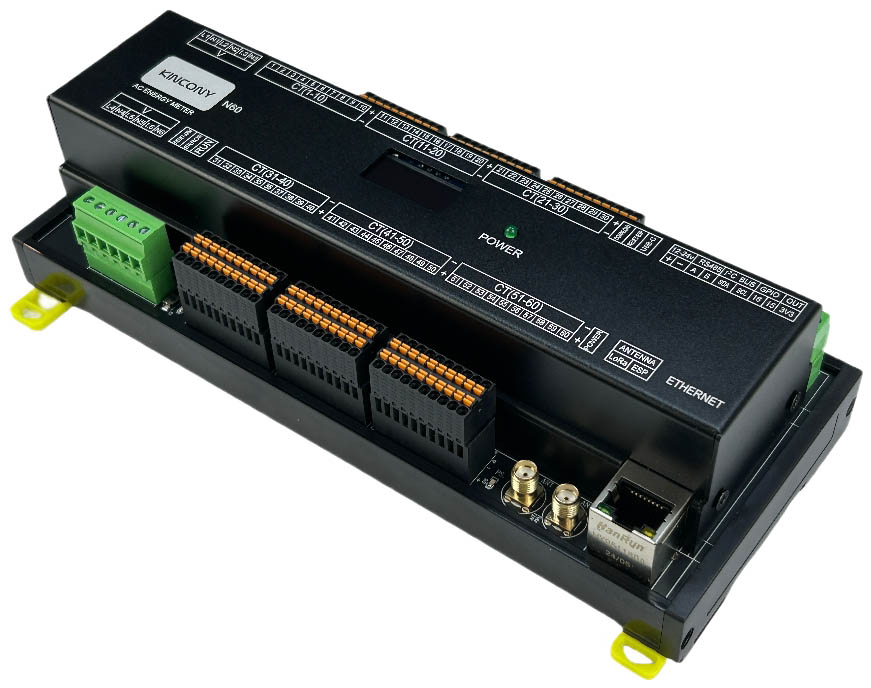

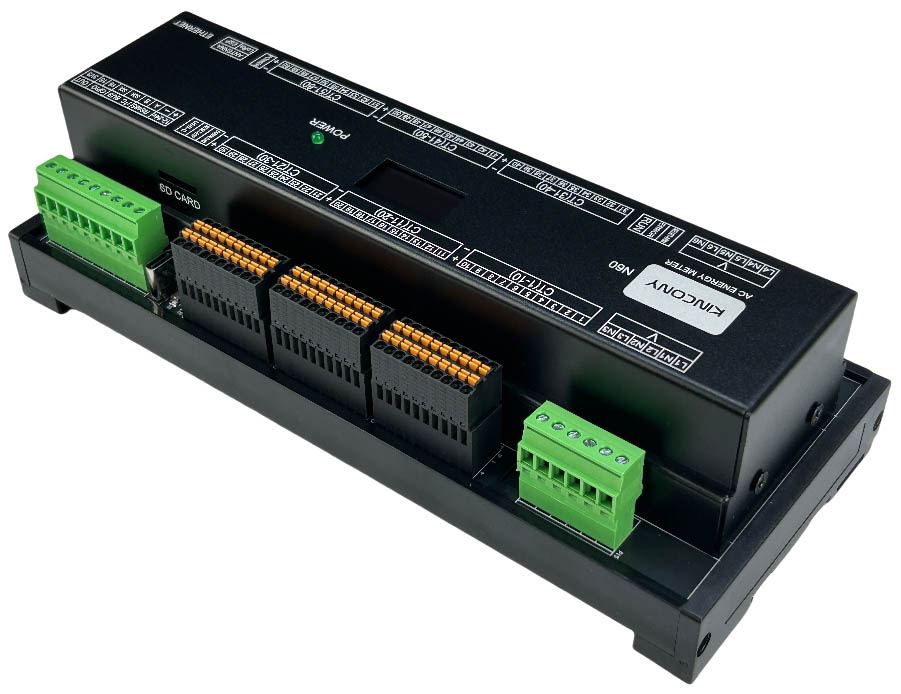

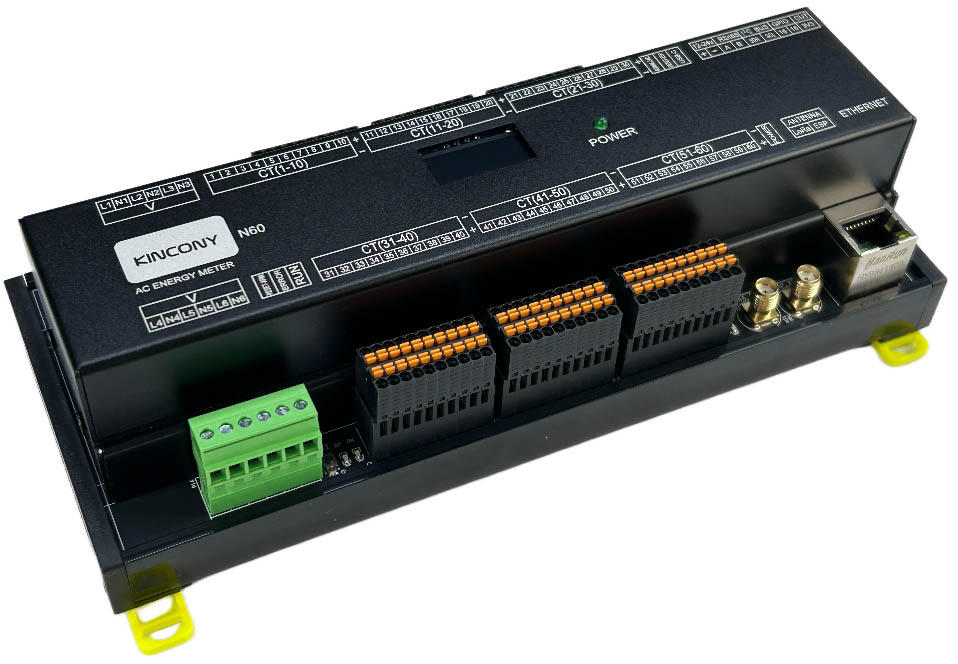

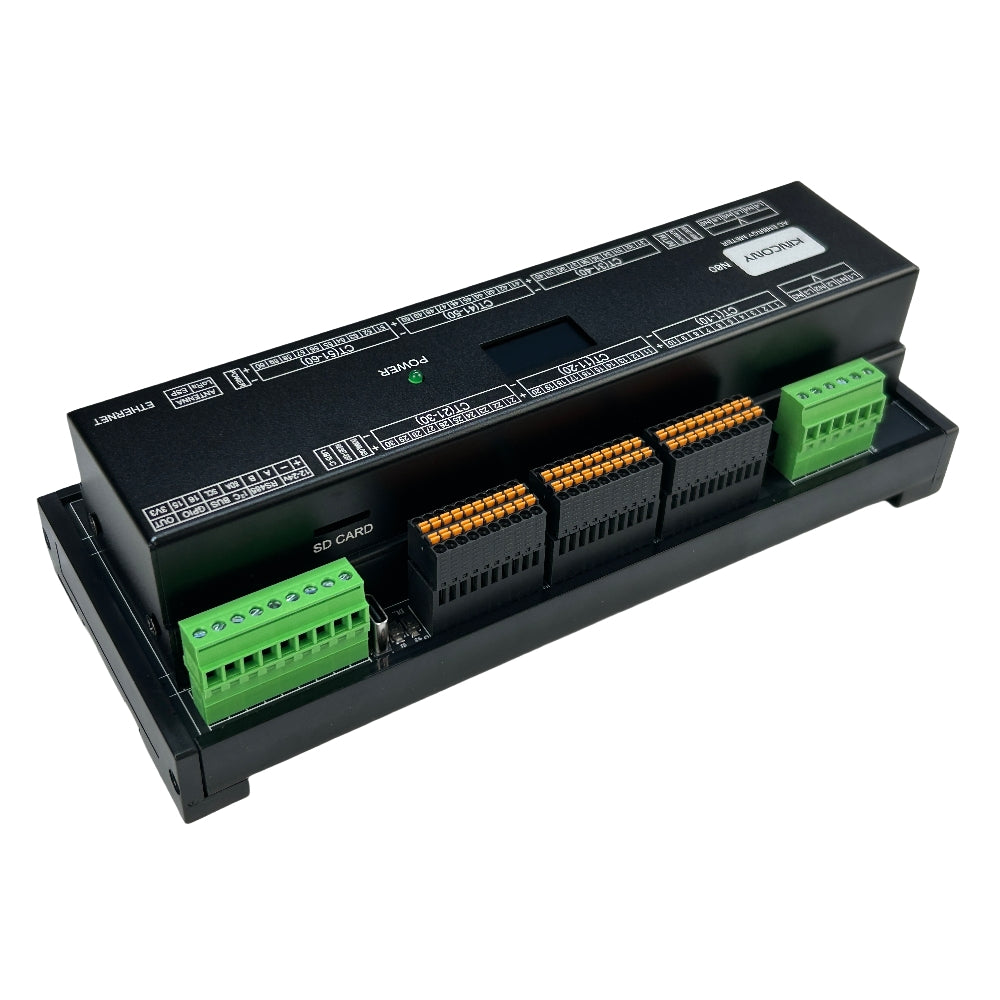

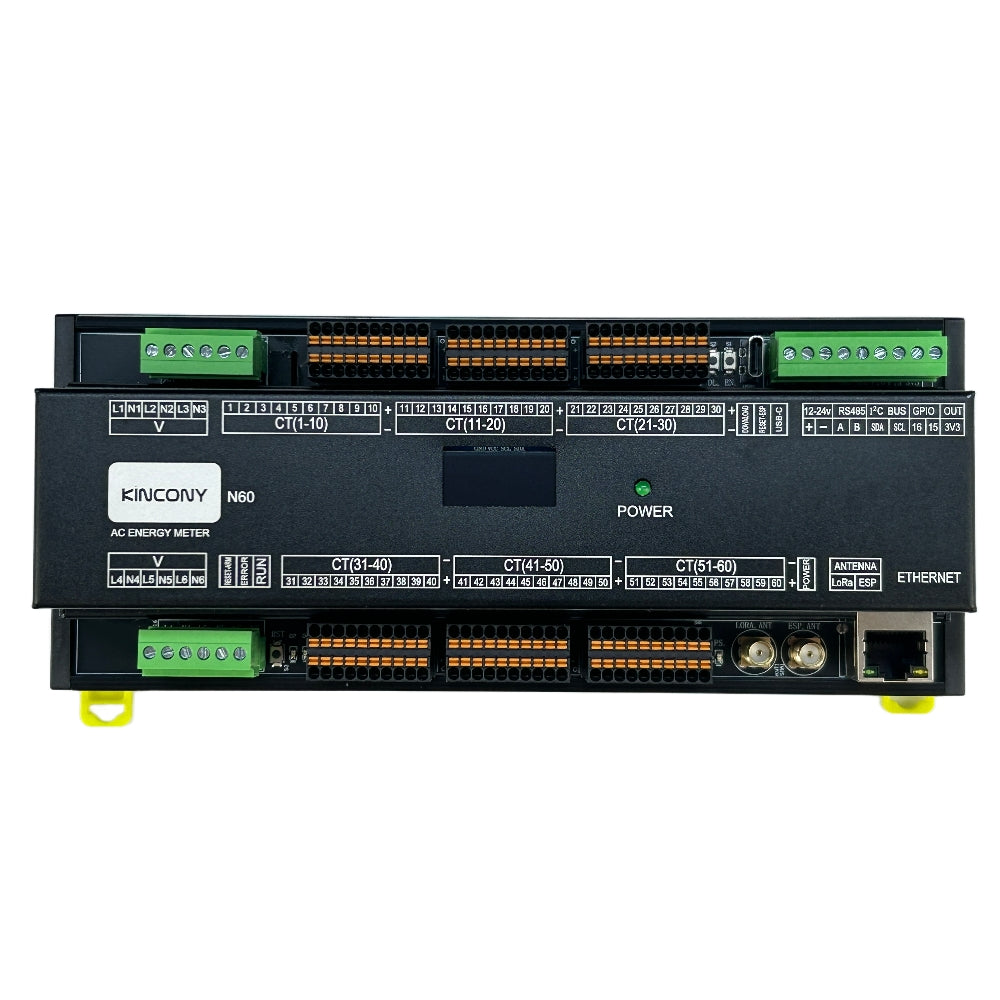

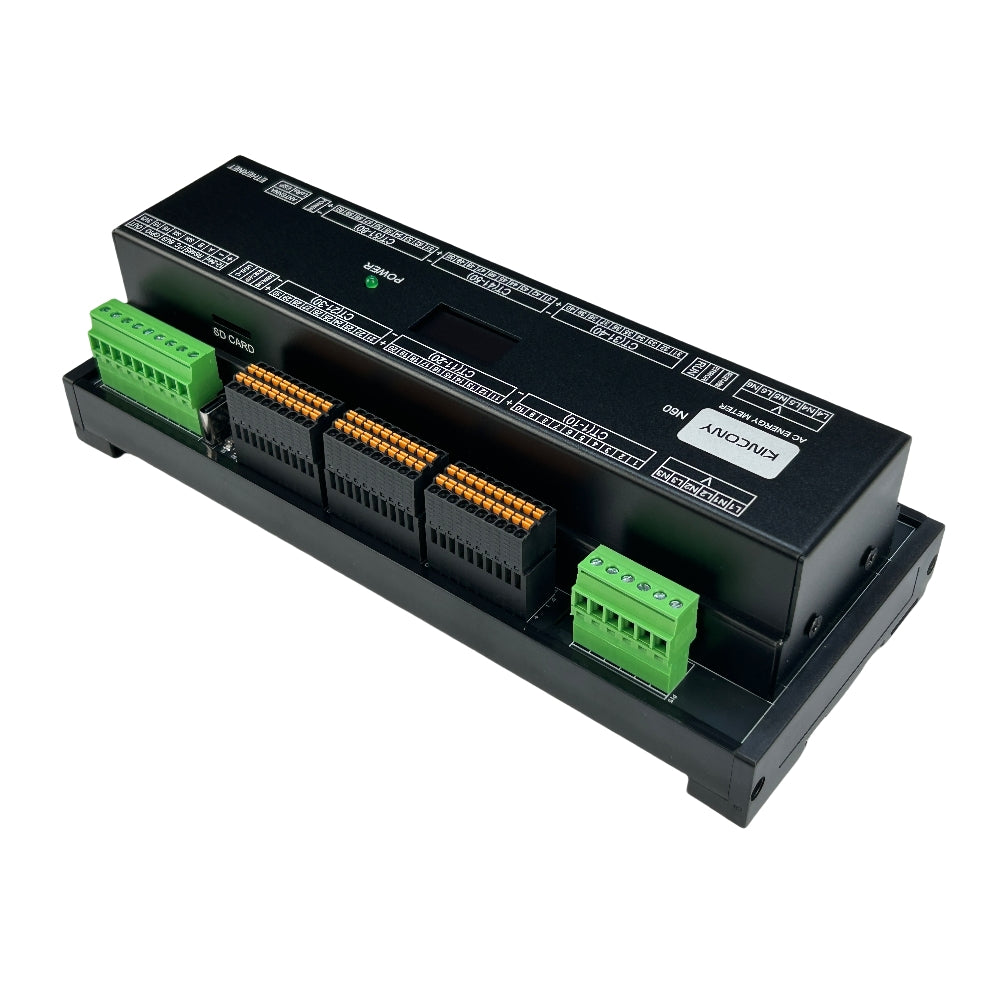

60 Channel ESP32 AC LoRa Energy Meter – N60

60 Channel ESP32 AC LoRa Energy Meter – N60

Regular price $400.00 USD
Regular price Sale price $400.00 USD
Sale Sold out
Shipping calculated at checkout.
Bundle

We have designed 60 Channel ESP32 energy monitor board – N60 (ESP32 30 Channel CT Clamp Energy Monitor) for home automation project. It based on ESP32-S3-WROOM-1U (N16R8) wifi chip. The hardware have 60CH CT Clamp sensor INPUT ports + 6CH ZMPT101B voltage sensor + SD card + LoRa module + OLED display + free GPIOs. Ethernet+RS485+i2c extender 60CH high-accuracy energy meter ic-BL0910 with CT clamp. You can write any code by Arduino IDE / Micro Python / ESP-IDF development tool to ESP32-S3 module. We will supply Arduino demo code for different samples. Everyone can modify and change the code for your own smart home automation system project. it support use by ESPHome for home assistant for smart home automation DIY. N60 use KCS v3 firmware, it support home assistant auto discovery function by MQTT, so without write any config code (zero code) for home assistant. KCS v3 support KinCony cloud service (official shop customer free 2 years), remote monitor and control device by webpage in anywhere. N60 support connect to your own cloud server by MQTT.

smart energy meter

Model No. KinCony N60
Description: KinCony 60 Channel AC Energy Meter – N60
Power supply: 12-24V DC
Processor: ESP32-S3-WROOM-1U (N16R8)
Size: 202mm*83mm*56mm
interfaces: Ethernet(RJ45)-LAN 100Mbps IPv4/IPv6,WiFi,RS485,Bluetooth,LoRa,USB-C,i2c extender
Installation method: DIN RAIL
CT Clamp: 60 channel 2000:1 CT clamp “voltage” sensor
6 channel AC voltage: AC 0-380v
Button-DL: ESP32S3 download
Button-EN: ESP32S3 reset
Button-RST: RESET for ARM CPU
LED:
D5: power LED
D7: error LED
D6: running LED
Free GPIOs: GPIO15,GPIO16

esp32 energy meter

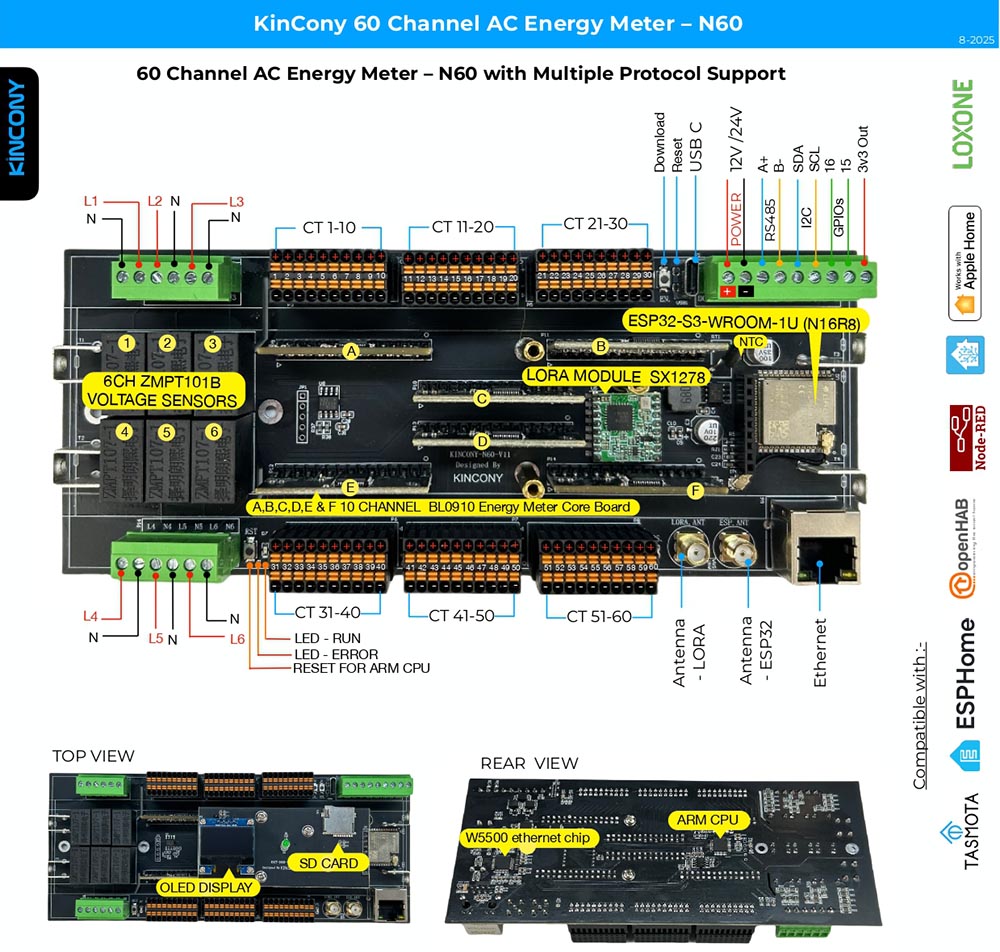

energy meter diagram

what’s mainly different between N60 and M30 energy meter board:

1. N60 use by KCS v3 using ESP32-S3 large memory CPU, M30 use by KCS v2 using ESP32 CPU.
2. N60 have flash chip save the total energy data when N60 power off.
3. N60 use SD card to save energy data as excel file for every one hour.
4. N60 have i2c extender, easy extend i2c temperature and humidity sensors.
5. N60 have 2 free GPIOs use for sensor or KinCony G1 4G module.
6. N60 support use by MAX 250A CT clamp sensor. M30 support MAX 120A CT clamp sensor.
7. N60 support LoRa for KinCony ALR or KC868-A6v3 LoRa board.
8. N60 added new coefficient correction settings page
9. N60 use new Modbus protocol for user to read and config all channel data.
10. N60 support IFTTT, automatic send command by voltage or current or some other IF condition.

esp32 energy meter

software solution:

1. download KinCony KCS v3 firmware, so that work with MQTT protocol. “KCS” support IFTTT function work locally without internet. It also support use by KinCony cloud server. KCS v3 support home assistant auto discovery function by MQTT, so without any config file for home assistant.

2. download firmware by ESPHome, integrate to home assistant or use by web service.

3. use PC software to read all data from N60.

4. write your own Arduino or ESP-IDF code for your own requirements.

Order bundles:

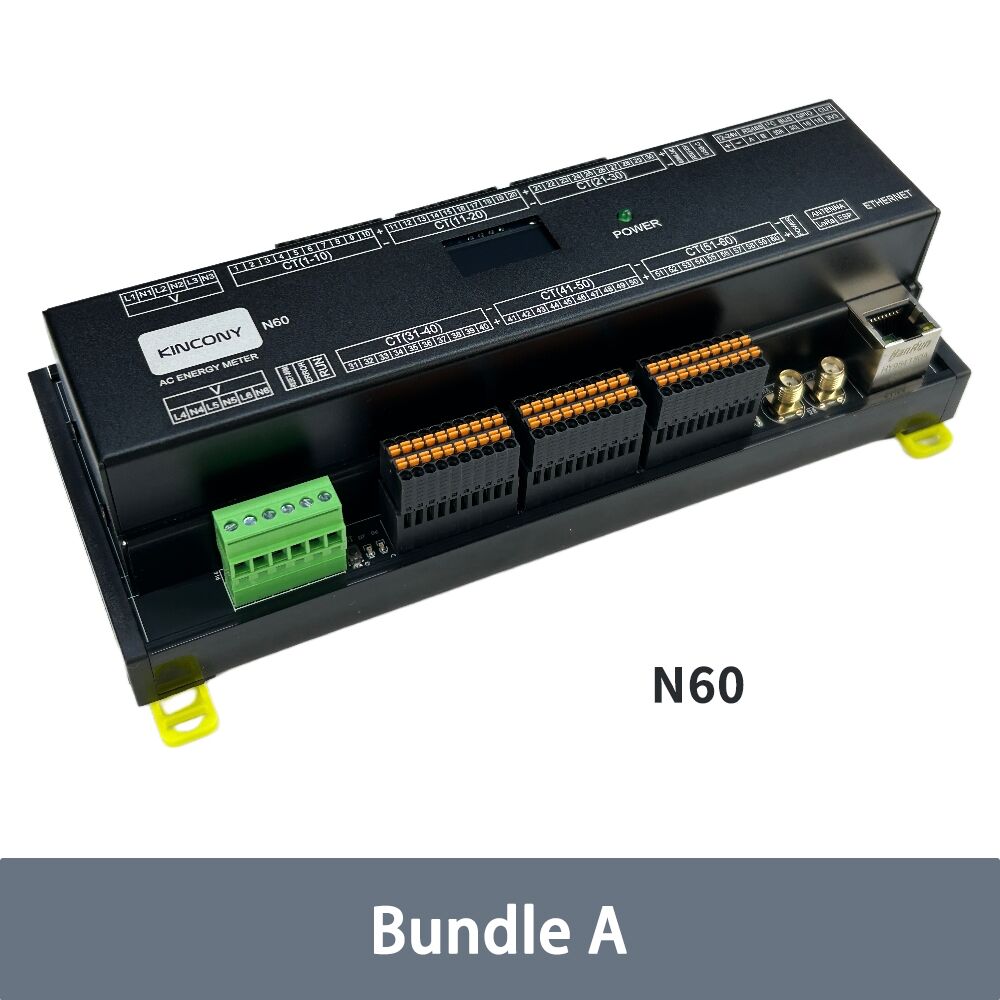

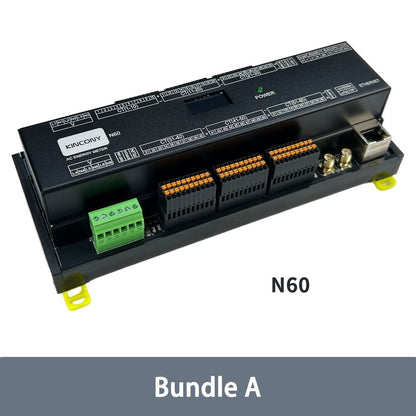

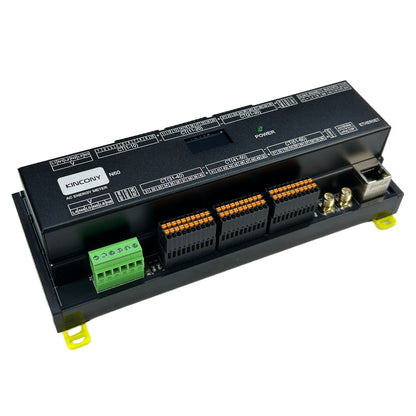

Bundle A: N60

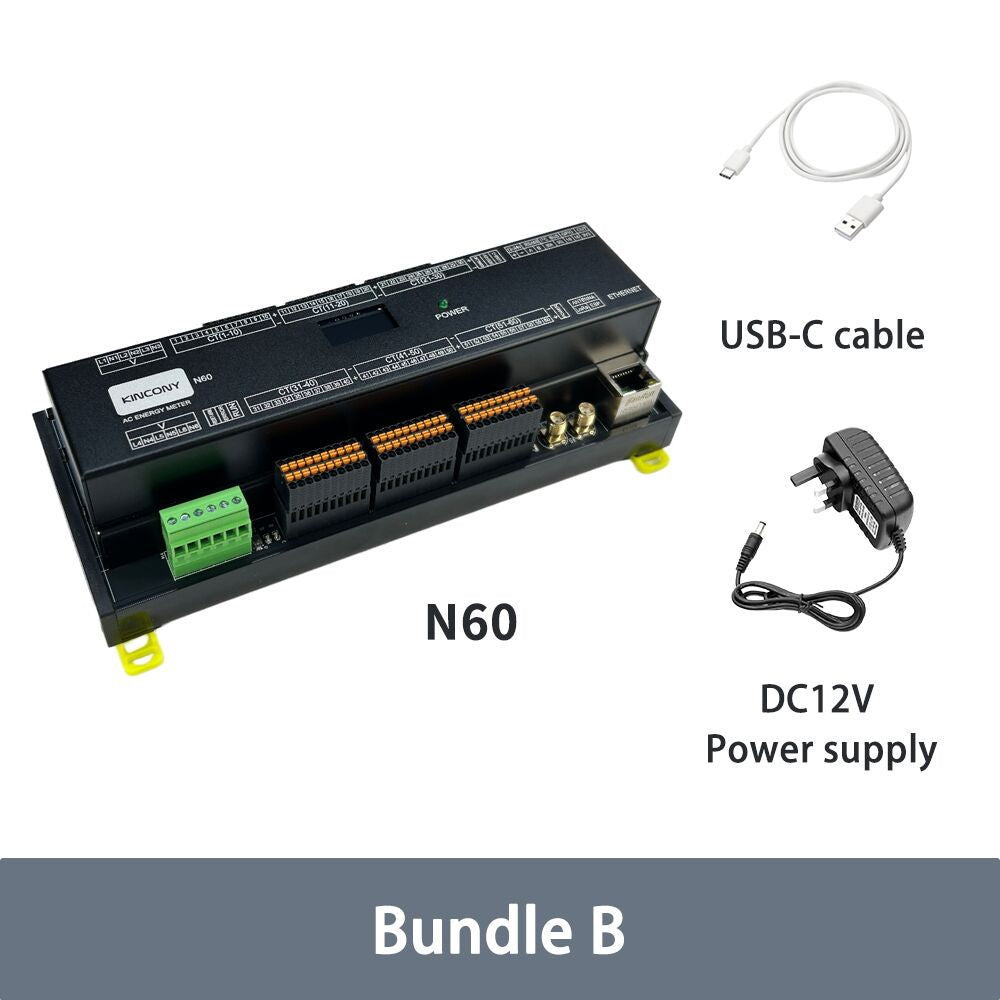

Bundle B: N60 + USB-C cable + power supply

Related technical information
———————————
ESP32 I/O pin define: https://www.kincony.com/forum/showthread.php?tid=8400
config yaml file for ESPHome: https://www.kincony.com/forum/showthread.php?tid=8401
arduino demo source code: https://www.kincony.com/forum/forumdisplay.php?fid=88
how to use “KCS”v3 firmware with N series energy meter board: https://www.kincony.com/how-to-use-kcsv3-firmware-energy-meter.html
KCS v3 firmware online guide: https://www.kincony.com/how-to-use-kcsv3-firmware-esp32-board.html

hardware details:
esp32 energy meter
esp32 energy meter
esp32s3 energy meter

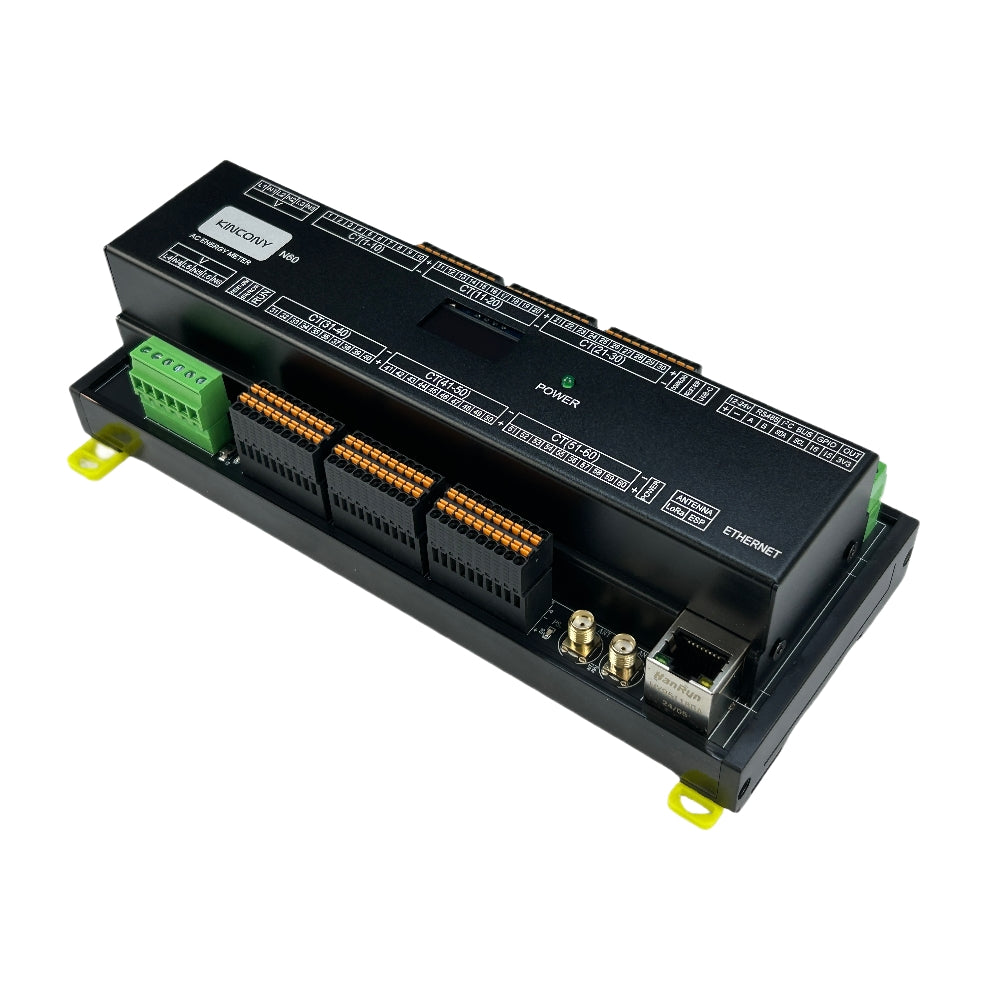

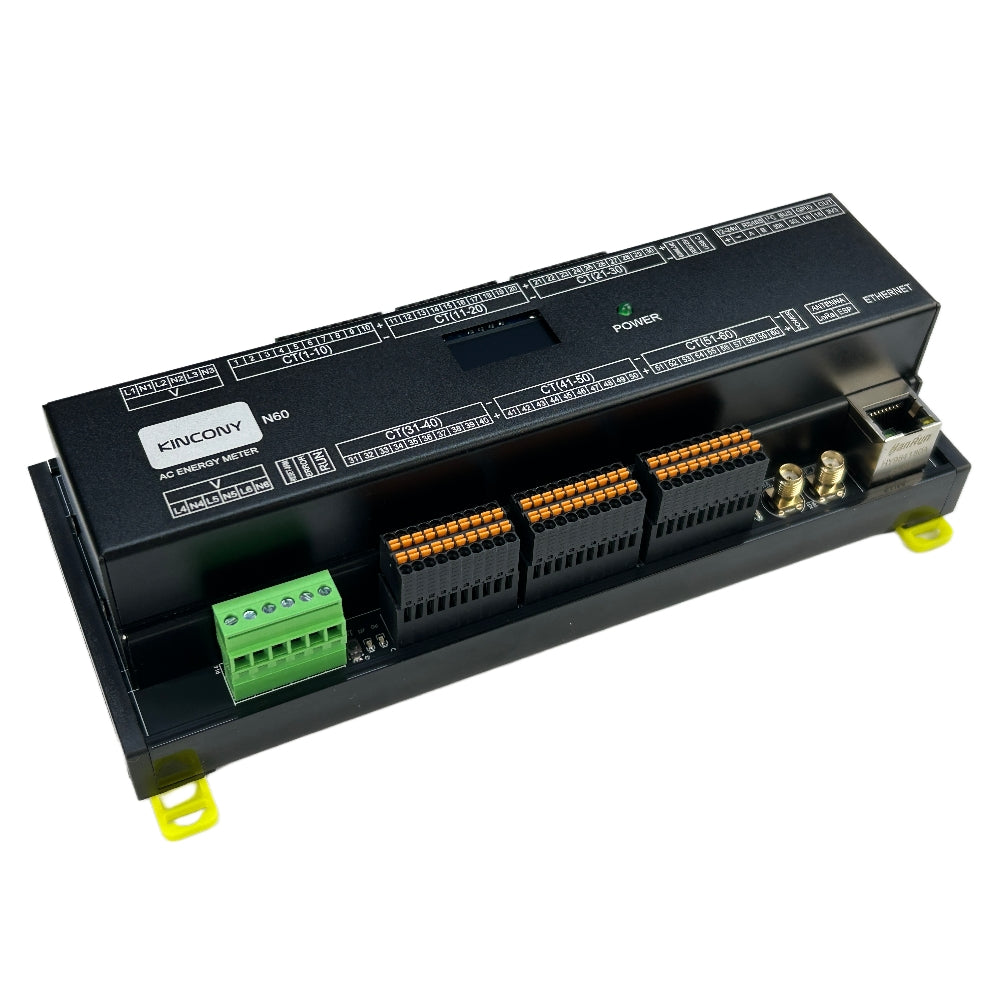

esp32 ac energy meter

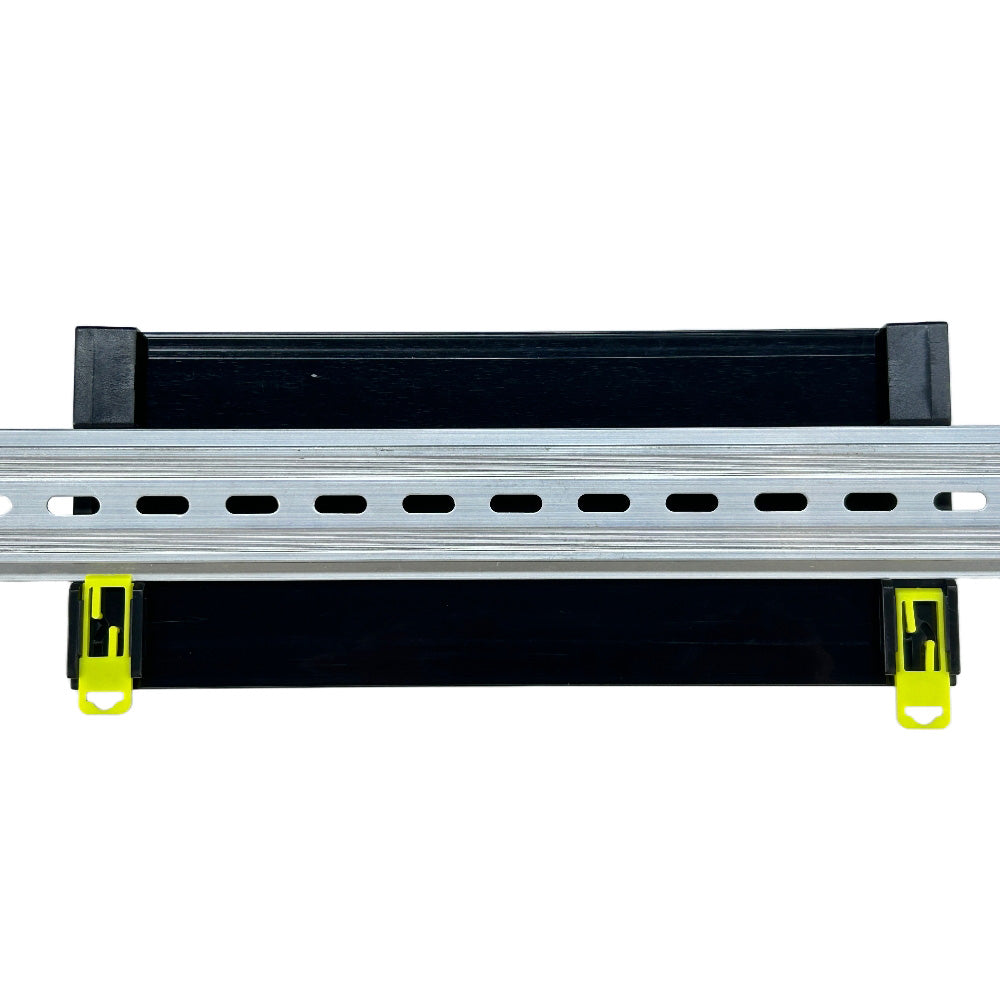

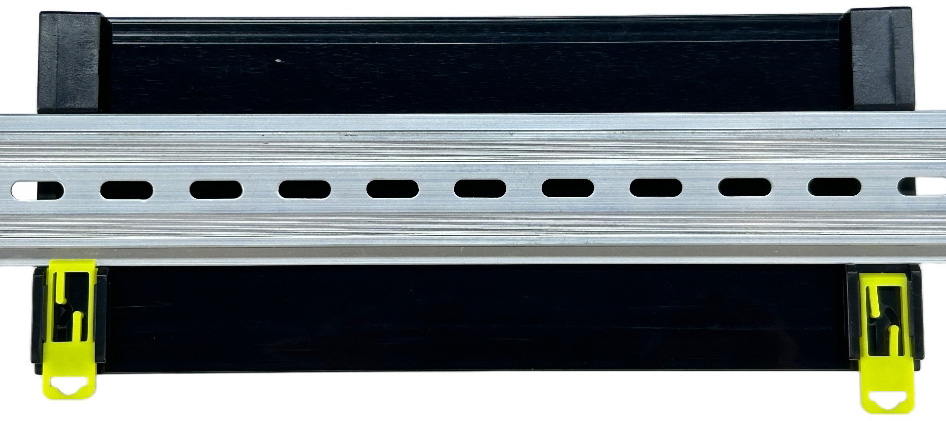

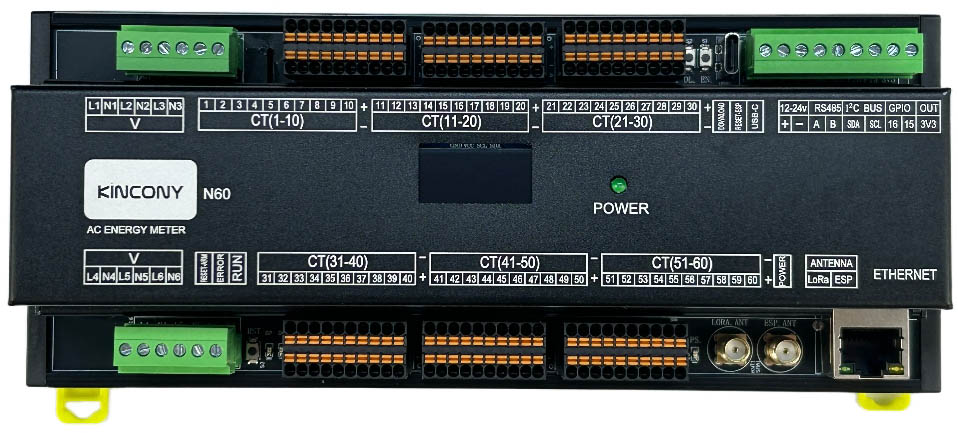

support install on DIN RAIL
esphome energy meter

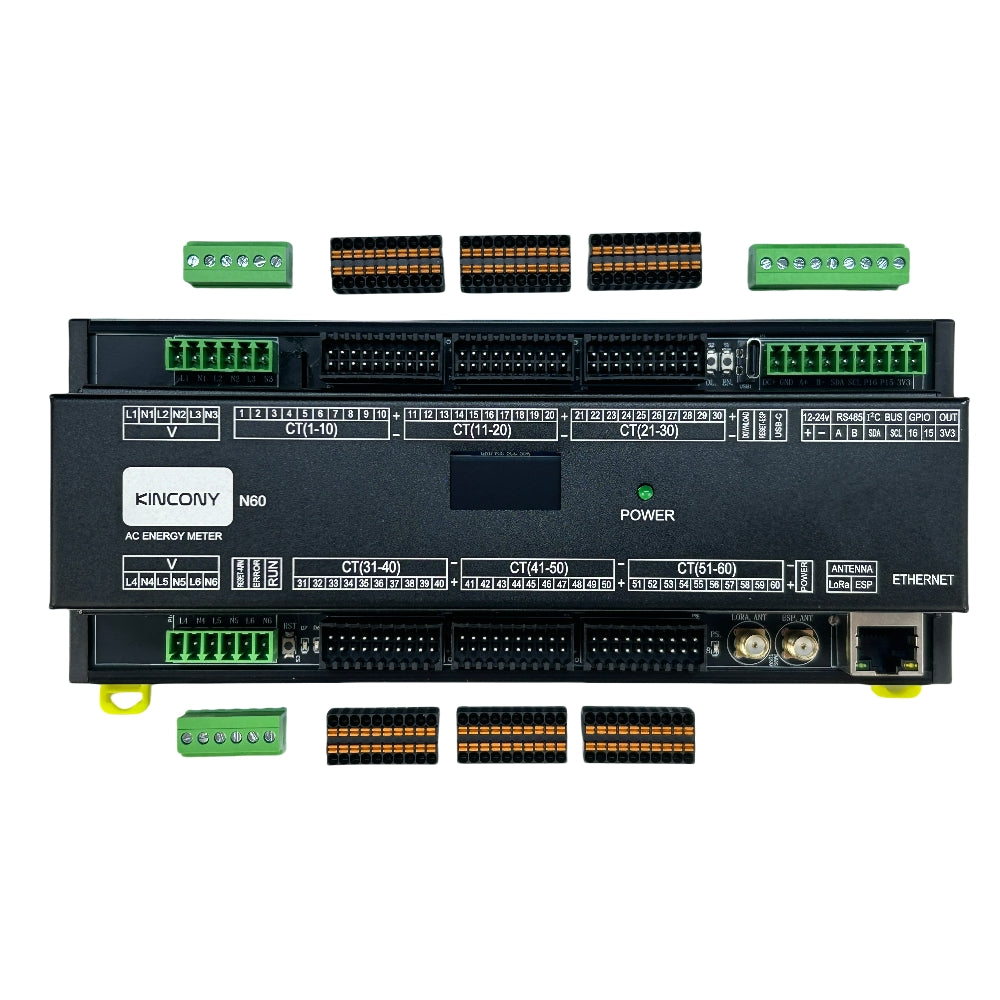

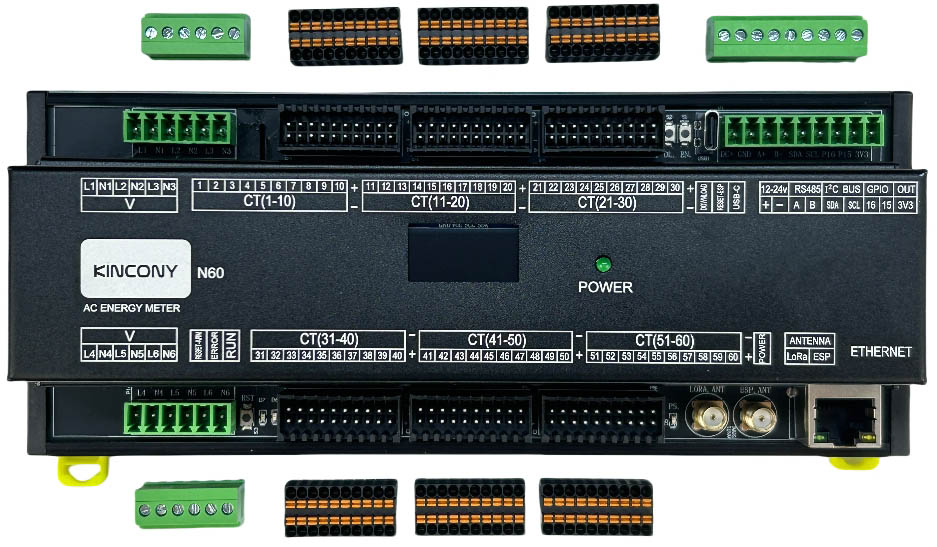

use removable terminal
home assistant energy meter

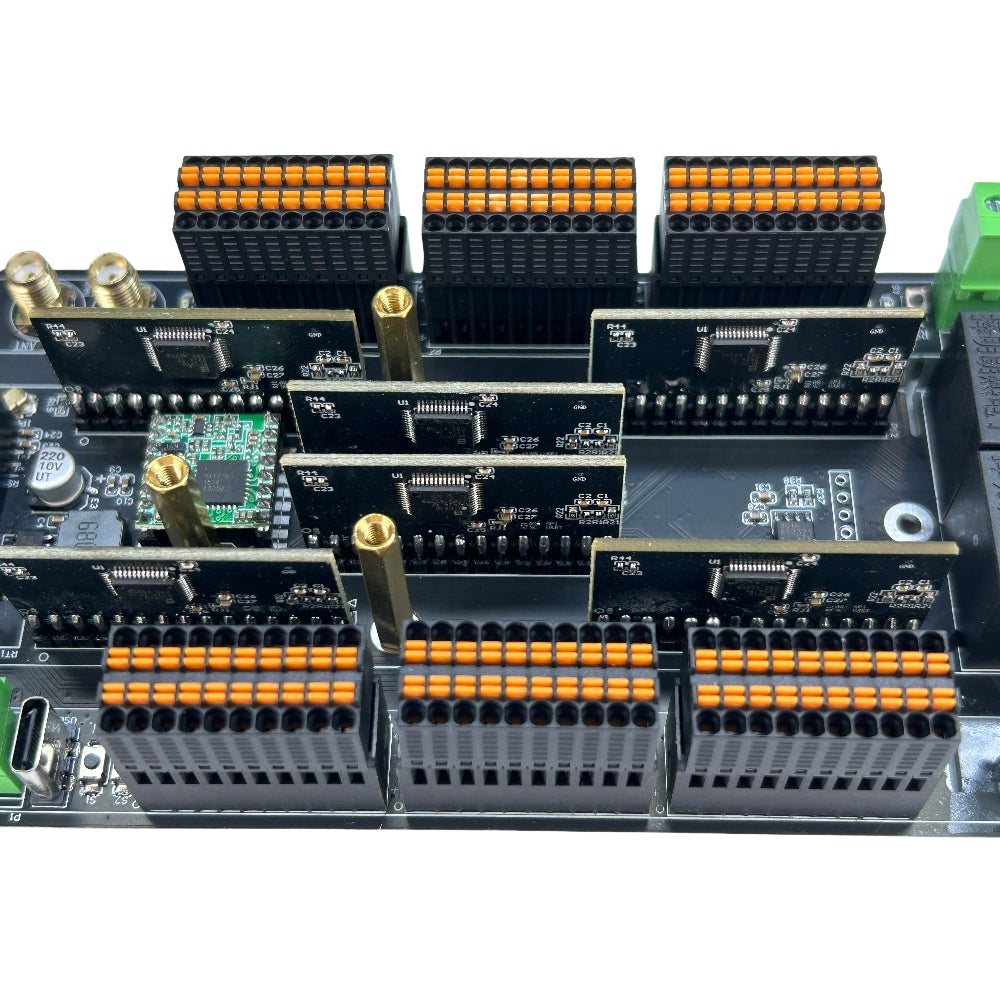

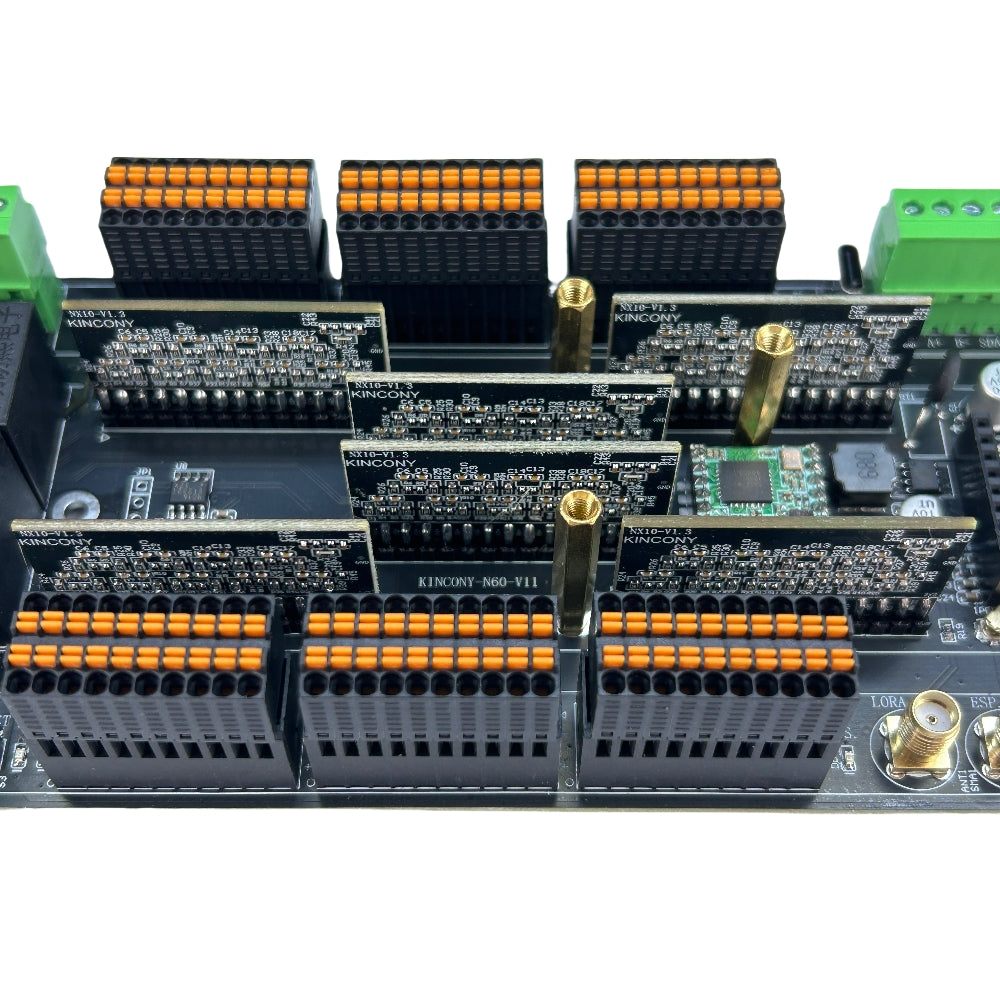

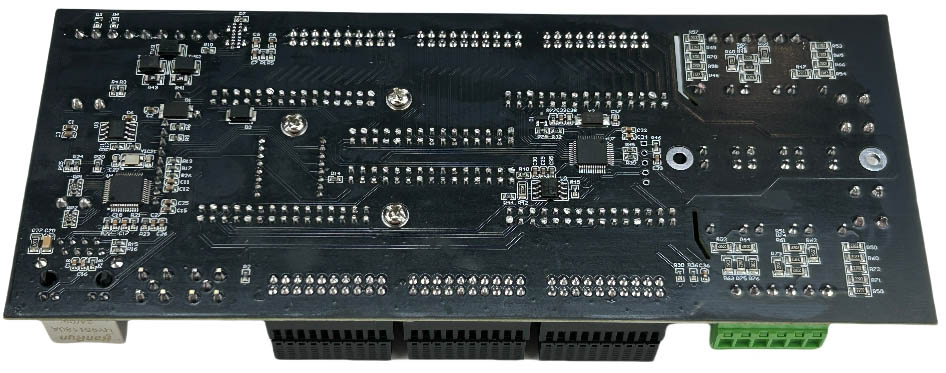

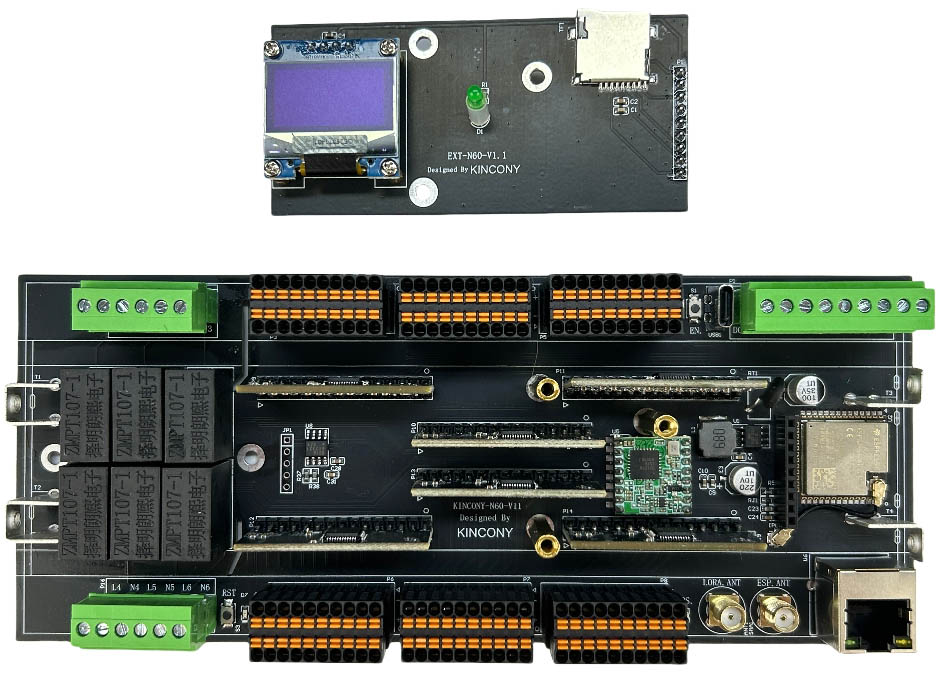

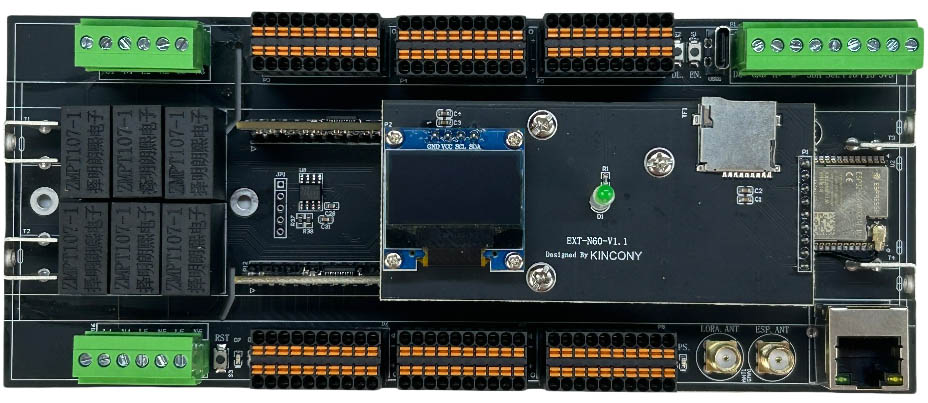

esp32 energy meter pcb

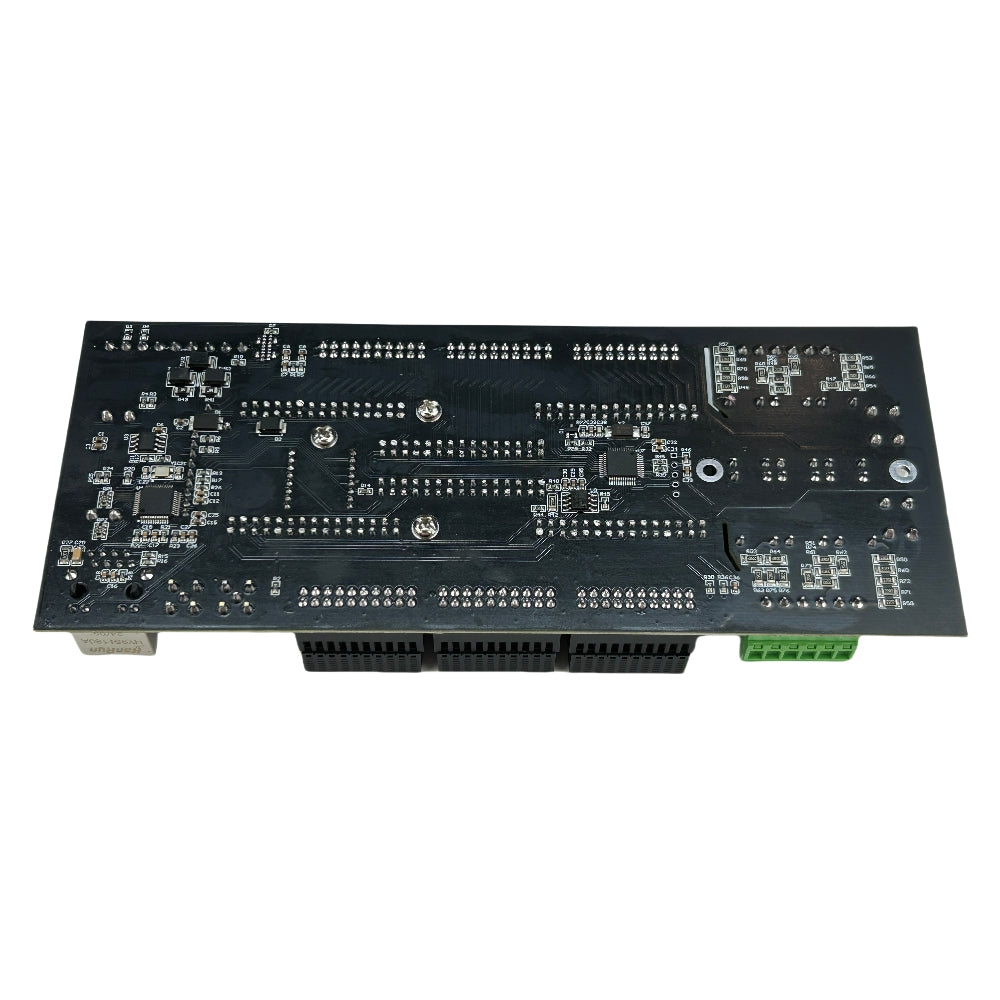

energy meter pcb
arduino energy meter
esp32 energy meter module

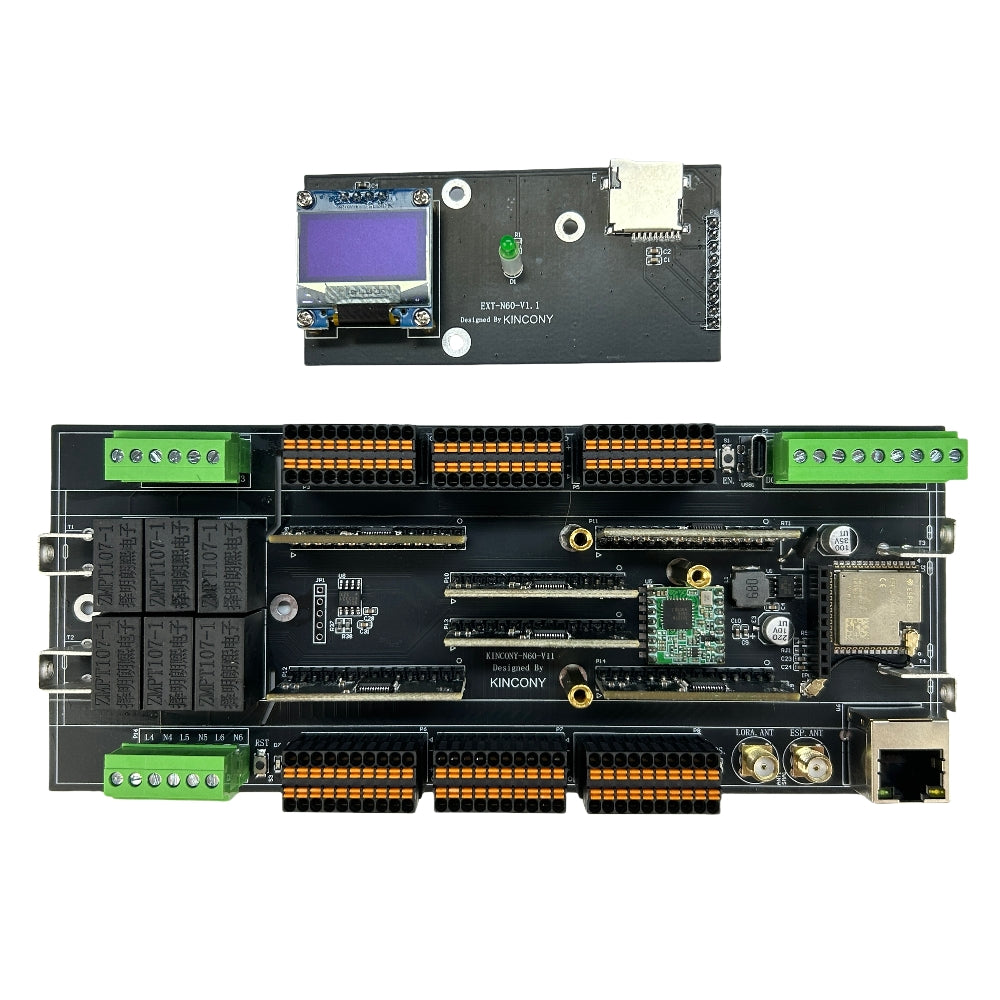

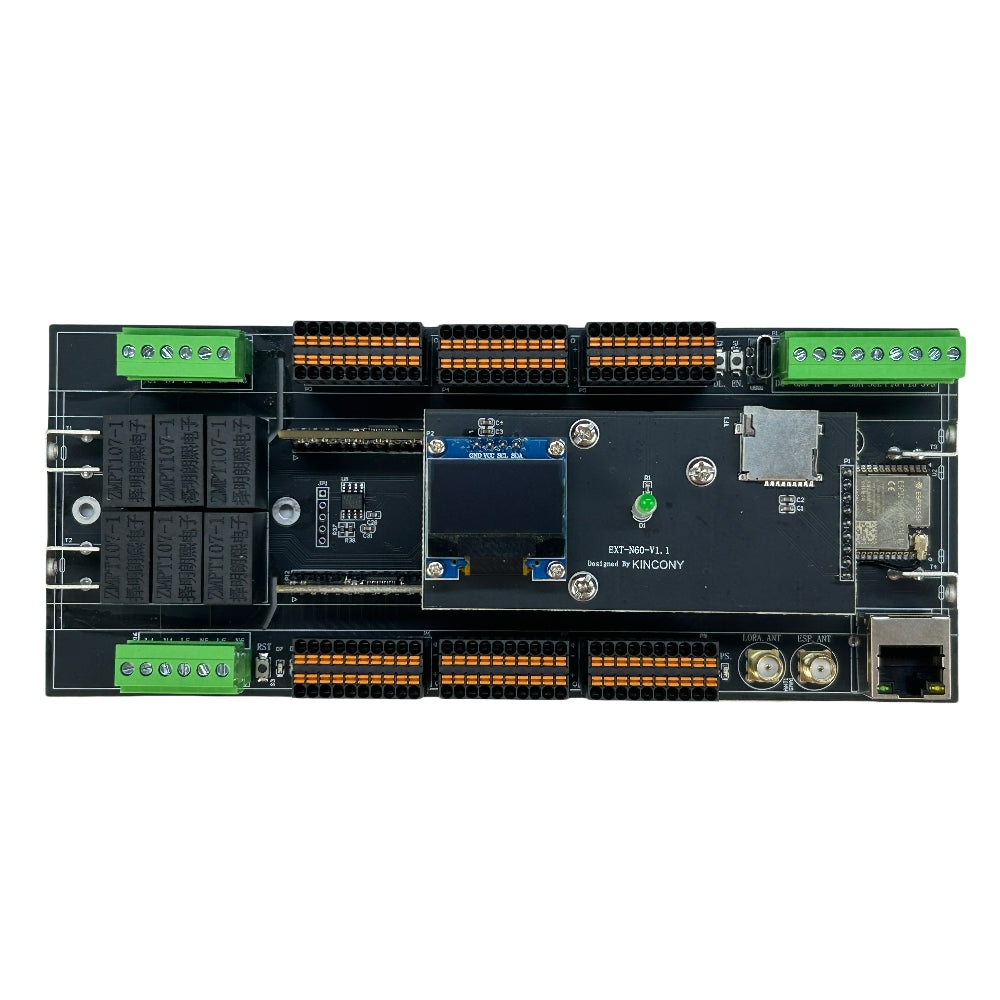

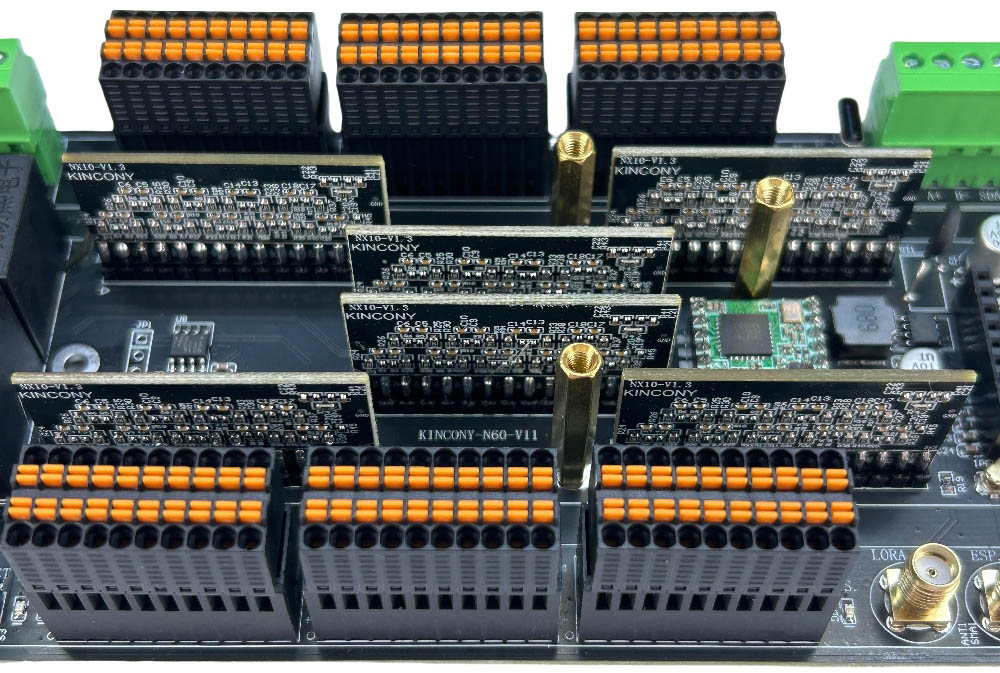

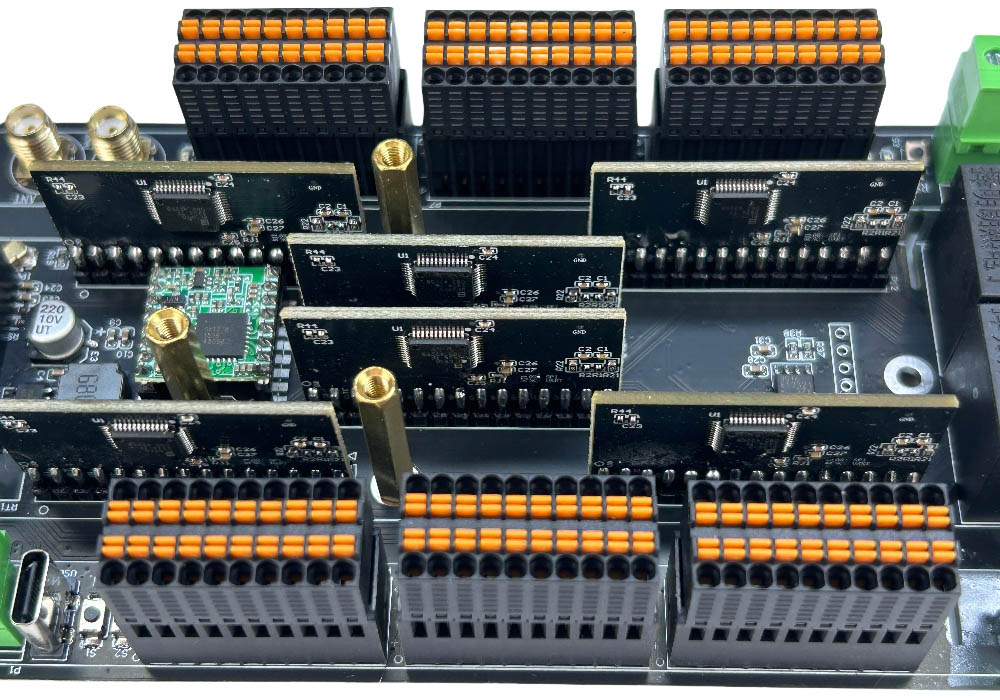

KinCony NX AC energy meter core board.

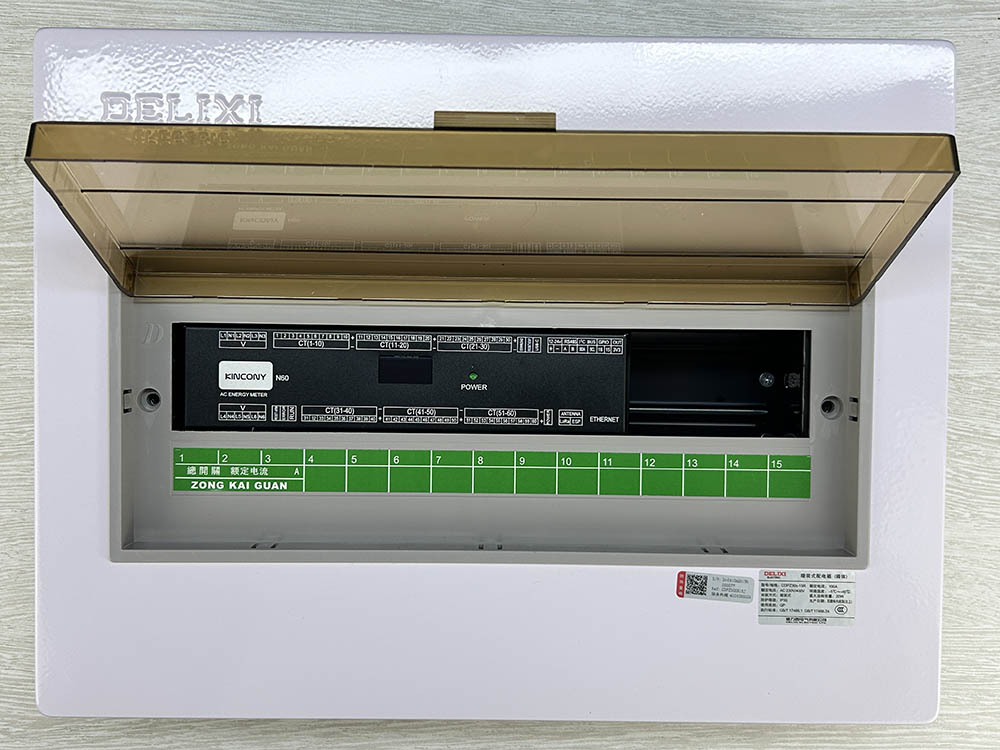

smart db

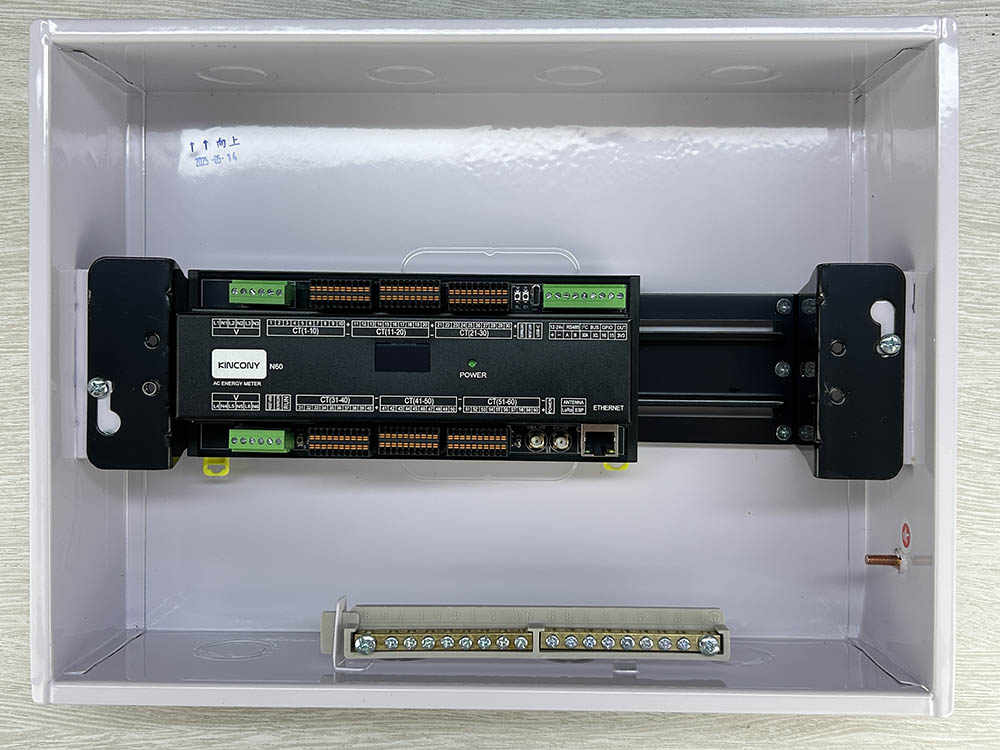

support install inside of smart Power Distribution Box.
energy monitor module
esp32 meter

use by ESP32-S3-WROOM-1U (N16R8) module.

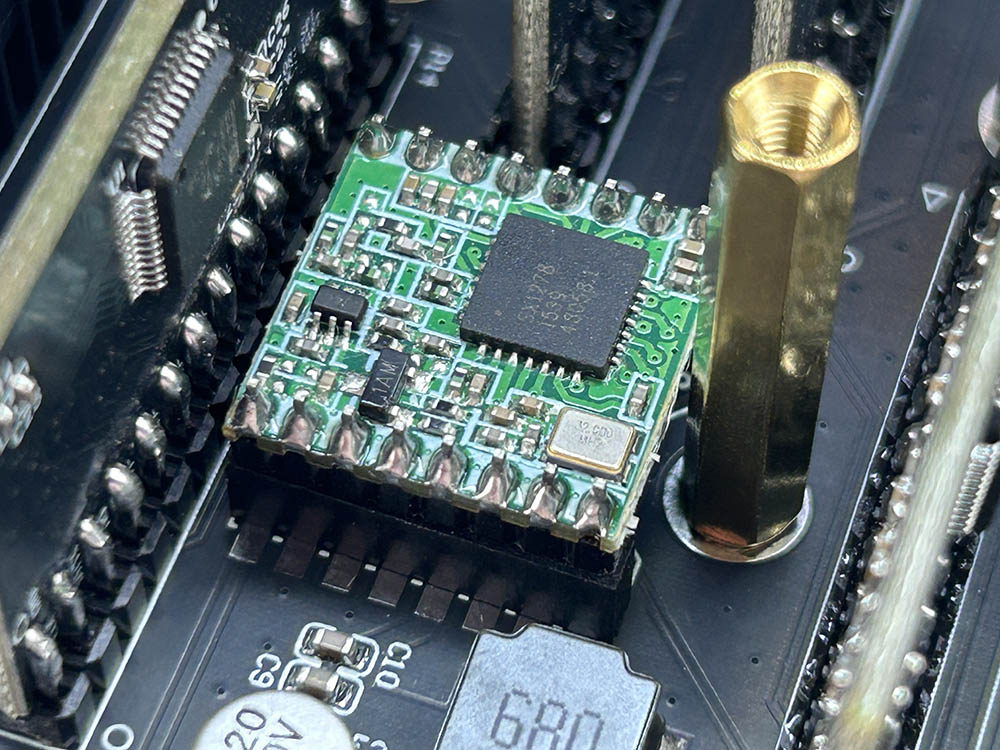

lora energy meter

work with LoRa module.

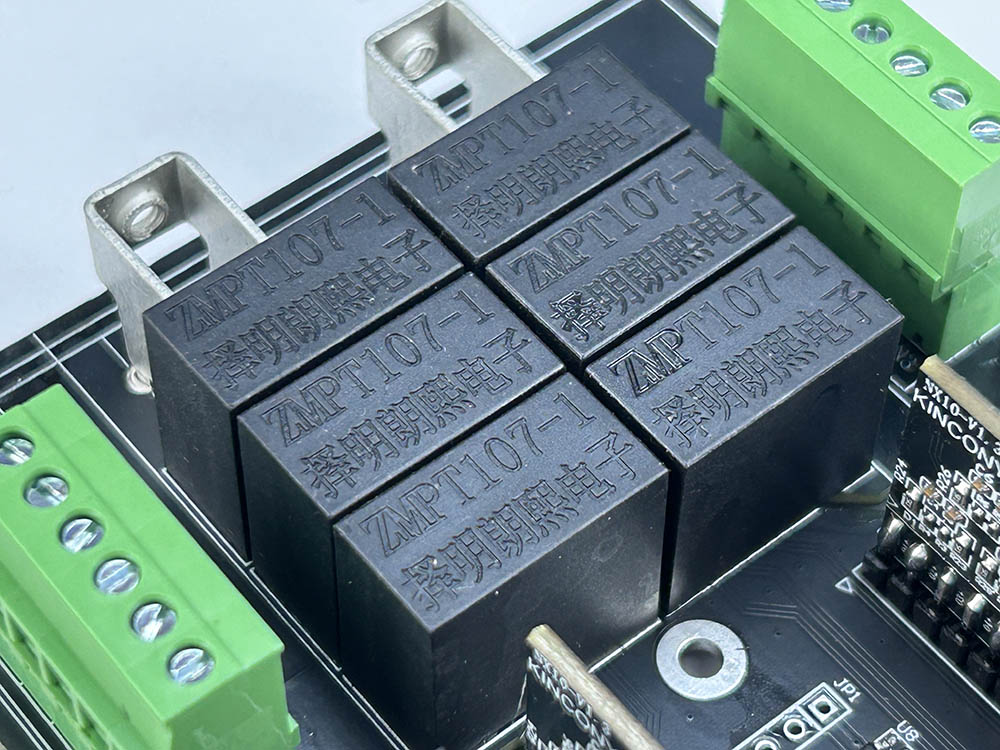

zmpt107-1

energy monitor

work in KCS v3 firmware.

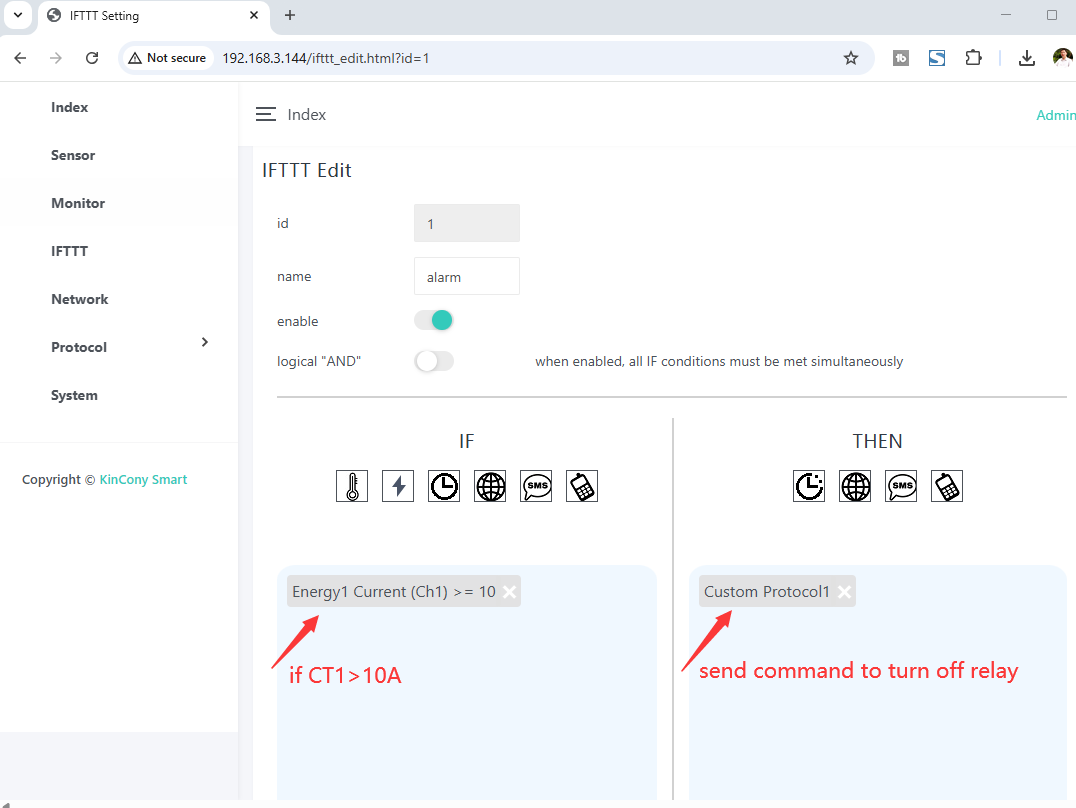

ifttt

locally IFTTT for automation.

if you have disabled LoRa, inserted SD card will save data LOG as Excel file. if you enabled LoRa, SD card will stop save LOG. They can’t work at the same time.

sd card

energy log

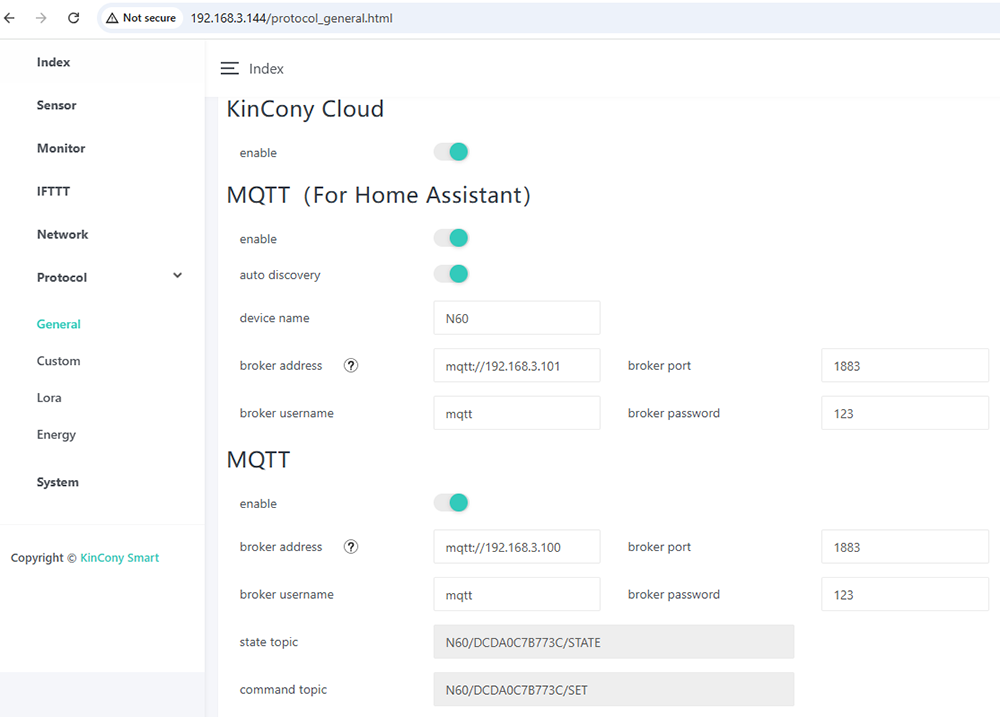

energy meter mqtt

connect to own cloud server by MQTT.
