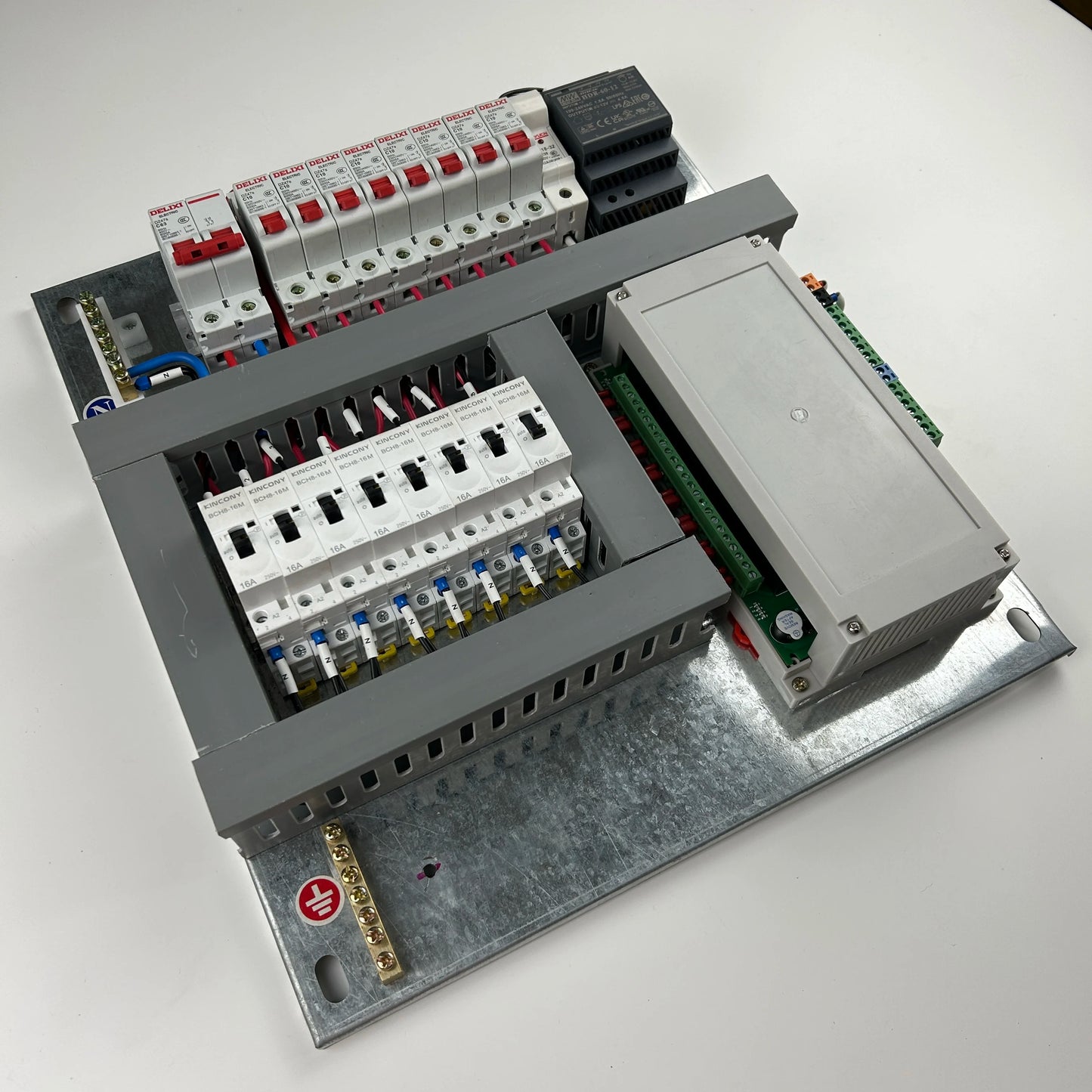

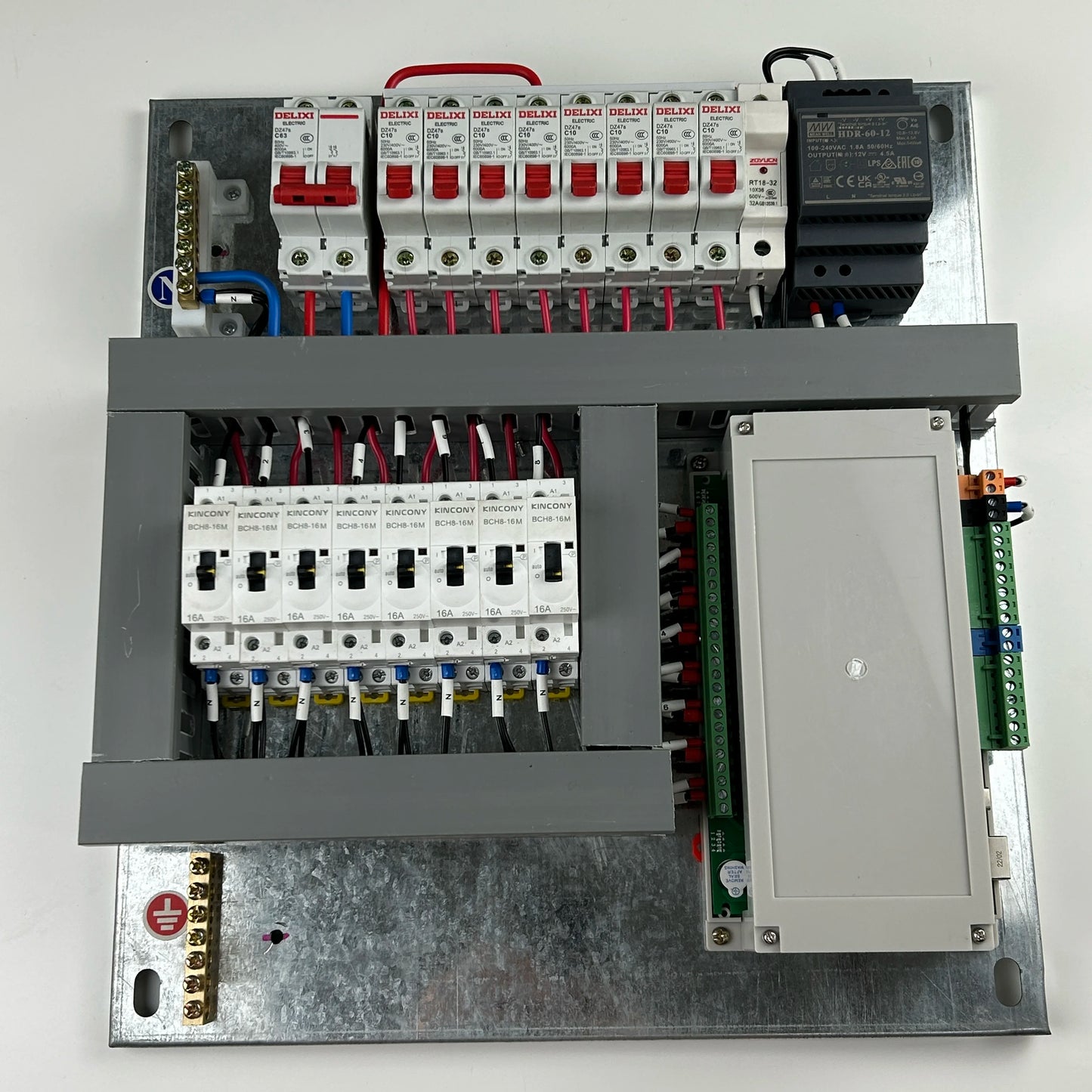

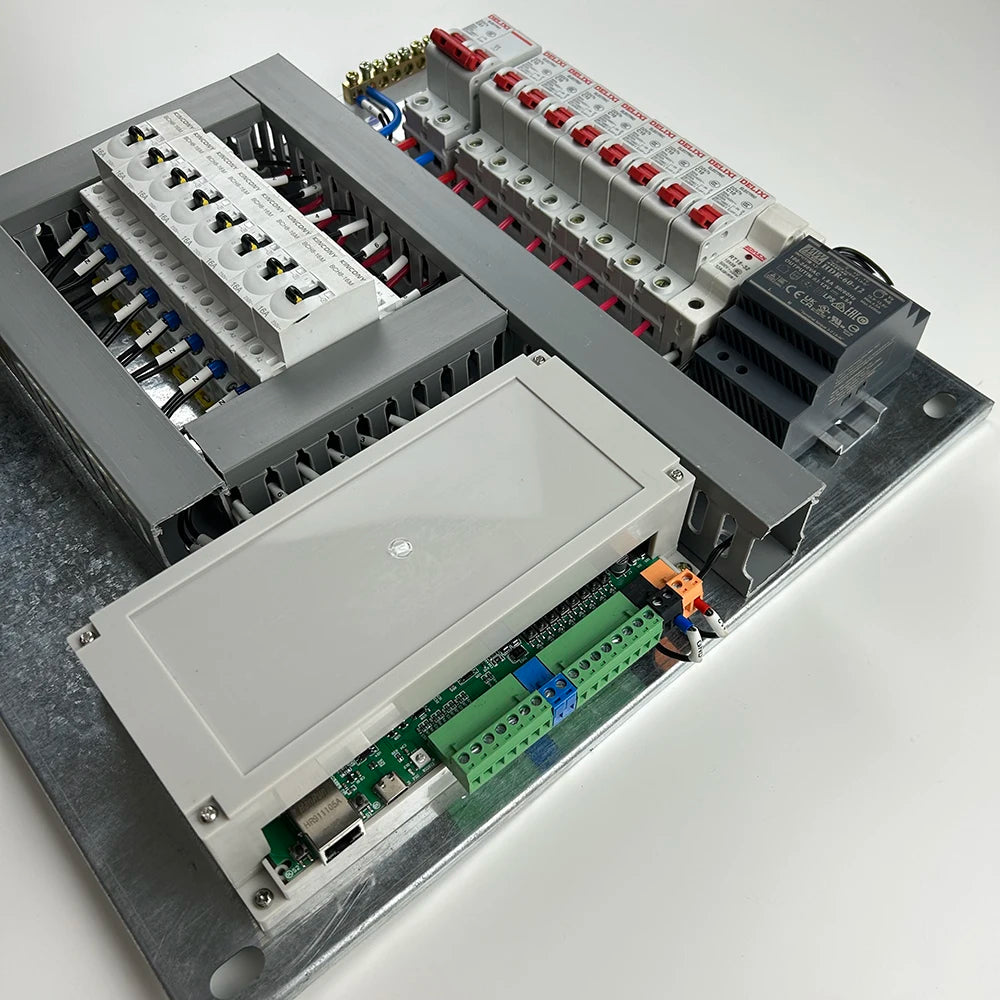

8CH Smart Electrical Distribution Panel (Tuya + Home Assistant)

smart electrical distribution panel use Tuya phone application remote control by internet, if add SIM7600 4G module, support use Tuya app by 4G SIM card. It also support control relay by SMS or telephone call by 4G. smart electrical distribution panel support multi protocol: MQTT, HTTP, TCP, RS485 modbus. It can use home assitant software and Tuya mobile phone app at the same time, easy use to home automation DIY project or IoT project.

parameter:
1. size:40cm*36cm*6cm
2. weigh:5kg

Parts list:

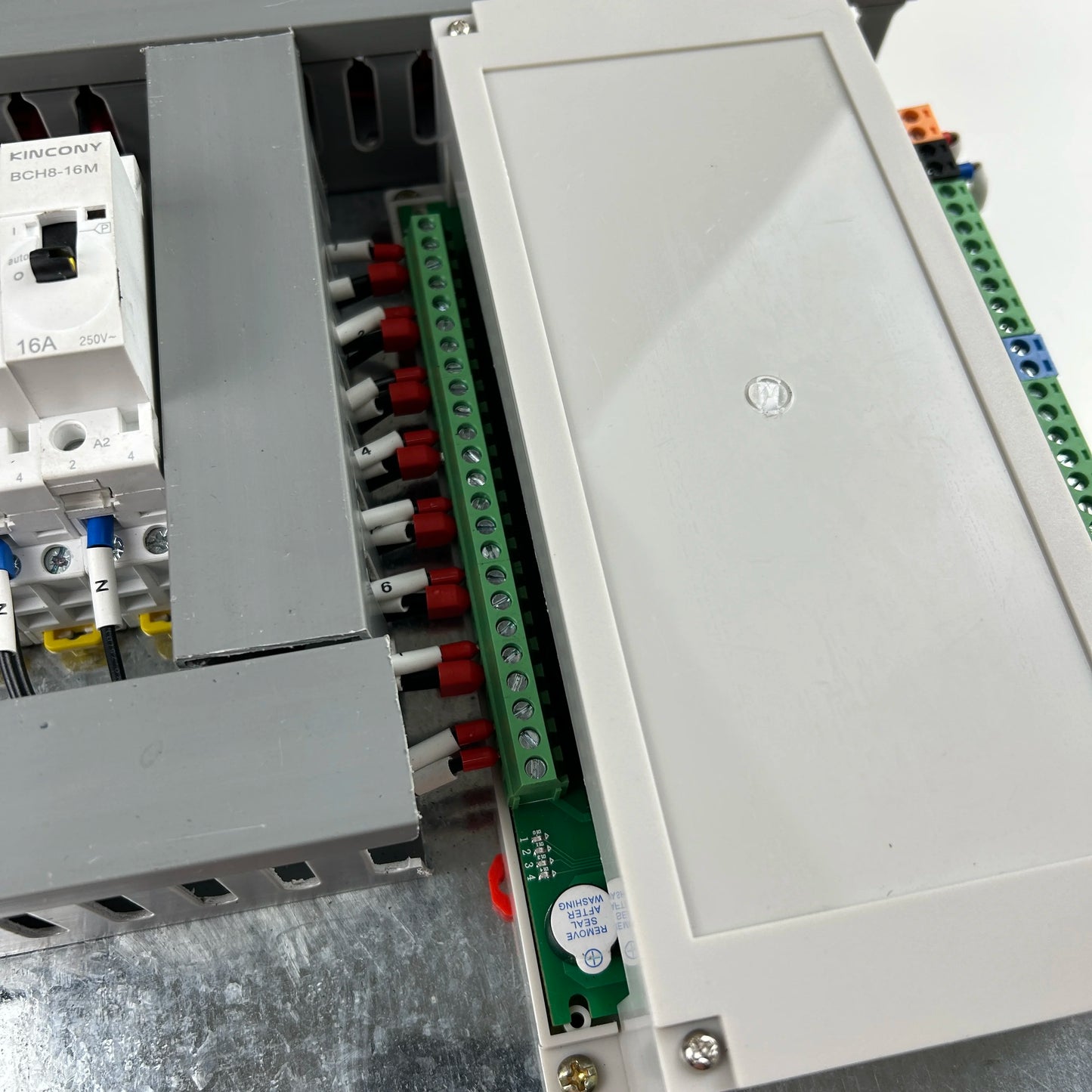

1. KC868-A8S controller:1pc

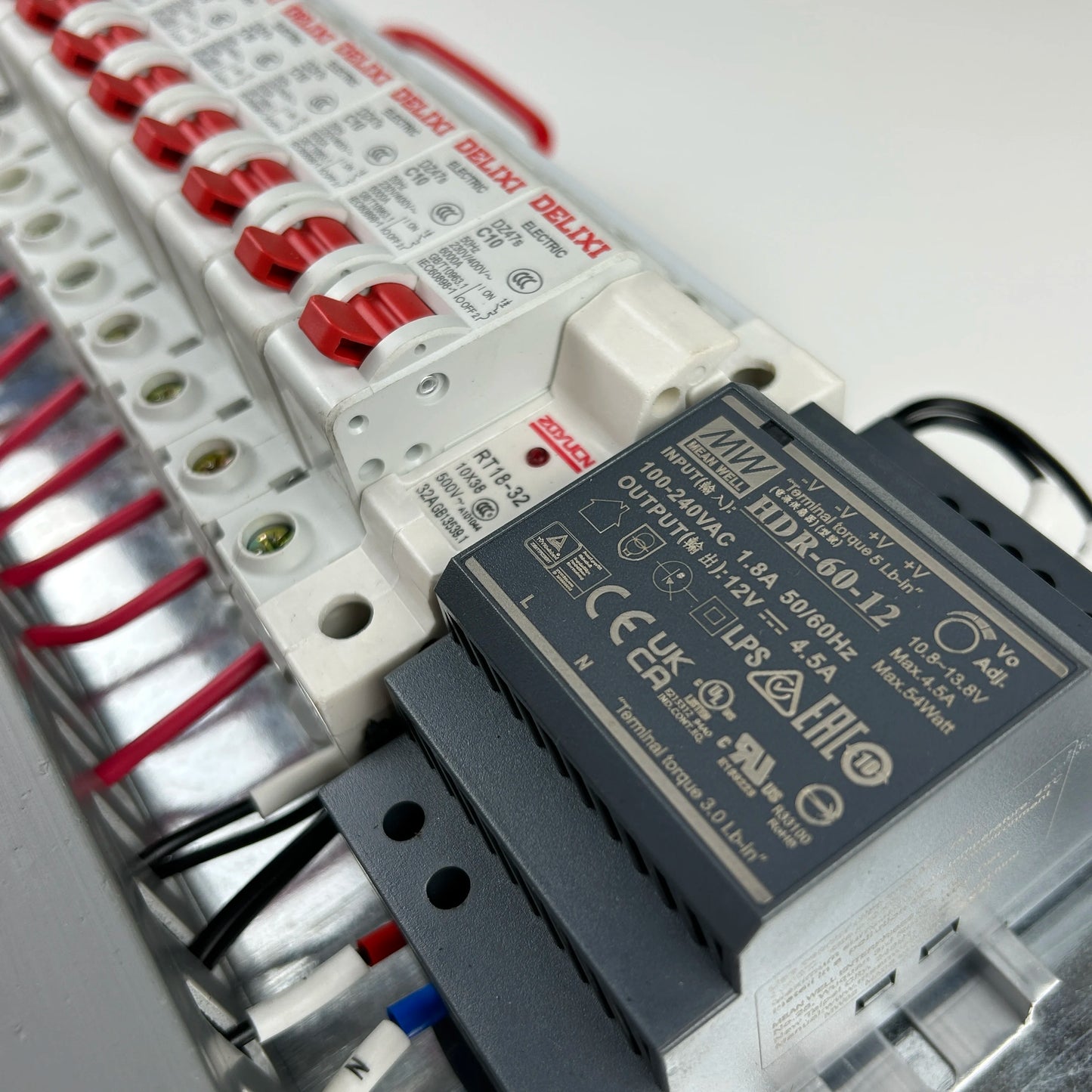

2. DC12v 4.5A power supply:1pc

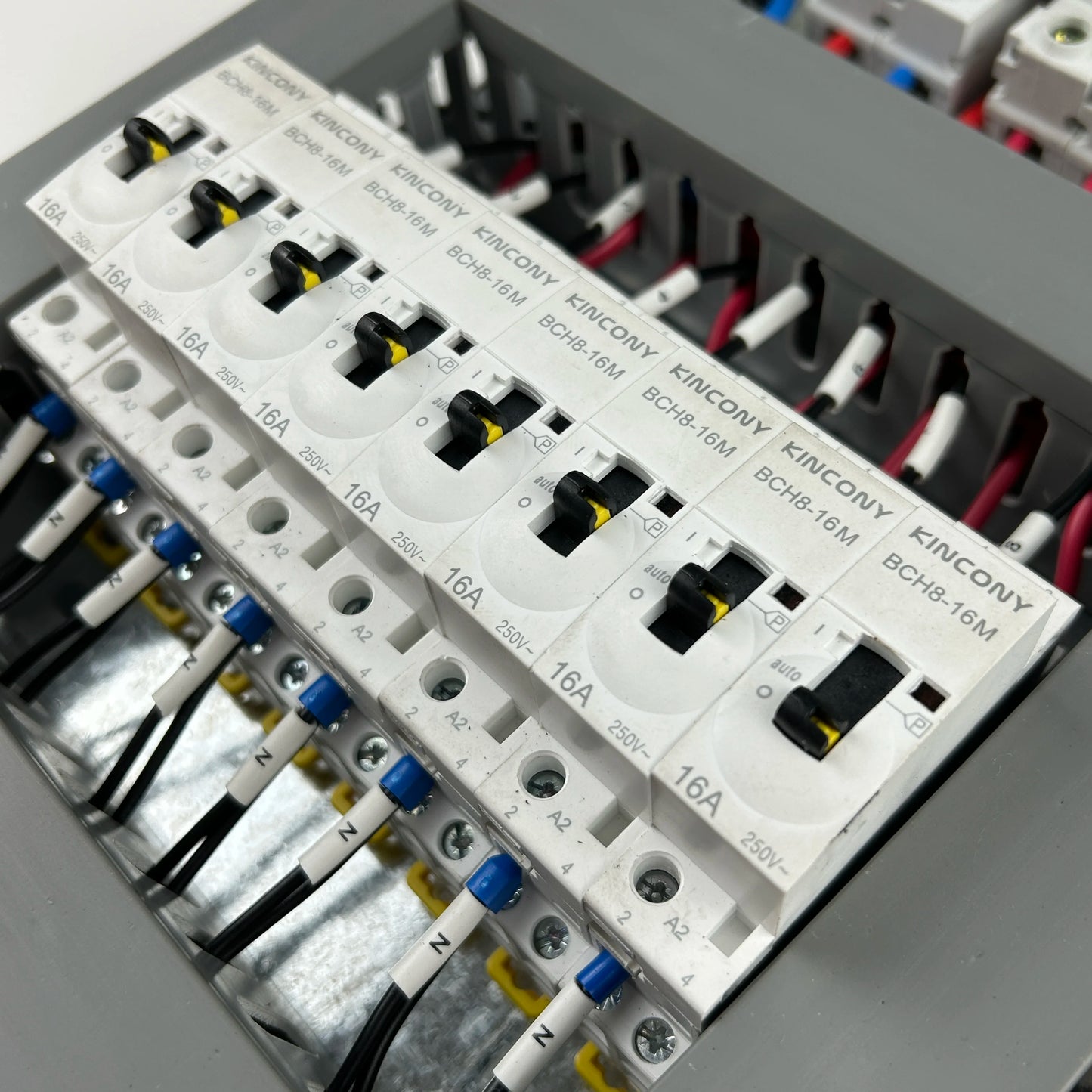

3. KinCony 1 phase 25A AC contactor:8pcs
4. 1 phase 63A breaker:1pc
5. 1 phase 16A breaker:8pcs

Function:
1. without metal box
2. remote control relay by internet (use Tuya app)
3. remote control relay by SMS, telephone call via SIM card
4. remote monitor temperature & humidity (need contact with sensor)
5. support local IFTTT command
6. support integrate to home assistant software
7. support tasmota open source firmware
8. support tasmota MATTER protocol firmware
9. support write arduino IDE source code by yourself.

Document:

KC868-A8S schematic: https://www.kincony.com/download/KC868-A8S-schematic.pdf
ESP32 I/O pin define: https://www.kincony.com/forum/showthread.php?tid=1945
config yaml file for ESPHome: https://www.kincony.com/forum/showthread.php?tid=1946
tasmota firmware: https://www.kincony.com/forum/showthread.php?tid=1128
arduino demo source code: https://www.kincony.com/forum/forumdisplay.php?fid=24
KCS v2 firmware online guide: https://www.kincony.com/esp32-kcsv2-firmware.html
KCS v2 function explanation video tour: https://youtu.be/-DexVHAxPUM
KC868-A8S professional hardware review by Russian
KC868-A8S “KCS” firmware download
How to use “KCS” firmware online guide
How to use “KCS” firmware YouTube video tour
KC868-A8S introduction YouTube video tour

This is a customized product, after you paid, we will make it need about 2 weeks. Then we will send out. If you want confirm something details, you can contact with us before you order products.
