ESP32-S3 16 Channel Analog Input Smart Controller – CO16

KinCony CO16 ESP32 smart controller based on ESP32-S3-WROOM-1U (N16R8) wifi chip. Support 16 channel relay output and 16 channel digital input ports, 16 channel ADS1115 16bit analog input ports. One SD card using SPI bus. CO16 include DS3231 high precision RTC clock chip. Color ST7789 TFT LCD display will show wifi and ethernet IP address and Tuya connection state. CO16 have SIM7600E 4G module slot and RS485 port. CO16 support MAX 4 channel PT100 RTD (Resistance Temperature Detector). You can write any code by Arduino IDE / MicroPython / ESP-IDF development tool to ESP32 module. We will supply Arduino / ESP-IDF demo code for different samples. Everyone can modify and change the code for your own smart home automation system project. it support use by ESPHome for home assistant or tasmota firmware for smart home automation DIY. CO16 use KCS v3 firmware, it support home assistant auto discovery function by MQTT, so without write any config code (zero code) for home assistant. KCS v3 support KinCony cloud service (official shop customer free 2 years), remote monitor and control device by webpage in anywhere. KCS v3 support KinCony board integrate to Loxone Miniserver. Support Apple HomeKit for Siri.

Model No. KinCony CO16
Description: KinCony ESP32-S3 16 Channel Analog Input Smart Controller – CO16
Power supply: 12-24V DC
Processor: ESP32-S3-WROOM-1U (N16R8)
Size: 225mm*83mm*56mm
interfaces: Ethernet(RJ45)-LAN 100Mbps IPv4/IPv6,WiFi,RS485,Bluetooth,USB-C,LCD,Tuya Module, 4G SIM7600
RTC: DS3231 high precision chip (battery socket on PCB)
SD Card: SPI bus

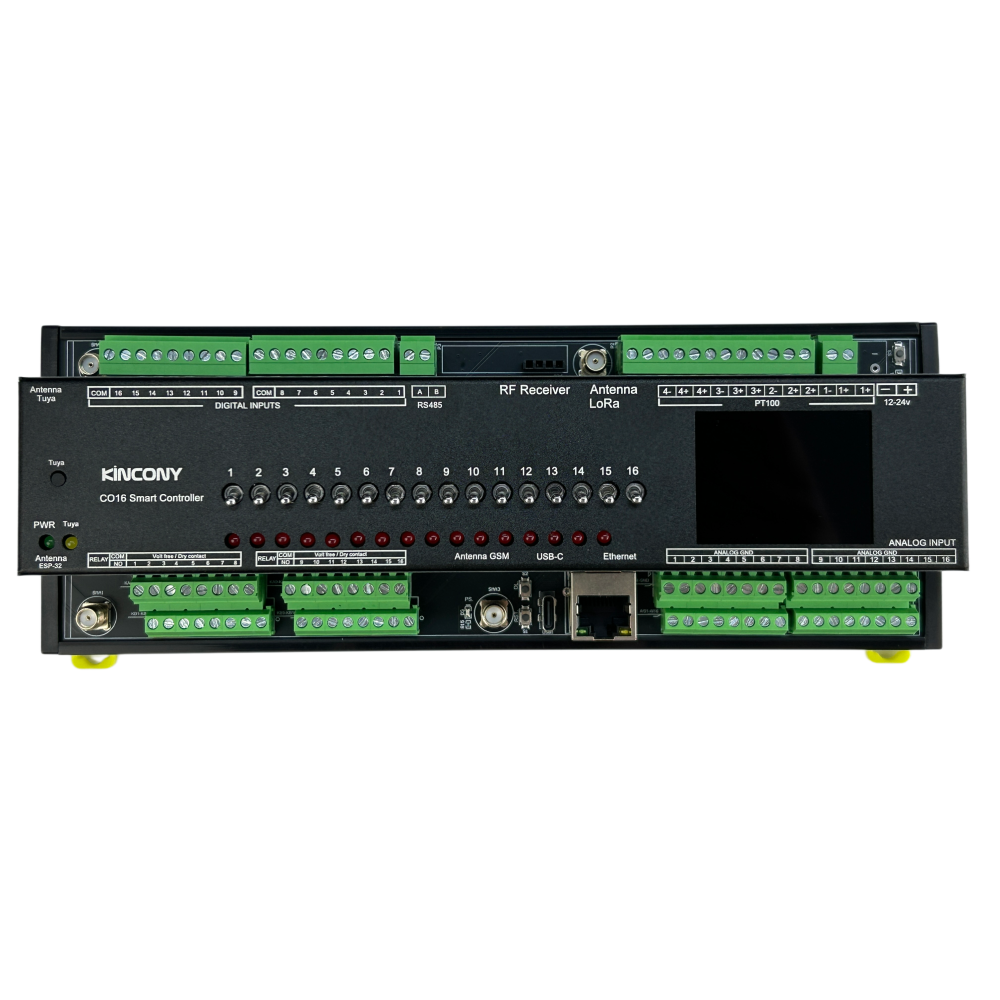

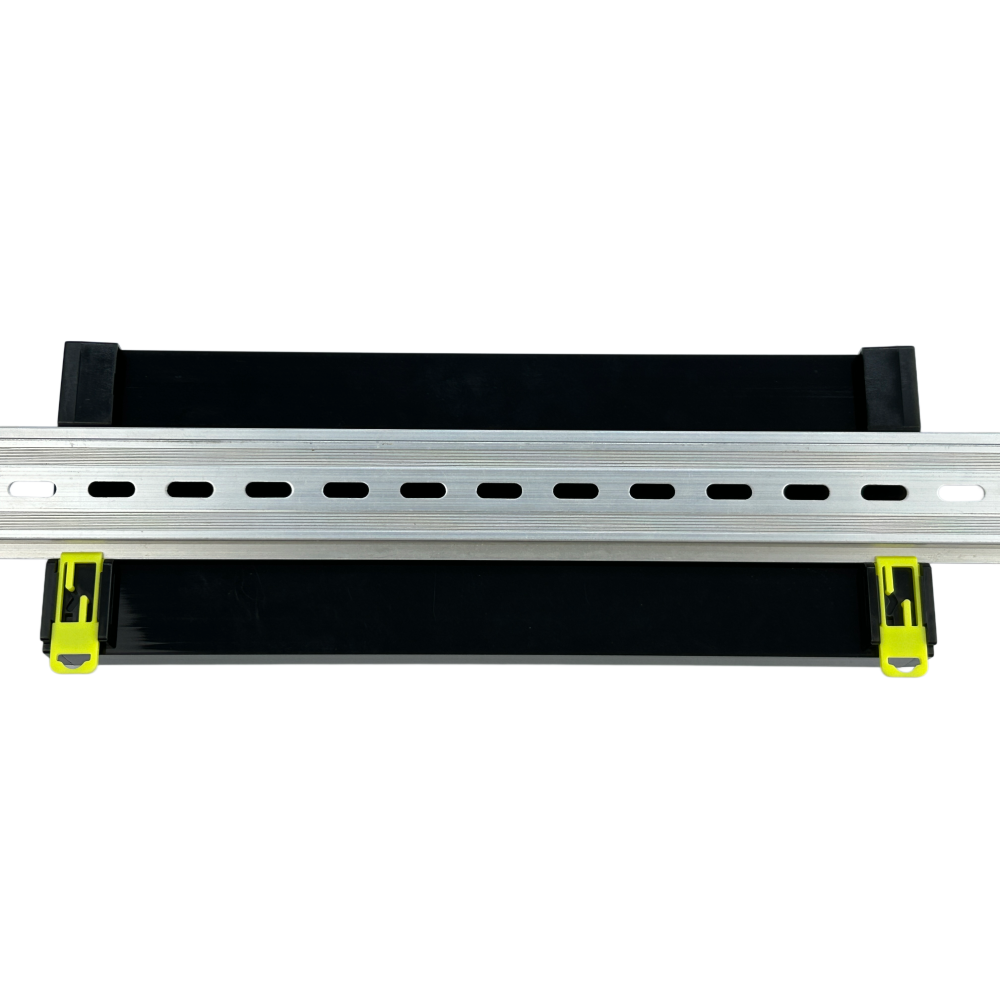

Installation method: DIN RAIL
TFT LCD: ST7789 SPI display

Outputs:
16CH relay Outputs, every relay use by MAX AC250V/7A

Inputs:
ADS1115 16bit ADC: 16CH analog input DC0-10V or 4-20mA (set by jumper)
jumper: short UP: set for DC 0-10V signal.
jumper: short DOWN: set for DC 4-20mA signal.

16CH dry contact inputs (optocoupler isolation, long distance circuit for MAX 500 meters cable)
3 buttons: 1:ESP32 Reset 2:ESP32 Download 3:Tuya config
PT100 RTD: 4CH (read by MAX31865, switch channel by NX3L4051)

software solution:

1. download KinCony KCS v3 firmware, so that work with multi protocol: HTTP, MQTT, Modbus(RS485/TCP), BACnet(RS485/TCP), DMX512, Tuya app, config OUTPUT for “momentary” and “interlock” group functions. use Tuya mobile phone app directly, support voice control by Alexa and Google home speaker directly. if you want local voice control without internet, you can add KinCony AS voice assistant. “KCS” support IFTTT function work locally without internet. It also support use by KinCony cloud server. KCS v3 support home assistant auto discovery function by MQTT, so without any config file for home assistant.

2. download firmware by ESPHome, integrate to home assistant or use by web service.

3. download tasmota firmware.

4. write your own arudino or ESP-IDF code for your own requirements.

5. It is recommended to use home assistant and Tuya mobile phone app at the same time. So that remote control by internet using Tuya app, local control by LAN using home assistant app.

Order bundles:
Bundle A: CO16

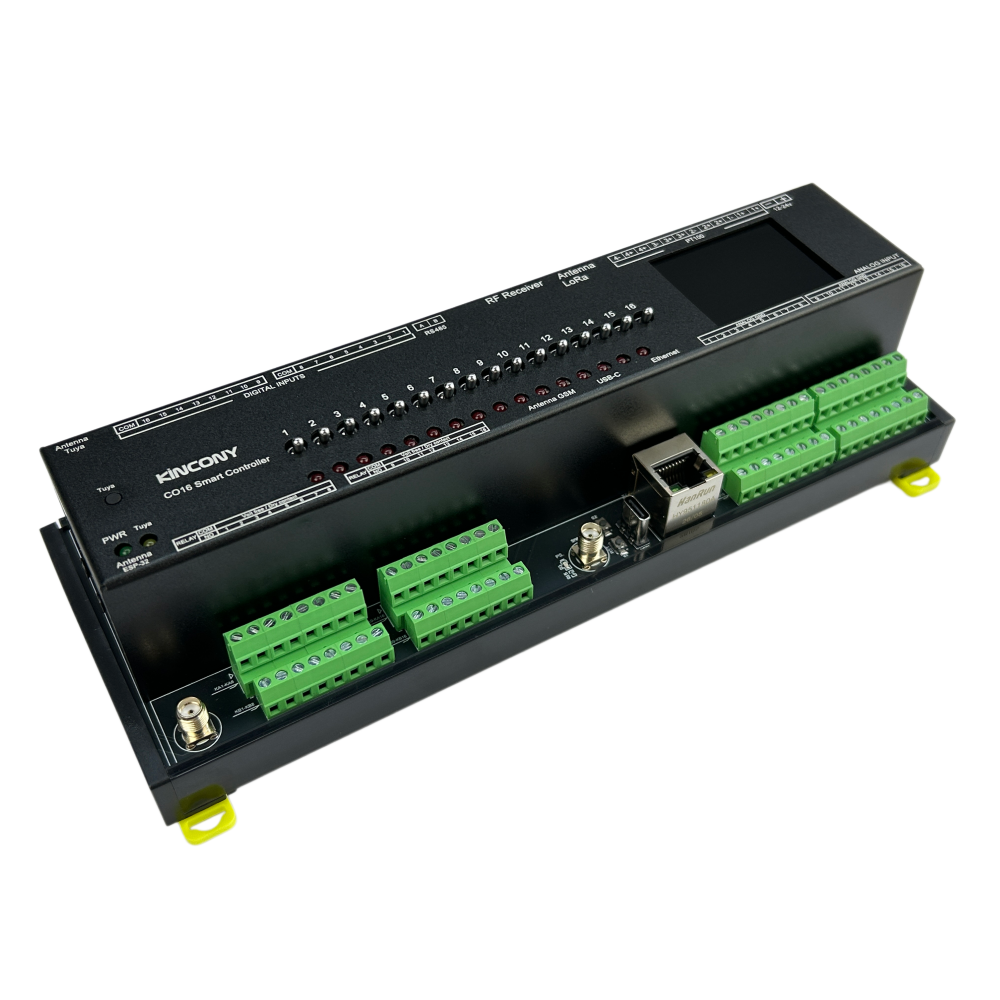

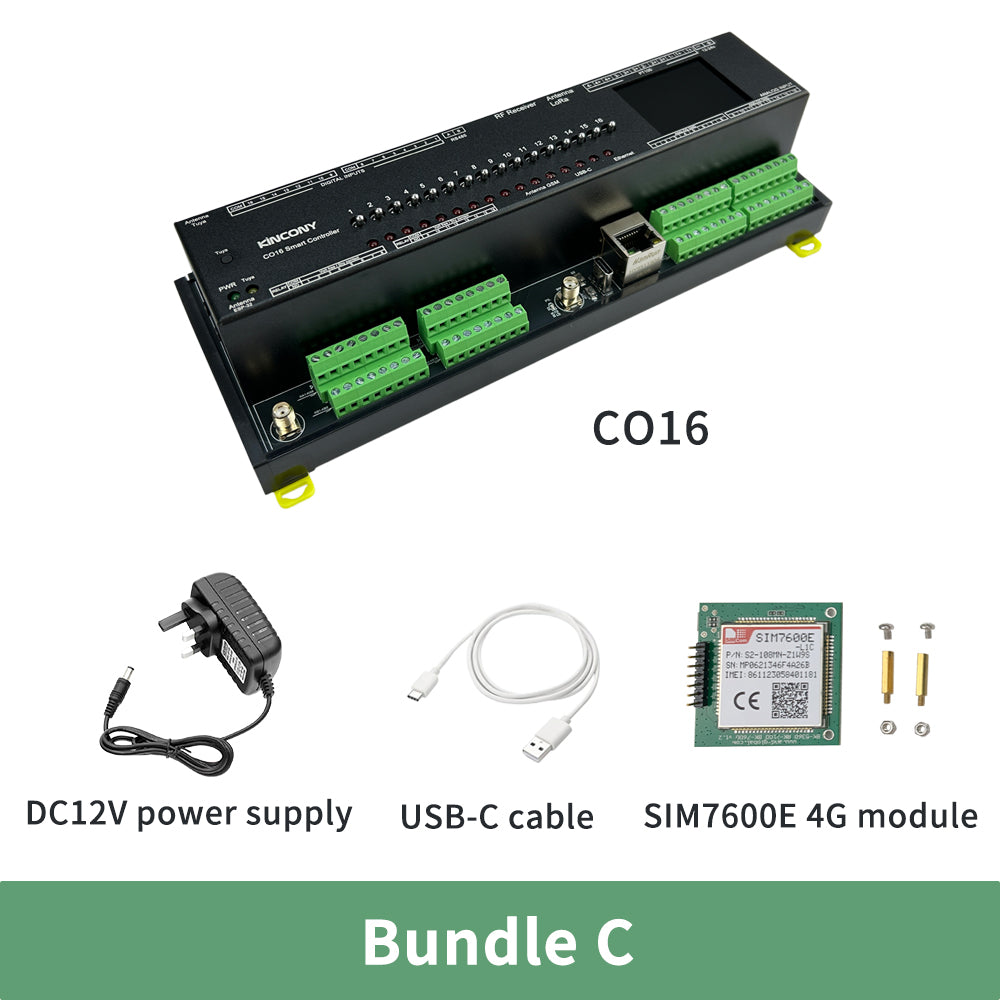

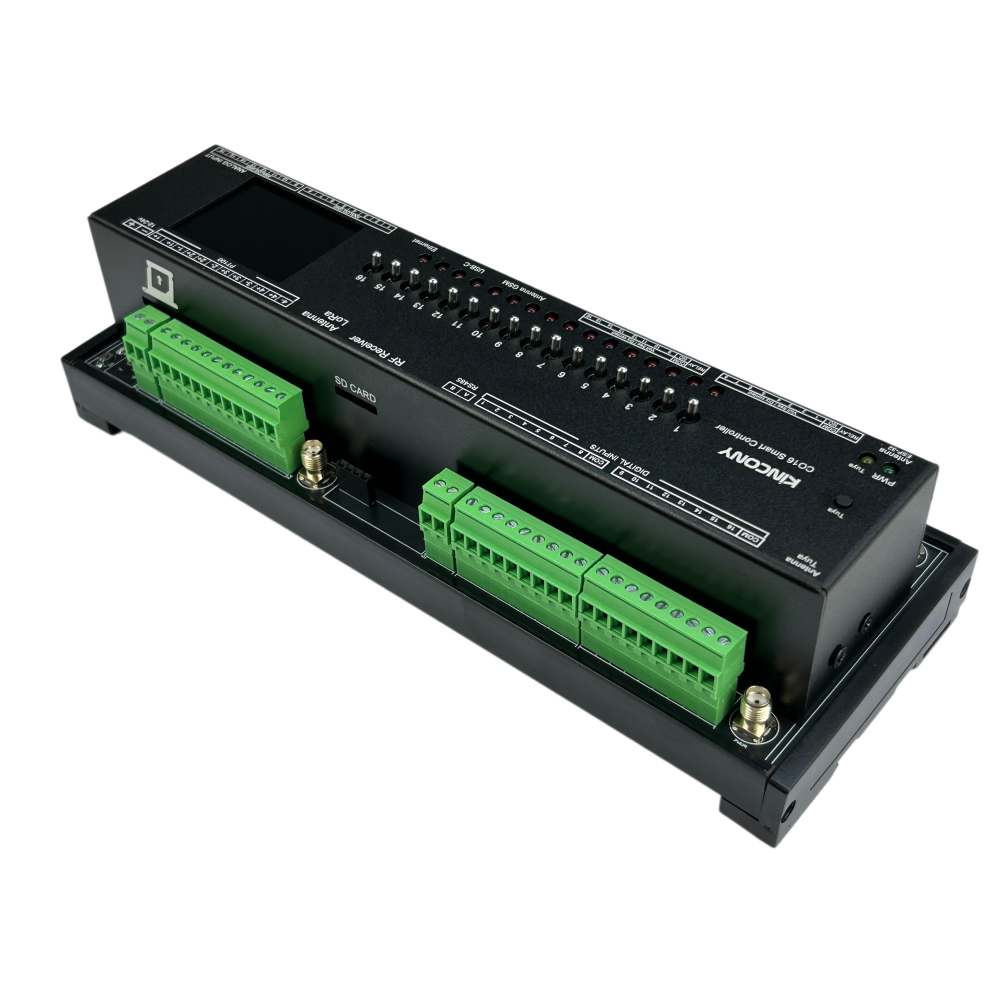

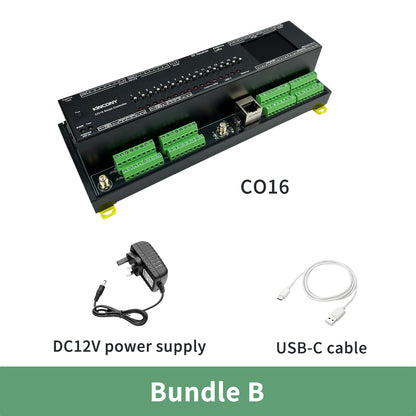

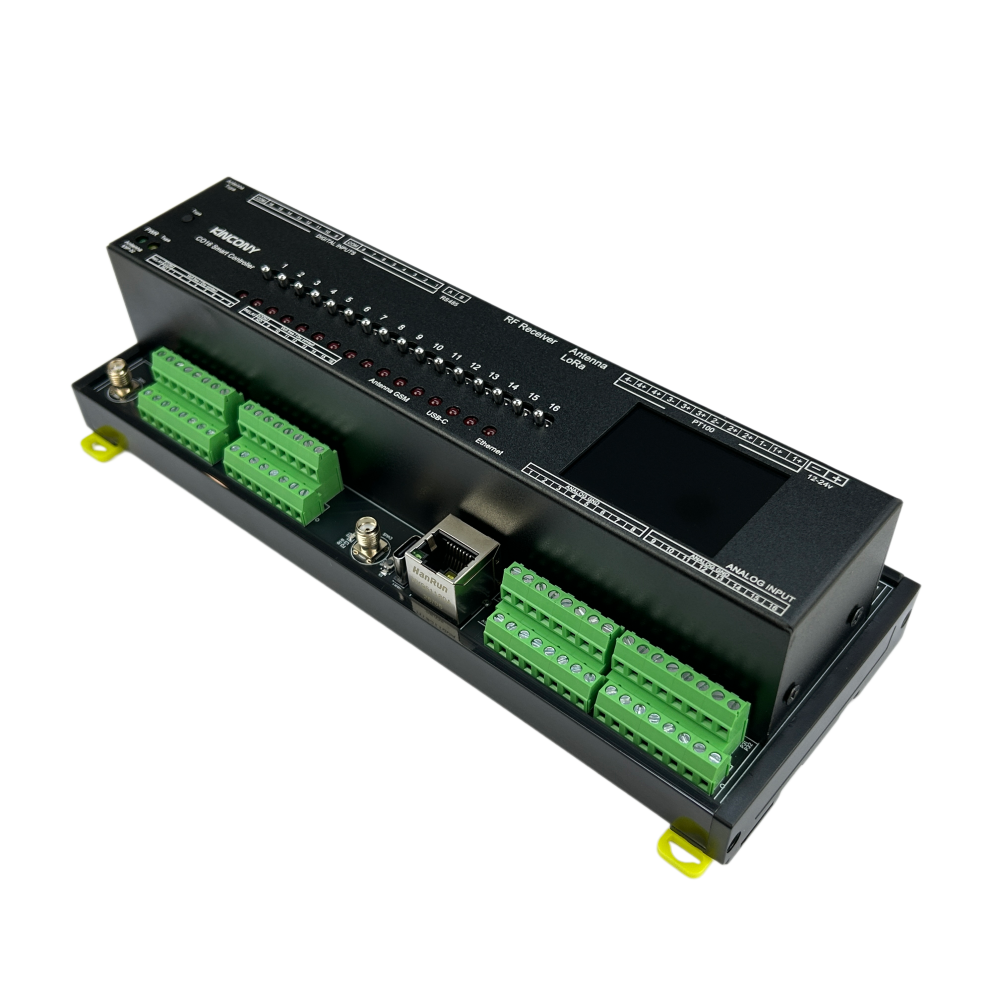

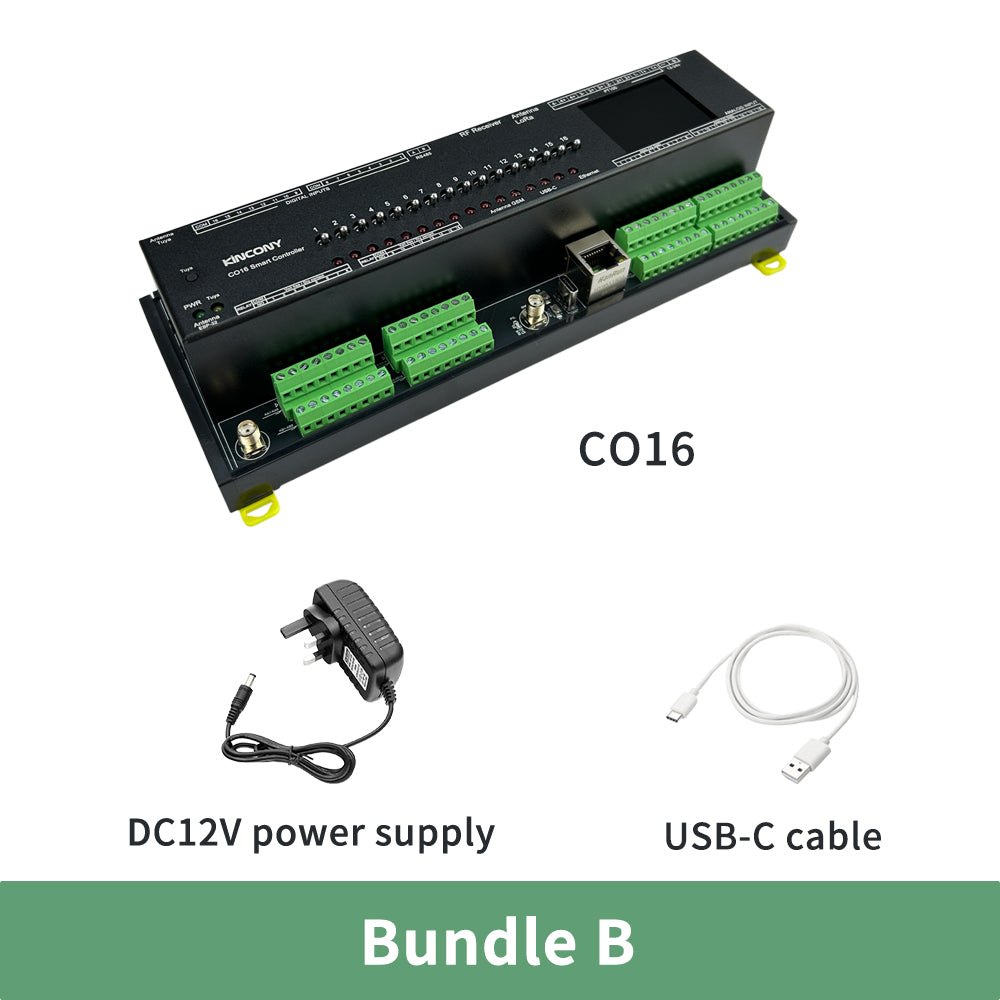

Bundle B: CO16 + USB-C cable+ DC12V power supply
Bundle C: CO16 + USB-C cable+ DC12V power supply + SIM7600E 4G module

Related technical information
———————————
ESP32 I/O pin define: https://www.kincony.com/forum/showthread.php?tid=9778
config yaml file for ESPHome: https://www.kincony.com/forum/showthread.php?tid=9779
ESPHome official supportted list:
arduino demo source code: https://www.kincony.com/forum/forumdisplay.php?fid=119
KCS v3 firmware online guide: https://www.kincony.com/how-to-use-kcsv3-firmware-esp32-board.html

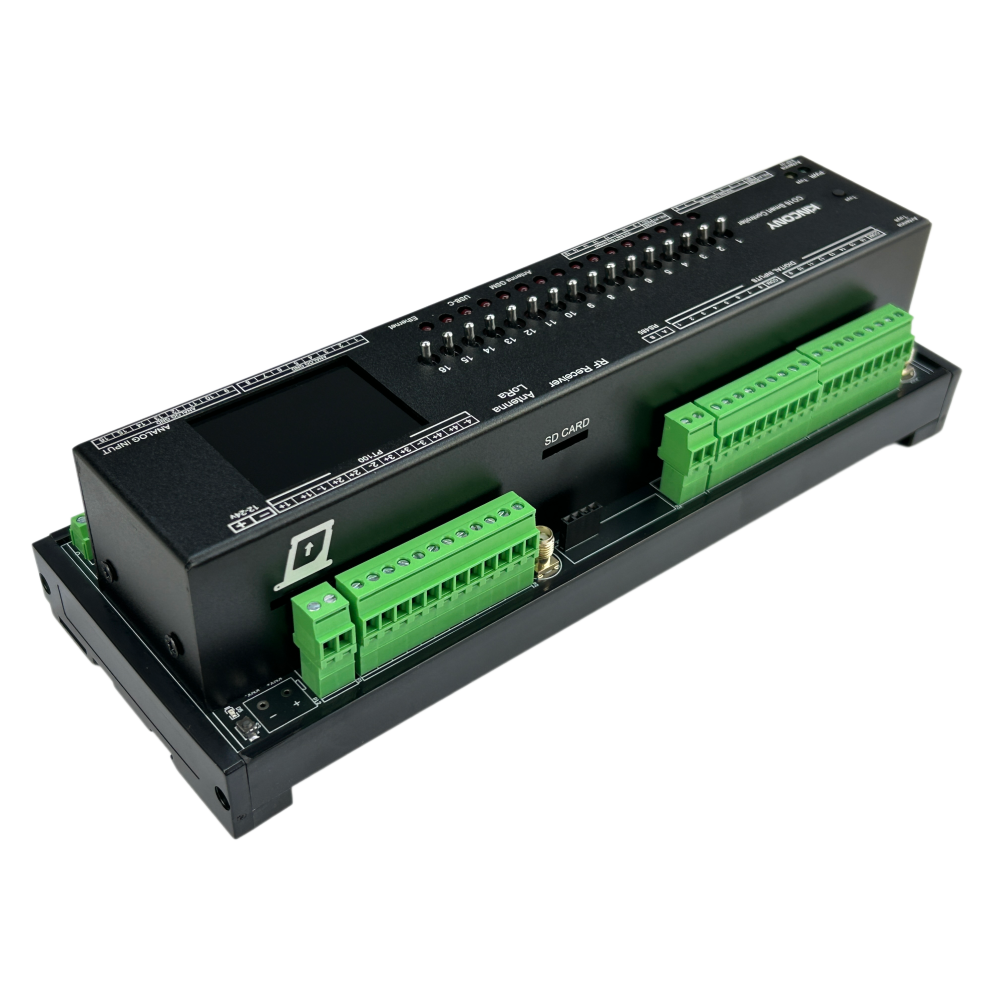

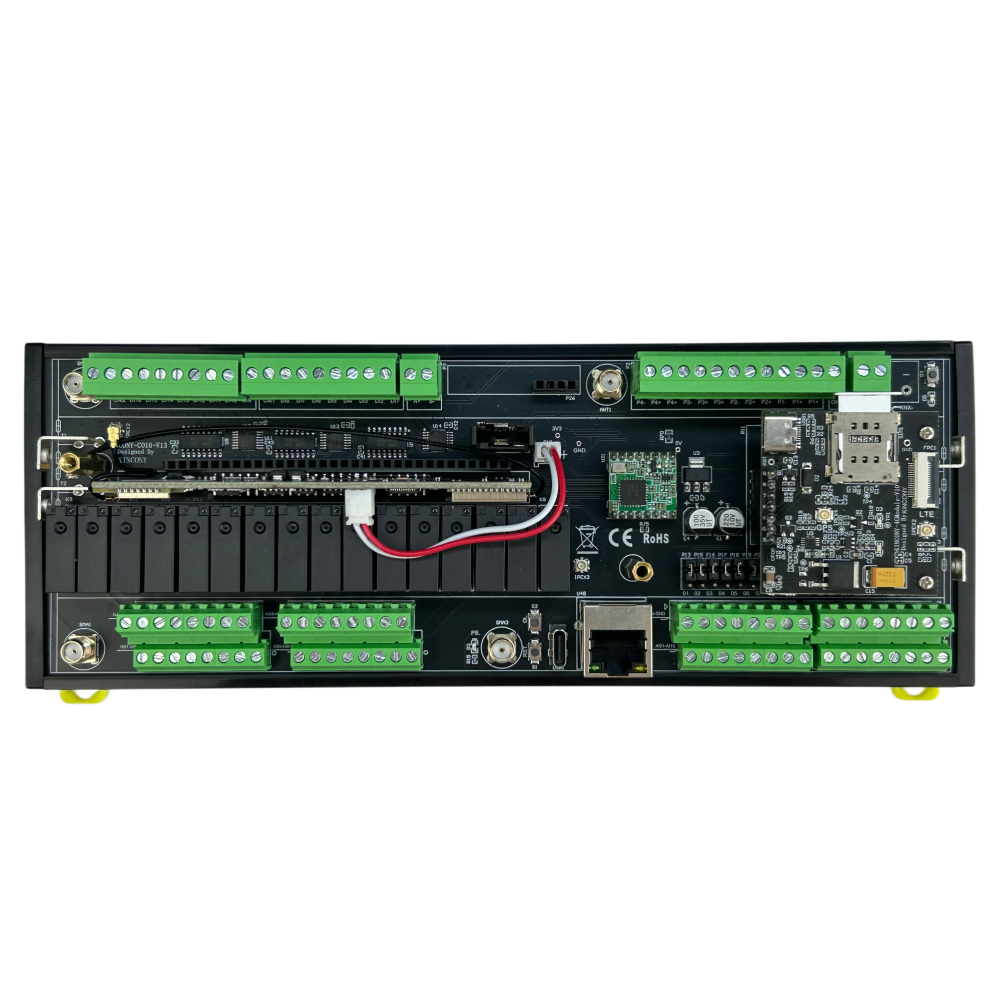

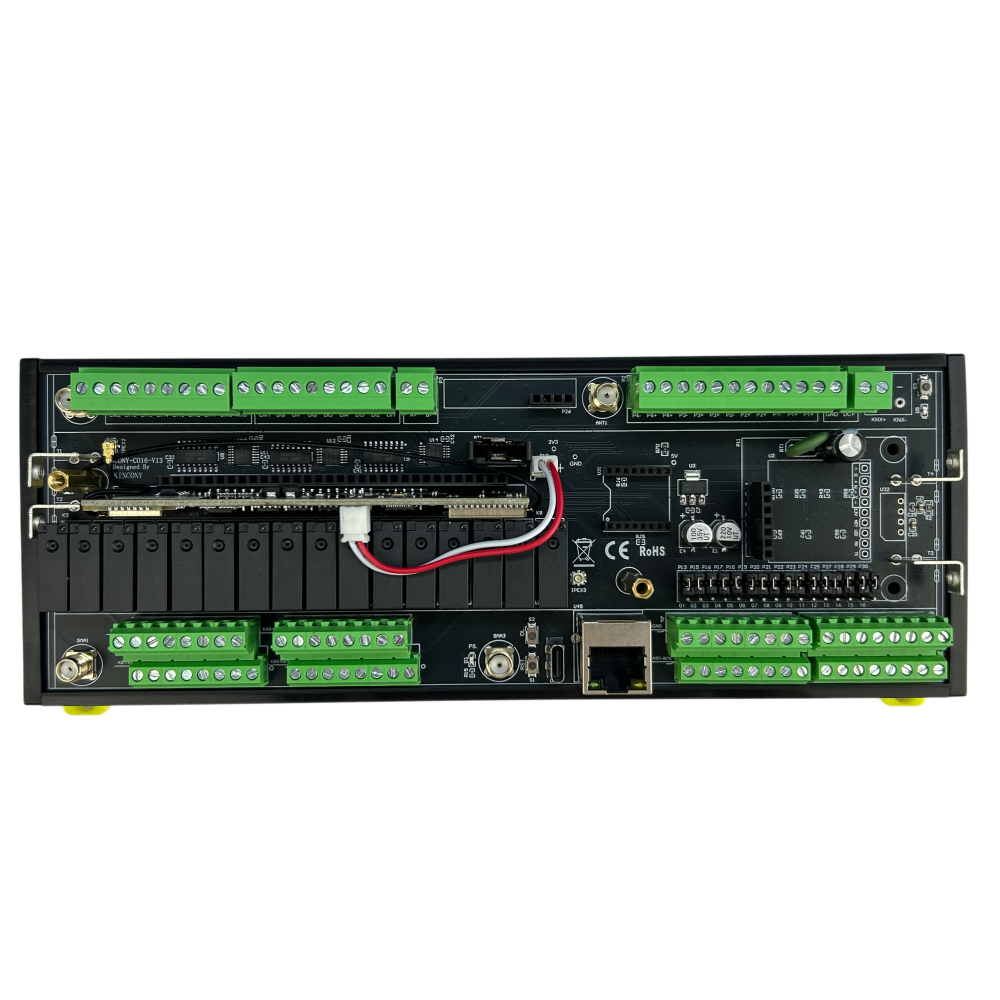

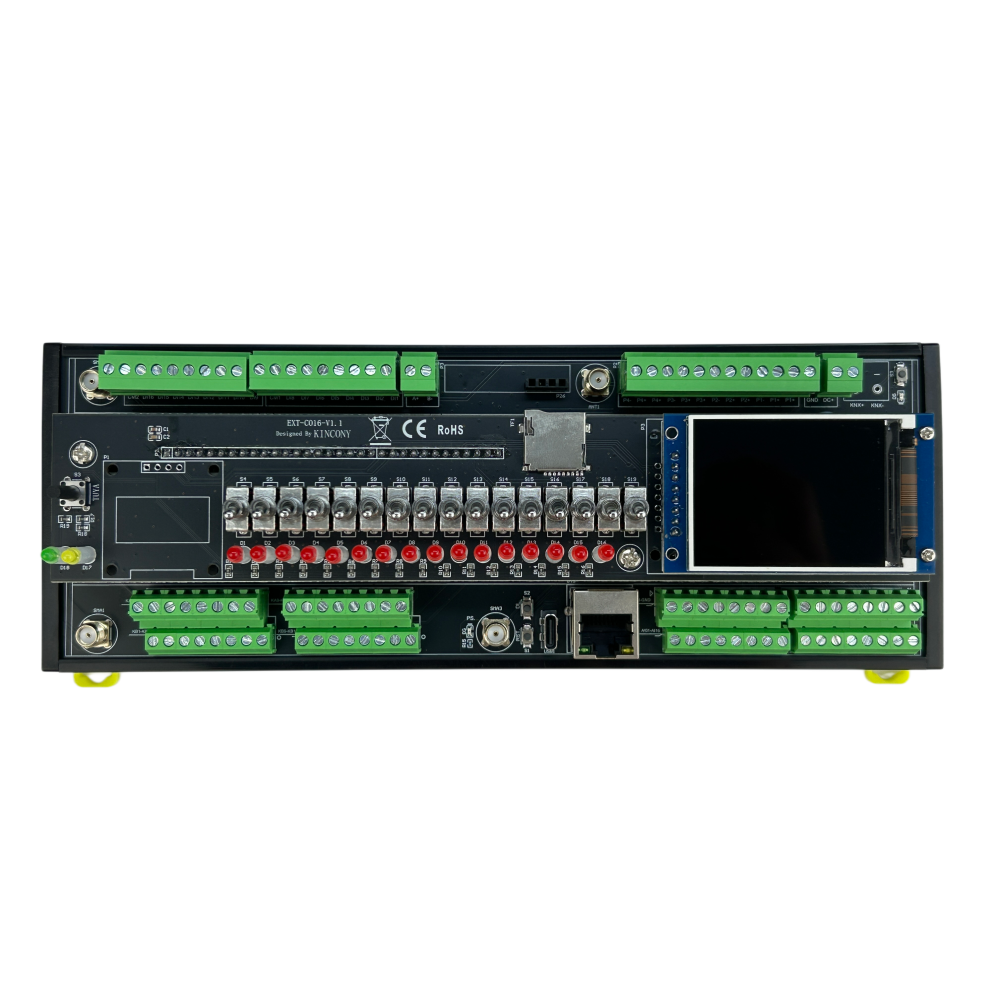

more details of photo:

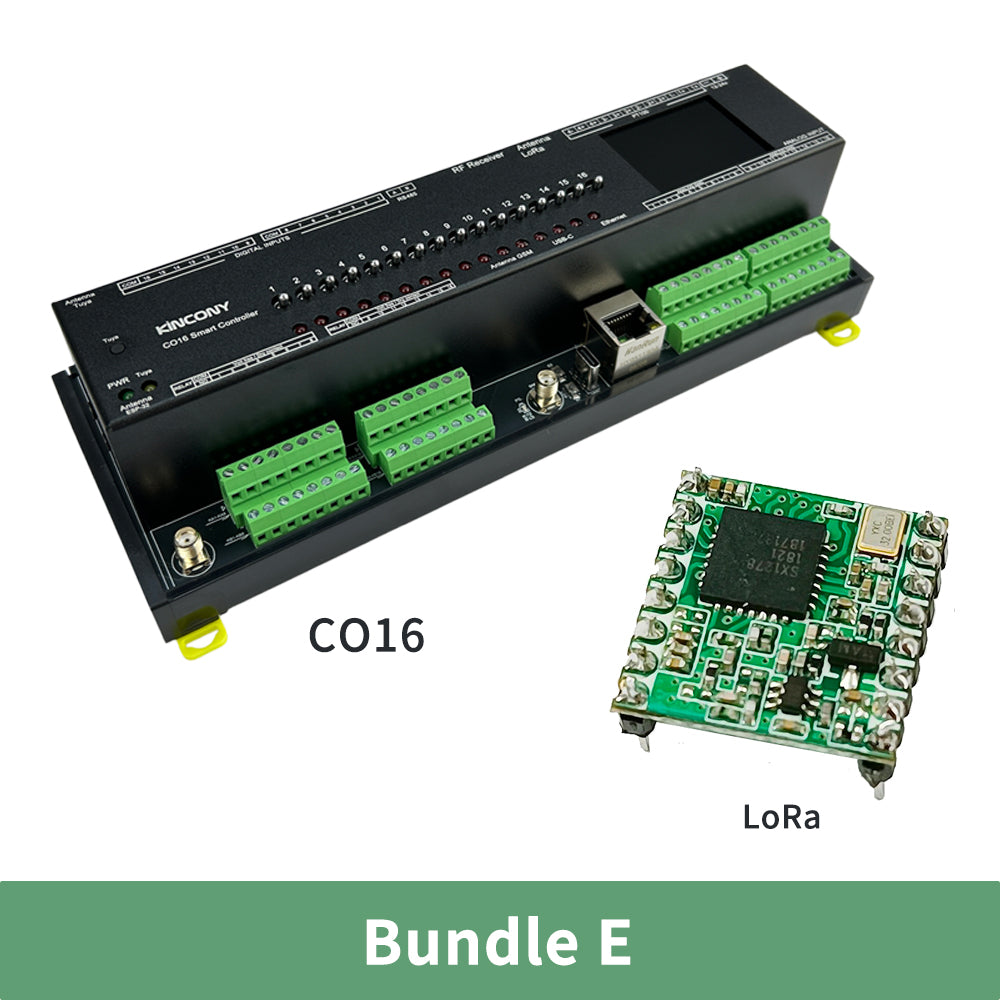

LoRa module (use by different version: 433MHz, 868MHz, 915MHz)

SIM7600E 4G module

relay AC250V max 7A

ADS1115 16bit ADC: 16CH analog input DC0-10V or 4-20mA (set by jumper)
jumper: short UP: set for DC 0-10V signal.
jumper: short DOWN: set for DC 4-20mA signal.
