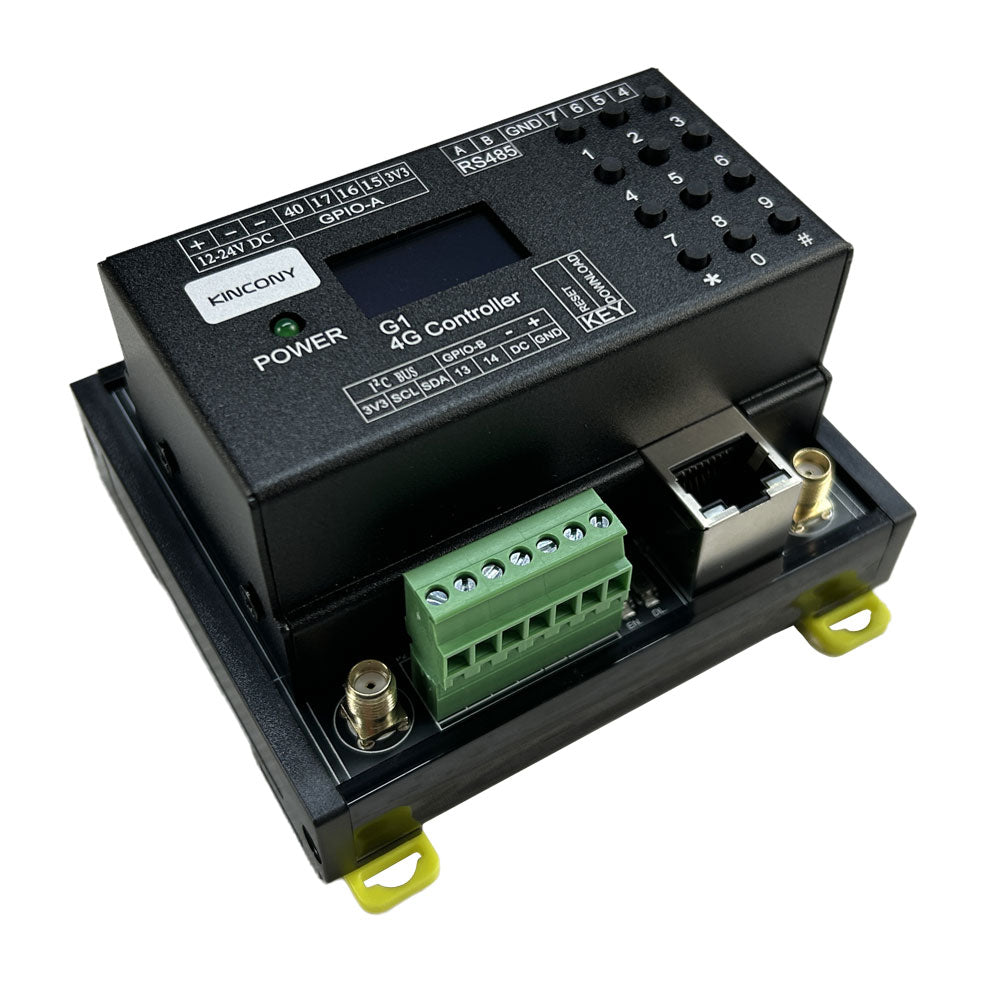

ESP32-S3 SIM7600E 4G Module - KinCony G1

KinCony G1 ESP32 4G module based on ESP32-S3-WROOM-1U (N16R8) and SIMCOM SIM7600E series chip. G1 have RS485 port and many free GPIOs for user.You can write any code by Arduino IDE / Micro Python / ESP-IDF development tool to ESP32 module. Everyone can modify and change the code for your own smart home automation system project. it support use by ESPHome for home assistant. Such as send SMS and make CALL by ESPHome. for example, when sensor trigger, it can send SMS to user's mobile phone. Just according to SIMCOM AT command, you can do anything.

Model No. KinCony G1
Description: KinCony 4G Module – G1
Power supply: 12-24V DC
Processor: ESP32-S3-WROOM-1U (N16R8)
4G Module: SIM7600E-L1C

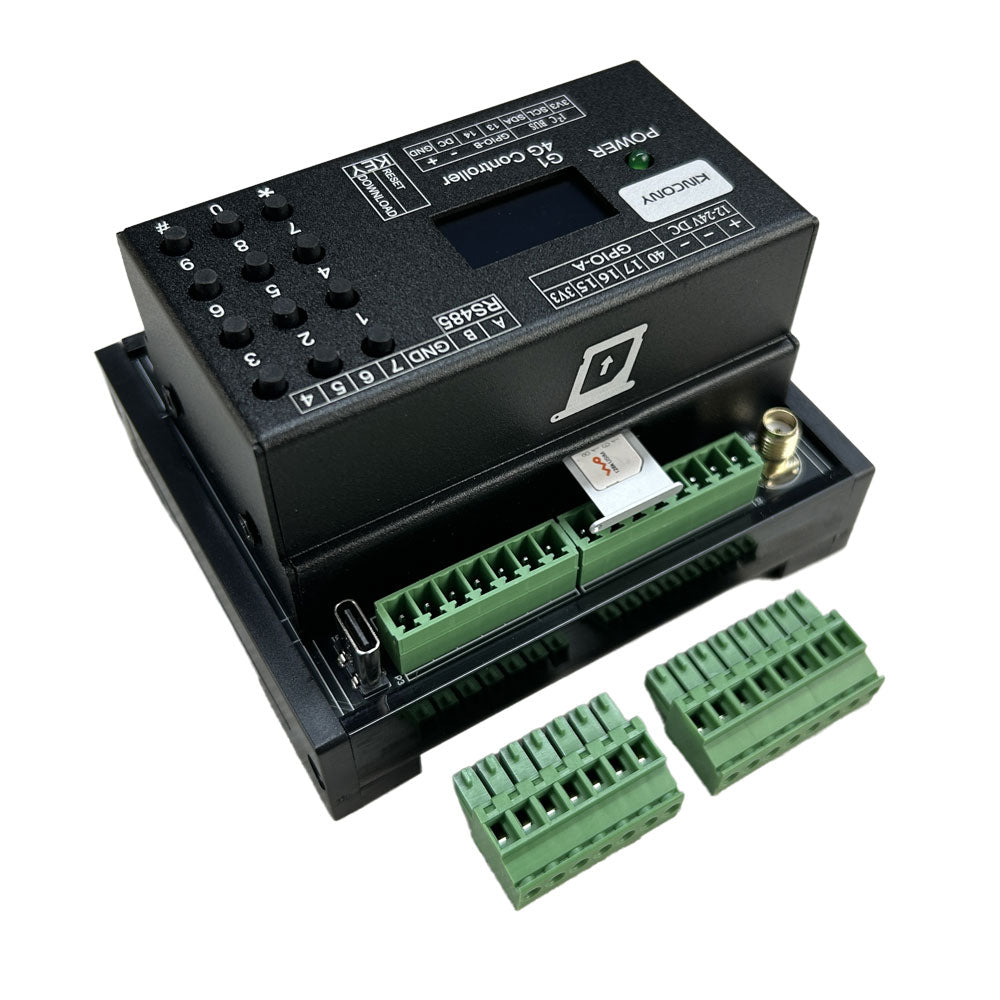

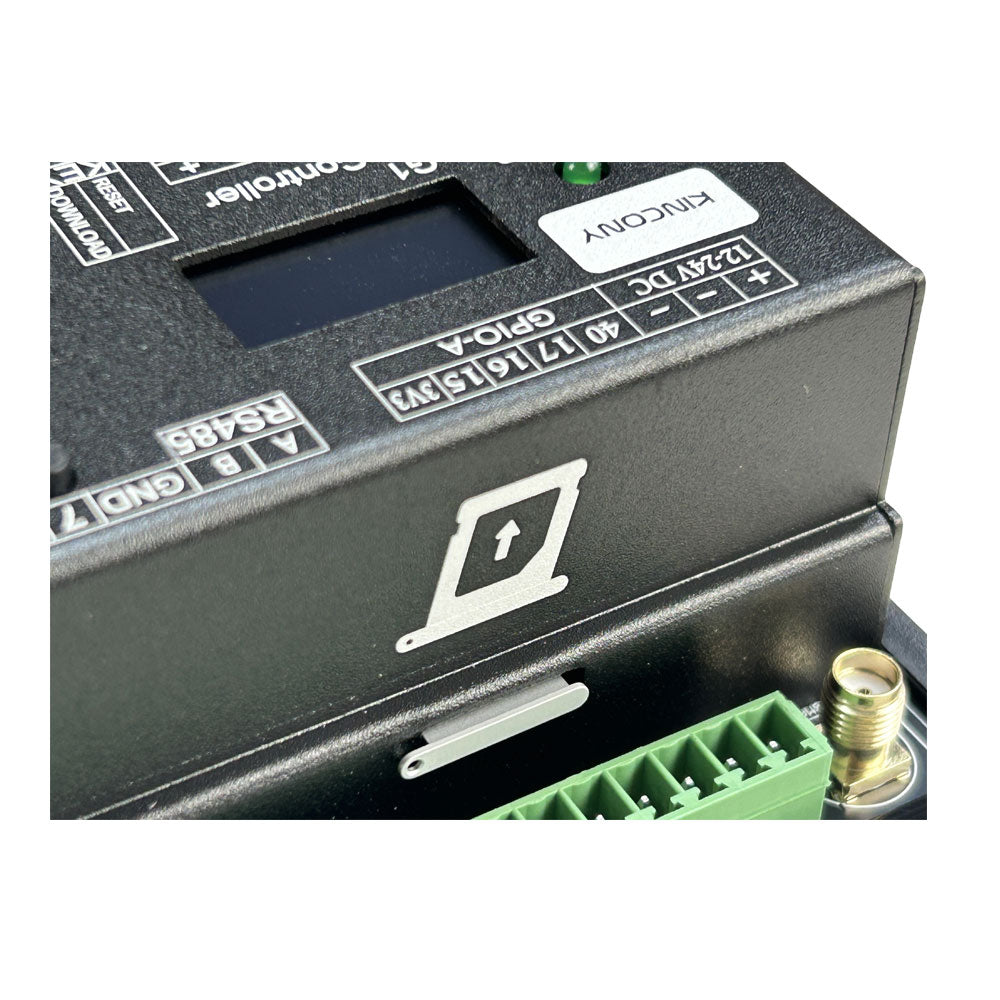

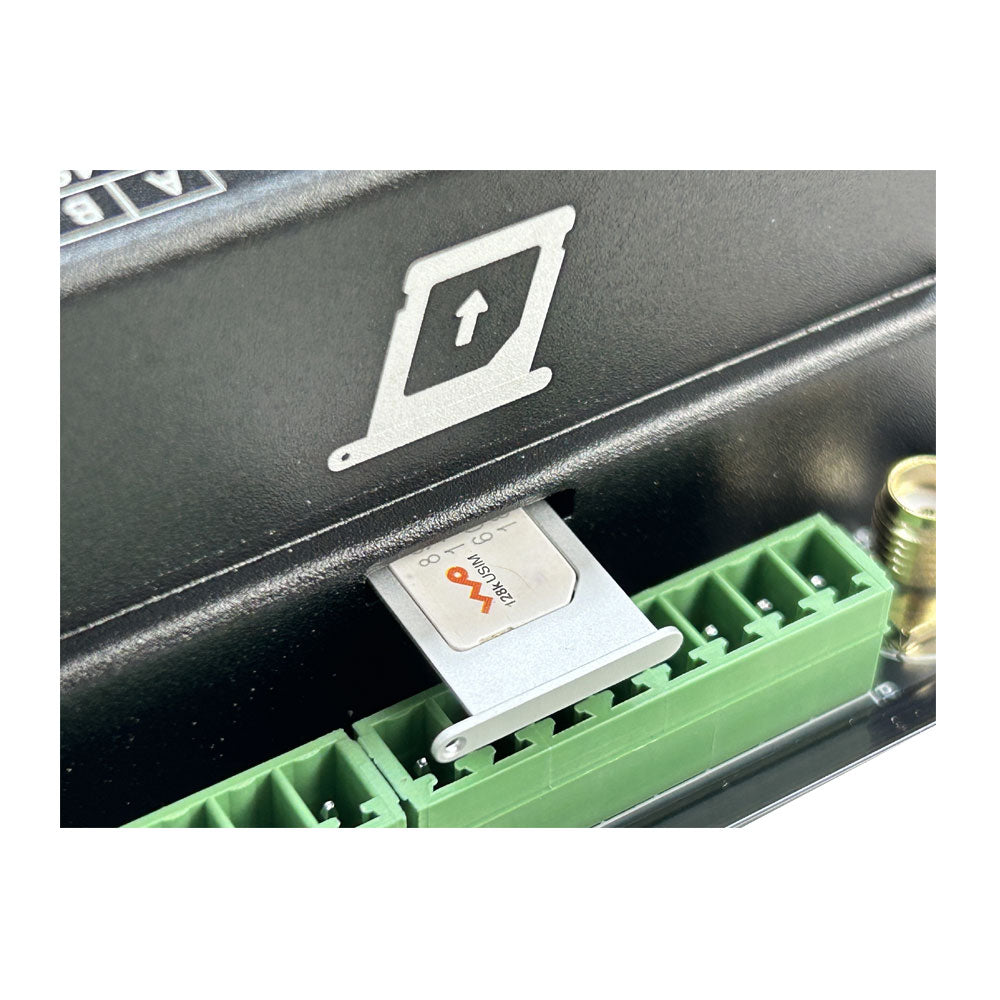

SIM Card: Nano SIM

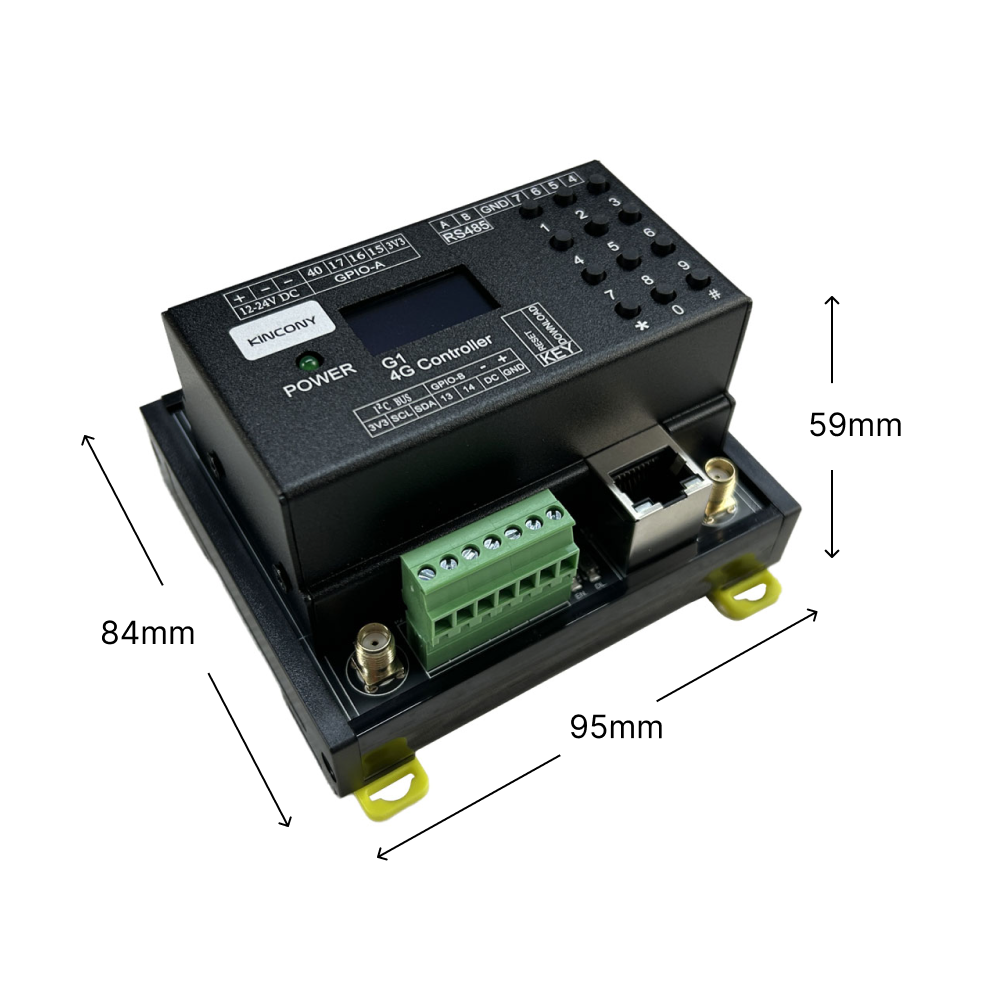

Size: 95mm*84mm*59mm

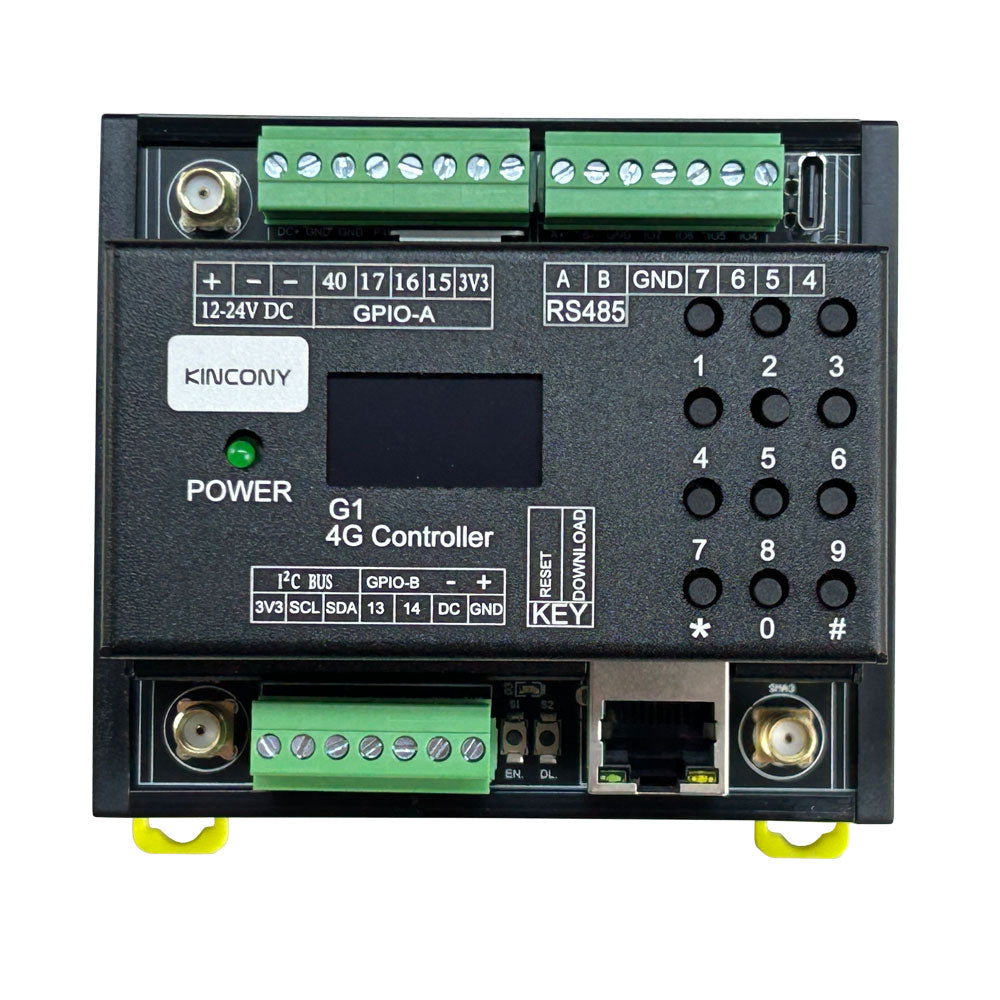

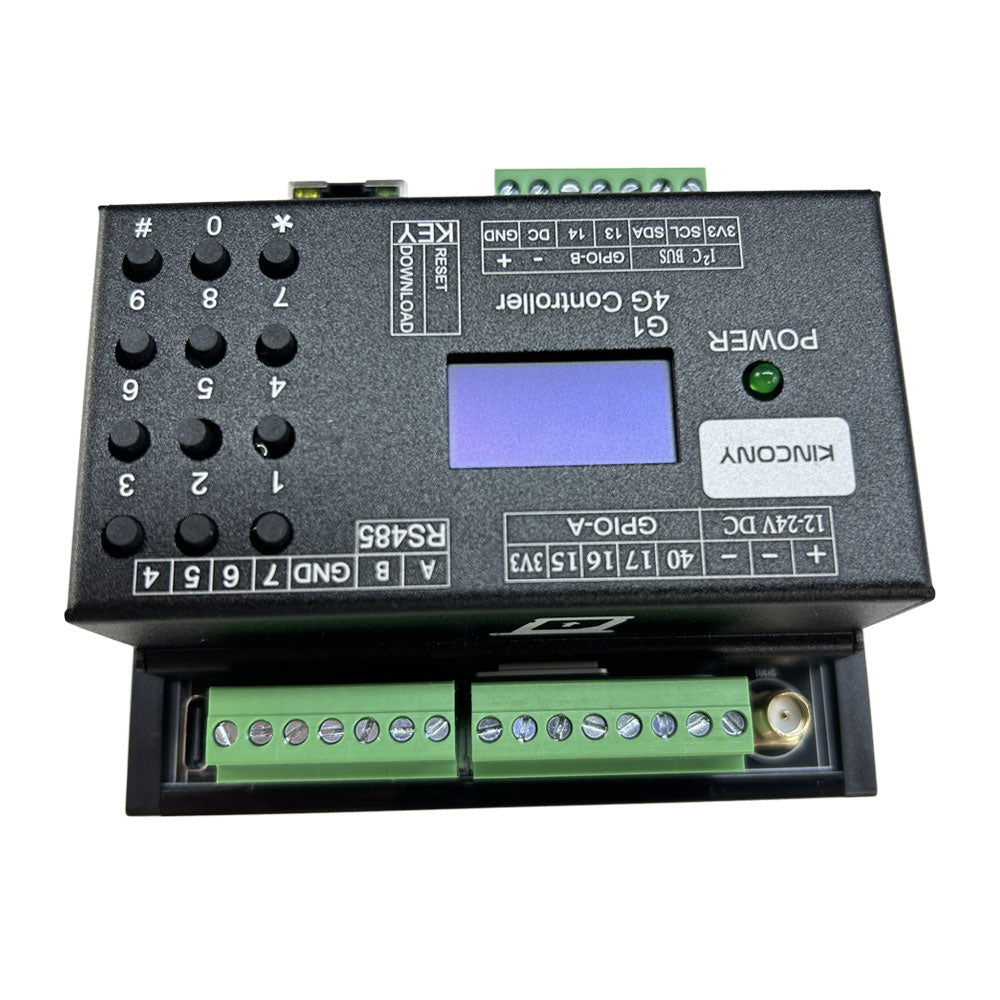

interfaces: Ethernet(RJ45)-LAN 100Mbps IPv4/IPv6,WiFi,RS485,Bluetooth,USB-C,I2C extender, LCD, Buttons

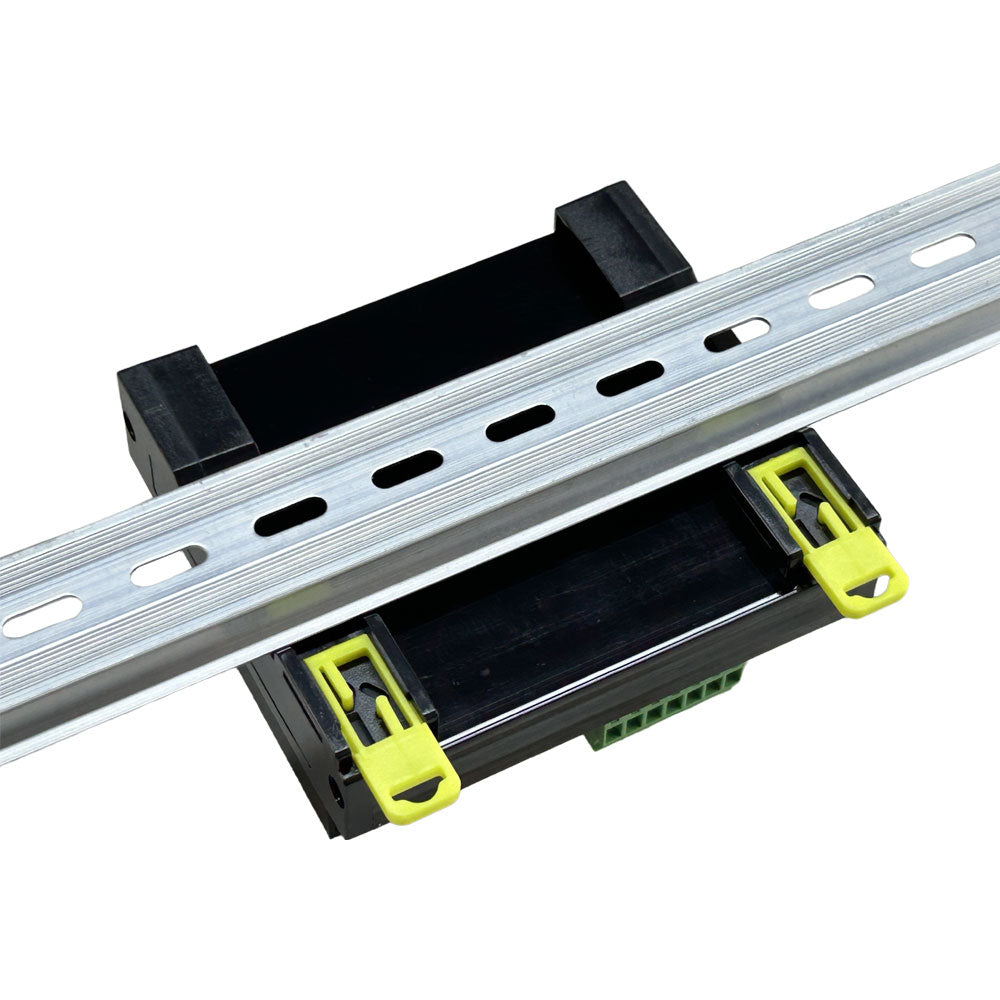

Installation method: DIN RAIL
LCD: SSD1306 I2C display
Antenna Extender: ESP32-S3, 4G, GPS

Inputs:
2 buttons: 1:ESP32 Reset 2:ESP32 Download
12 buttons: Telephone Keyboard
1-Wire GPIO: 4CH (with pull-up resistance on PCB)
free GPIO: 3CH (without pull-up resistance on PCB, connect with ESP32 pin directly)
free GPIO: 4CH (without ESD diode on PCB):

software solution:
1. download firmware by ESPHome, integrate to home assistant.
2. write your own arudino code for your own requirements.

Order bundles:

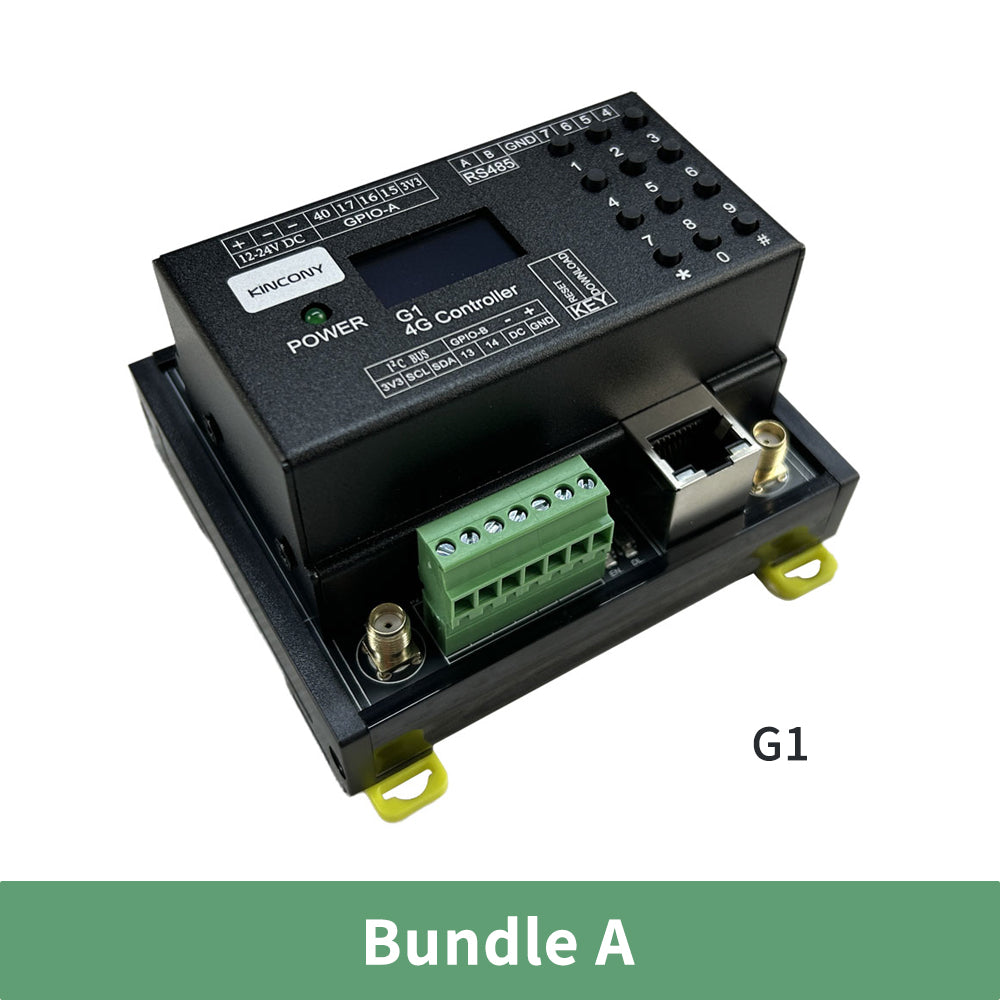

Bundle A: G1

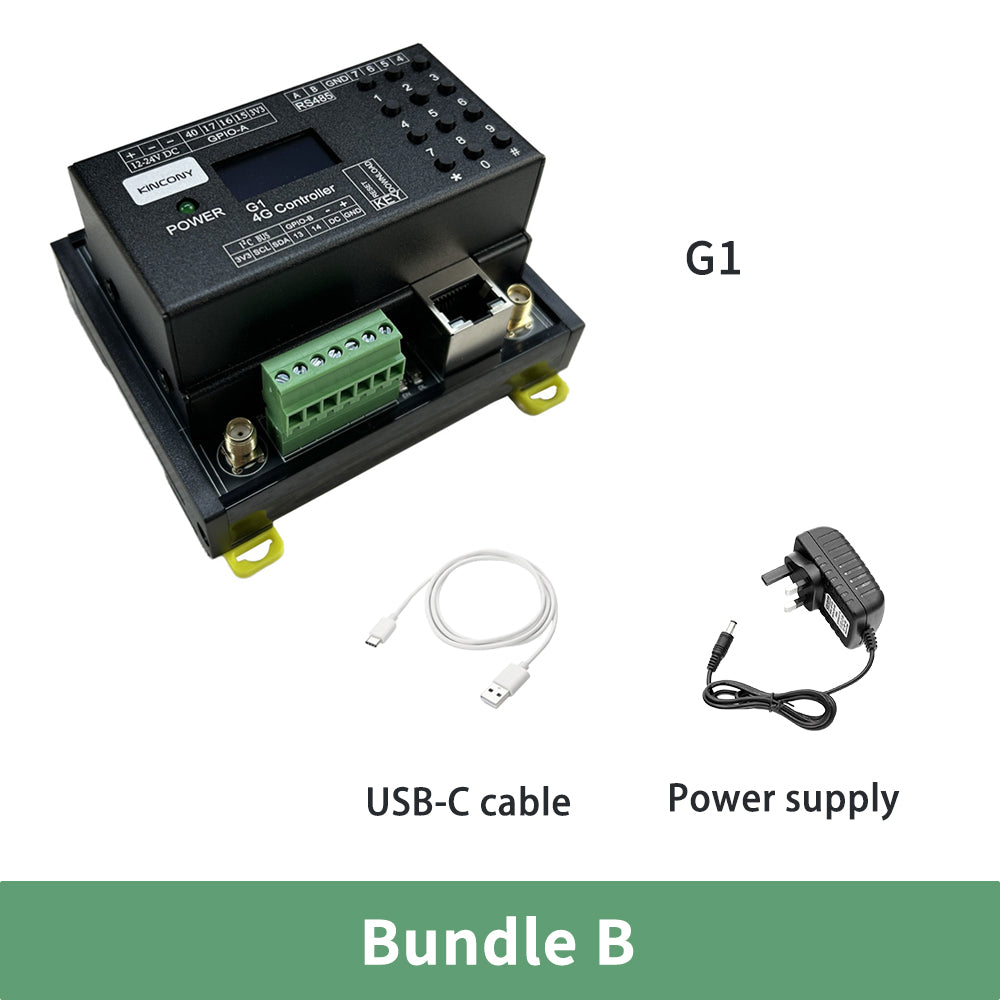

Bundle B: G1 + USB-C cable + power supply

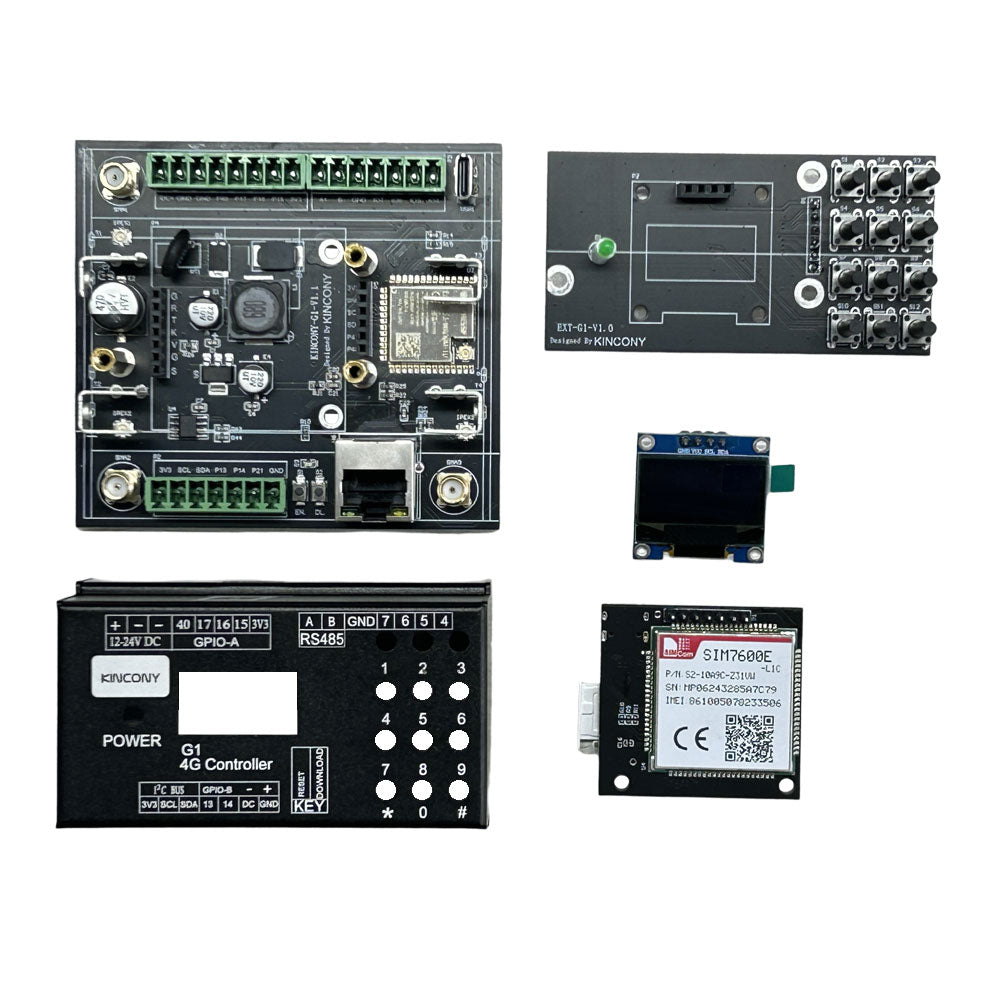

use by ESP32-S3-WROOM-1U (N16R8)

ethernet W5500 chip

Related technical information
———————————
ESP32 I/O pin define: https://www.kincony.com/forum/showthread.php?tid=7146
arduino demo source code: https://www.kincony.com/forum/forumdisplay.php?fid=67
KCS v3 firmware online guide: https://www.kincony.com/how-to-use-kcsv3-firmware-esp32-board.html
