ESP32-S3 Smart IR RF Controller – KinCony KC868-AGv3

$45.00 USD

Sale Sold out

Shipping calculated at checkout.

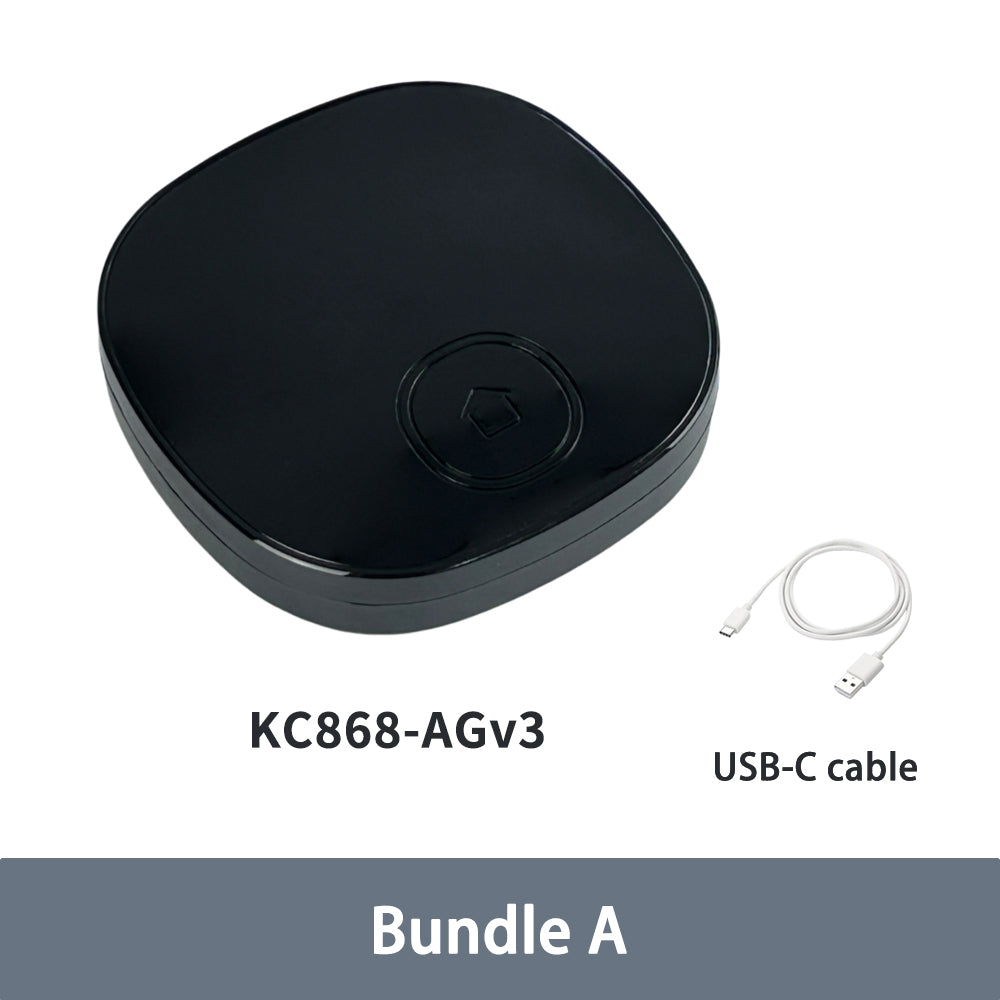

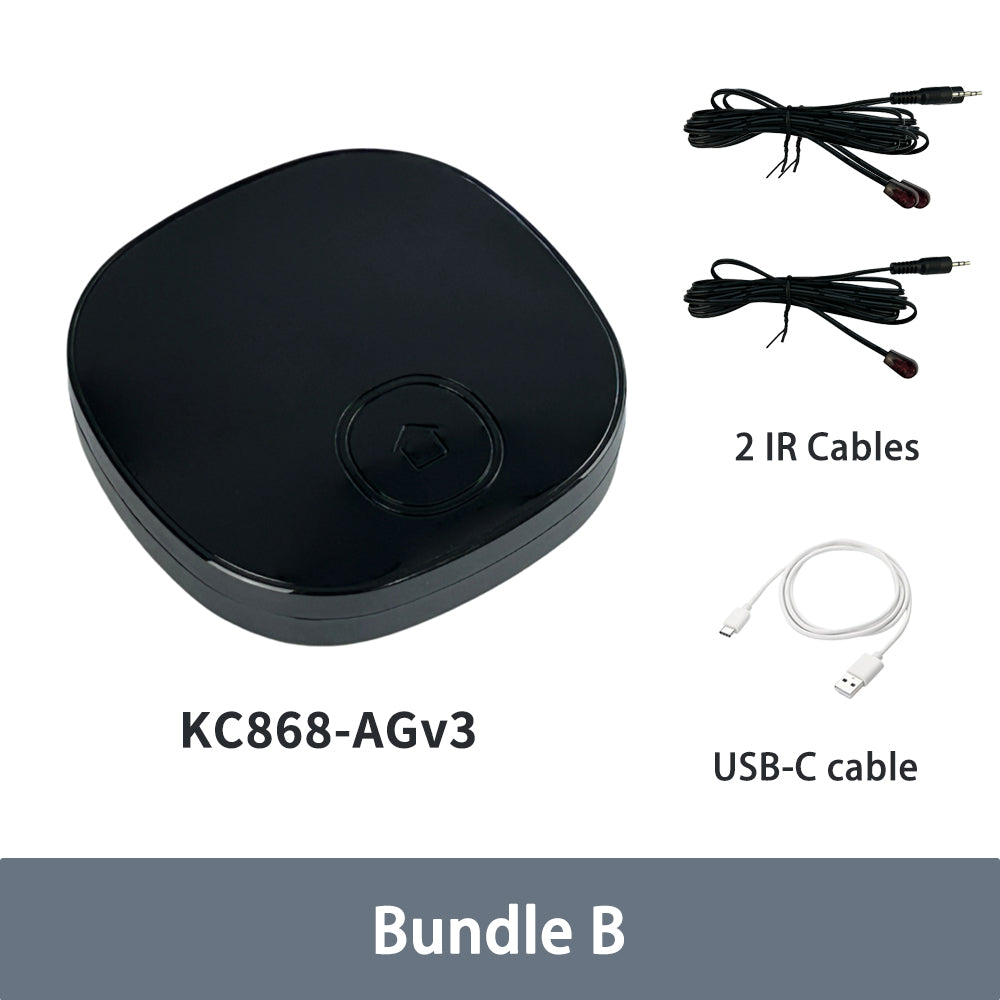

Bundle Bundle A: KC868-AGv3 + USB-C cable Bundle B: KC868-AGv3 + USB-C cable + two IR cables

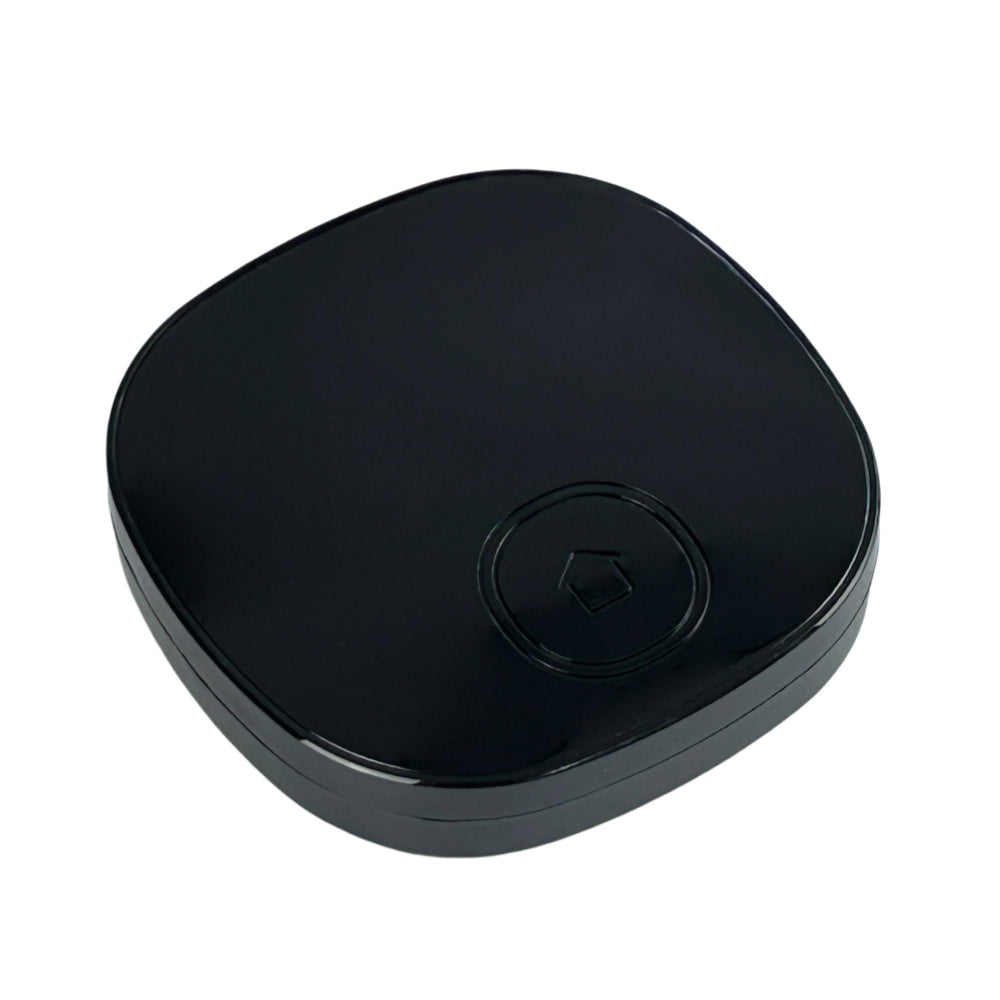

ESP32-S3 Smart IR RF Controller – KinCony KC868-AGv3

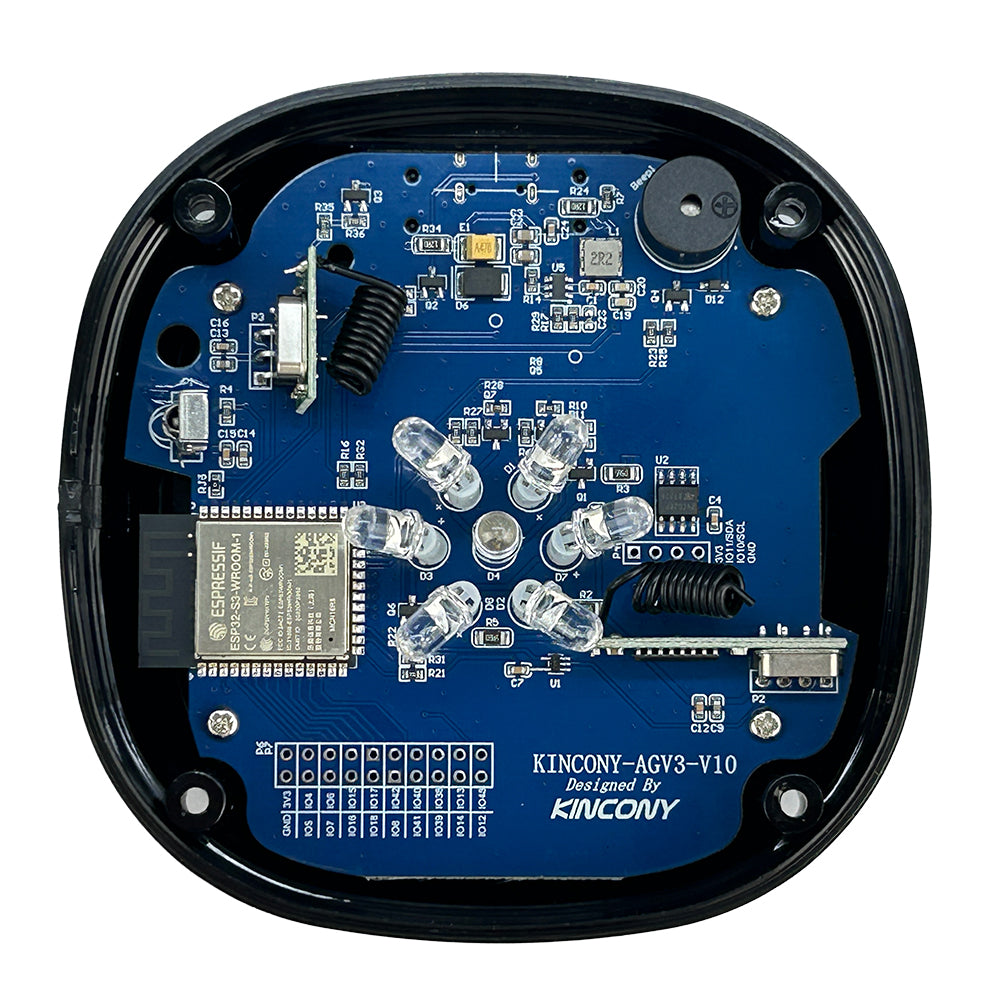

KinCony KC868-AGv3 is a smart IR controller designed for smart home automation and IoT projects. It is based on the ESP32-S3-WROOM-1U N16R8 module, with powerful performance and rich interfaces for infrared, RF433MHz, and custom GPIO expansion.

KC868-AGv3 supports Home Assistant, ESPHome, Arduino IDE, MicroPython, and ESP-IDF development. With KinCony KCS v3 firmware, it also supports MQTT Home Assistant Auto Discovery, so users can integrate sensors and decoded IR signals into Home Assistant without writing configuration code.

smart IR controller

Main Features

ESP32-S3-WROOM-1U N16R8 module
Built-in IR receiver
IR sending via 3 GPIO channels

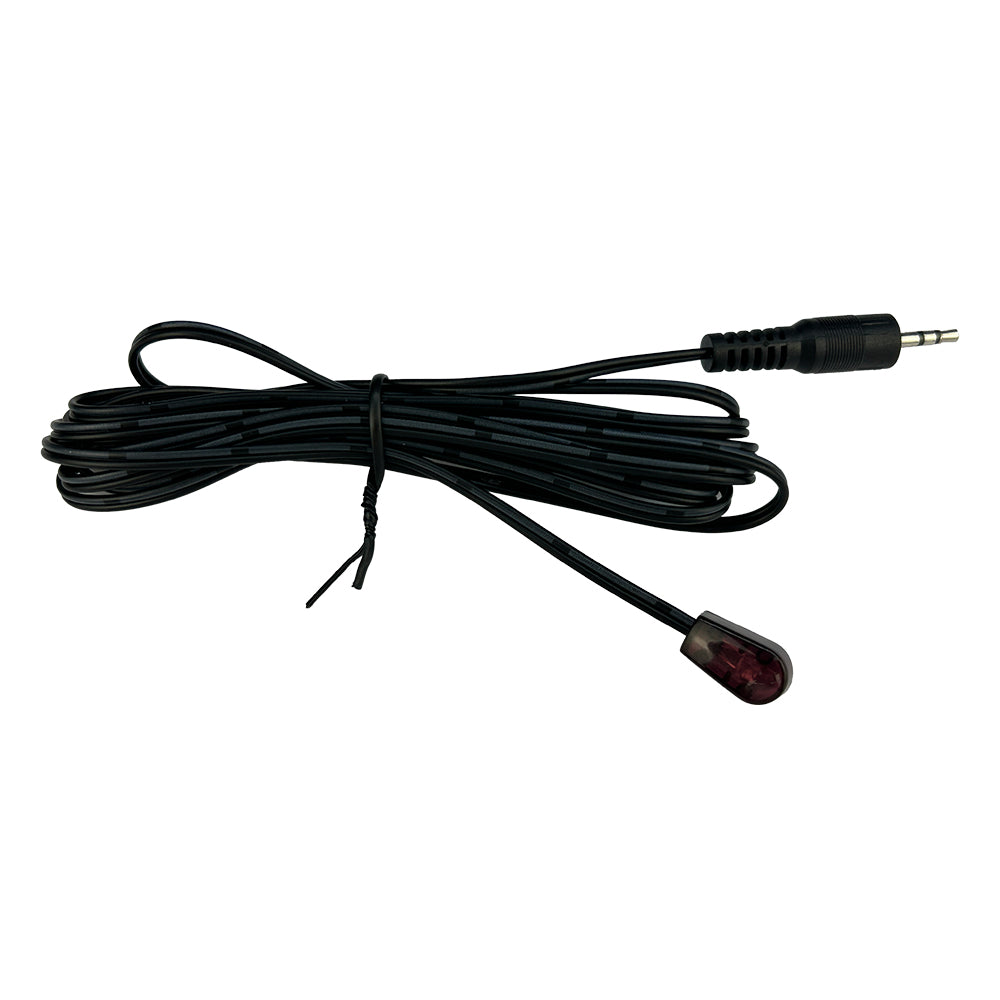

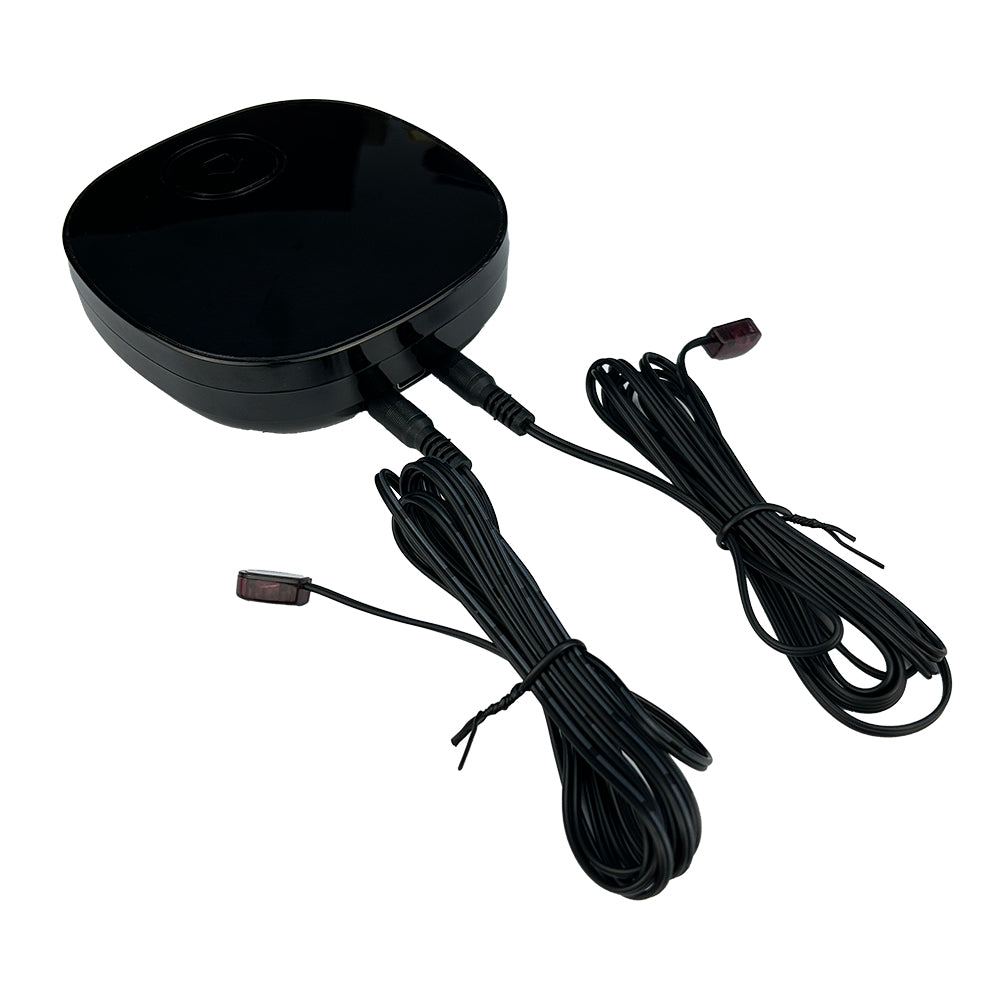

2 independent IR extension cable ports
Built-in RF433MHz receiver
Built-in RF433MHz sender
Built-in buzzer
18 free GPIO ports on PCB
Supports Home Assistant
Supports ESPHome YAML configuration
Supports Arduino IDE, MicroPython, and ESP-IDF development
Supports KCS v3 firmware
MQTT Home Assistant Auto Discovery
Zero-code integration with Home Assistant using KCS firmware
Suitable for smart home, IoT, IR control, RF remote control, and automation projects

Home Assistant Integration

KC868-AGv3 can be used with Home Assistant in two ways.

Users can configure the device with ESPHome YAML for customized automation projects.

It can also run KinCony KCS v3 firmware. With KCS v3 firmware, KC868-AGv3 supports MQTT Home Assistant Auto Discovery. Sensors and decoded IR signals can be automatically discovered in Home Assistant, making setup much easier without writing configuration code.

IR and RF Control

KC868-AGv3 includes both infrared and RF433MHz functions.

The built-in IR receiver can be used to learn and decode infrared remote control signals. The IR sender can transmit IR signals through 3 GPIO channels, including onboard IR output and 2 independent IR extension cable ports.

The RF433MHz receiver and sender allow the controller to work with 433MHz wireless remote controls, sensors, and RF devices.

esp32 ir rf

Hardware Specifications

Item	Description
Model	KinCony KC868-AGv3
Processor	ESP32-S3-WROOM-1U N16R8

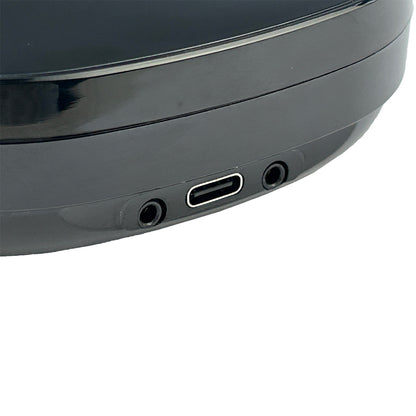

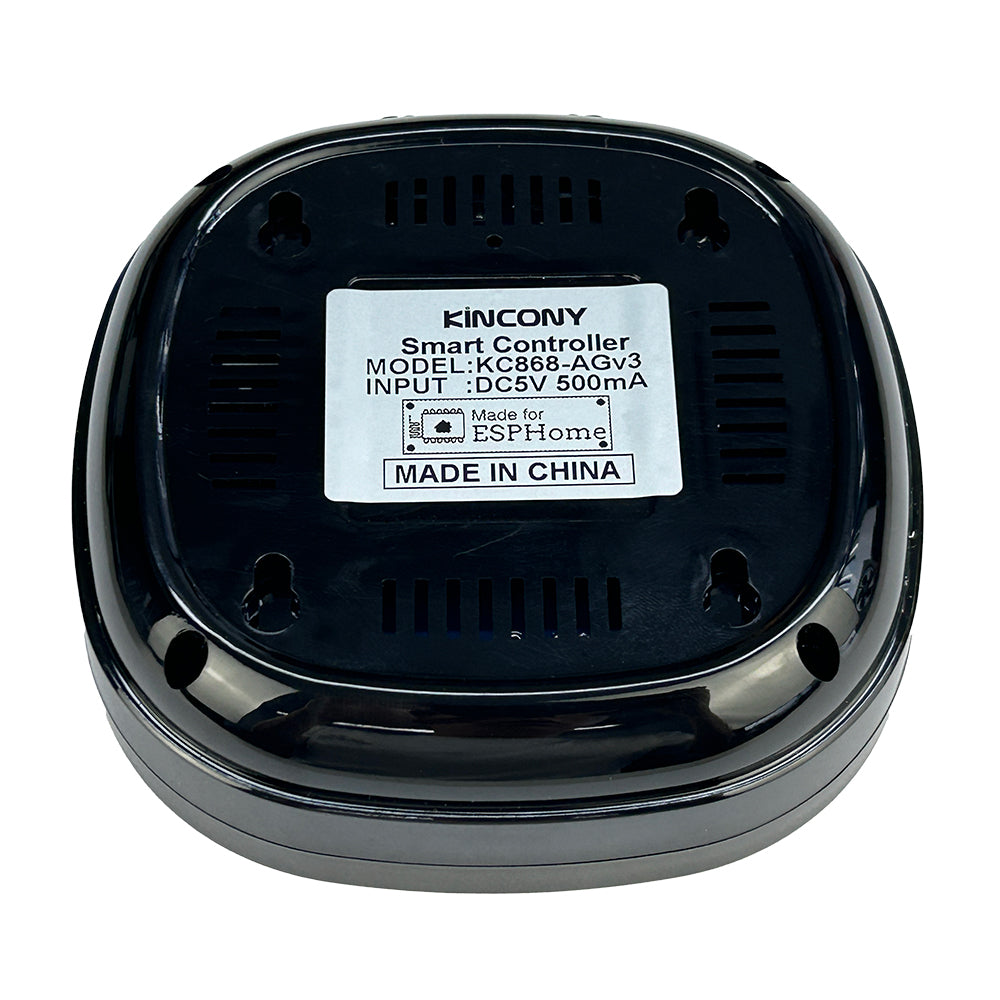

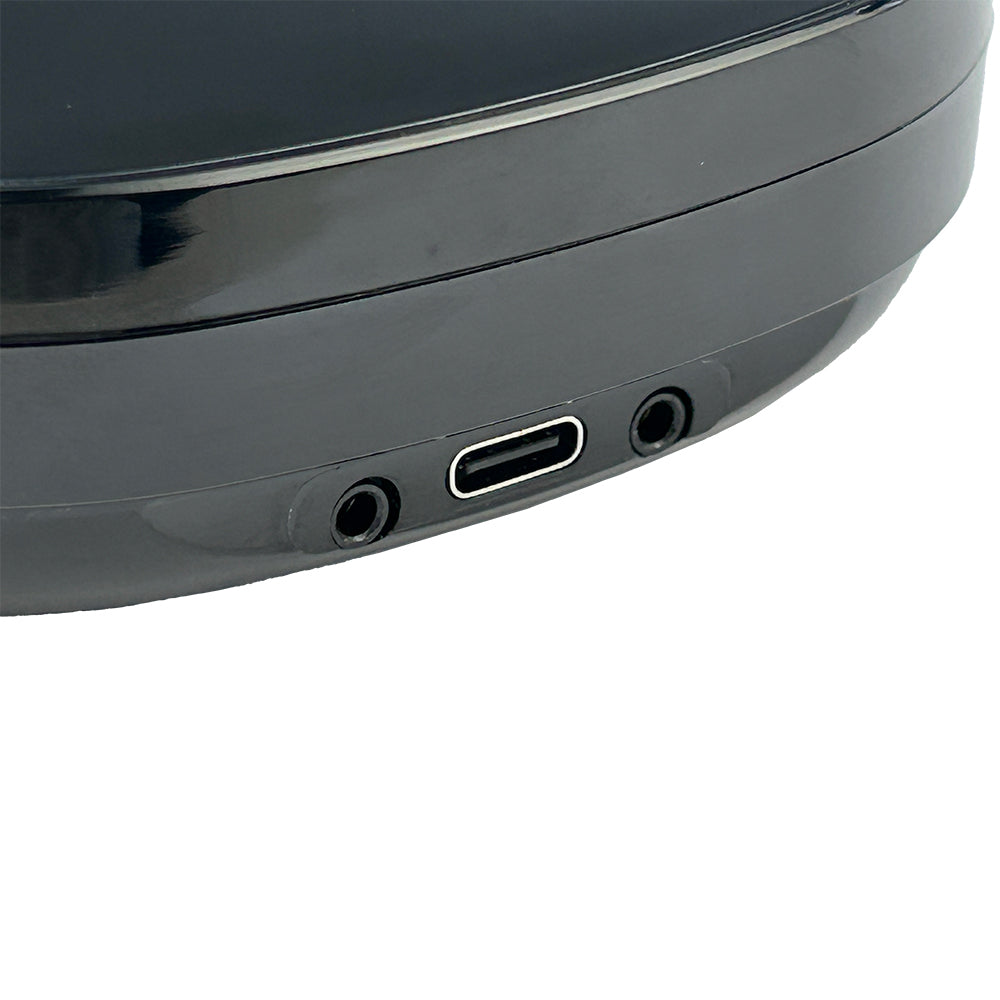

Power Supply	DC 5V via USB-C
Free GPIOs	18
IR Receiver	1
IR Sender	3 GPIO channels
IR Extension Cable Ports	2 independent ports
RF433MHz Receiver	1
RF433MHz Sender	1
Buzzer	1
Size	100mm × 100mm × 30mm
