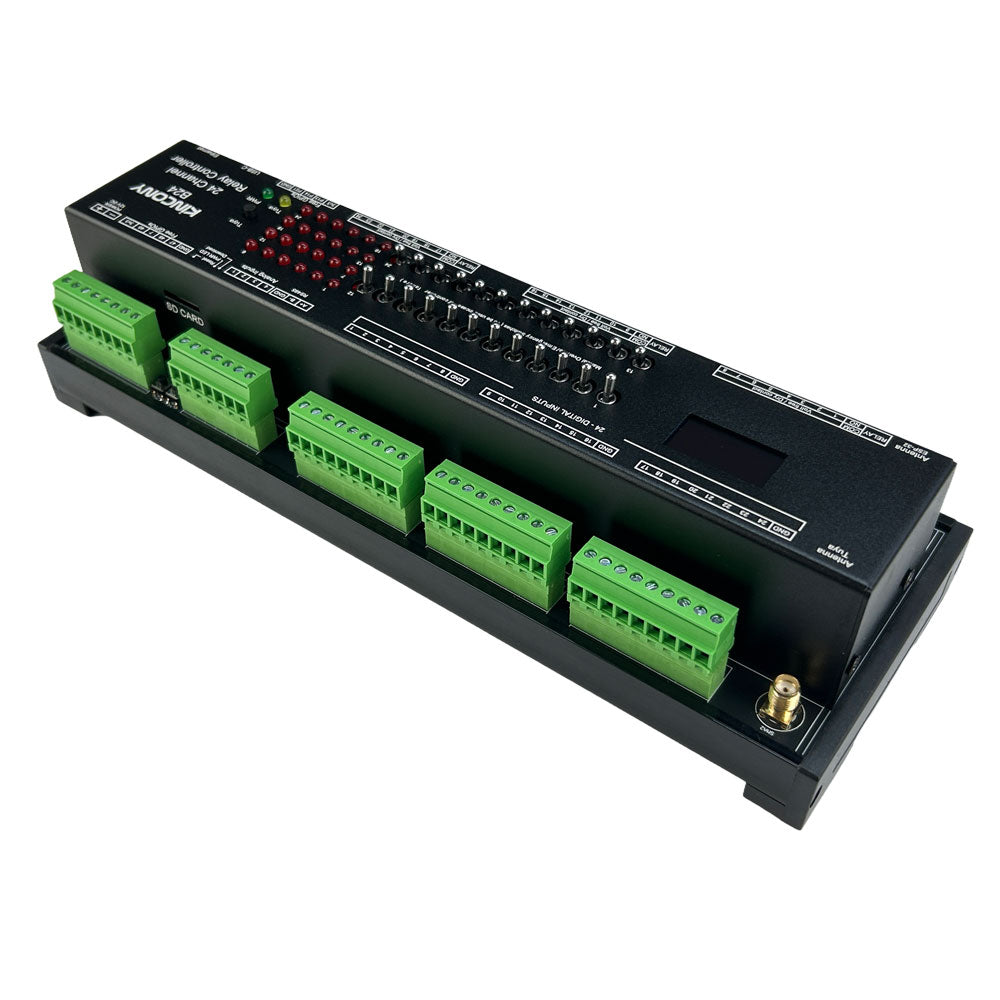

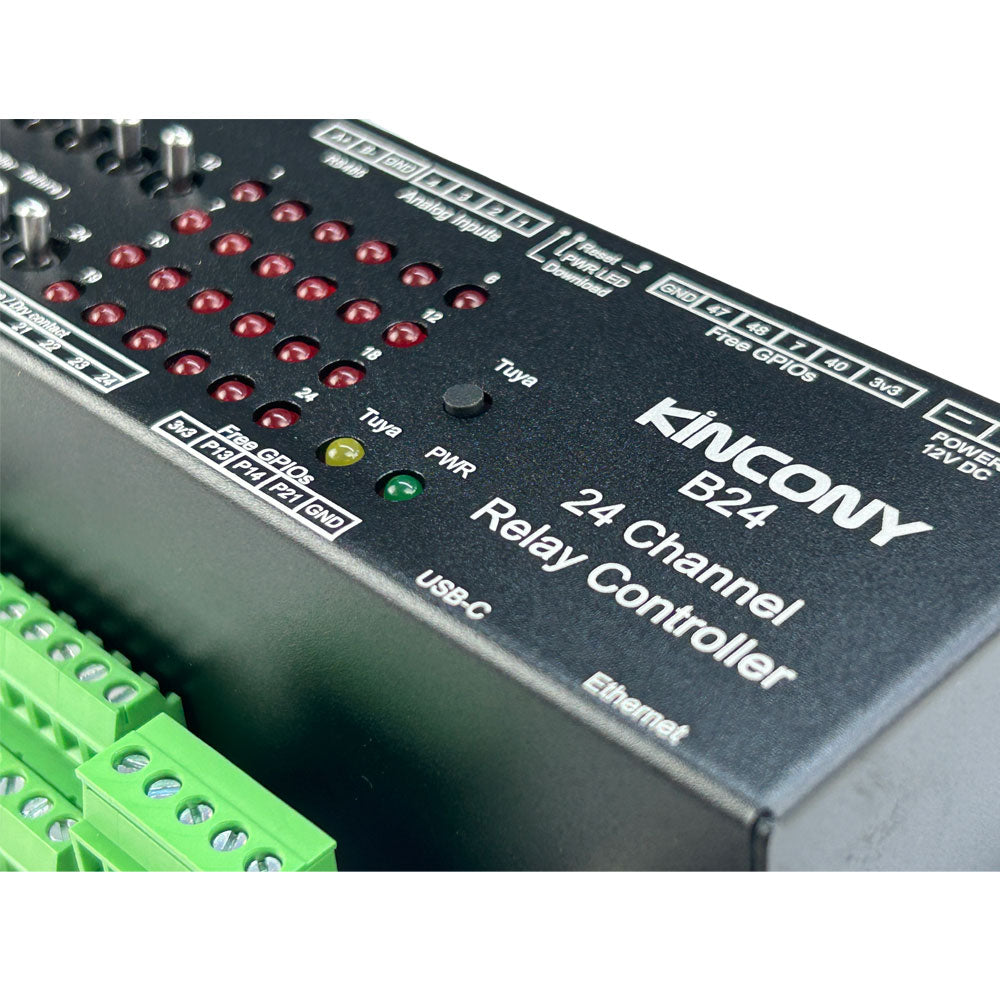

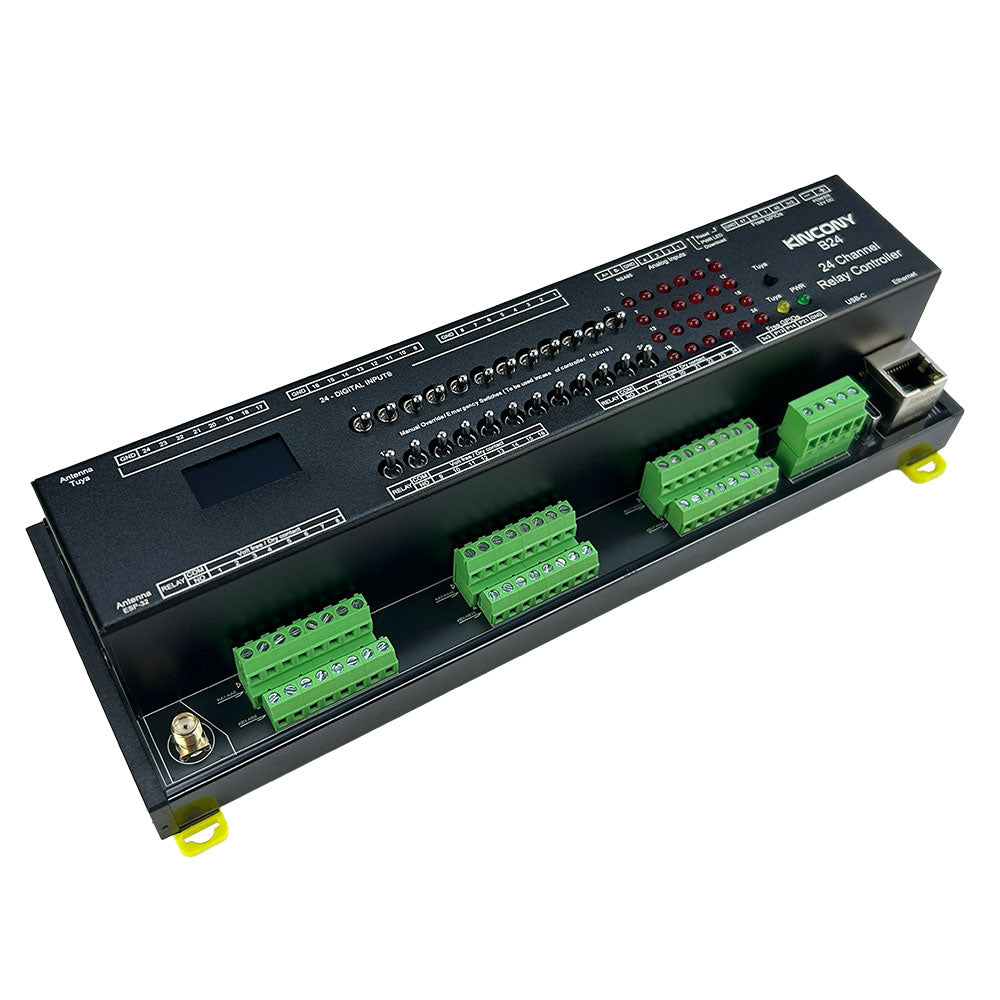

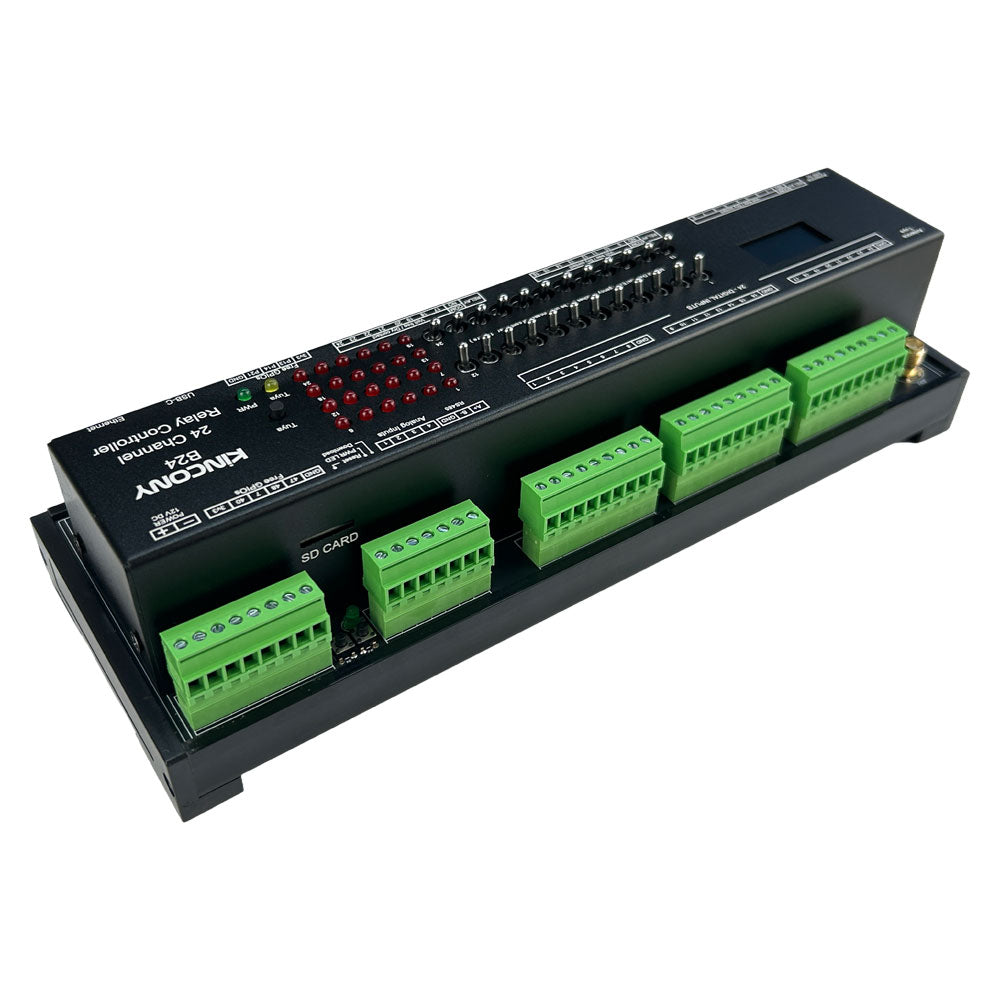

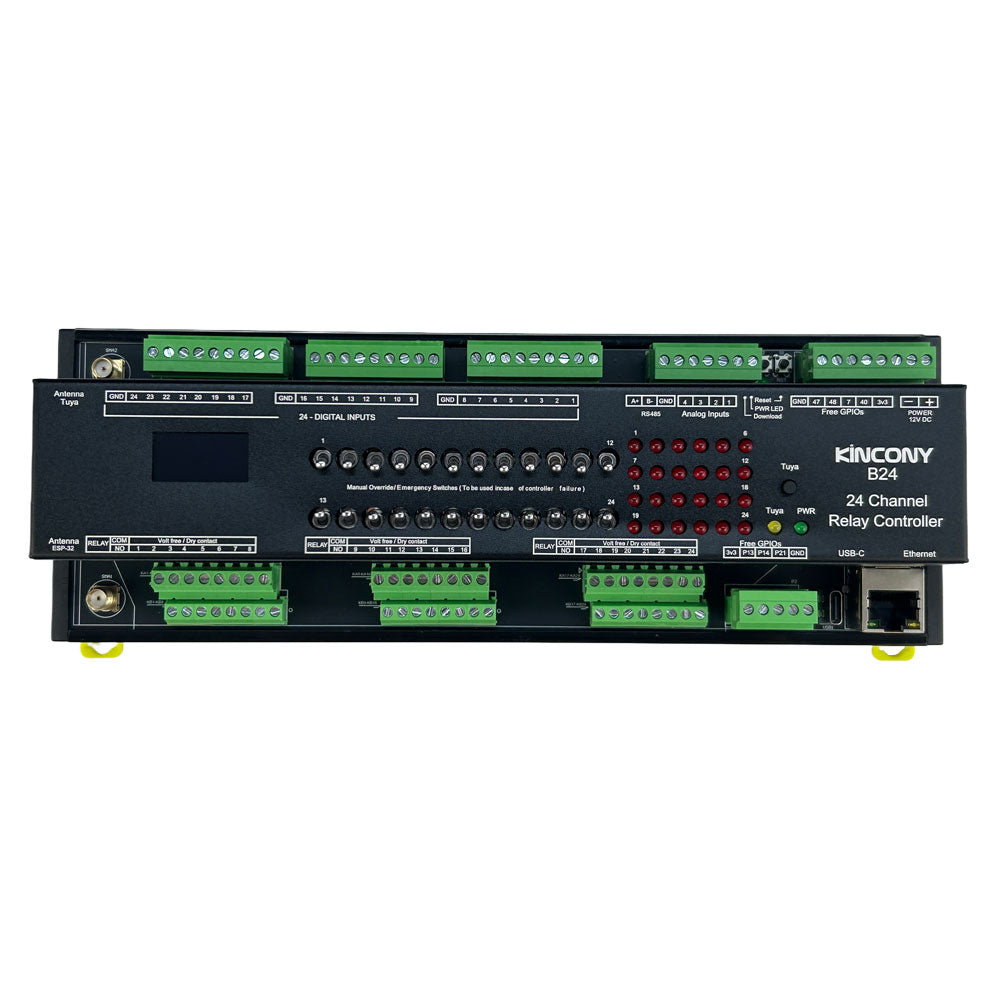

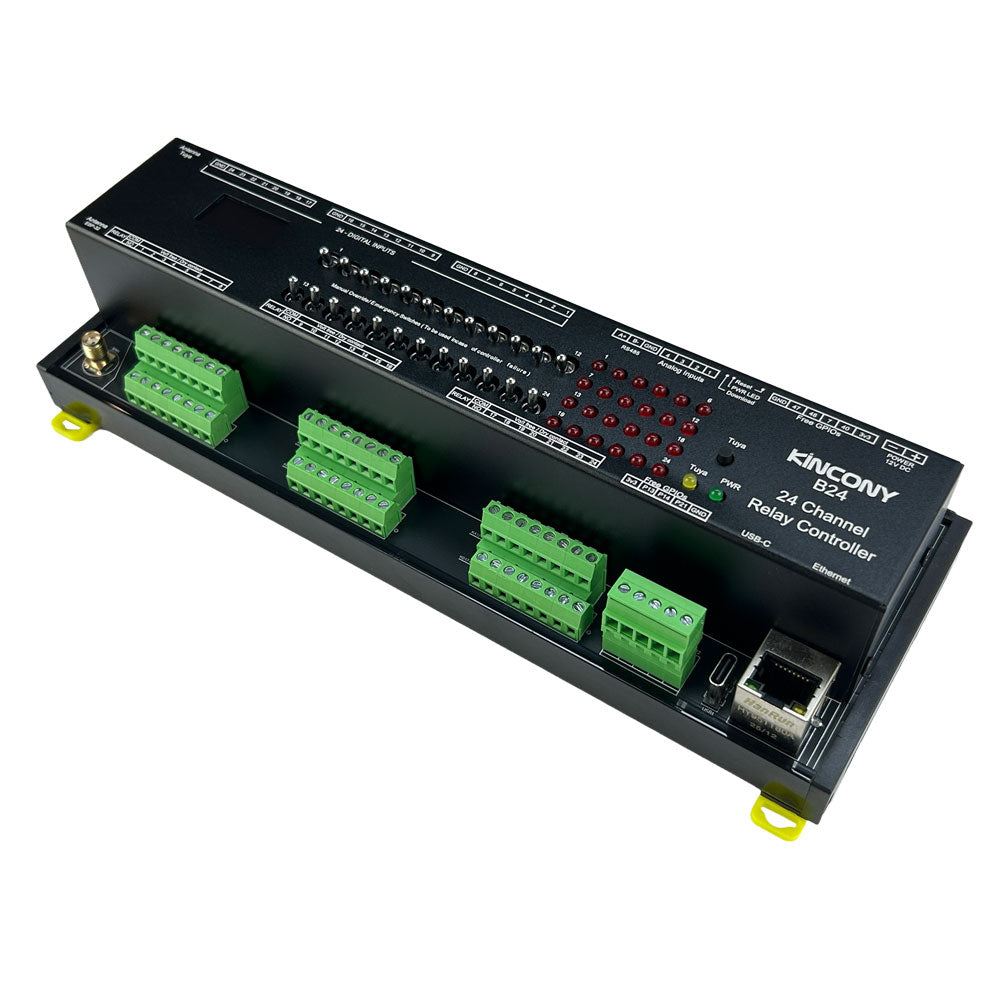

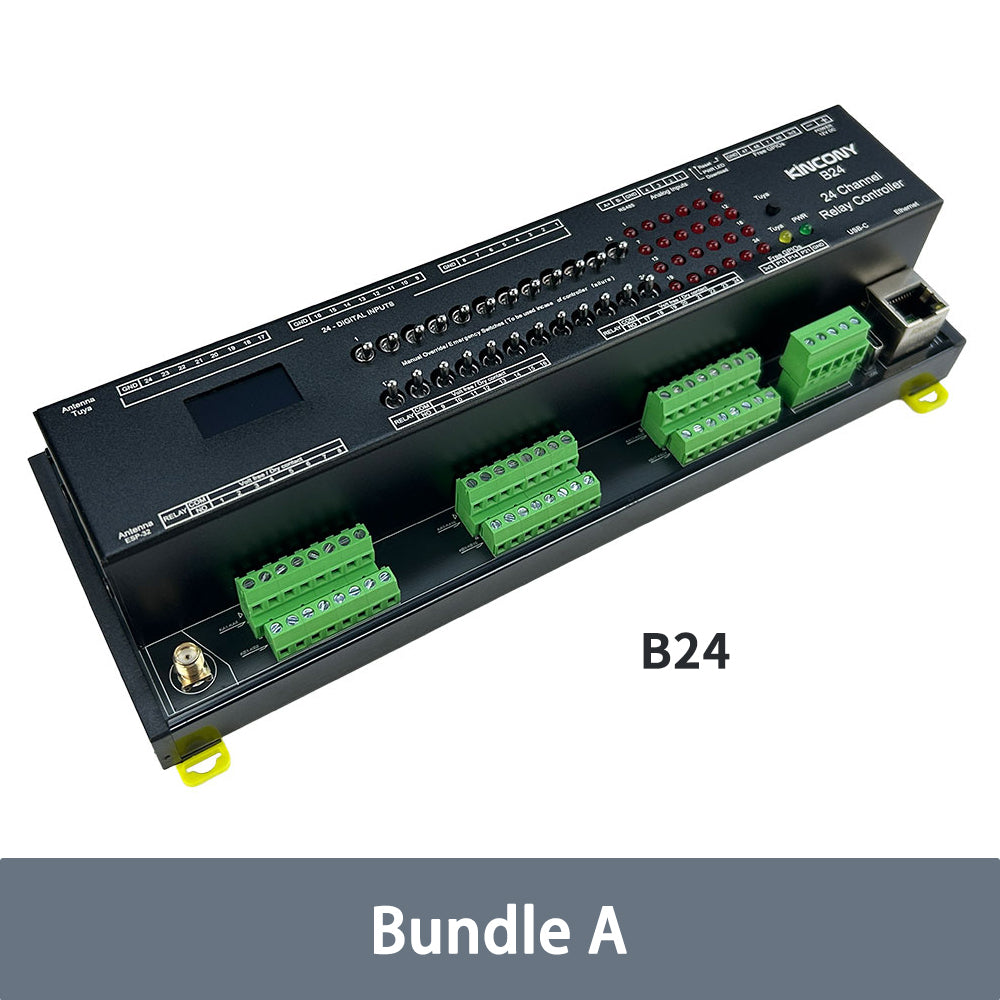

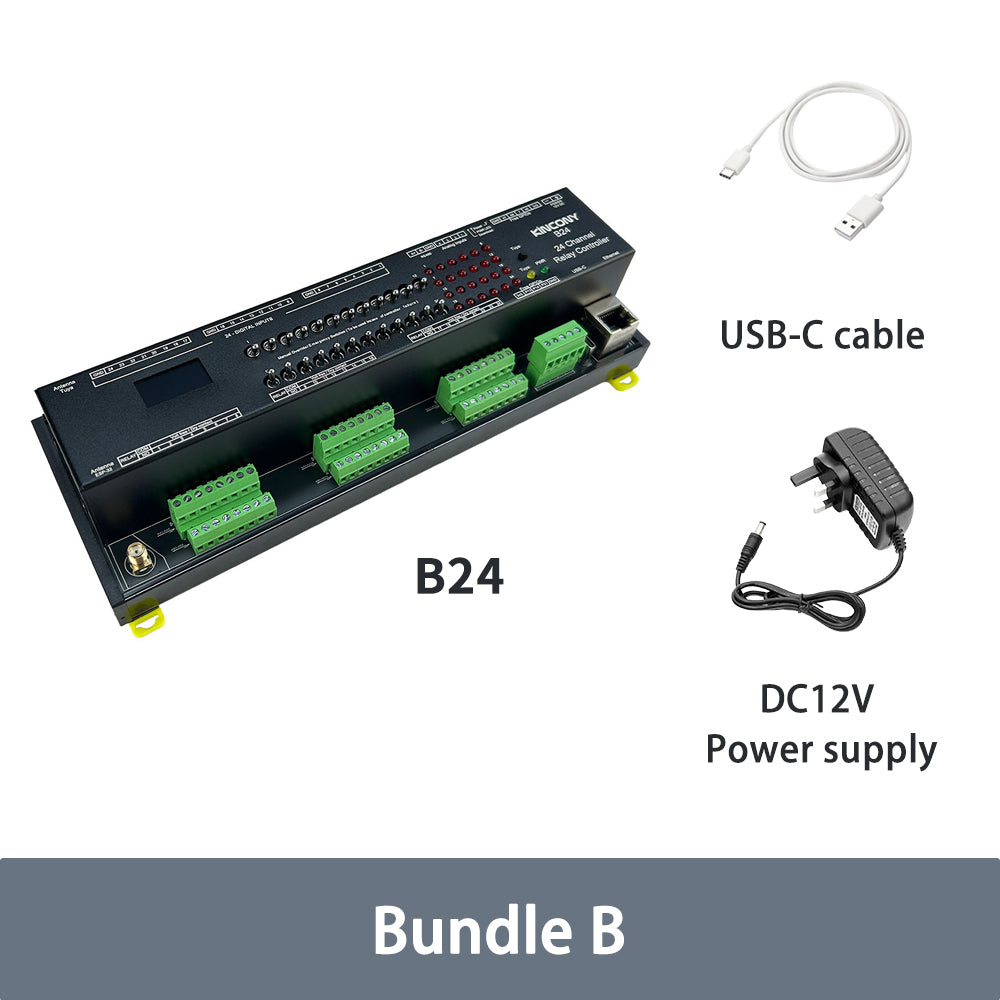

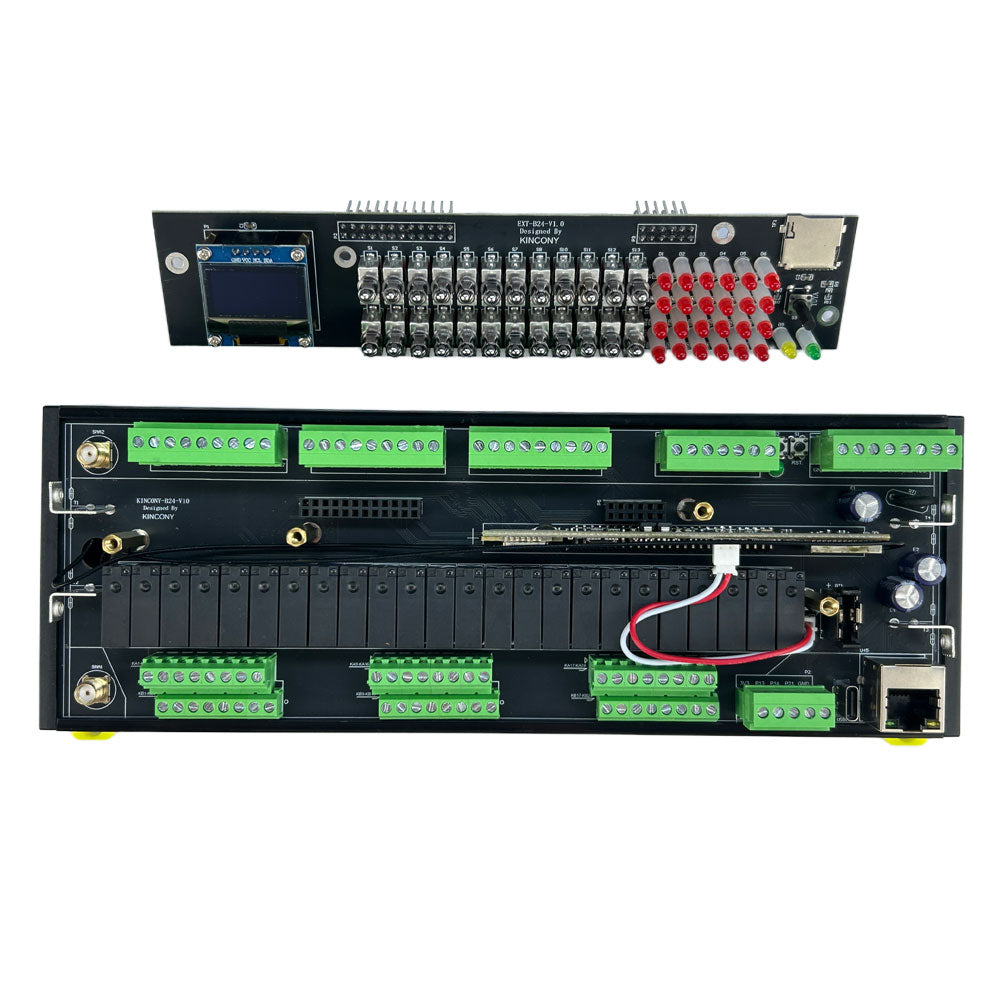

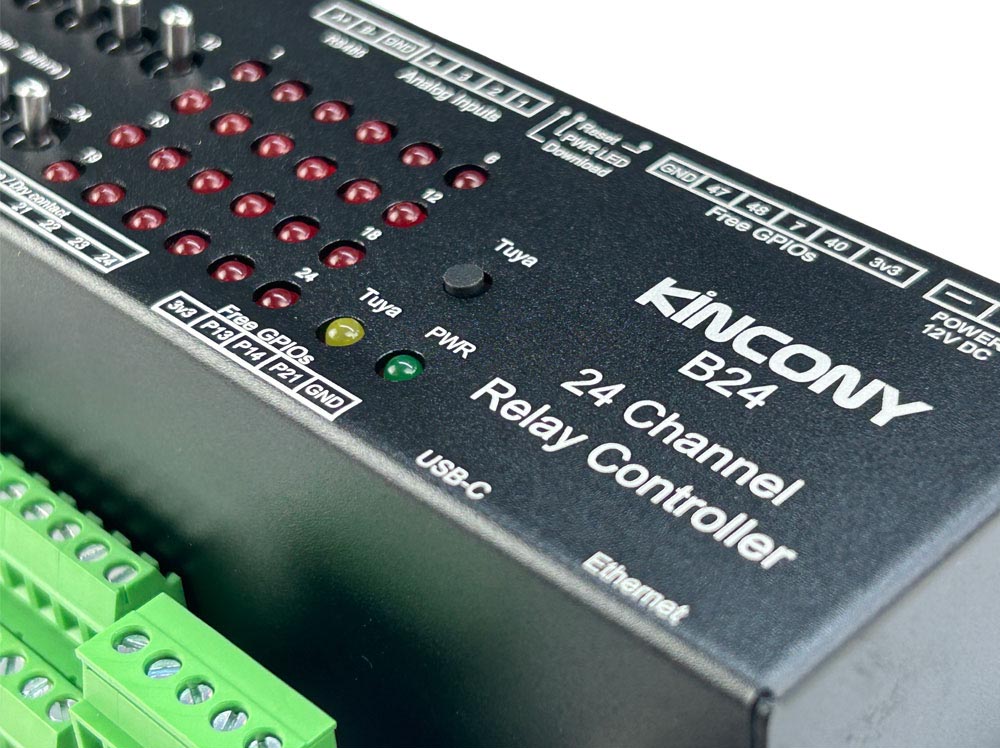

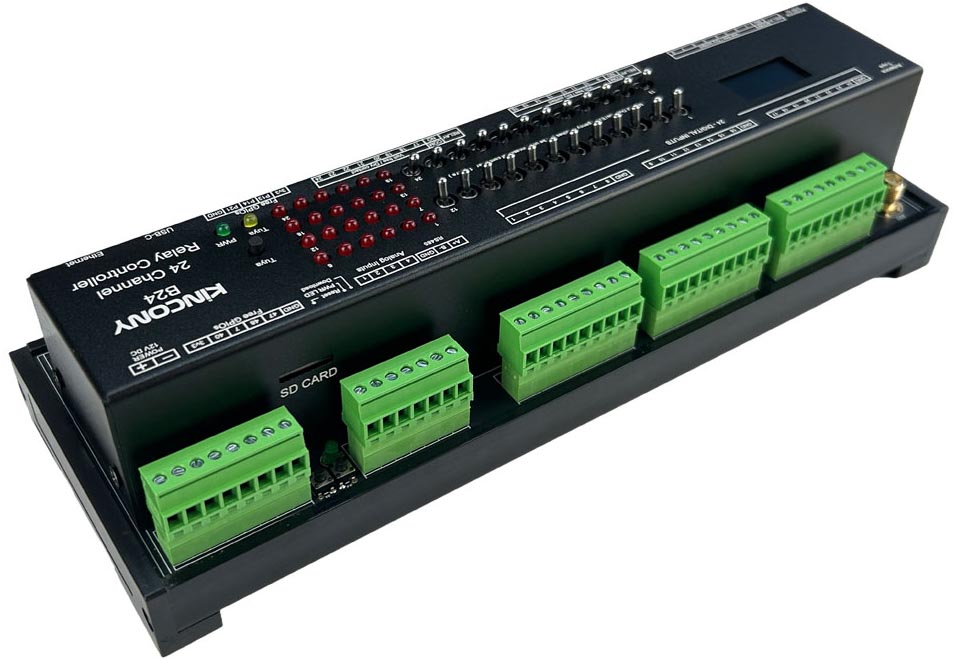

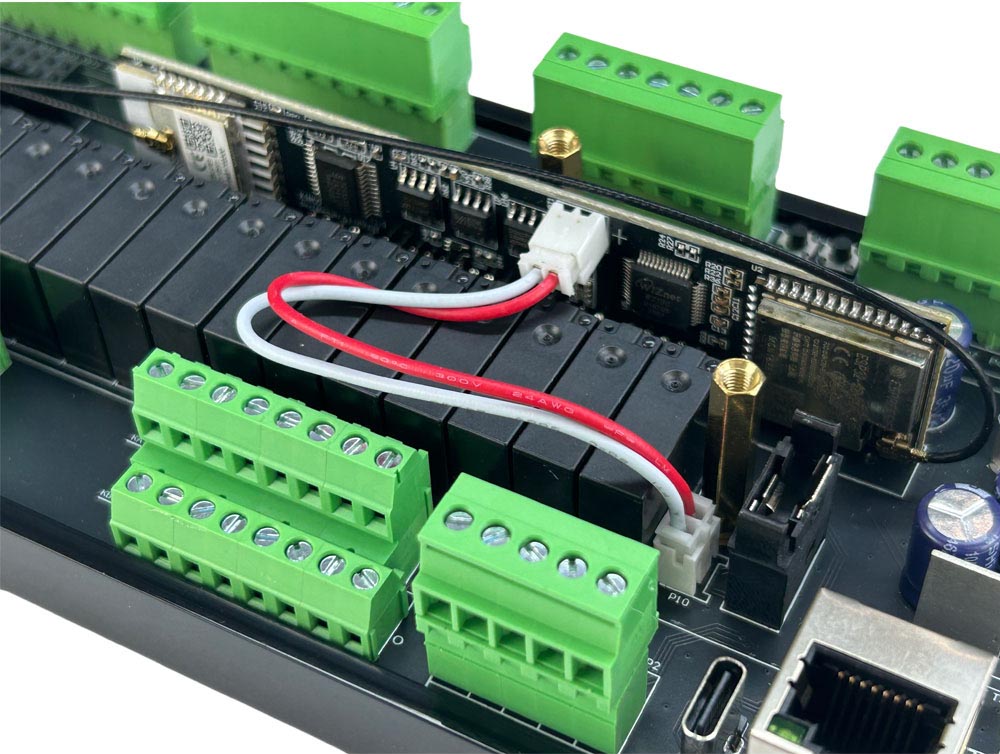

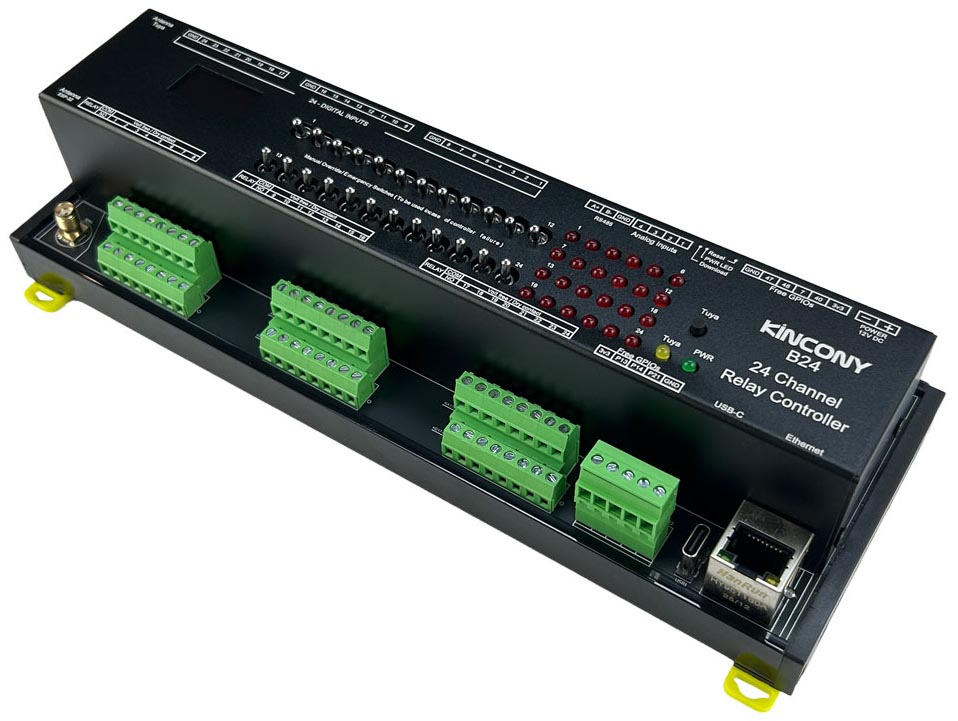

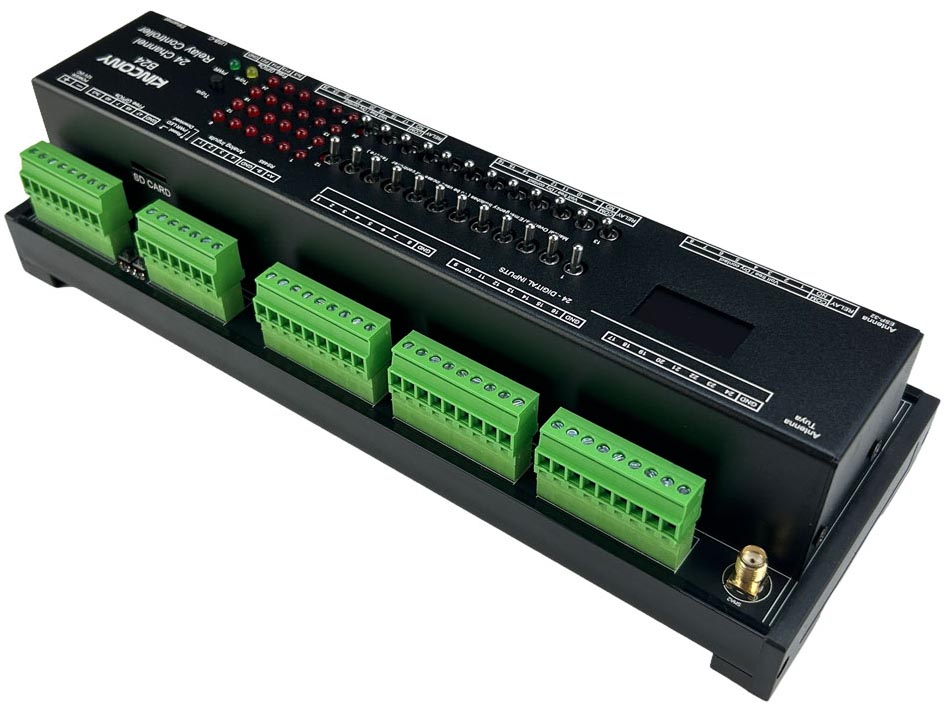

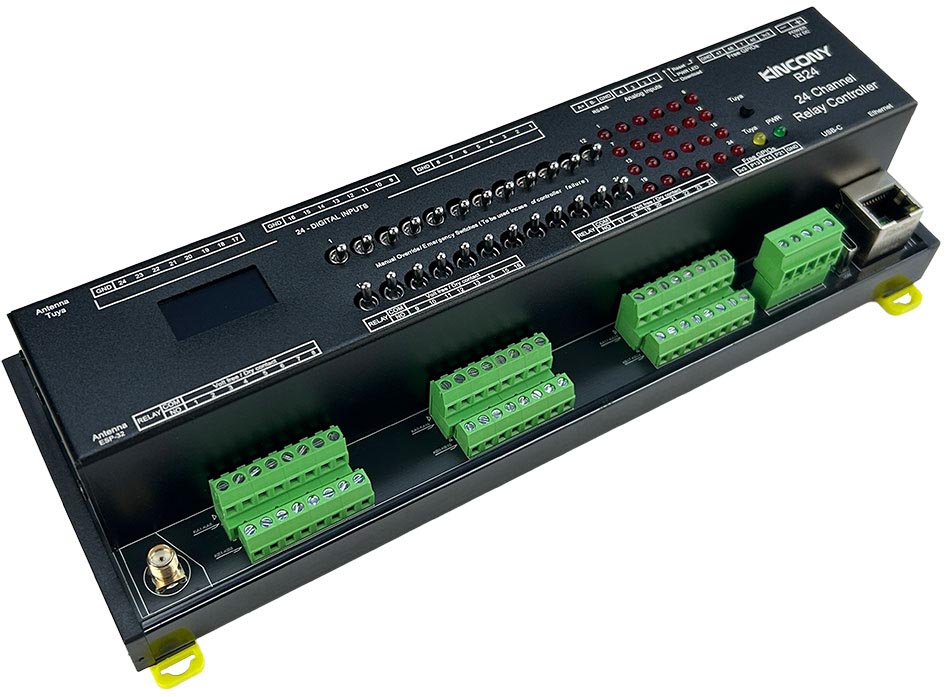

ESP32 Smart Controller – B24 (24CH Relay)

KinCony B24 ESP32 smart controller based on ESP32-S3-WROOM-1U (N16R8) wifi chip. Support 24 channel relay output, 7 channel 1-wire GPIOs, 4 channel ADS1115 16bit analog input ports. One SD card using SPI bus. B24 include DS3231 high precision RTC clock chip. OLED display will show wifi and ethernet IP address and Tuya connection state. B24 have I2C bus extender and RS485 port. You can write any code by Arduino IDE / MicroPython / ESP-IDF development tool to ESP32 module. We will supply Arduino / ESP-IDF demo code for different samples. Everyone can modify and change the code for your own smart home automation system project. it support use by ESPHome for home assistant or tasmota firmware for smart home automation DIY. B24 use KCS v3 firmware, it support home assistant auto discovery function by MQTT, so without write any config code (zero code) for home assistant. KCS v3 support KinCony cloud service (official shop customer free 2 years), remote monitor and control device by webpage in anywhere. KCS v3 support KinCony board integrate to Loxone Miniserver. Support Apple HomeKit for Siri.

Model No. KinCony B24
Description: KinCony 24 Channel ESP32-S3 Smart Relay Controller – B24
Power supply: 12V DC
Processor: ESP32-S3-WROOM-1U (N16R8)
Size: 239mm*83mm*59mm
interfaces: Ethernet(RJ45)-LAN 100Mbps IPv4/IPv6,WiFi,RS485,Bluetooth,USB-C,LCD,I2C,Tuya Module
RTC: DS3231 high precision chip (battery socket on PCB)
SD Card: SPI bus

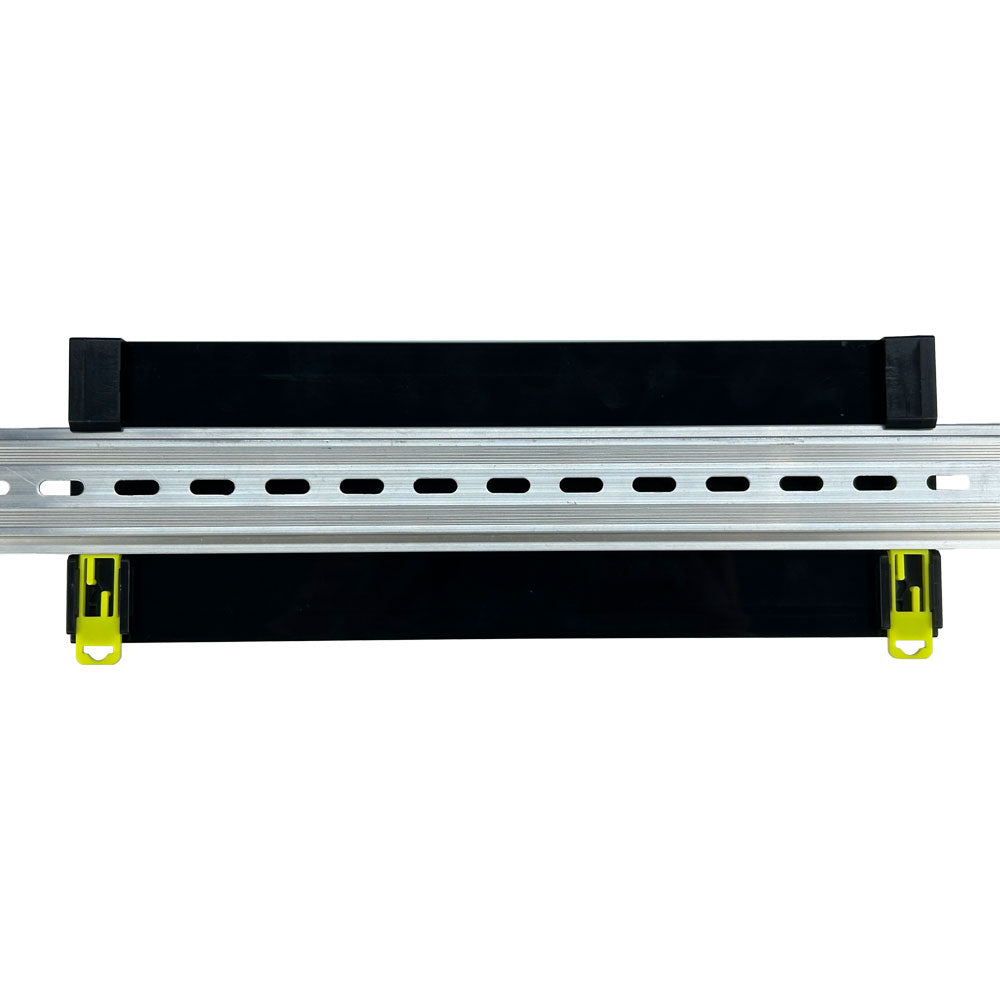

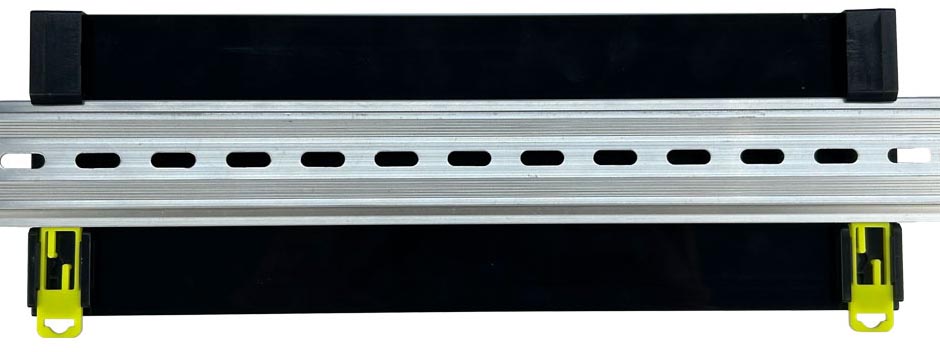

Installation method: DIN RAIL
OLED: SSD1306 I2C display

Outputs:
24CH relay Outputs, every relay use by MAX AC250V/7A

Inputs:
ADS1115 16bit ADC: 2CH analog input DC0-5V (A1,A2) 2CH analog input 4-20mA (A3,A4)
24CH dry contact inputs (optocoupler isolation, long distance circuit for MAX 500 meters cable)
3 buttons: 1:ESP32 Reset 2:ESP32 Download 3:Tuya config
1-Wire GPIO: 7CH (with pull-up resistance on PCB)

software solution:

1. download KinCony KCS v3 firmware, so that work with multi protocol: HTTP, MQTT, TCP, RS485 modbus, Tuya app, config OUTPUT for “momentary” and “interlock” group functions. use Tuya mobile phone app directly, support voice control by Alexa and Google home speaker directly. if you want local voice control without internet, you can add KinCony AS voice assistant. “KCS” support IFTTT function work locally without internet. It also support use by KinCony cloud server. KCS v3 support home assistant auto discovery function by MQTT, so without any config file for home assistant.

2. download firmware by ESPHome, integrate to home assistant or use by web service.

3. download tasmota firmware.

4. write your own Arduino or ESP-IDF code for your own requirements.

5. It is recommended to use home assistant and Tuya mobile phone app at the same time. So that remote control by internet using Tuya app, local control by LAN using home assistant app.

Related technical information
———————————
ESP32 I/O pin define: https://www.kincony.com/forum/showthread.php?tid=8385
config yaml file for ESPHome: https://www.kincony.com/forum/showthread.php?tid=8384
ESPHome official supportted list:
arduino demo source code: https://www.kincony.com/forum/forumdisplay.php?fid=86
KCS v3 firmware online guide: https://www.kincony.com/how-to-use-kcsv3-firmware-esp32-board.html

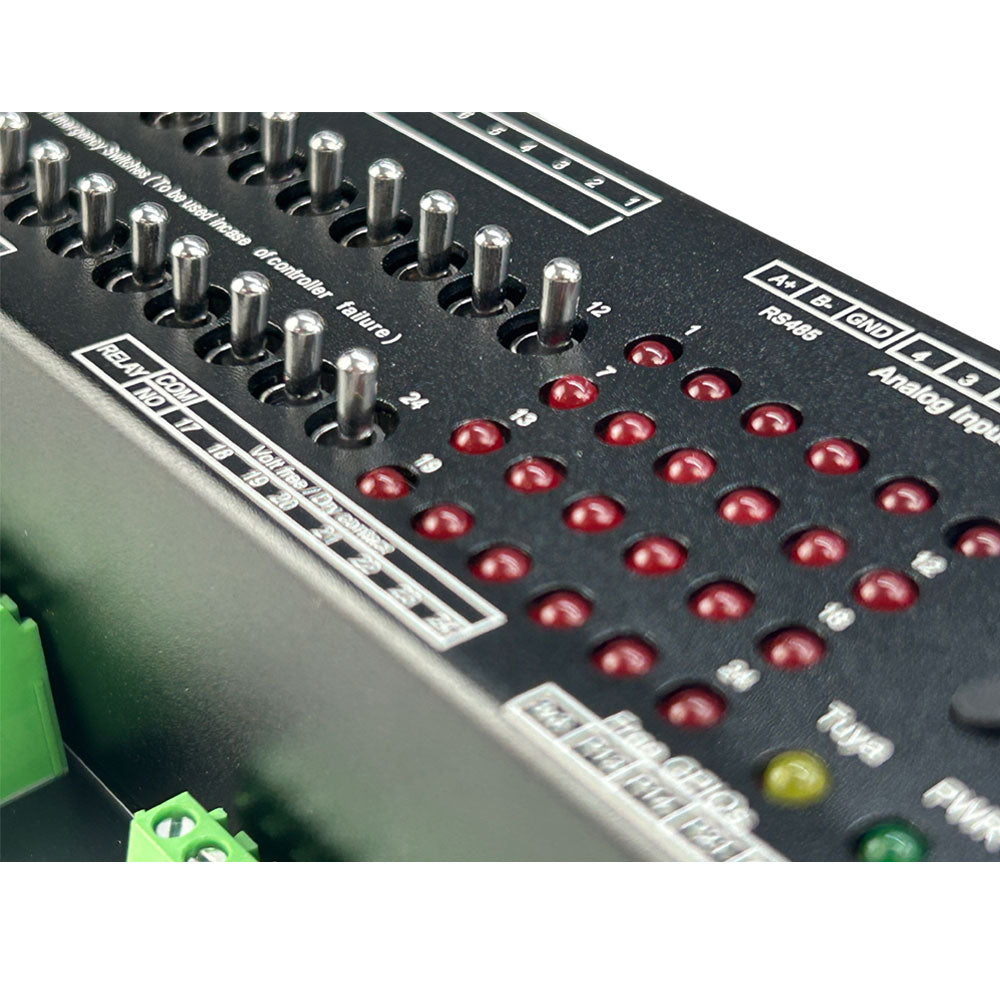

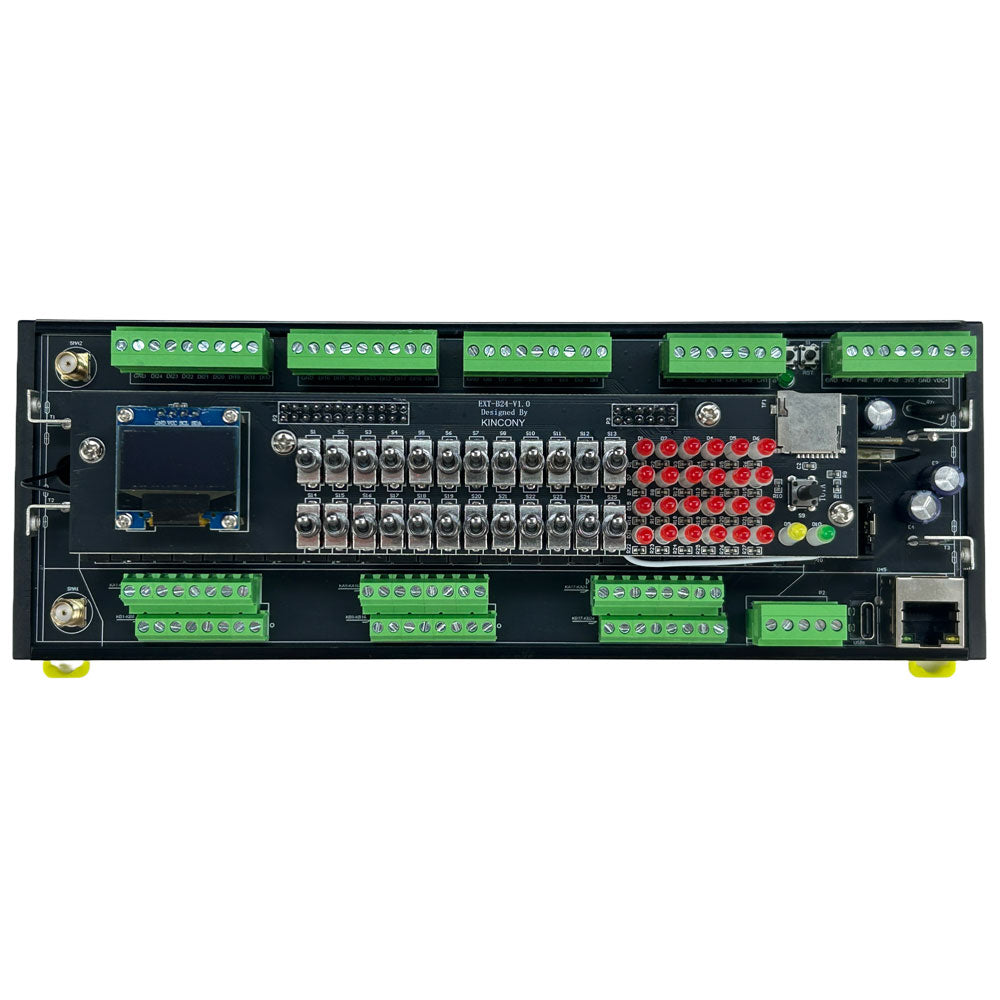

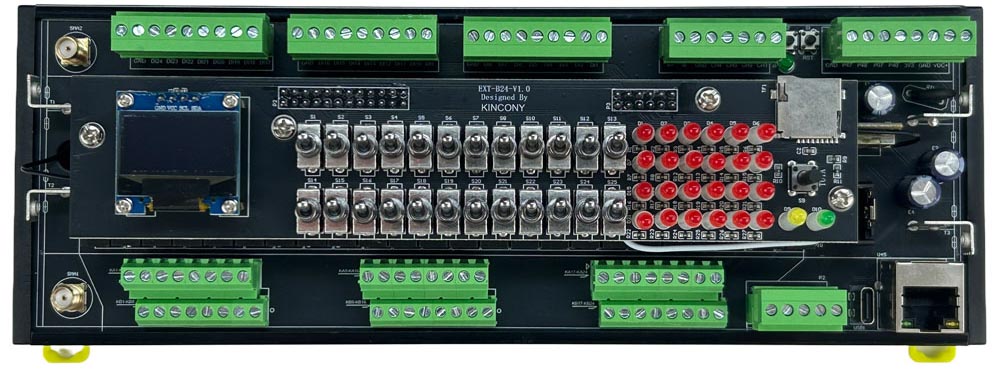

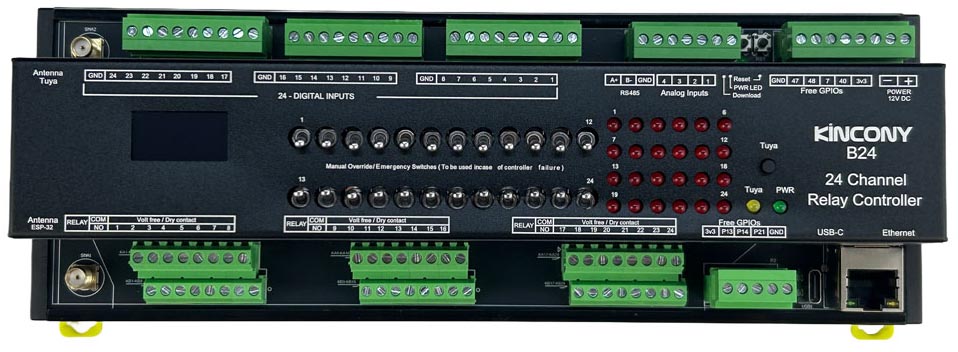

manual control buttons work without software.

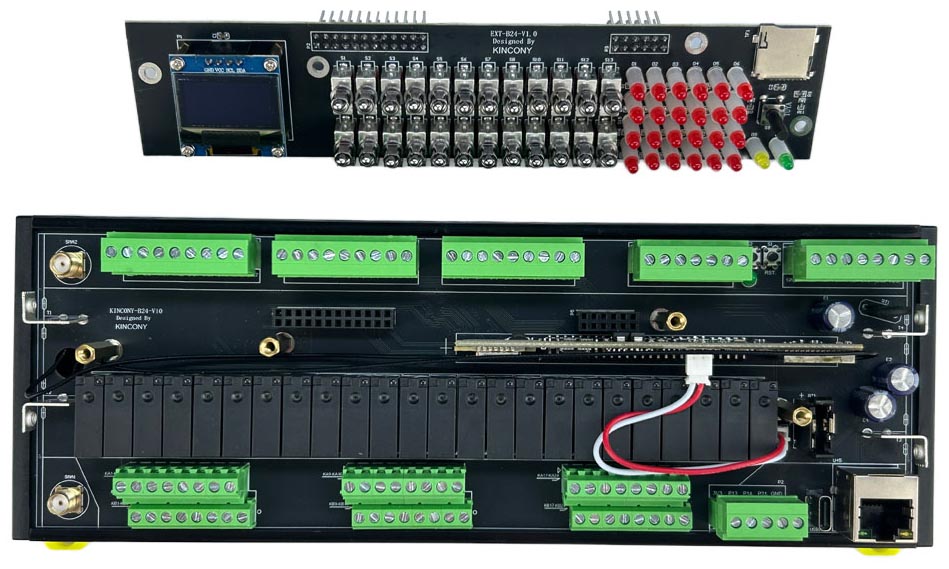

DS3231 RTC battery socket

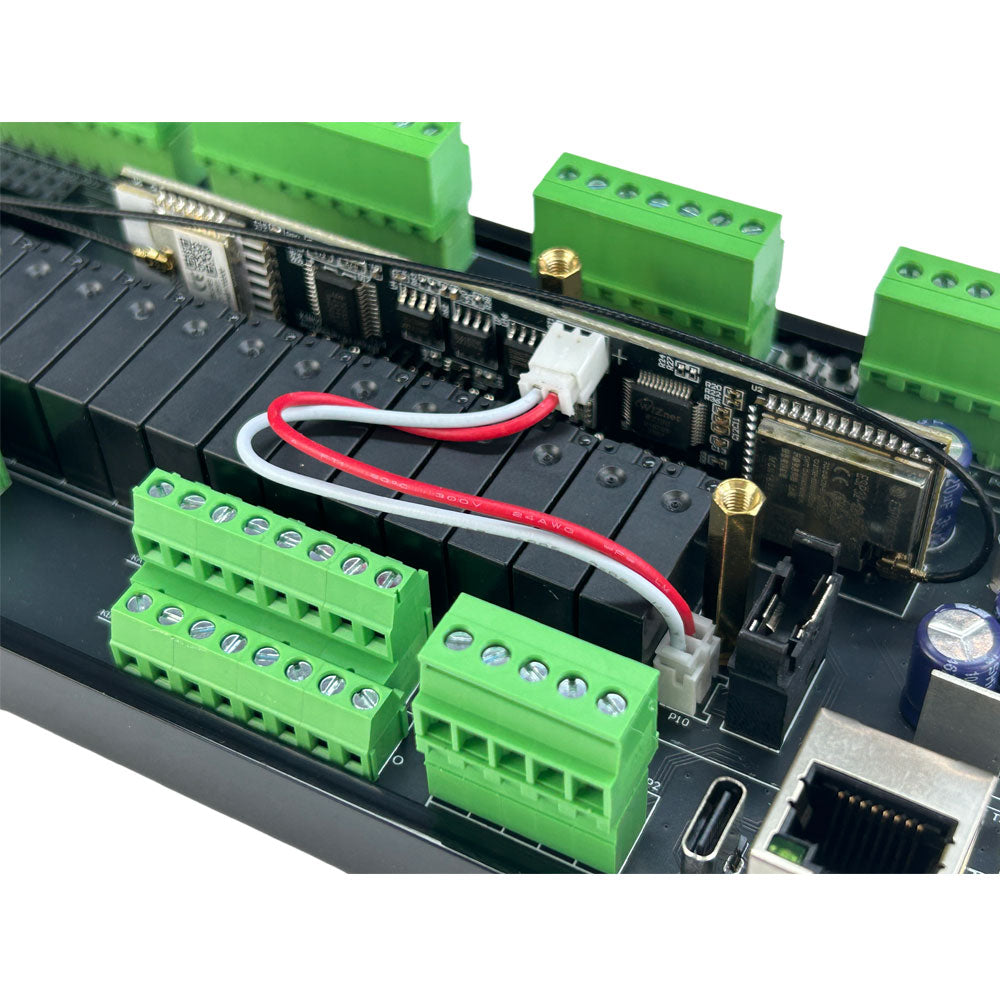

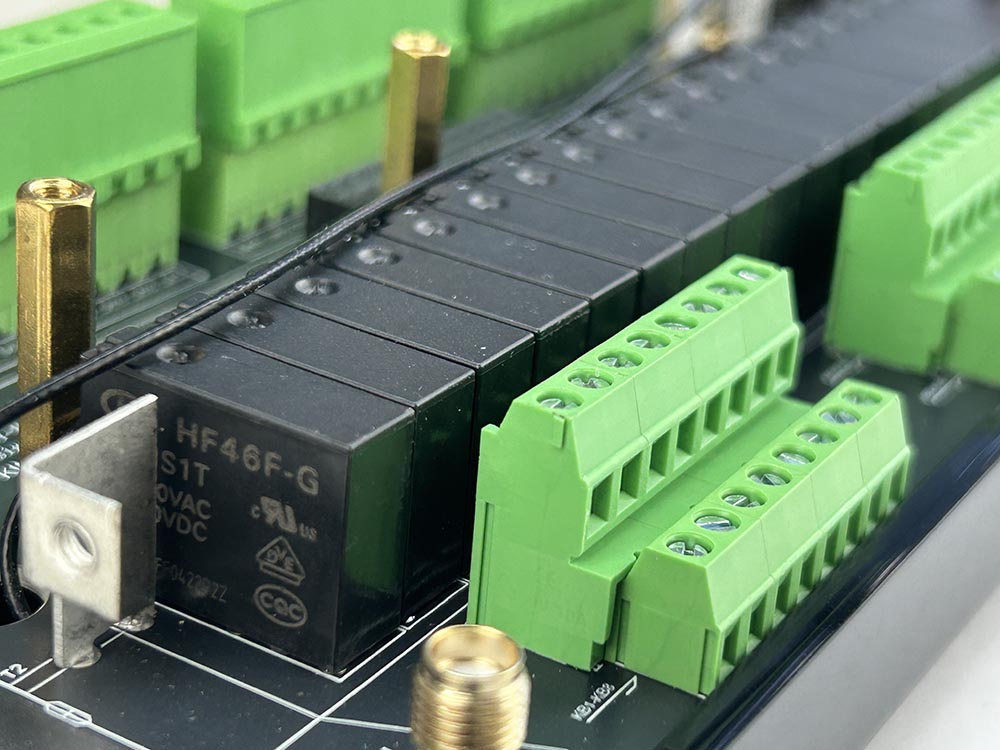

use AC250V 7A relay
