ESP32 Smart Controller – B24M (24CH MOSFET)

KinCony B24M ESP32 smart controller based on ESP32-S3-WROOM-1U (N16R8) wifi chip. Support 24 channel MOSFET output, 4 channel 1-wire GPIOs, 3 free GPIOs, 4 channel ADS1115 16bit analog input ports. One SD card using SPI bus. B24M include DS3231 high precision RTC clock chip. LCD display will show wifi and ethernet IP address and Tuya connection state. B24M have I2C bus extender and RS485 port. You can write any code by Arduino IDE / MicroPython / ESP-IDF development tool to ESP32 module. We will supply Arduino / ESP-IDF demo code for different samples. Everyone can modify and change the code for your own smart home automation system project. it support use by ESPHome for home assistant or tasmota firmware for smart home automation DIY. B24M use KCS v3 firmware, it support home assistant auto discovery function by MQTT, so without write any config code (zero code) for home assistant.

Model No. KinCony B24M
Description: KinCony 24 Channel ESP32-S3 Smart Controller – B24M
Power supply: 12-24V DC
Processor: ESP32-S3-WROOM-1U (N16R8)
Size: 220mm*83mm*56mm
interfaces: Ethernet(RJ45)-LAN 100Mbps IPv4/IPv6,WiFi,RS485,Bluetooth,USB-C,LCD,I2C,Tuya Module
RTC: DS3231 high precision chip (battery socket on PCB)
SD Card: SPI bus
Installation method: DIN RAIL
LCD: SSD1306 I2C display

Outputs:
24CH MOSFET Outputs, every channel use MAX 10A driver IC

Inputs:
ADS1115 16bit ADC: 2CH analog input DC0-5V (A1,A2) 2CH analog input 4-20mA (A3,A4)
24CH dry contact inputs (optocoupler isolation, long distance circuit for MAX 500 meters cable)
3 buttons: 1:ESP32 Reset 2:ESP32 Download 3:Tuya config
1-Wire GPIO: 4CH (with pull-up resistance on PCB)
free GPIO: 3CH (without pull-up resistance on PCB, connect with ESP32 pin directly)

software solution:

1. download KinCony KCS firmware, so that work with multi protocol: HTTP, MQTT, TCP, RS485 modbus, Tuya app, config OUTPUT for “momentary” and “interlock” group functions. use Tuya mobile phone app directly, support voice control by Alexa and Google home speaker directly. “KCS” support IFTTT function work locally without internet. It also support use by KinCony cloud server. KCS v3 support home assistant auto discovery function by MQTT, so without any config file for home assistant.

2. download firmware by ESPHome, integrate to home assistant or use by web service.

3. download tasmota firmware.

4. write your own arudino code for your own requirements.

5. It is recommended to use home assistant and Tuya mobile phone app at the same time. So that remote control by internet using Tuya app, local control by LAN using home assistant app.

Order bundles:

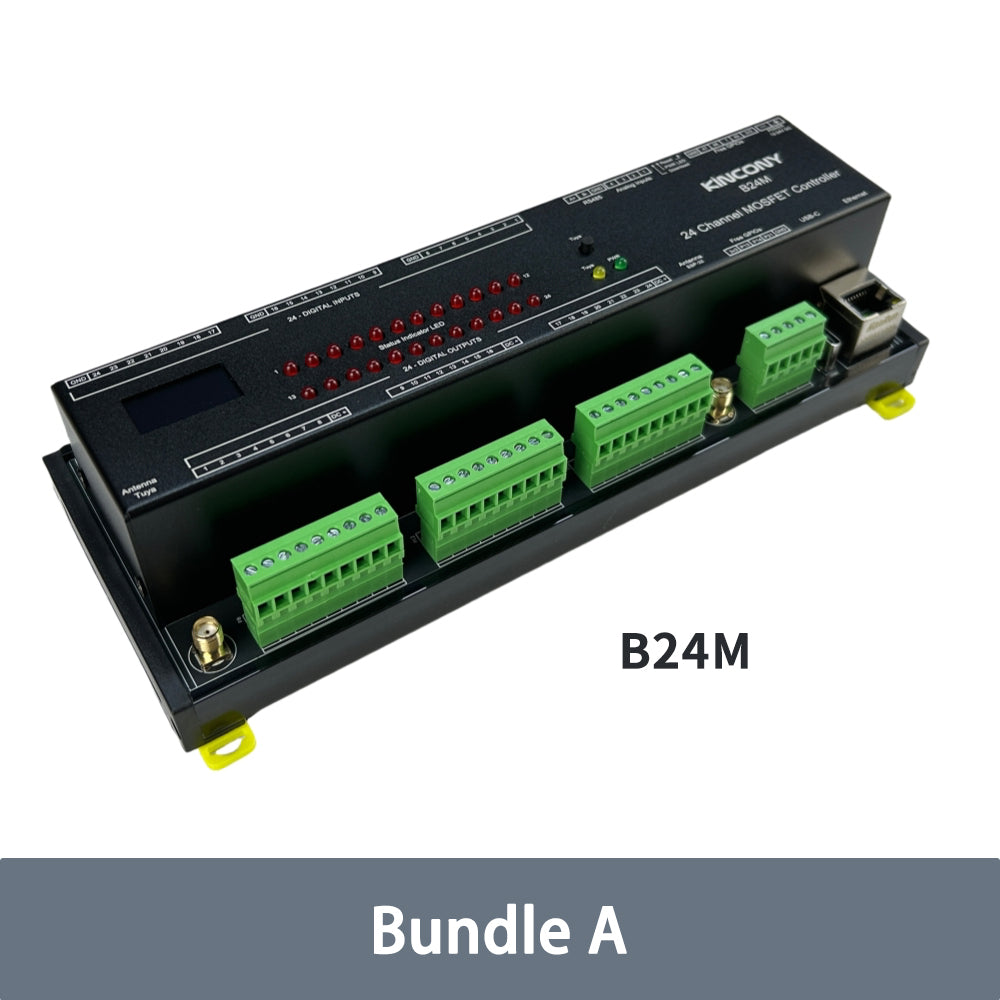

Bundle A: B24M

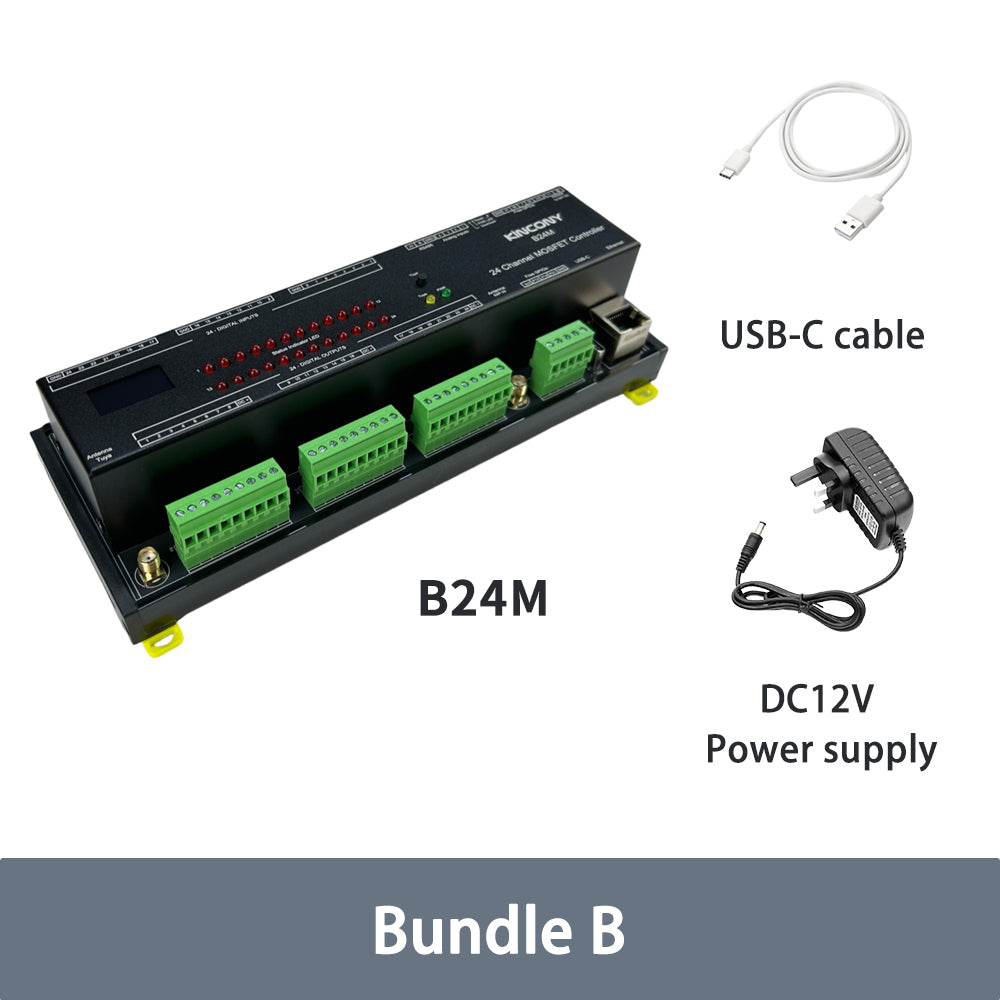

Bundle B: B24M + USB-C cable+ DC12V power supply

Related technical information
———————————
ESP32 I/O pin define: https://www.kincony.com/forum/showthread.php?tid=8358
config yaml file for ESPHome: https://www.kincony.com/forum/showthread.php?tid=8360
ESPHome official supportted list:
arduino demo source code: https://www.kincony.com/forum/forumdisplay.php?fid=85
KCS v3 firmware online guide: https://www.kincony.com/how-to-use-kcsv3-firmware-esp32-board.html

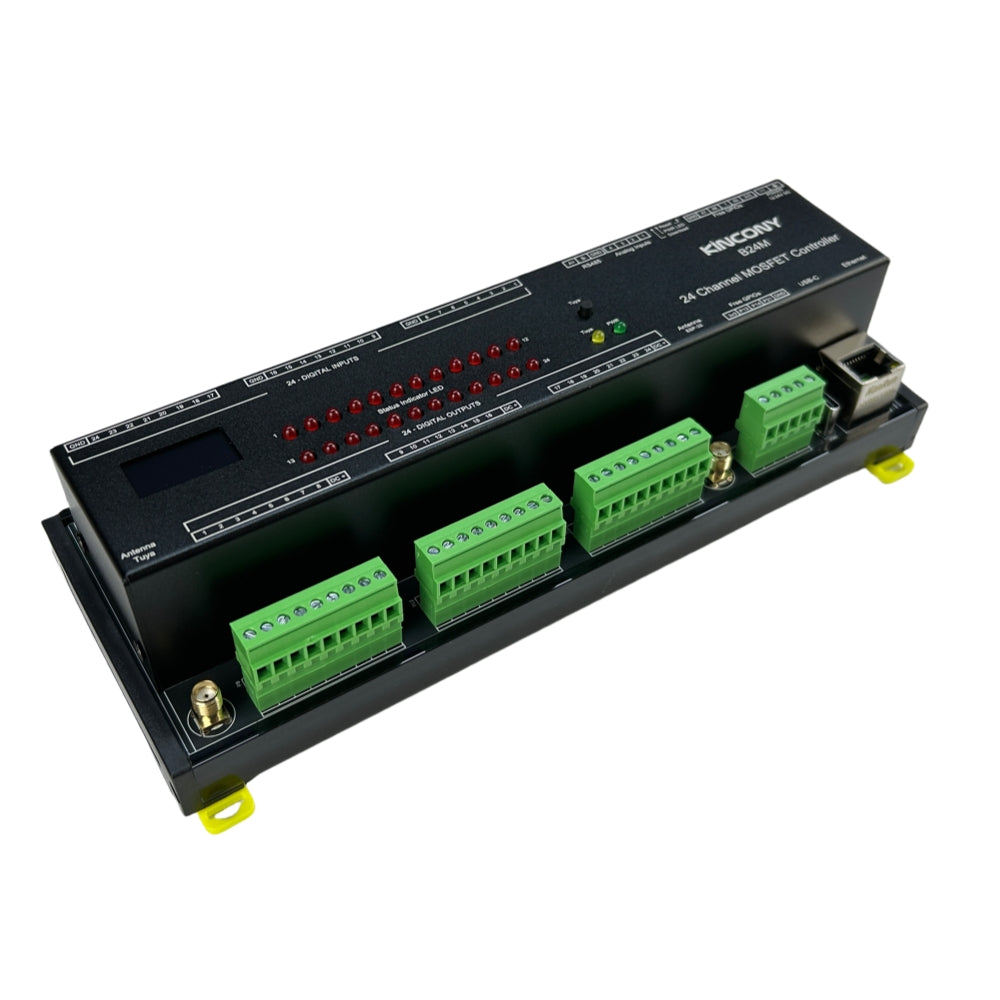

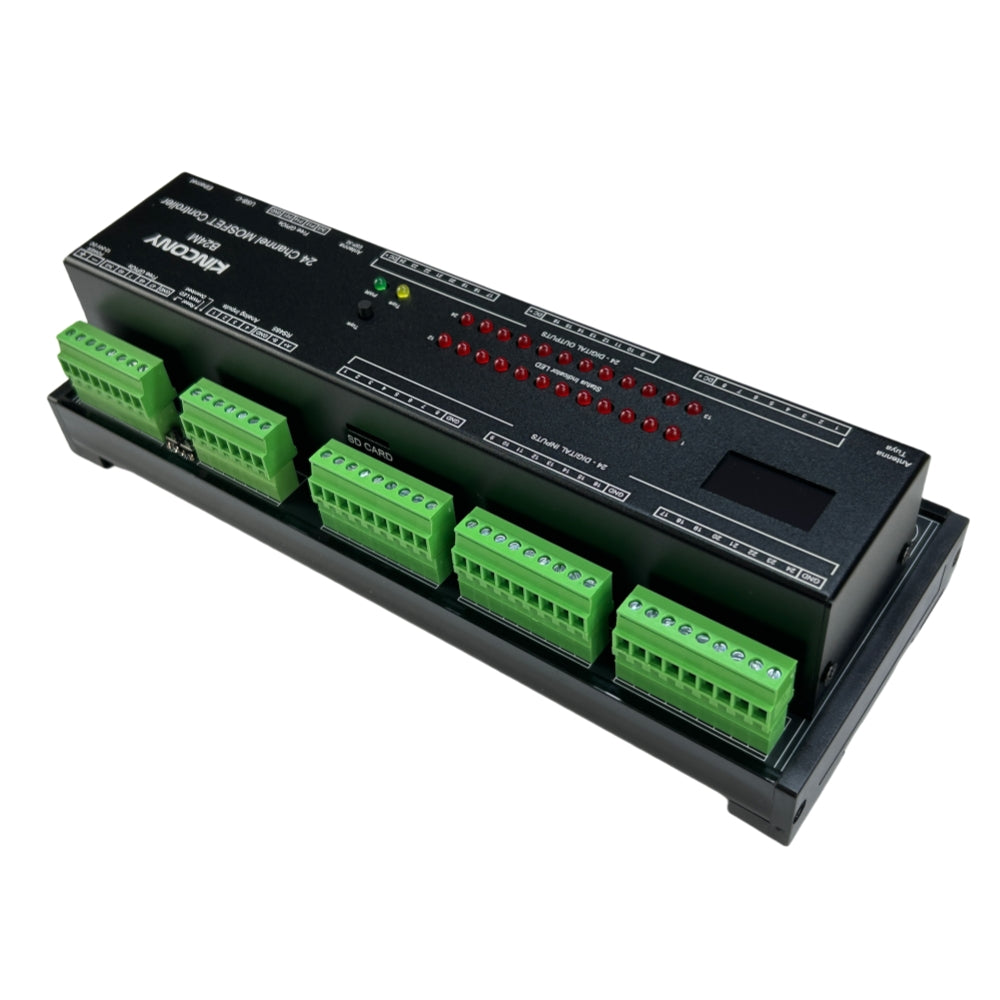

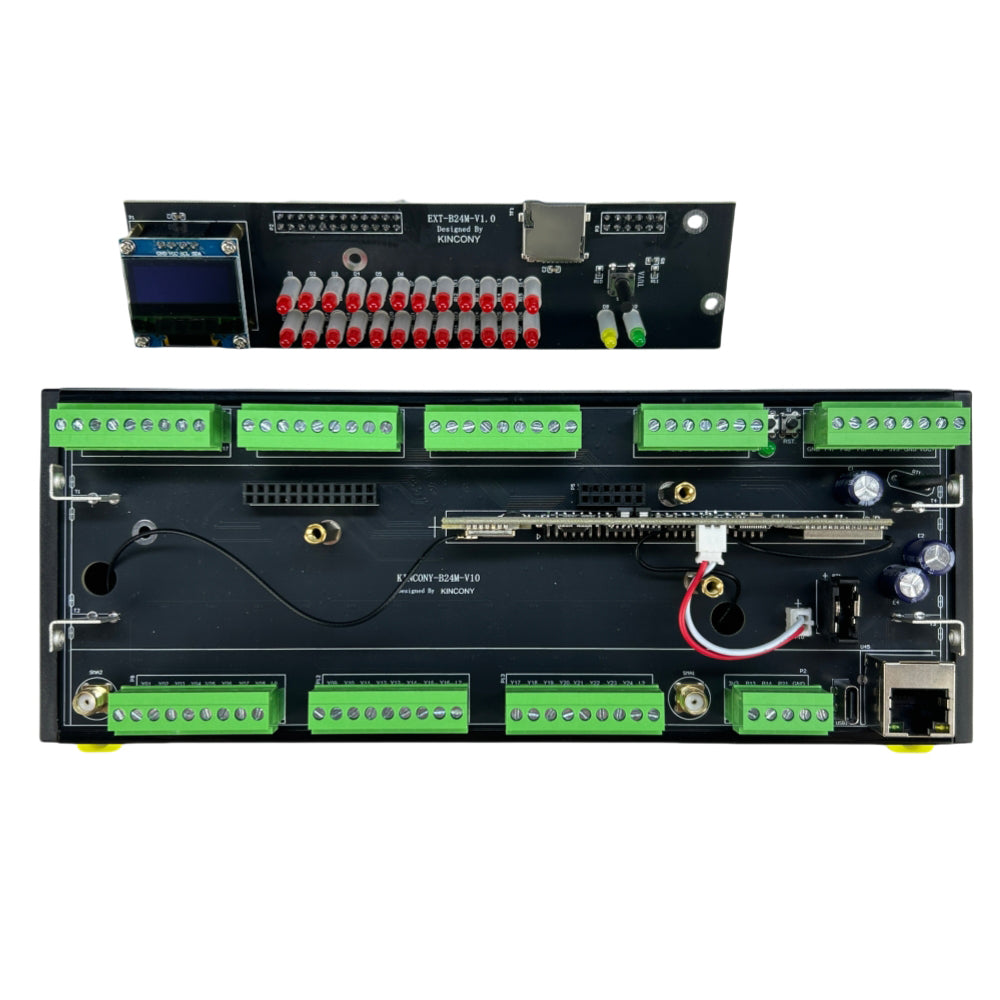

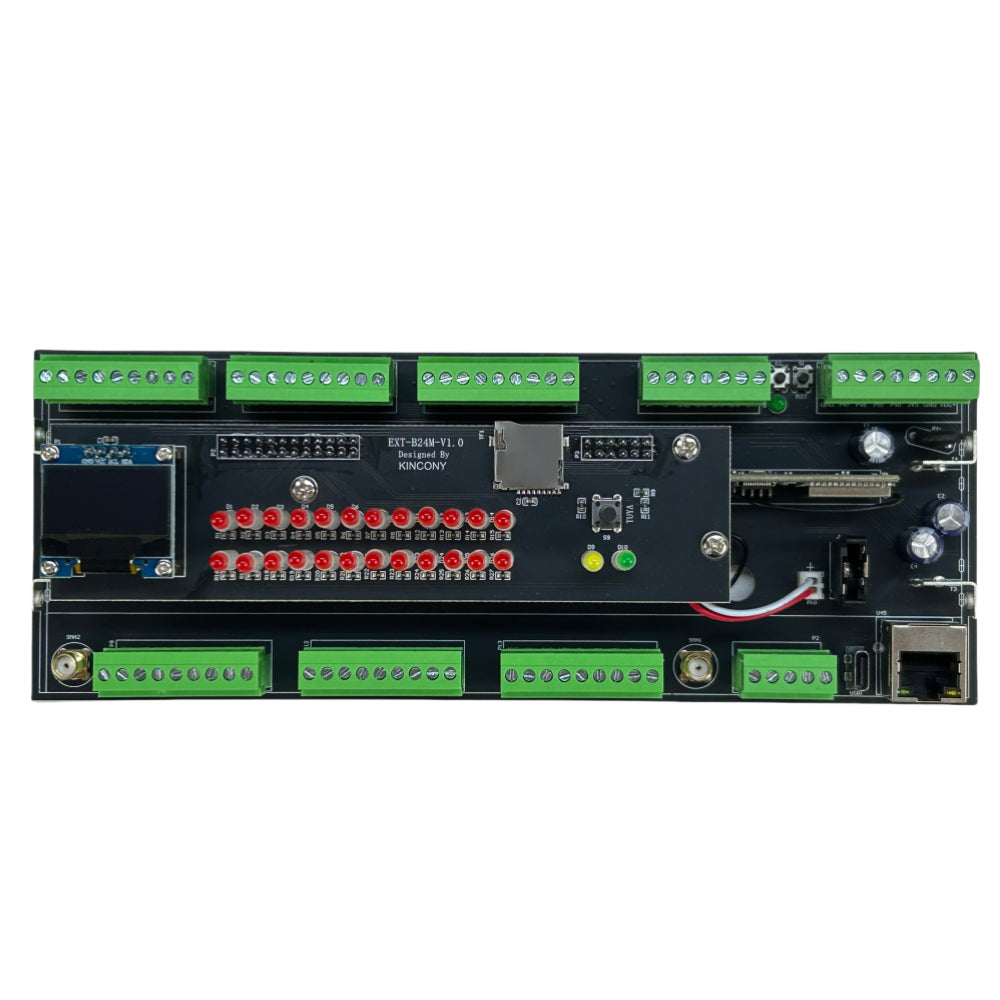

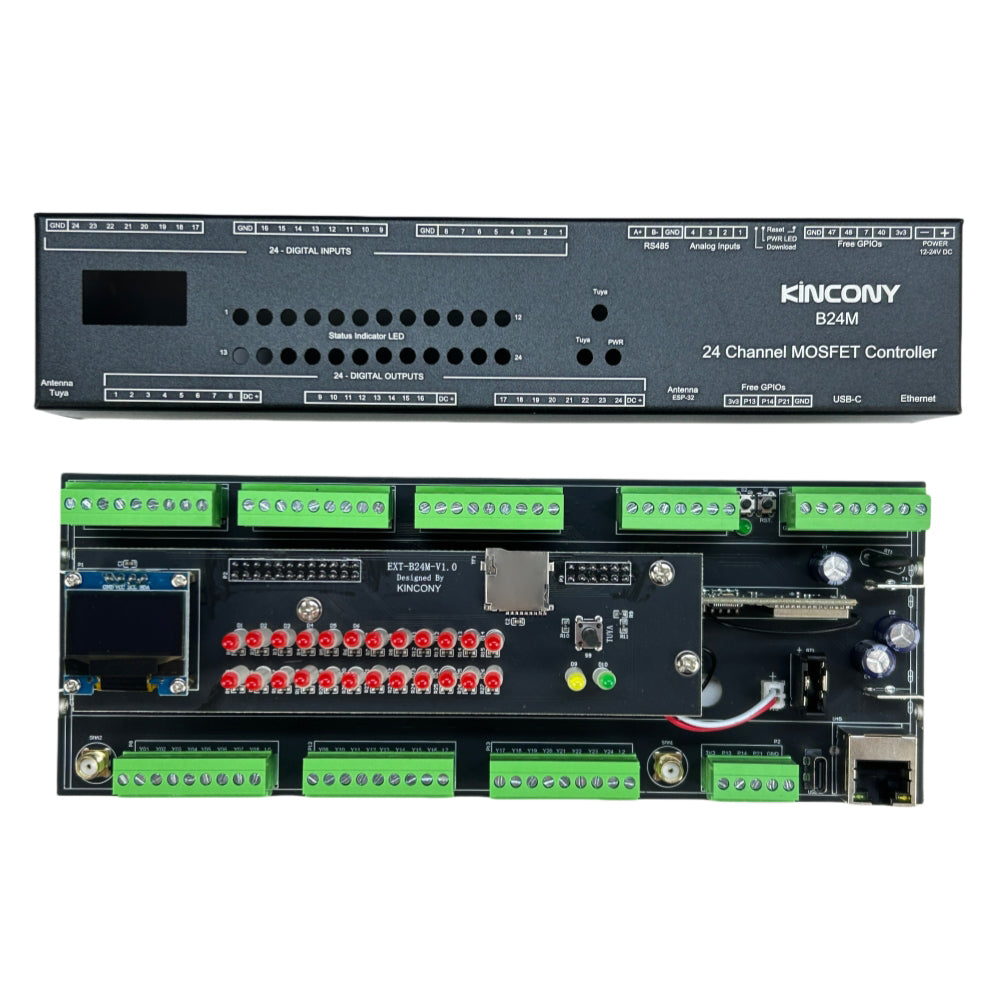

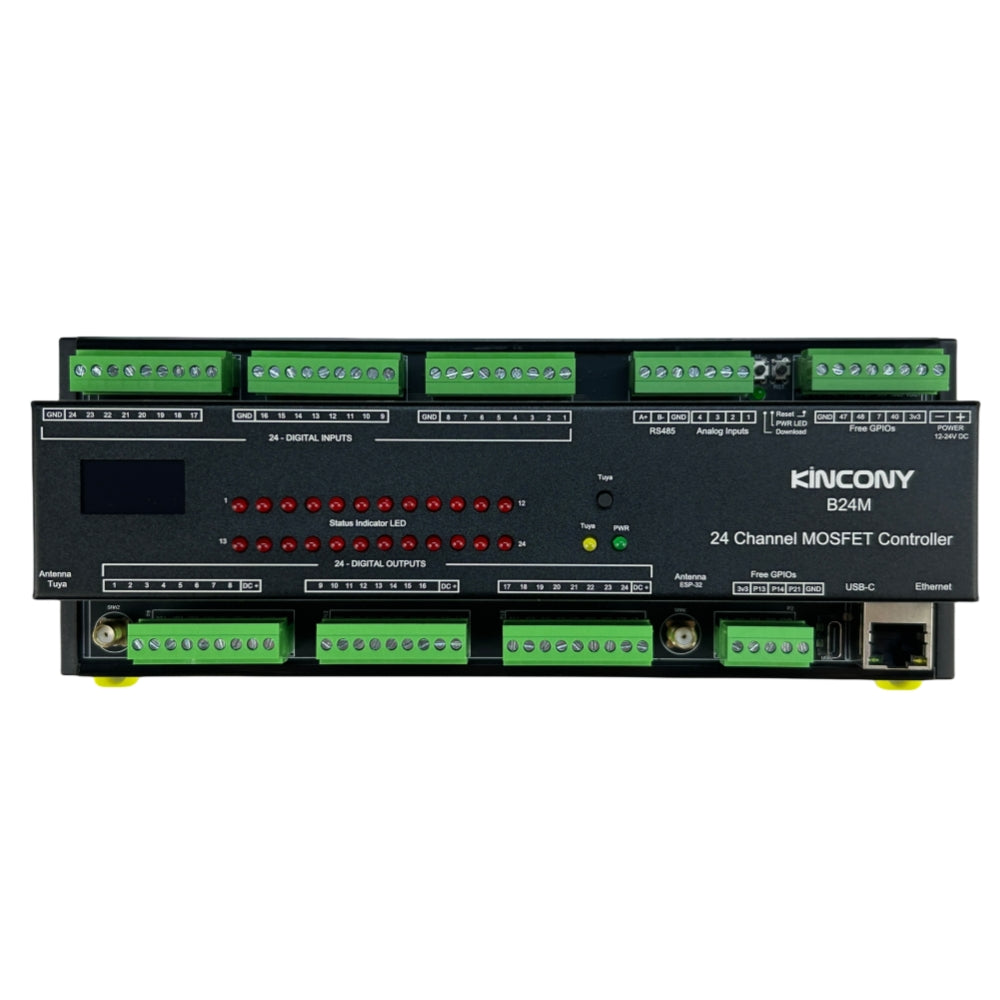

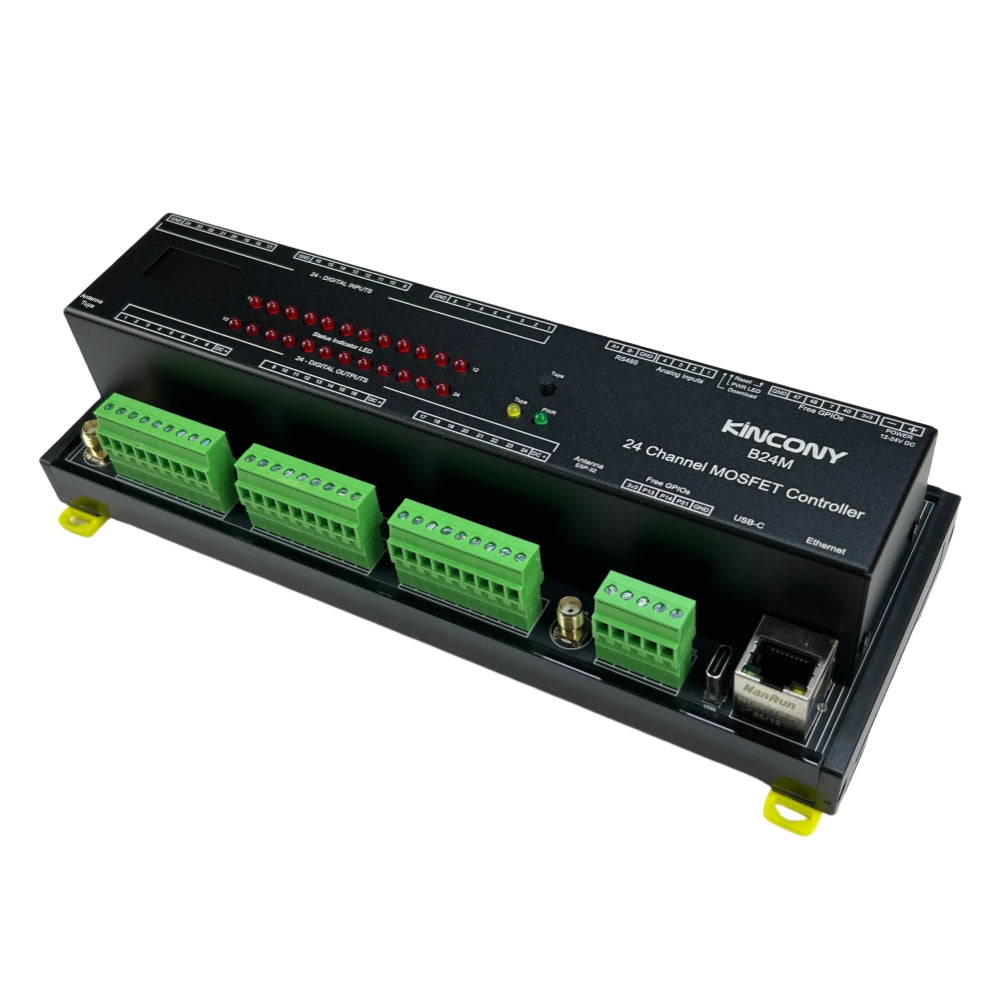

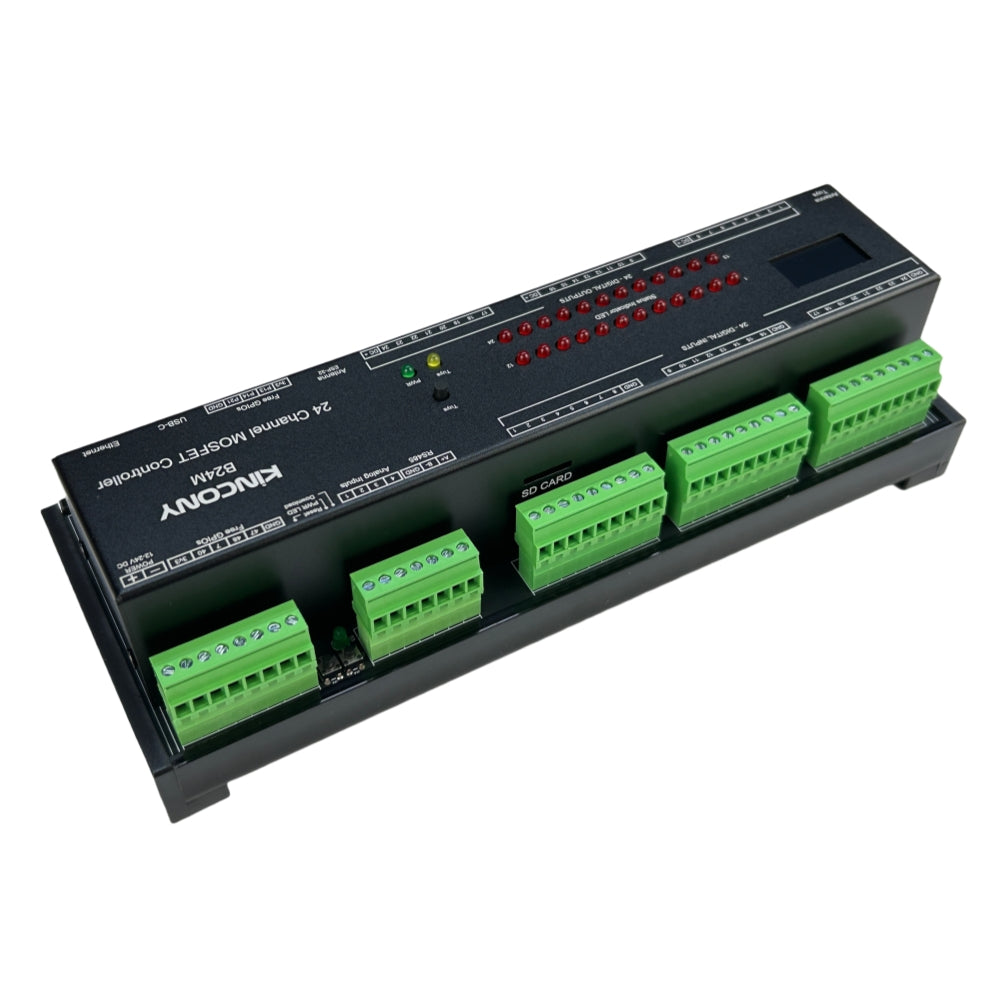

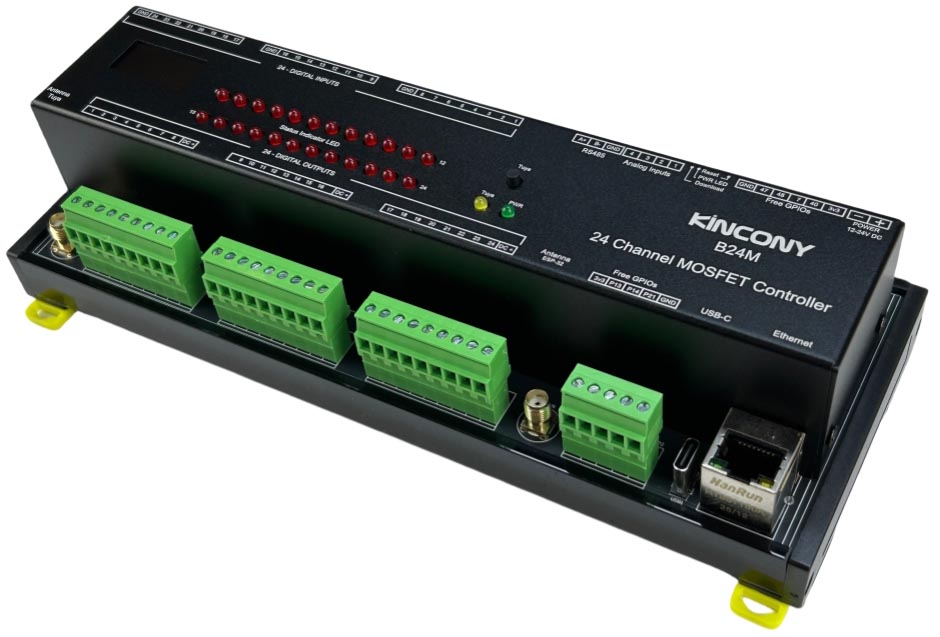

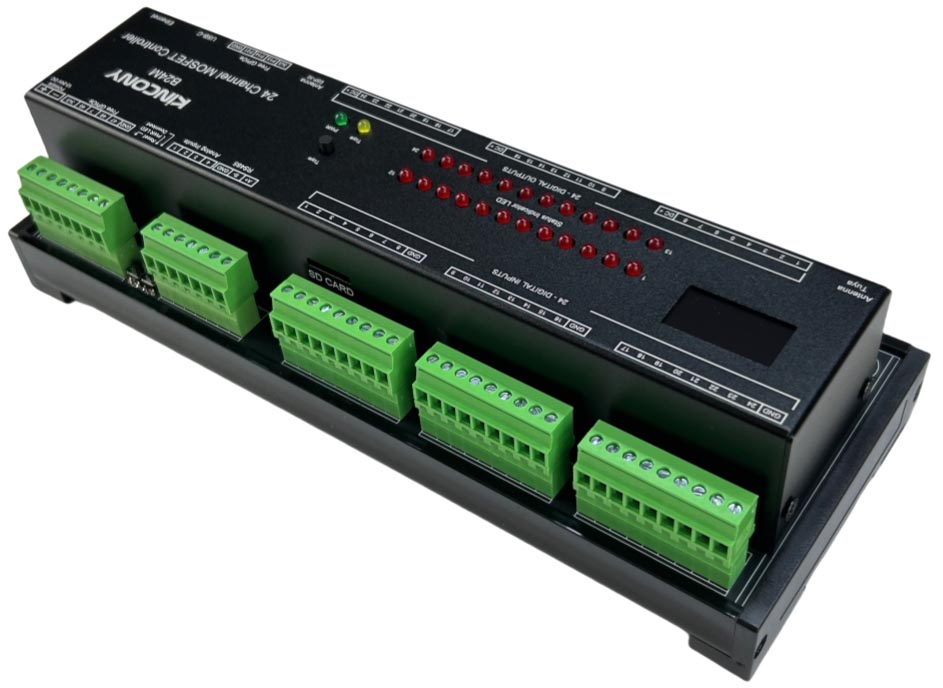

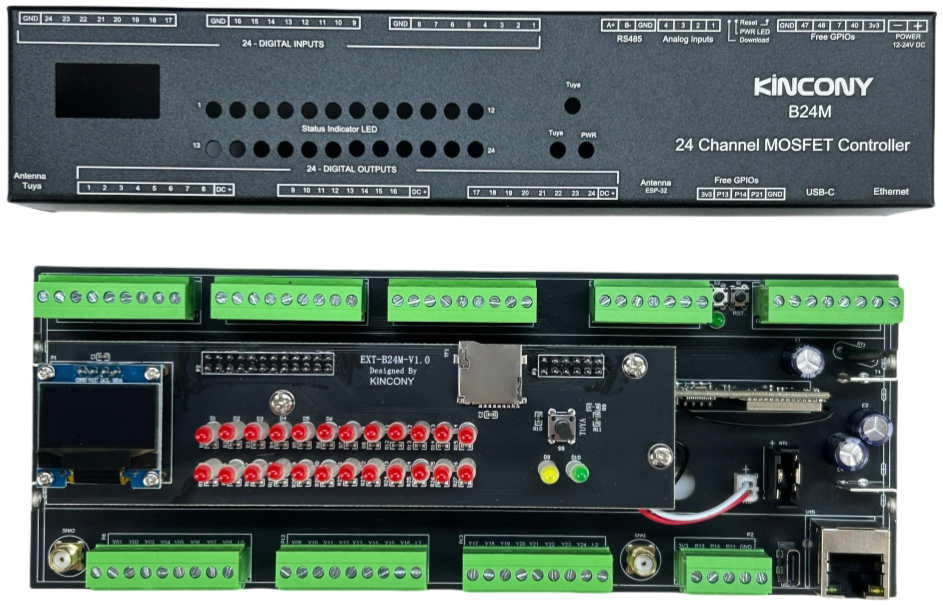

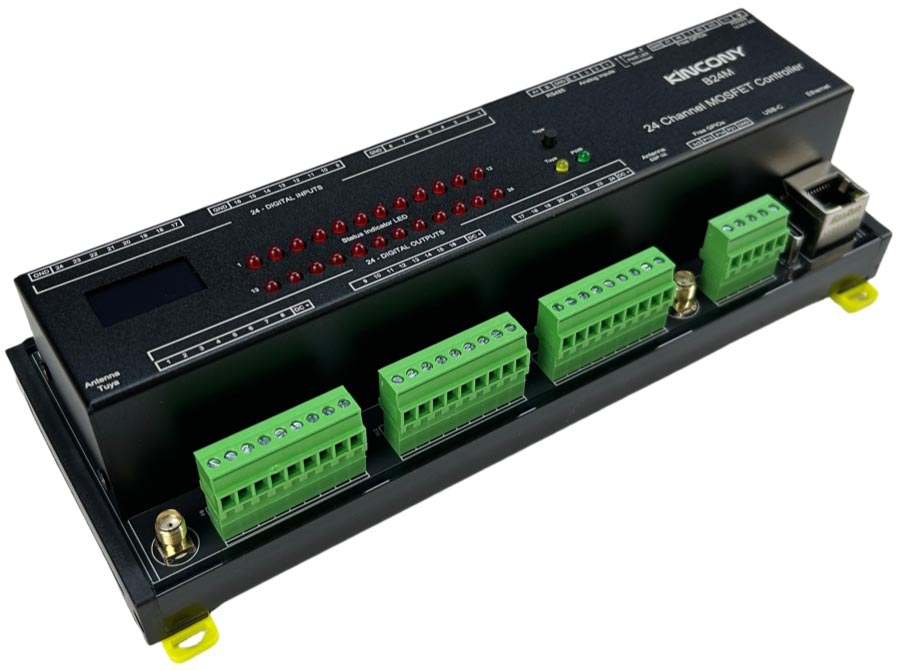

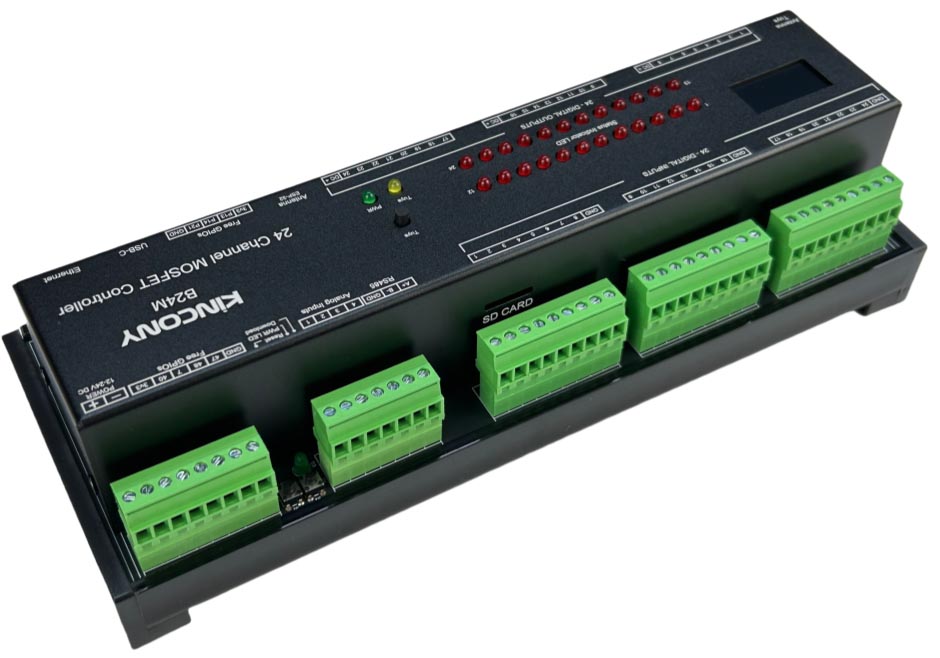

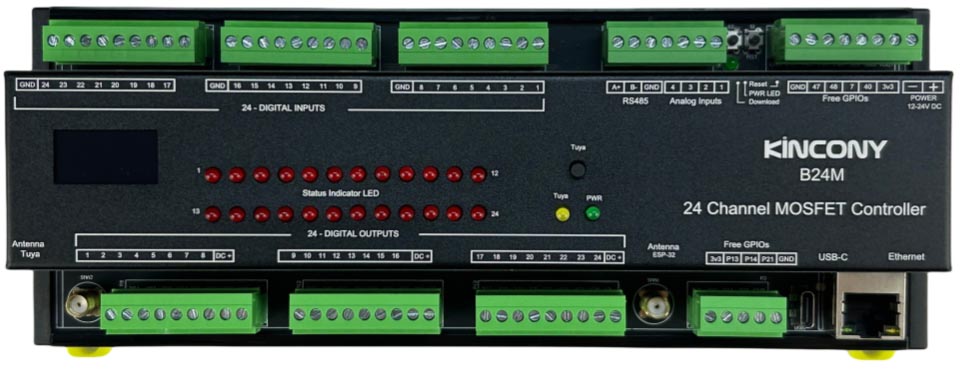

Different views of the B24M:

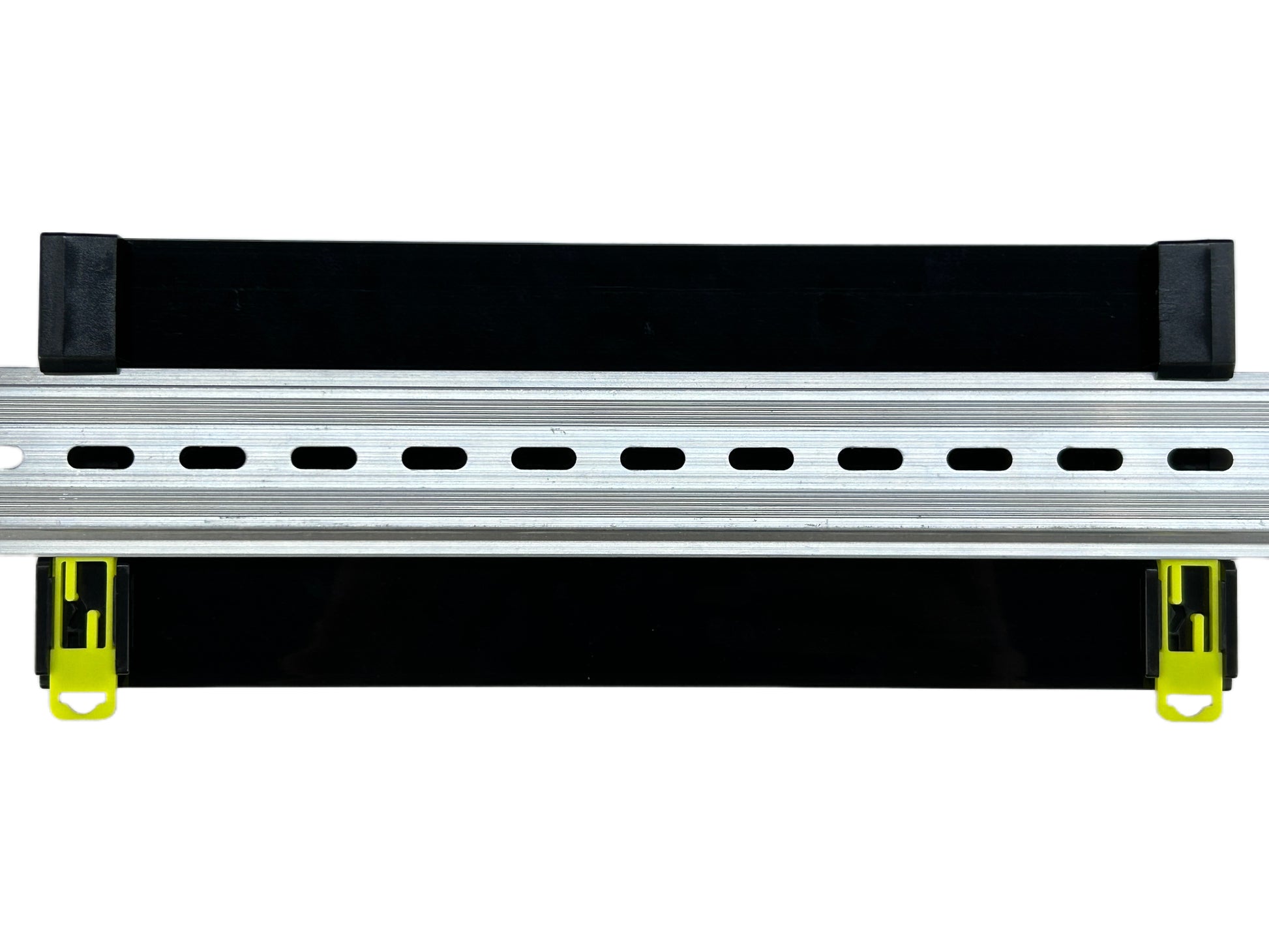

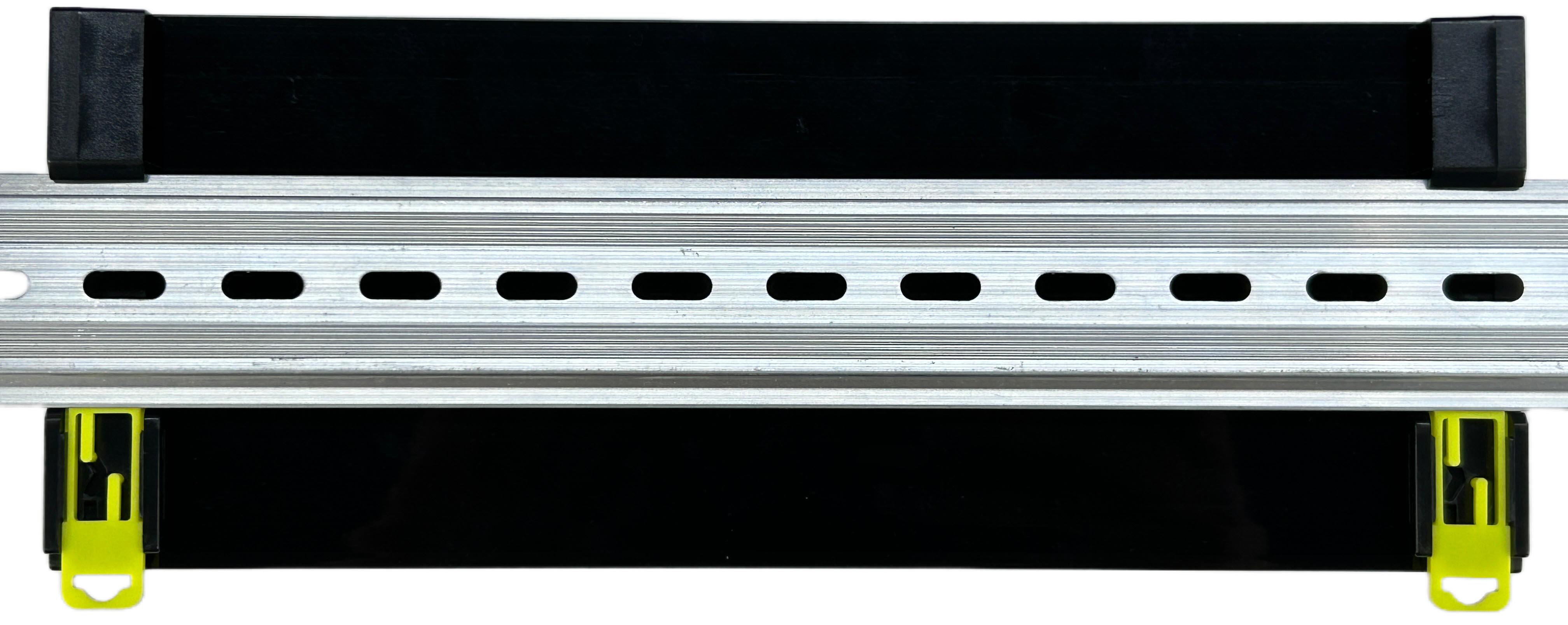

support install on DIN RAIL

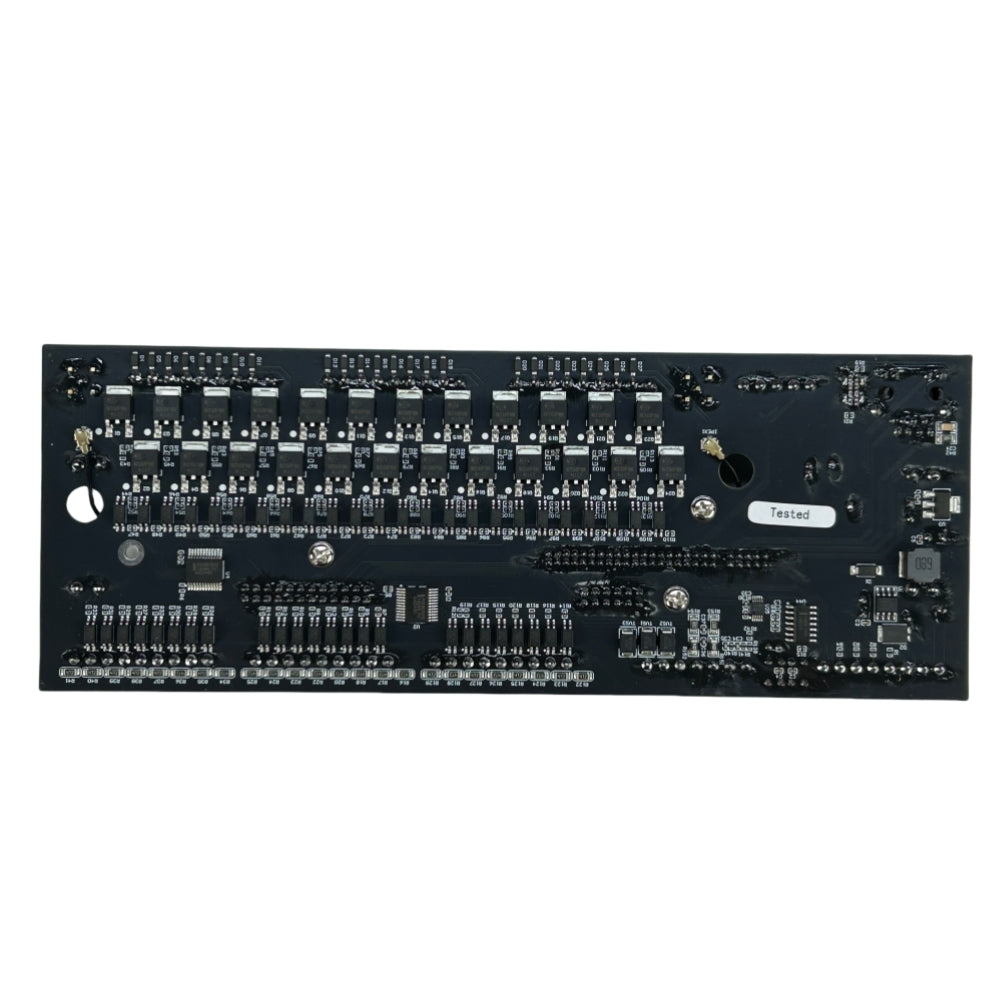

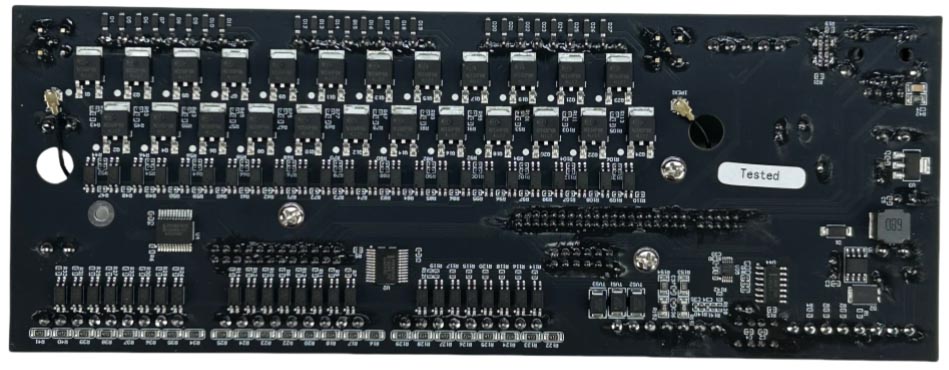

use by 10A mosfet IC

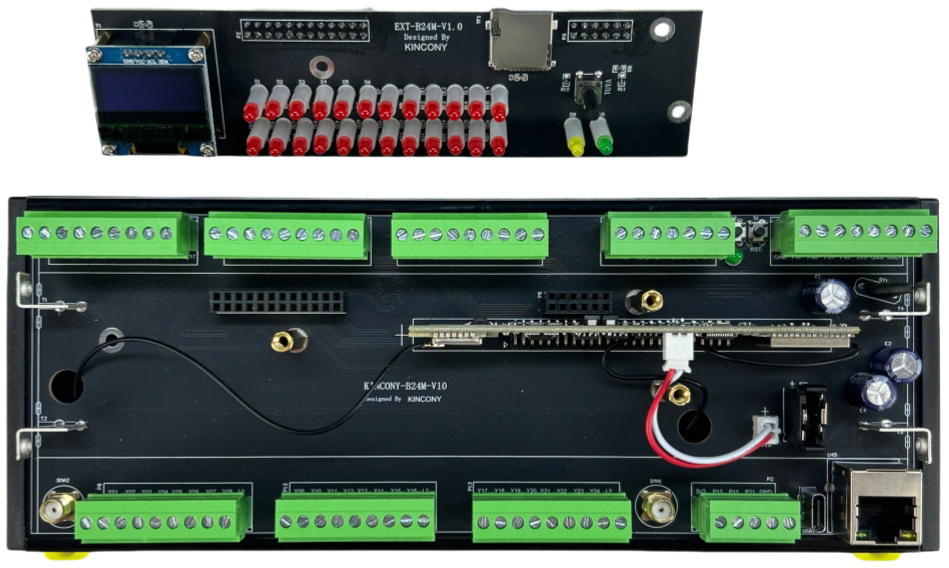

use by ESP32-S3-WROOM-1U (N16R8) big memory size chip.

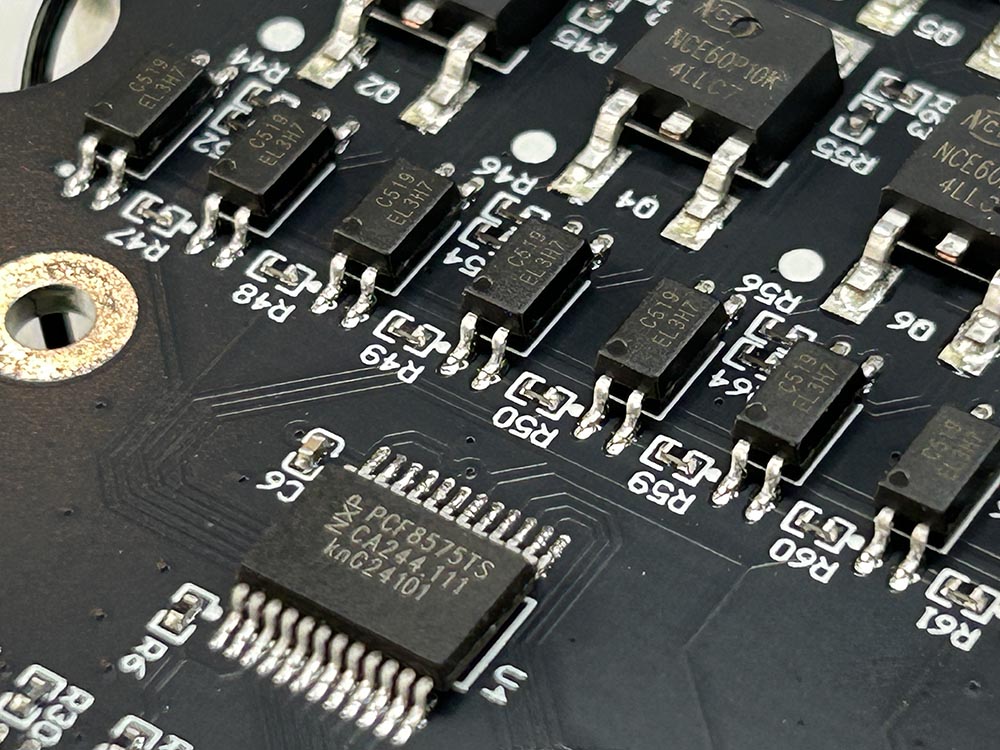

OptoCoupler circuit with digital input ports

10A mosfet
