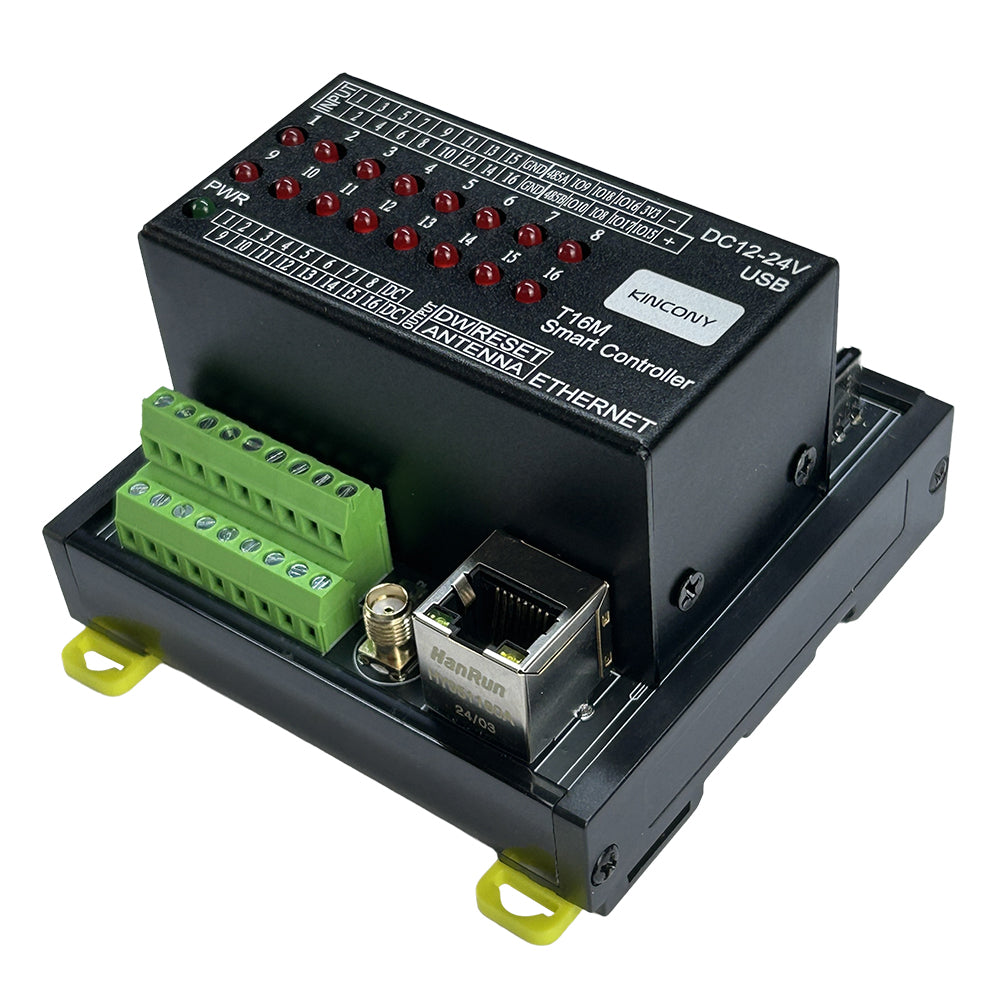

ESP32 Tiny Smart Controller – T16M (16CH MOSFET)

KinCony T16M tiny ESP32 smart controller based on ESP32-S3-WROOM-1U (N16R8) wifi chip. Support 16 channel MOSFET output, 7 channel 1-wire GPIOs T16M have RS485 port. You can write any code by Arduino IDE / MicroPython / ESP-IDF development tool to ESP32 module. We will supply Arduino / ESP-IDF demo code for different samples. Everyone can modify and change the code for your own smart home automation system project. it support use by ESPHome for home assistant or tasmota firmware for smart home automation DIY. B16M use KCS v3 firmware, it support home assistant auto discovery function by MQTT, so without write any config code (zero code) for home assistant. KCS v3 support KinCony cloud service (official shop customer free 2 years), remote monitor and control device by webpage in anywhere. KCS v3 support KinCony board integrate to Loxone Miniserver. Support Apple HomeKit for Siri.

Model No. KinCony T16M
Description: KinCony 16 Channel Tiny ESP32-S3 Smart Controller – T16M
Power supply: 12-24V DC
Processor: ESP32-S3-WROOM-1U (N16R8)

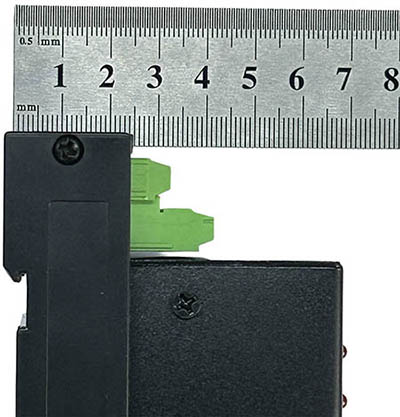

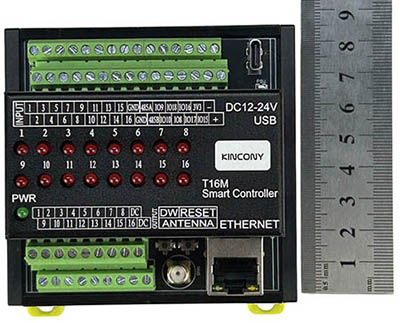

Size: 87mm*83mm*56mm

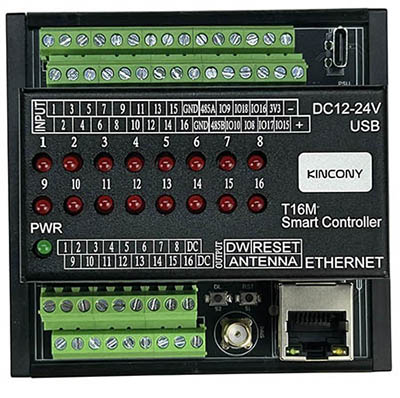

interfaces: Ethernet(RJ45)-LAN 100Mbps IPv4/IPv6,WiFi,RS485,Bluetooth,USB-C

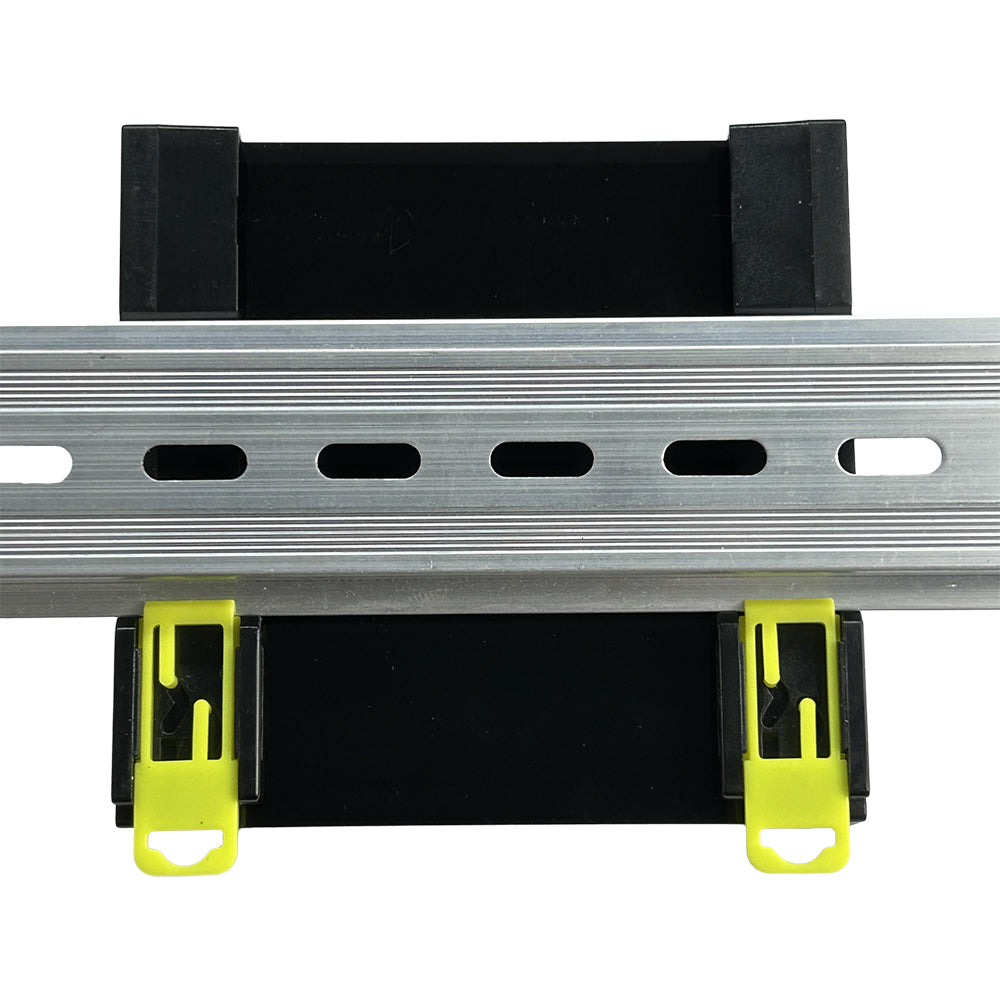

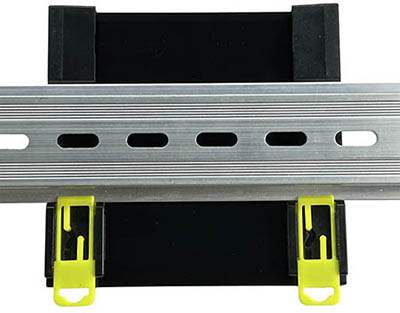

Installation method: DIN RAIL

Outputs:
16CH MOSFET Outputs, every channel use MAX 10A driver IC

Inputs:
16CH dry contact inputs (optocoupler isolation, long distance circuit for MAX 500 meters cable)
3 buttons: 1:ESP32 Reset 2:ESP32 Download 3:Tuya config
1-Wire GPIO: 7CH (with pull-up resistance on PCB)

software solution:

1. download KinCony KCS v3 firmware, so that work with multi protocol: HTTP, MQTT, TCP, RS485 modbus, config OUTPUT for “momentary” and “interlock” group functions. if you want local voice control without internet, you can add KinCony AS voice assistant. “KCS” support IFTTT function work locally without internet. It also support use by KinCony cloud server. KCS v3 support home assistant auto discovery function by MQTT, so without any config file for home assistant.

2. download firmware by ESPHome, integrate to home assistant or use by web service.

3. download tasmota firmware.

4. write your own arudino or ESP-IDF code for your own requirements.

Order bundles:

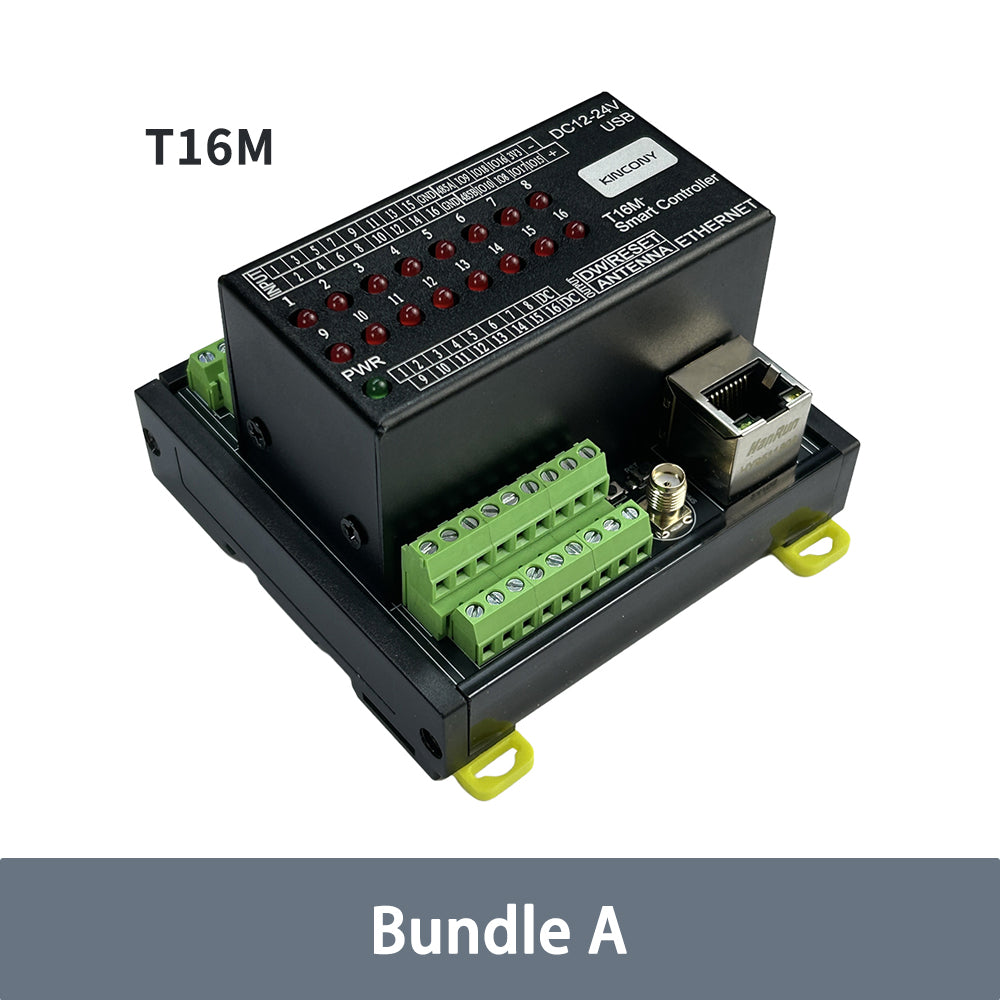

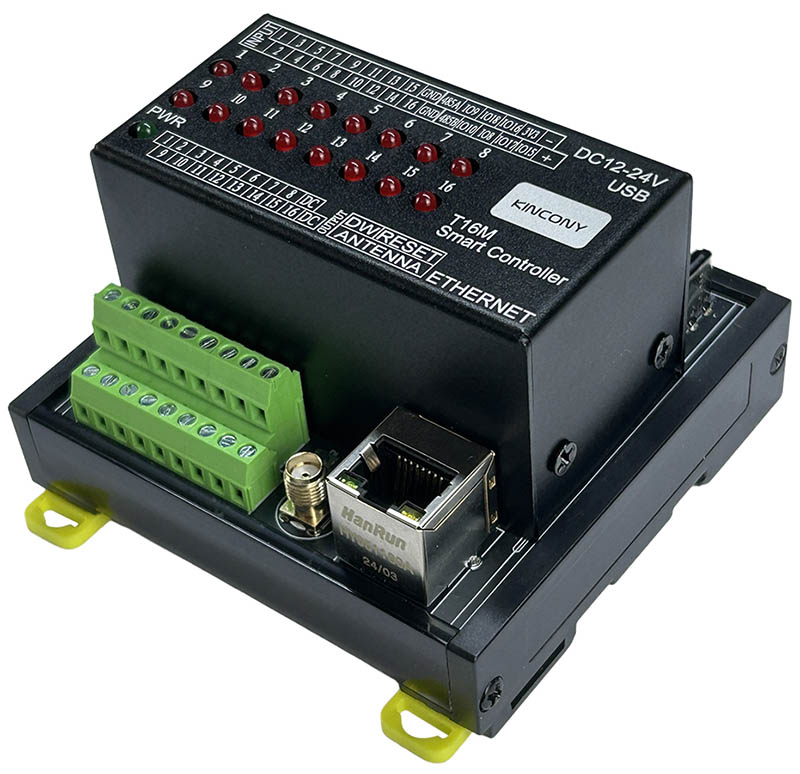

Bundle A: T16M

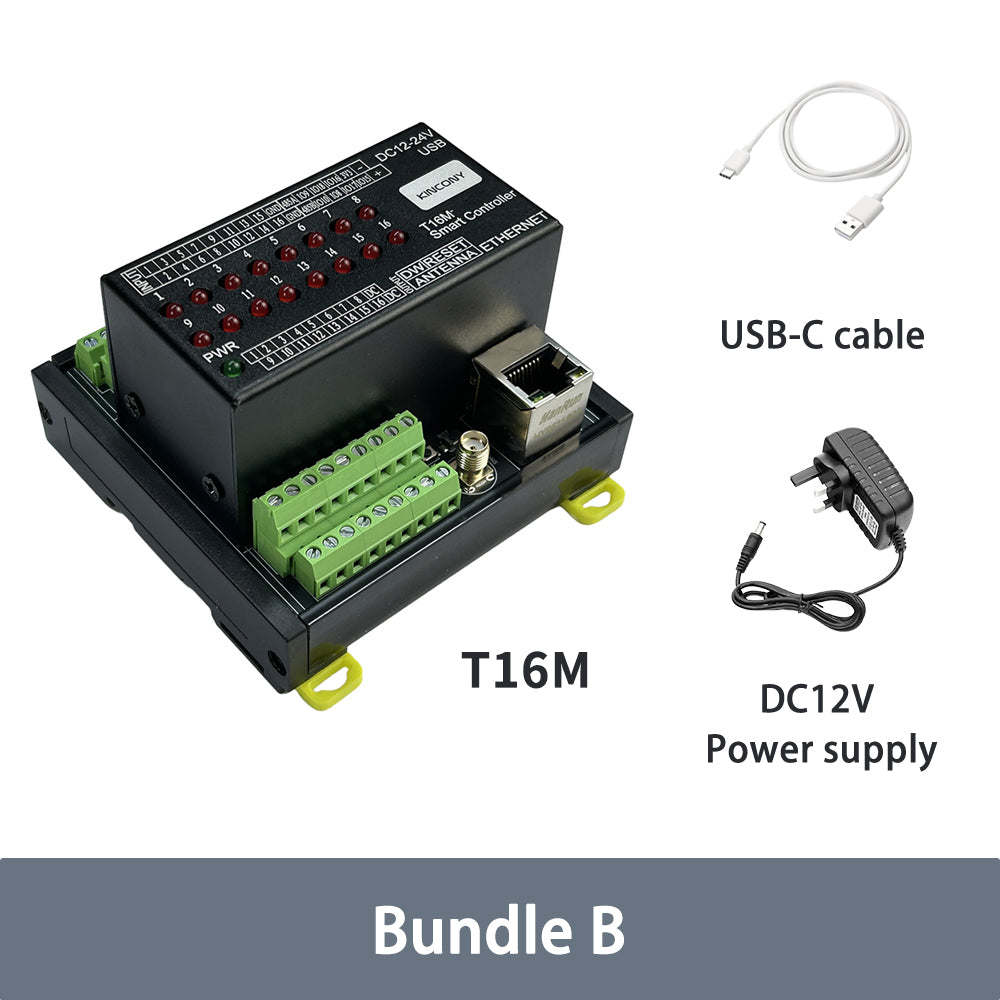

Bundle B: T16M + USB-C cable+ DC12V power supply

Related technical information
———————————
ESP32 I/O pin define: https://www.kincony.com/forum/showthread.php?tid=7422
config yaml file for ESPHome: https://www.kincony.com/forum/showthread.php?tid=7423
arduino demo source code: https://www.kincony.com/forum/forumdisplay.php?fid=73
KCS v3 firmware online guide: https://www.kincony.com/how-to-use-kcsv3-firmware-esp32-board.html

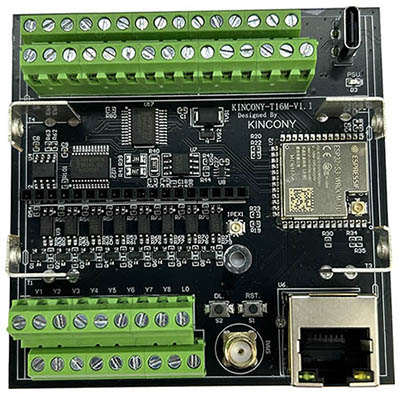

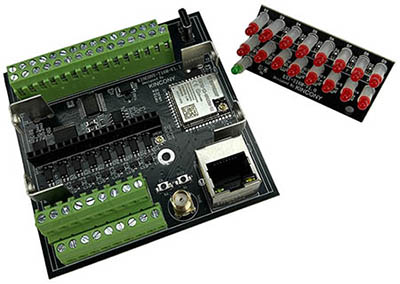

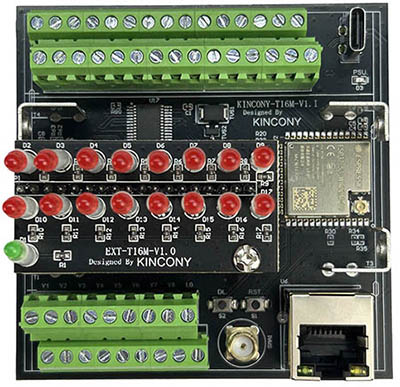

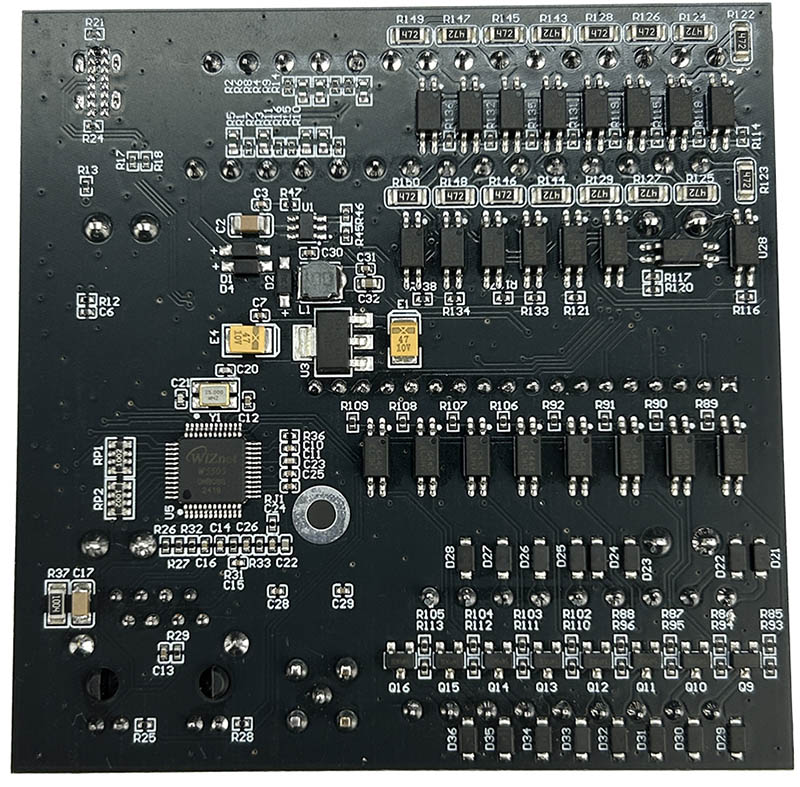

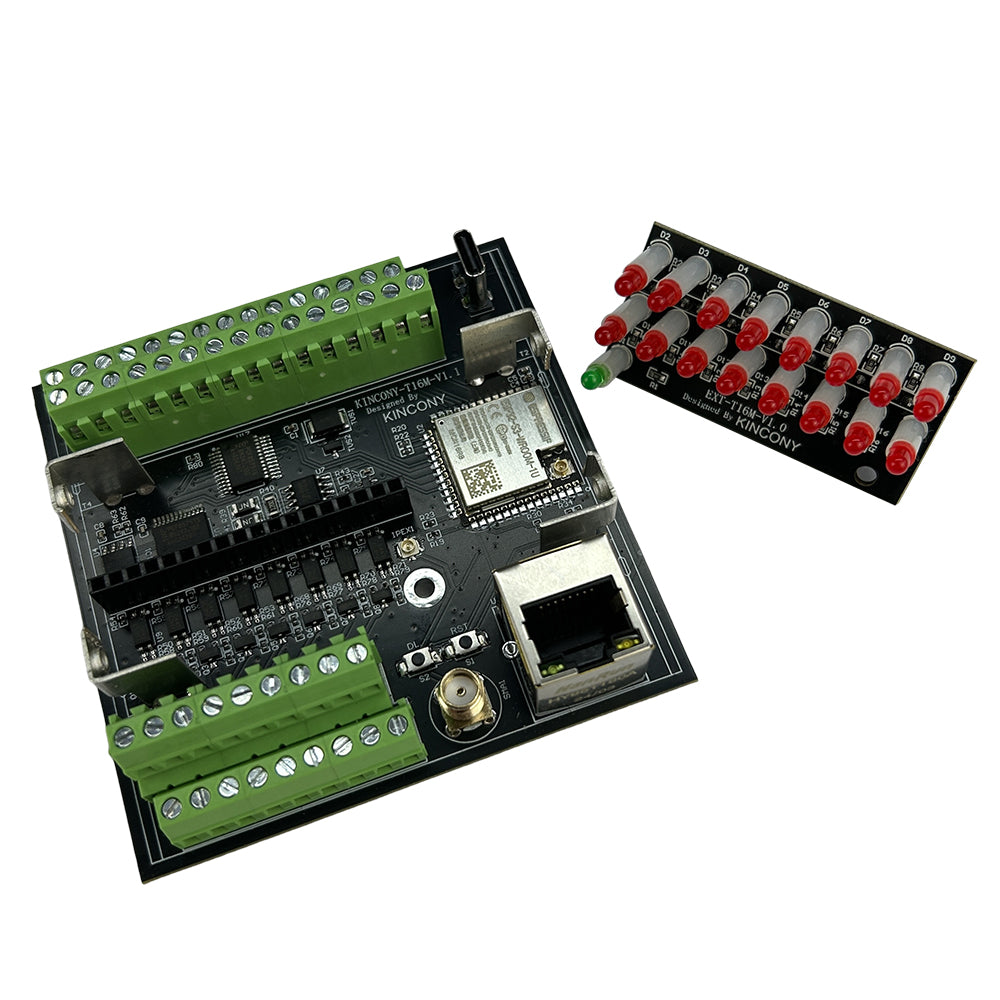

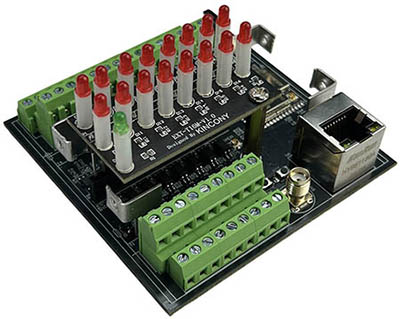

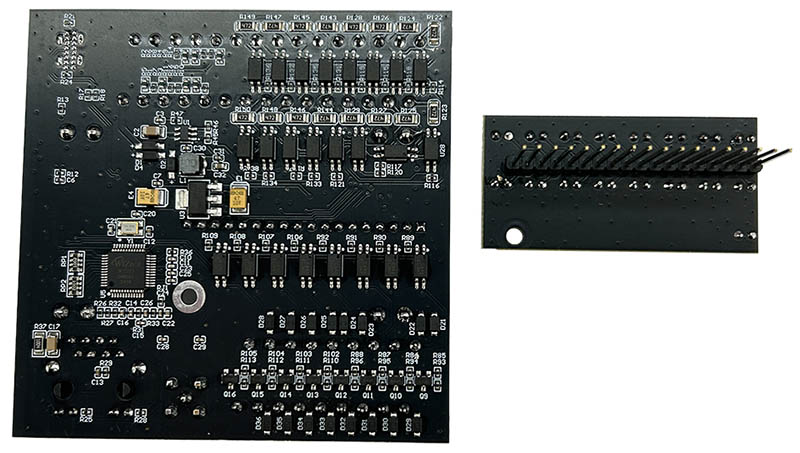

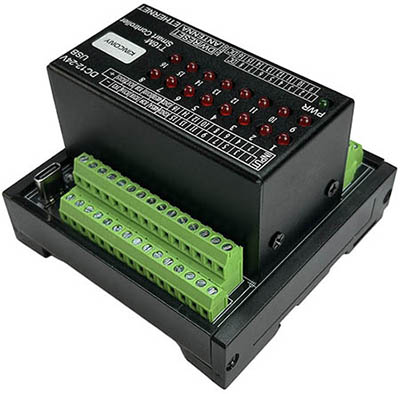

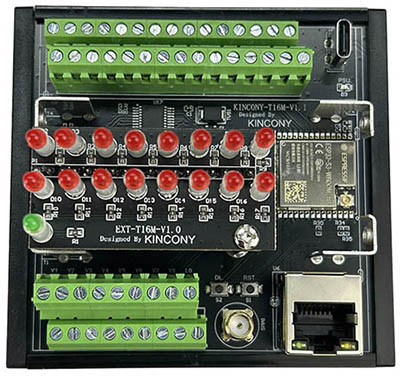

Different views of the T16M:
