ESP32 Tiny Smart Controller – T32M (32CH MOSFET)

ESP32 Tiny Smart Controller – T32M (32CH MOSFET)

Regular price $150.00 USD
Regular price Sale price $150.00 USD
Sale Sold out
Shipping calculated at checkout.
Bundle

KinCony T32M tiny ESP32 smart controller based on ESP32-S3-WROOM-1U (N16R8) wifi chip. Support 32 channel MOSFET output, 4 channel 1-wire GPIOs, 3 channel free GPIOs. T32M have RS485 port. You can write any code by Arduino IDE / Micro Python / ESP-IDF development tool to ESP32 module. We will supply Arduino / ESP-IDF demo code for different samples. Everyone can modify and change the code for your own smart home automation system project. it support use by ESPHome for home assistant or tasmota firmware for smart home automation DIY. T64M use KCS v3 firmware, it support home assistant auto discovery function by MQTT, so without write any config code (zero code) for home assistant. KCS v3 support KinCony cloud service (official shop customer free 2 years), remote monitor and control device by webpage in anywhere. KCS v3 support KinCony board integrate to Loxone Miniserver. Support Apple HomeKit for Siri.

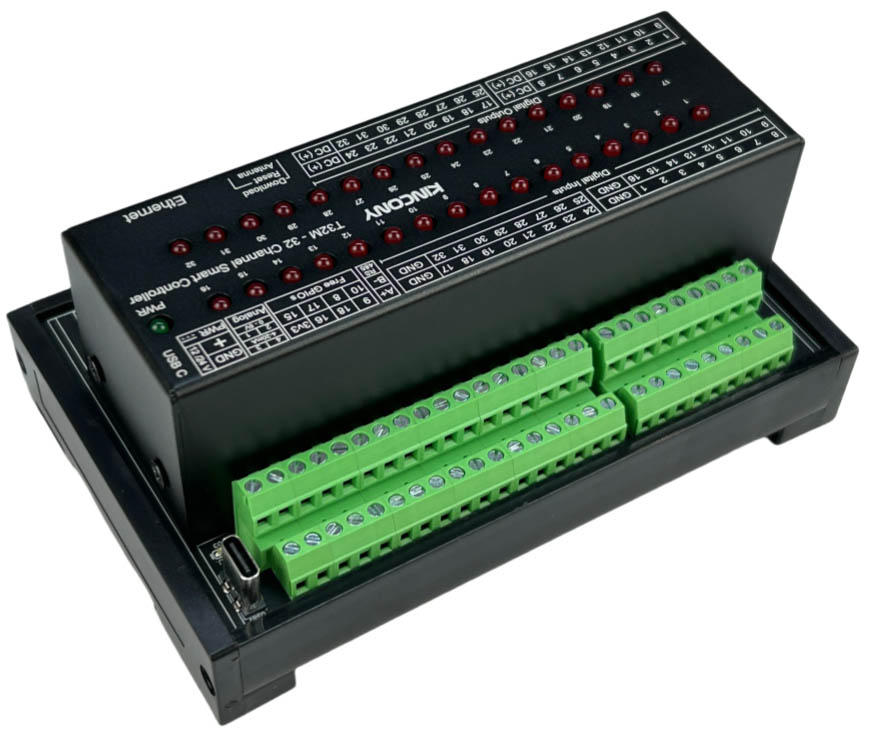

t32m board

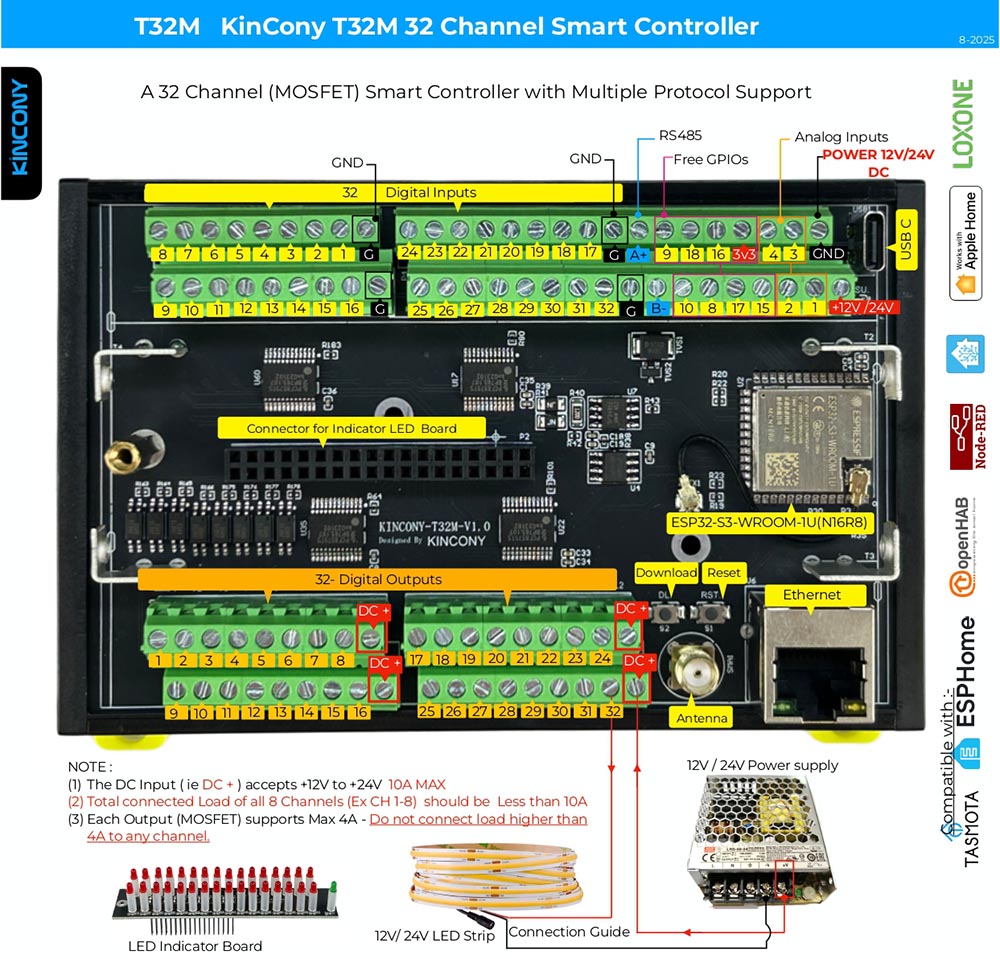

esp32 relay diagram

Model No. KinCony T32M
Description: KinCony 32 Channel Tiny ESP32-S3 Smart Controller – T32M
Power supply: 12-24V DC
Processor: ESP32-S3-WROOM-1U (N16R8)

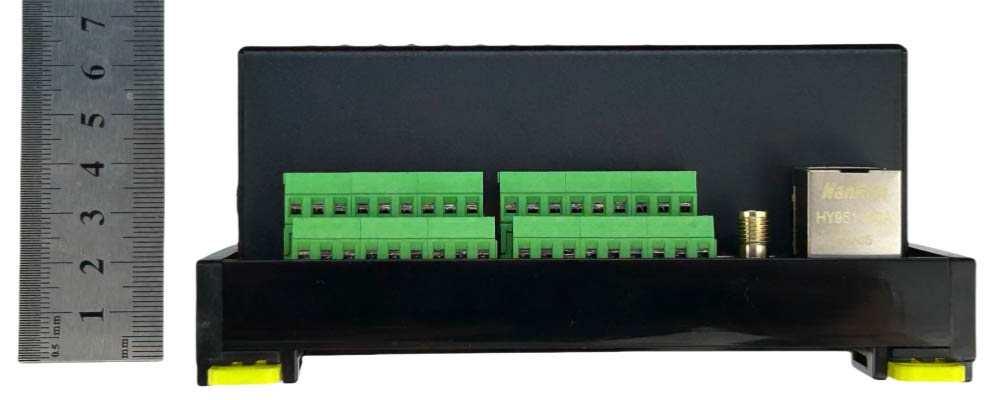

Size: 130mm*83mm*56mm
interfaces: Ethernet(RJ45)-LAN 100Mbps IPv4/IPv6,WiFi,RS485,Bluetooth,USB-C

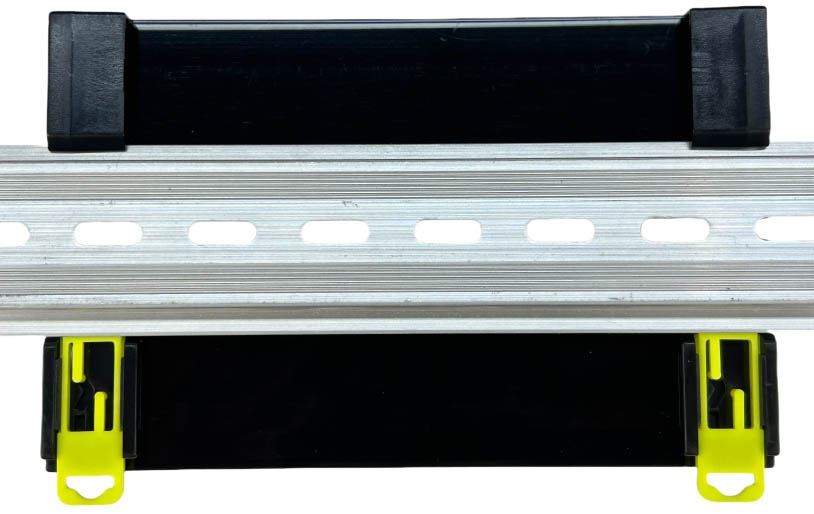

Installation method: DIN RAIL

Outputs:
32CH MOSFET Outputs, every channel use MAX 4A driver IC

Inputs:
32CH dry contact inputs (optocoupler isolation, long distance circuit for MAX 500 meters cable)
2 buttons: 1:ESP32 Reset 2:ESP32 Download
1-Wire GPIO: 4CH (with pull-up resistance on PCB)
free GPIO: 3CH (connect with ESP32S3 pin directly)
2CH analog input DC0-5V (A1,A2) 2CH analog input 4-20mA (A3,A4)

esp32 small relay

software solution:

1. download KinCony KCS v3 firmware, so that work with multi protocol: HTTP, MQTT, TCP, RS485 modbus, config OUTPUT for “momentary” and “interlock” group functions. if you want local voice control without internet, you can add KinCony AS voice assistant. “KCS” support IFTTT function work locally without internet. It also support use by KinCony cloud server. KCS v3 support home assistant auto discovery function by MQTT, so without any config file for home assistant.

2. download firmware by ESPHome, integrate to home assistant or use by web service.

3. download tasmota firmware.

4. write your own Arduino or ESP-IDF code for your own requirements.

Order bundles:

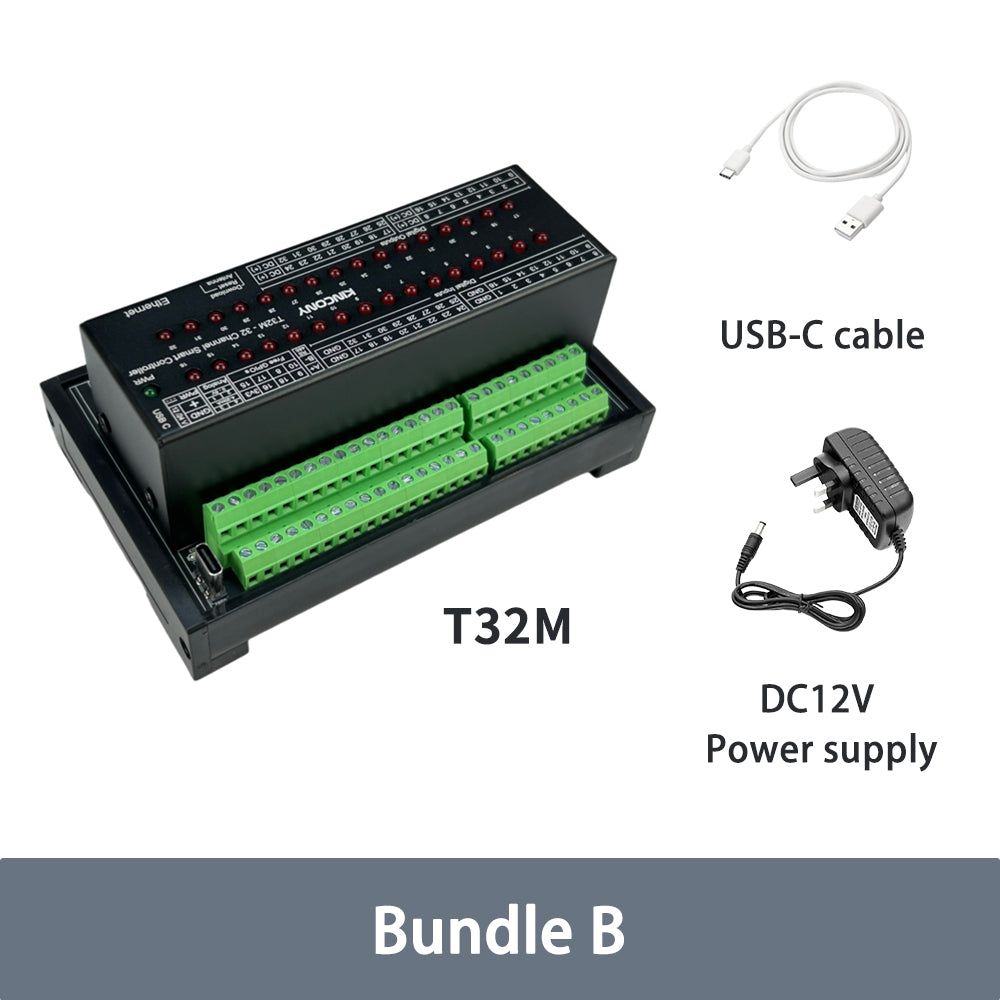

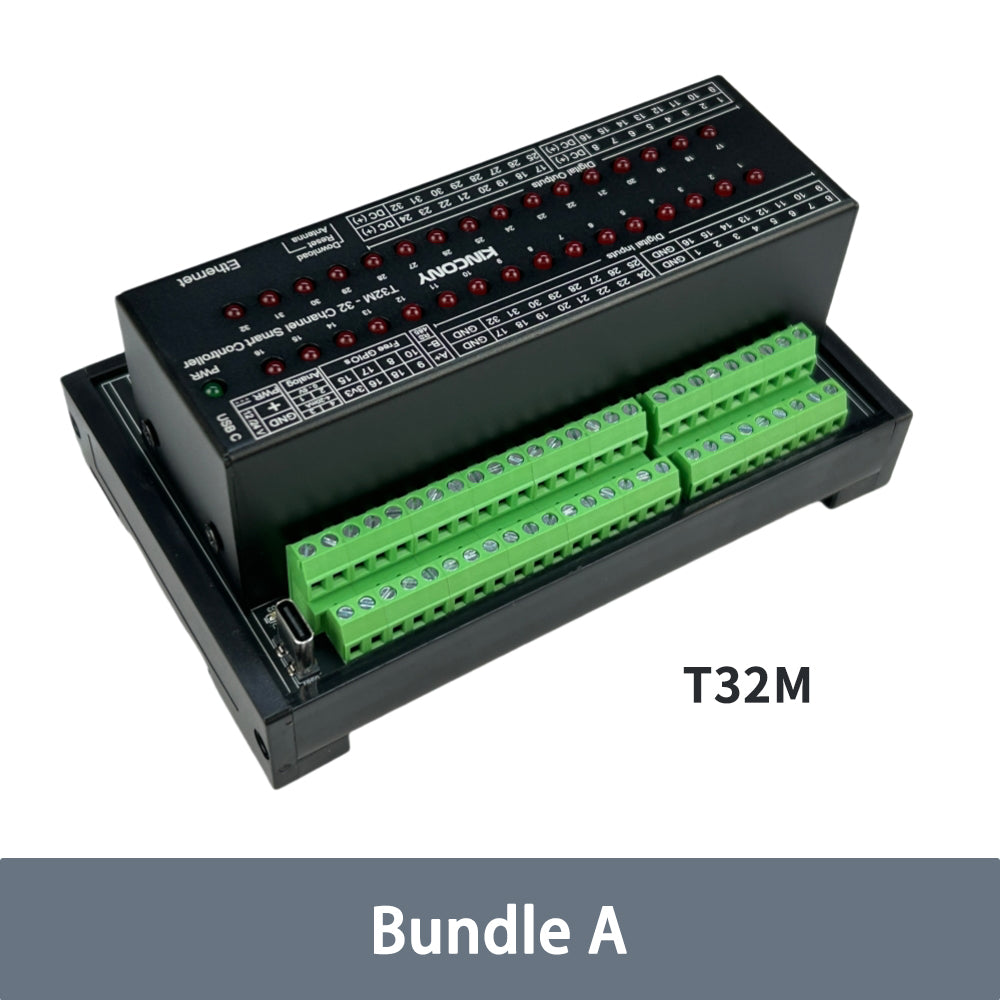

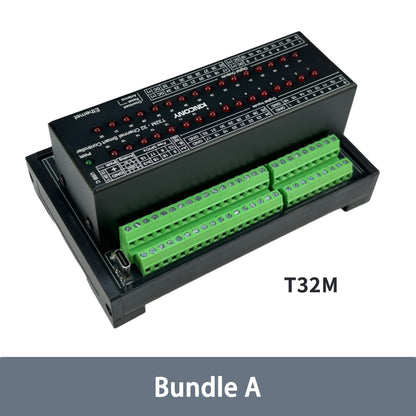

Bundle A: T32M
Bundle B: T32M + USB-C cable+ power supply

Related technical information
———————————
ESP32 I/O pin define: https://www.kincony.com/forum/showthread.php?tid=8238
config yaml file for ESPHome: https://www.kincony.com/forum/showthread.php?tid=8239
ESPHome official supportted list:
arduino demo source code: https://www.kincony.com/forum/forumdisplay.php?fid=80
KCS v3 firmware online guide: https://www.kincony.com/how-to-use-kcsv3-firmware-esp32-board.html

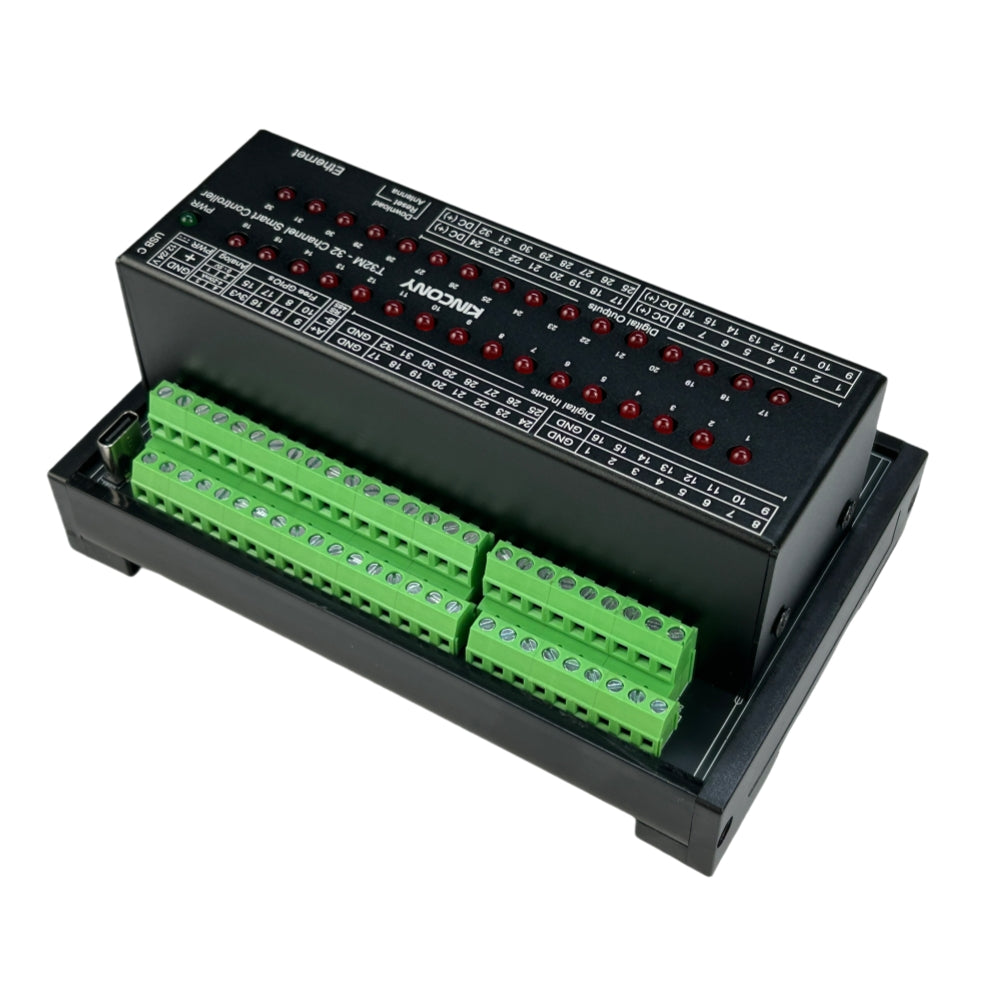

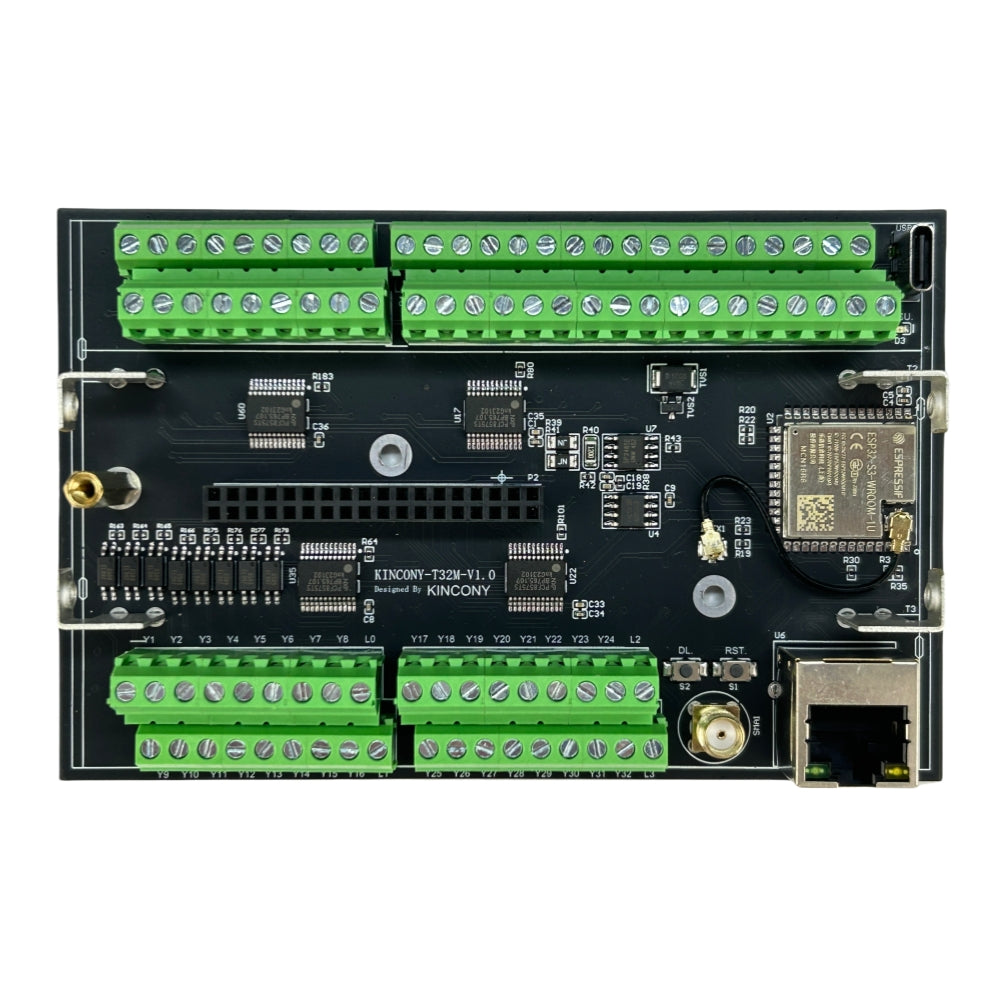

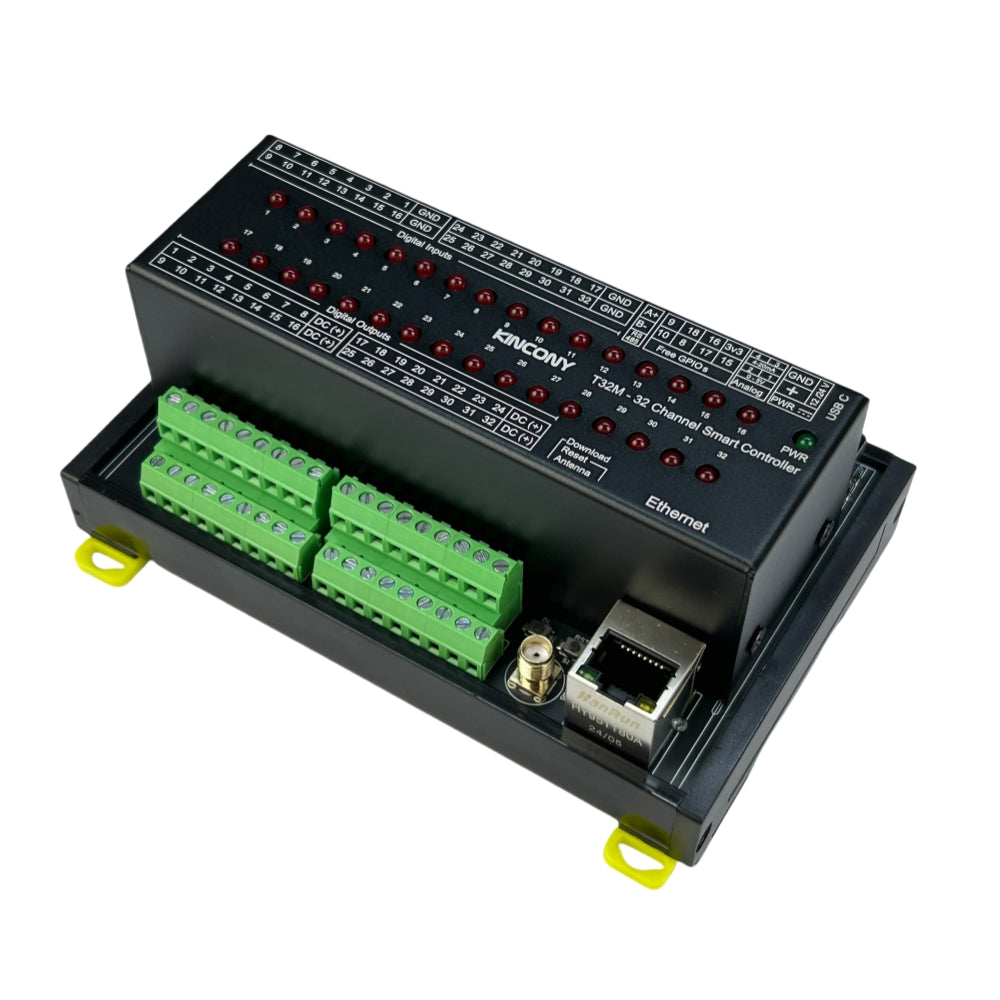

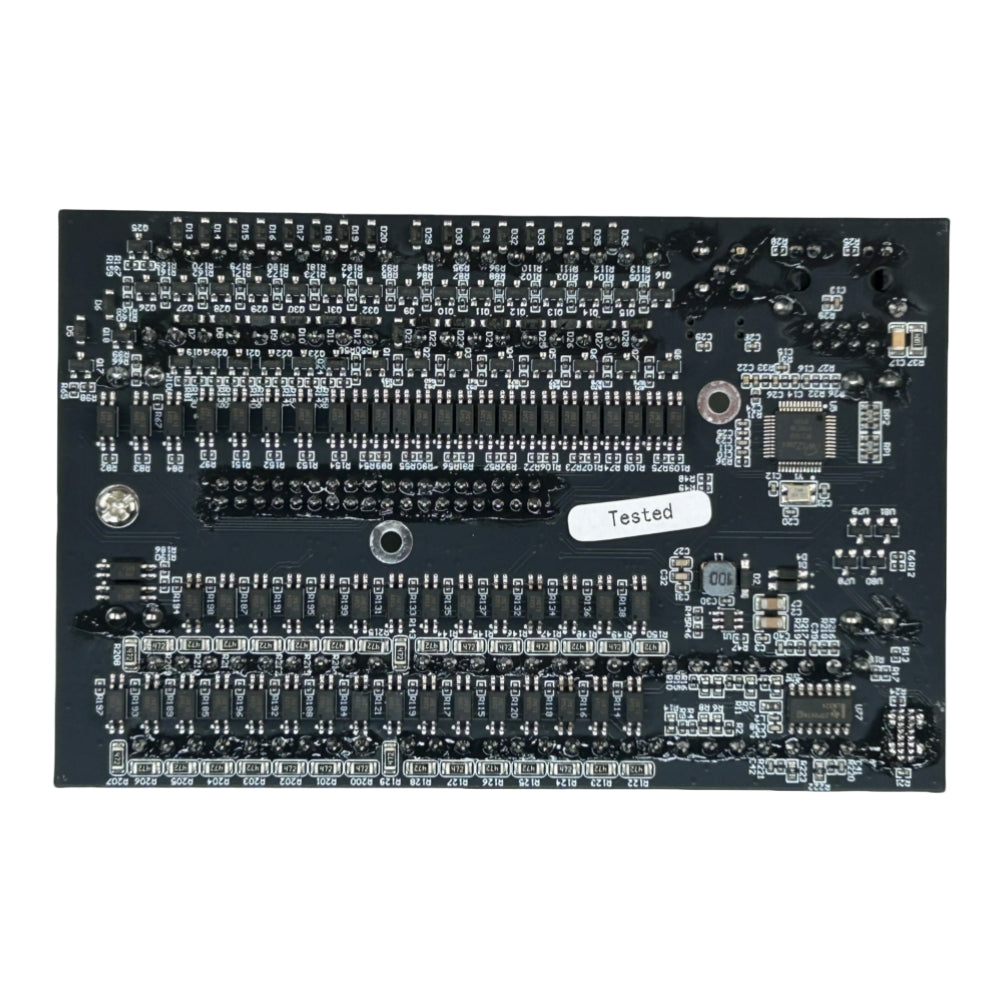

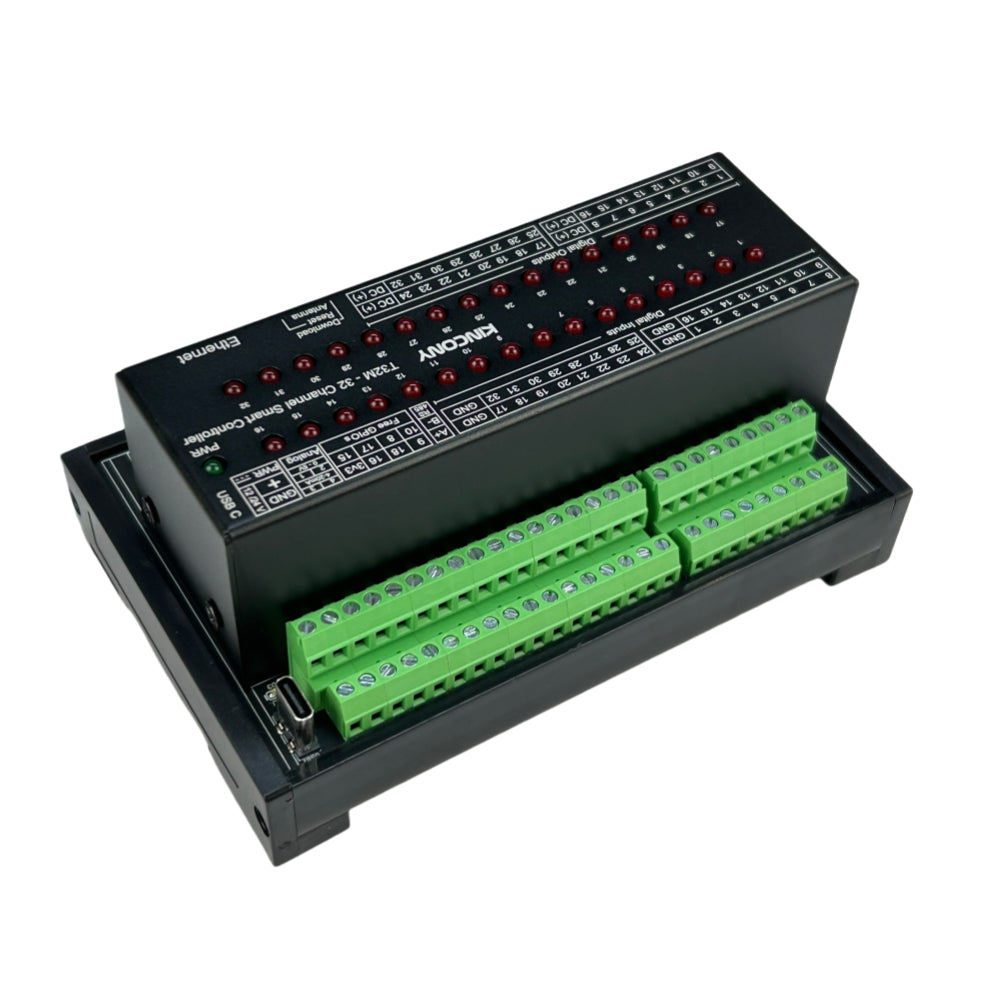

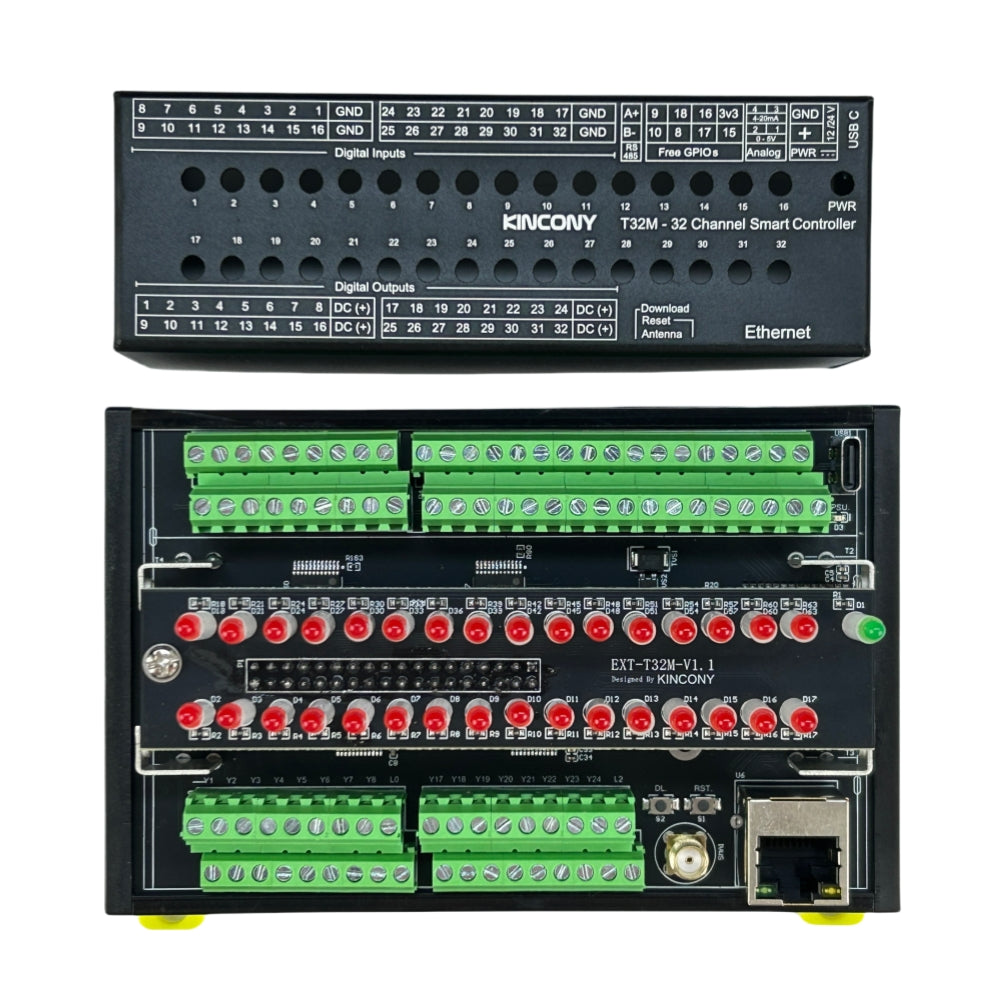

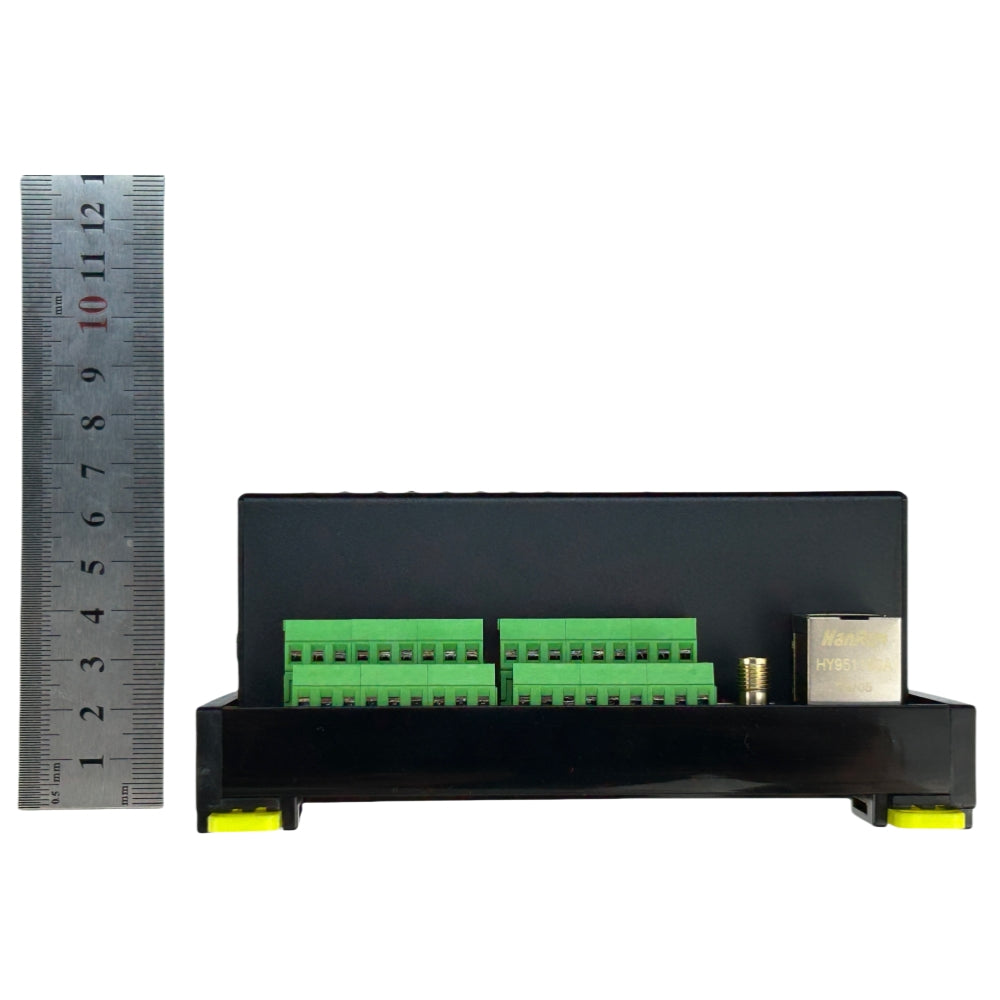

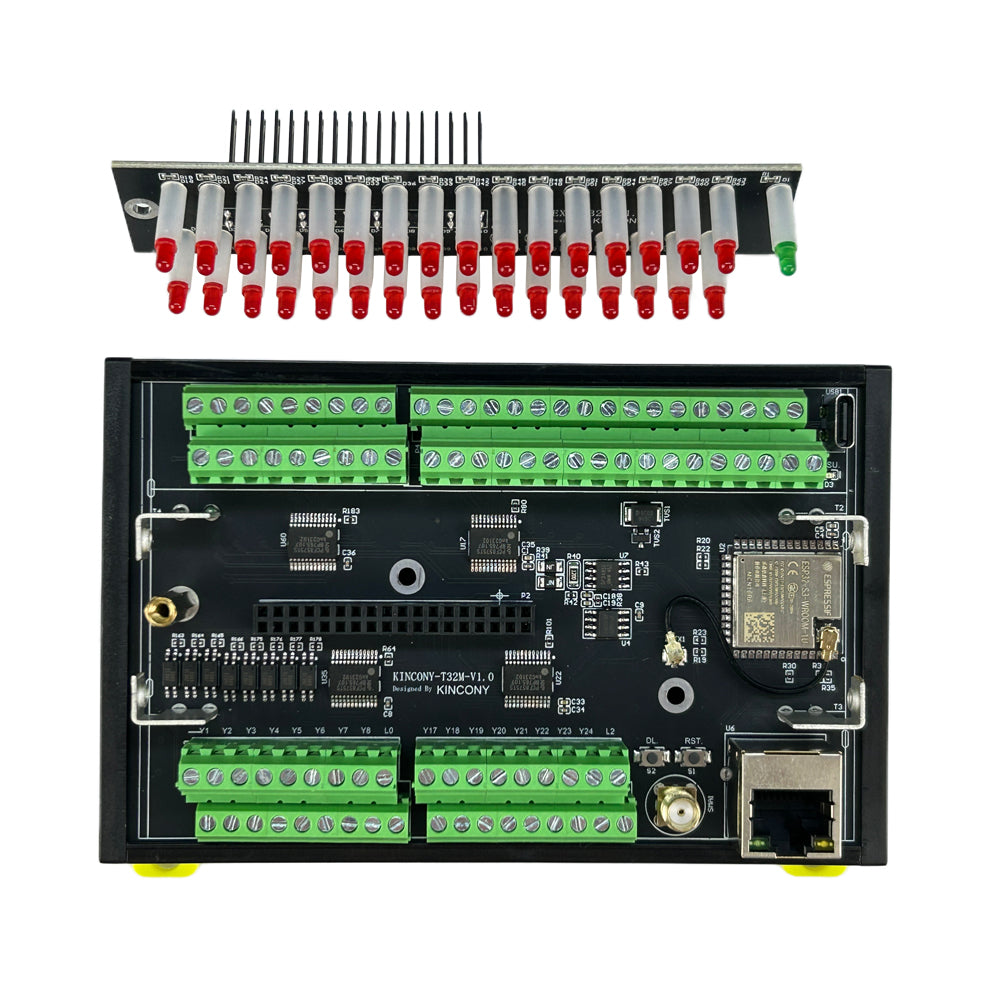

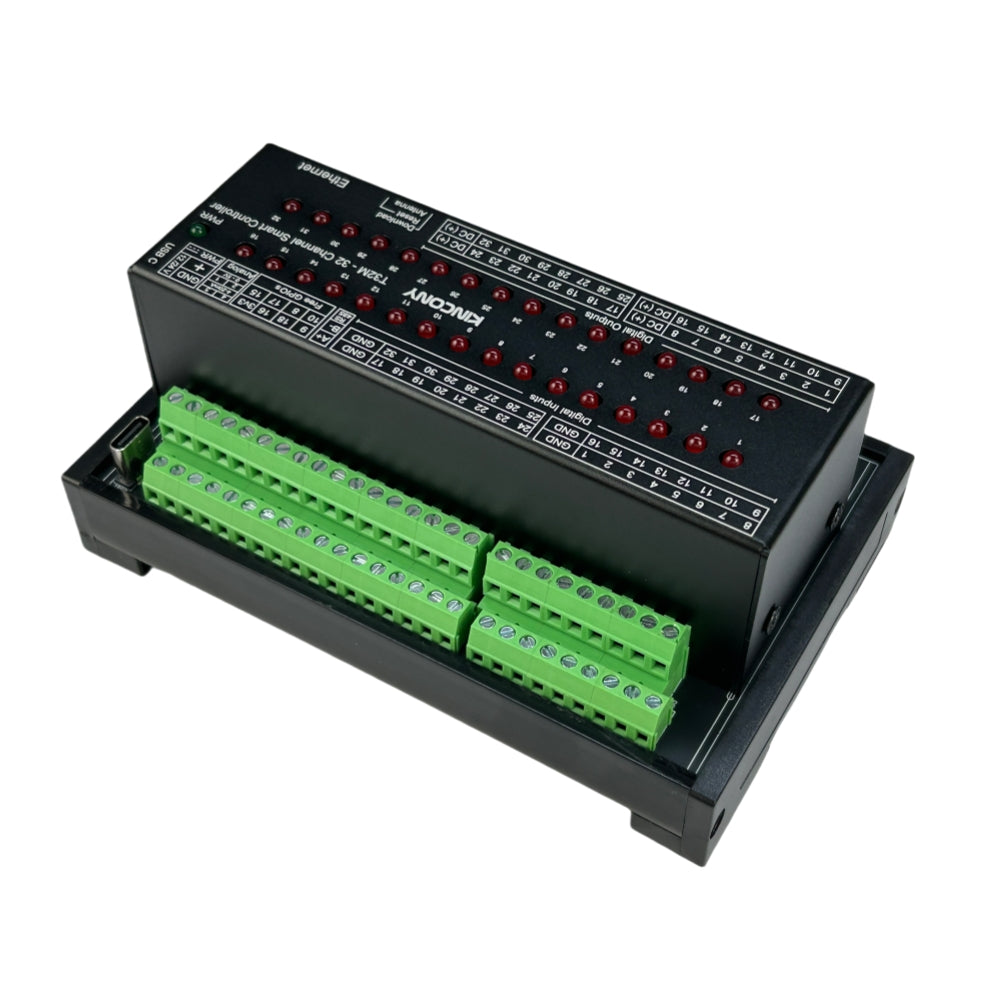

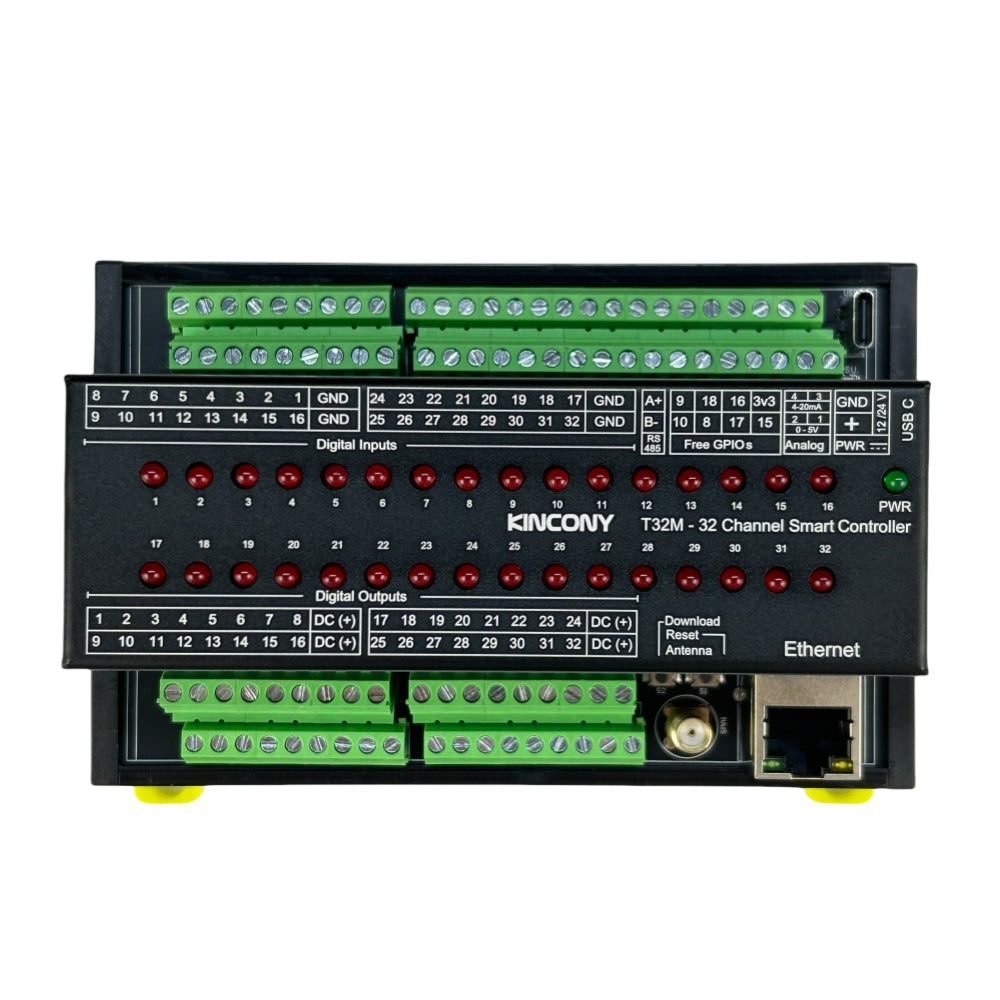

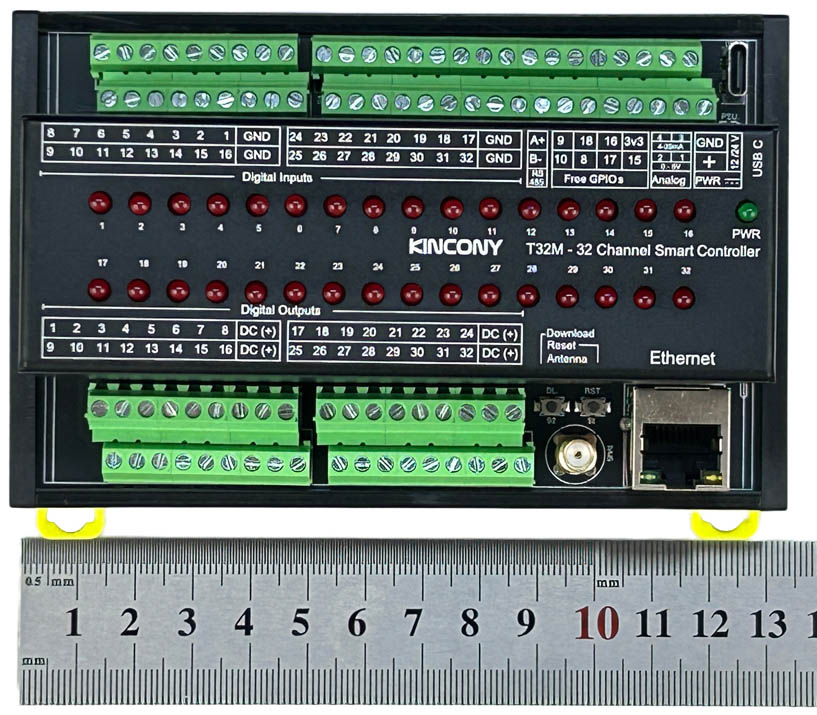

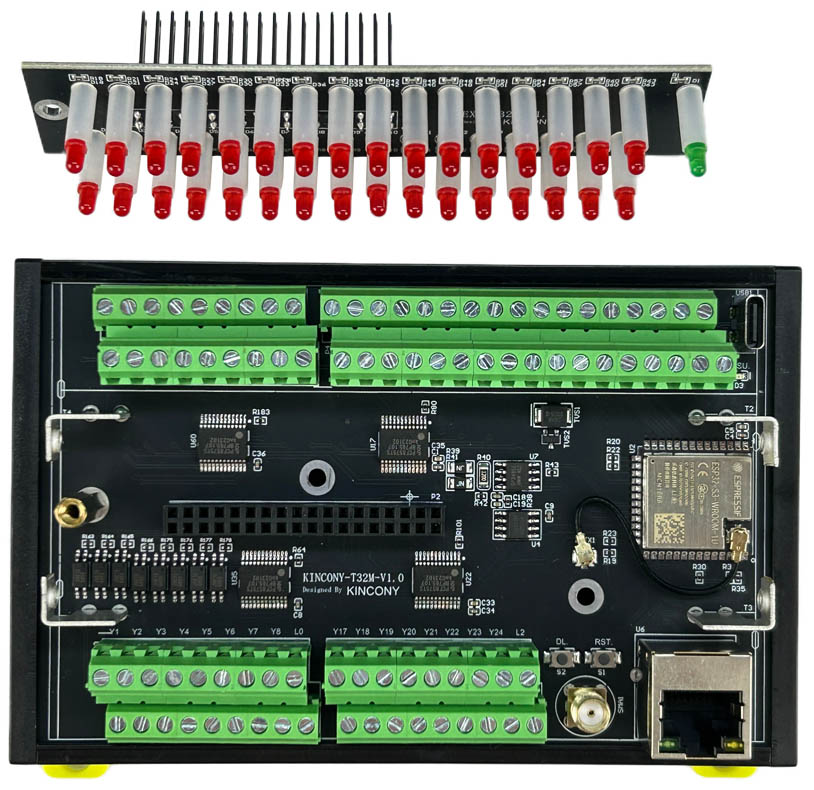

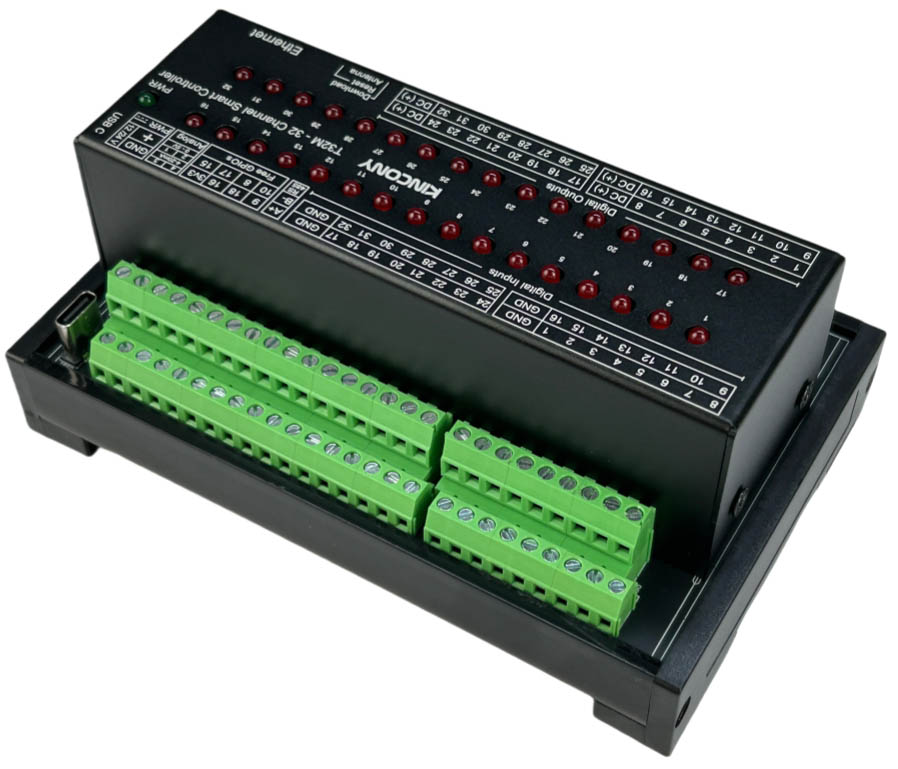

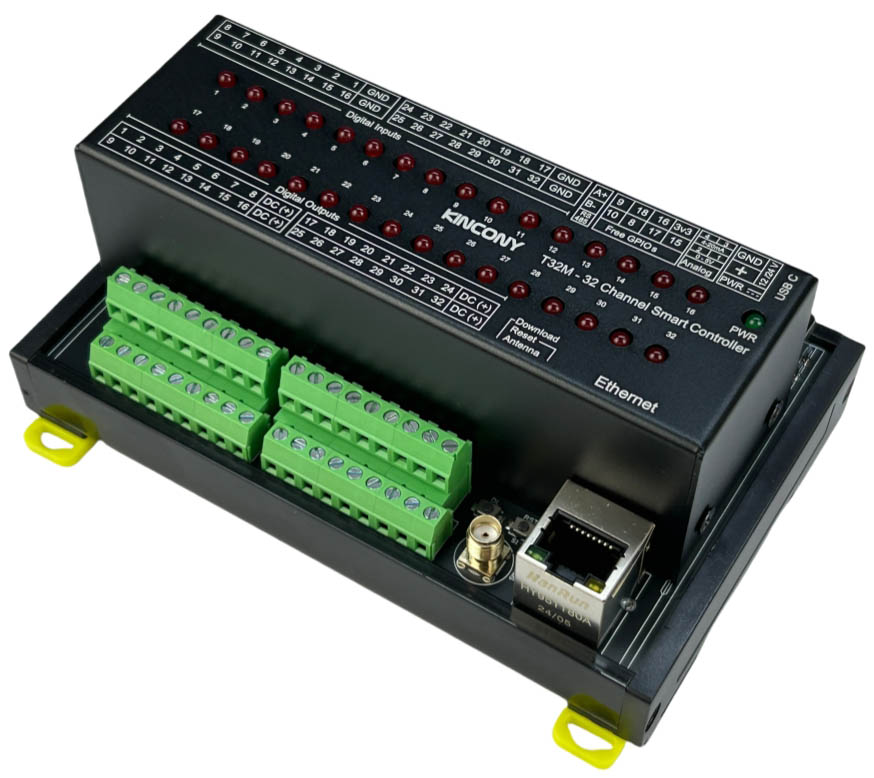

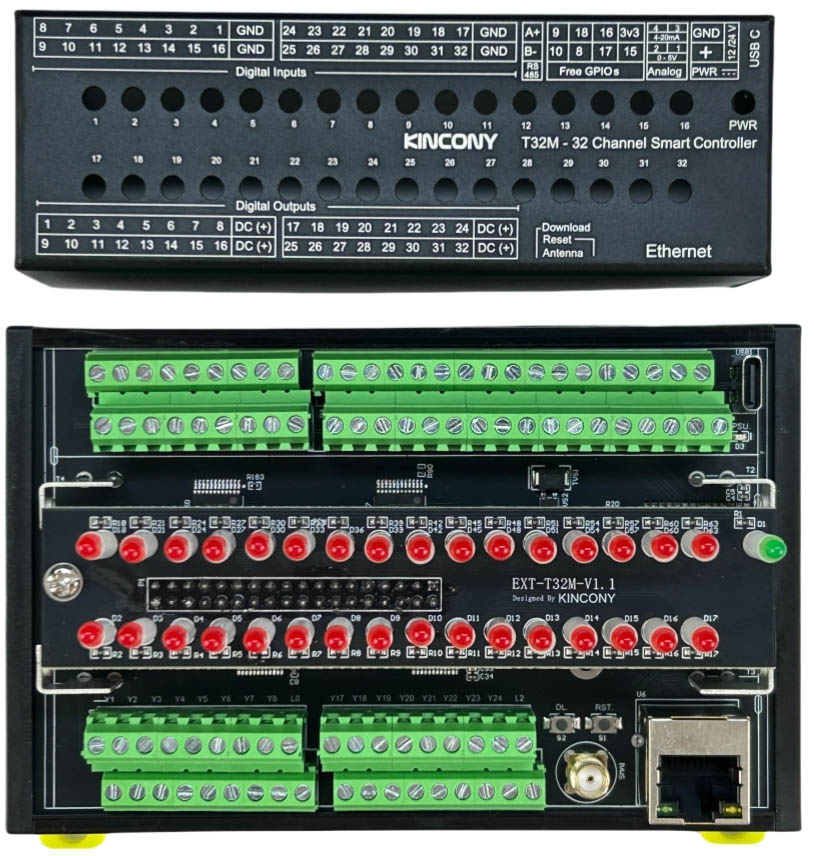

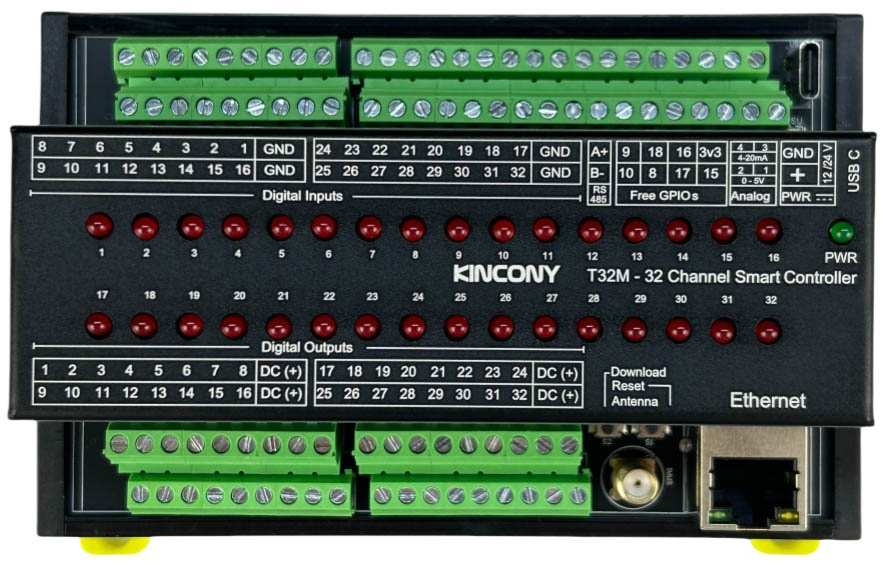

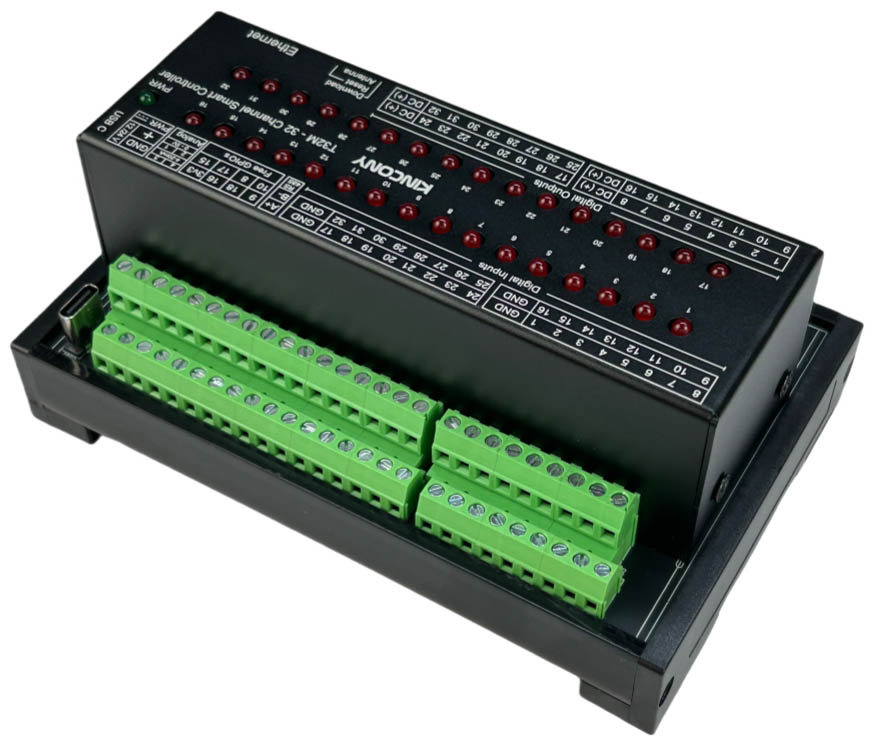

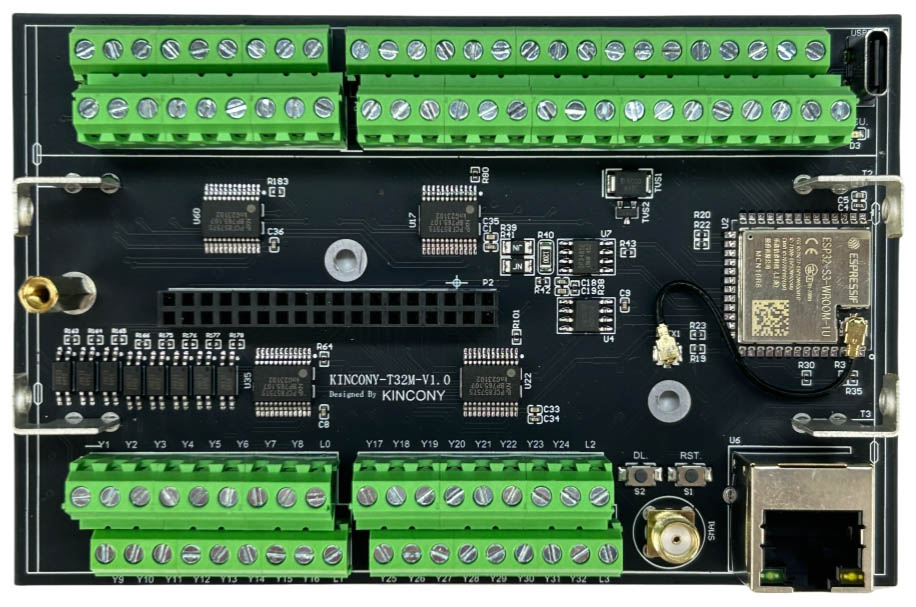

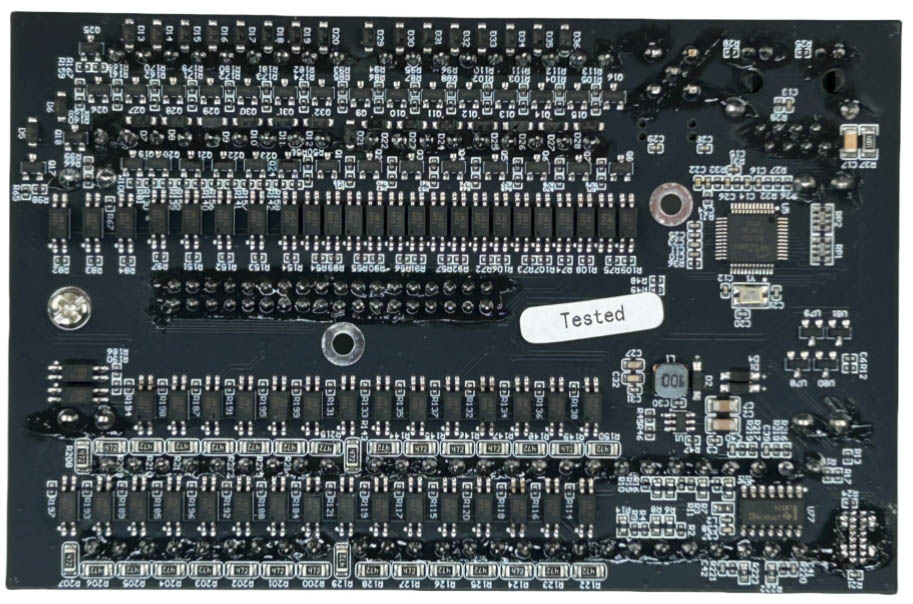

Different views of the T32M:

esp32 relay
esp32 small relay
esp32 mini relay
esp32 small mosfet
esp32 mini mosfet
esp32 home automation
esp32 iot project
esp32 mini relay board
t32m relay
esp32 relay pcb
esp32 gpio board
w5500
w5500 ethernet chip
esp32s3
ESP32-S3-WROOM-1U (N16R8) large memory PSRAM module.

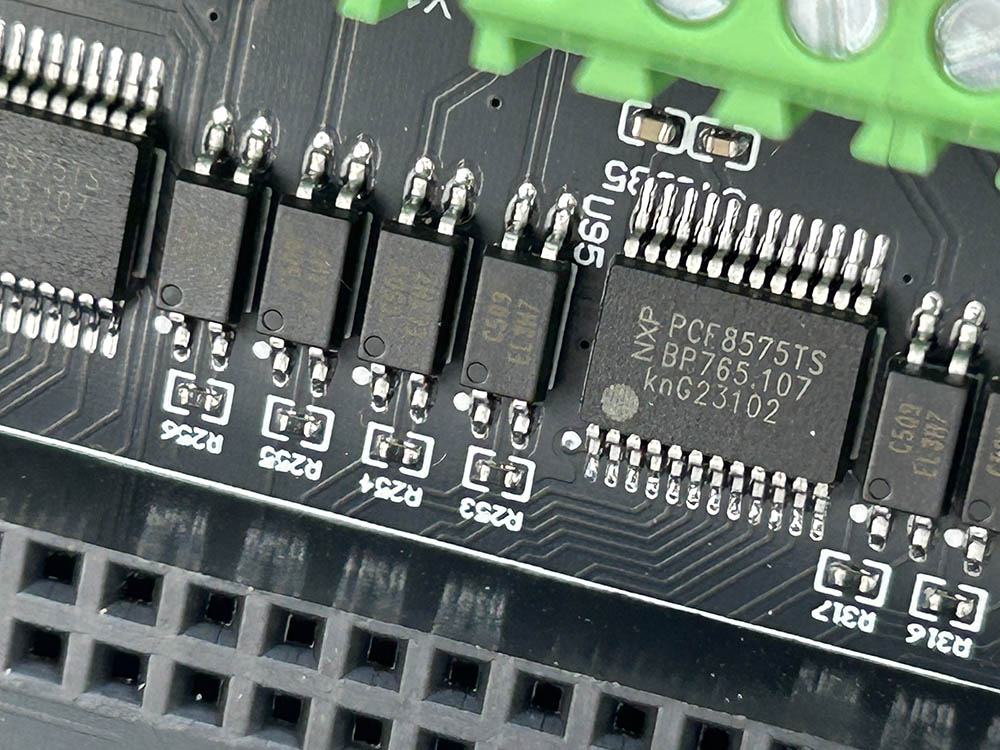

pcf8575
PCF8575 i2c extender chip.
