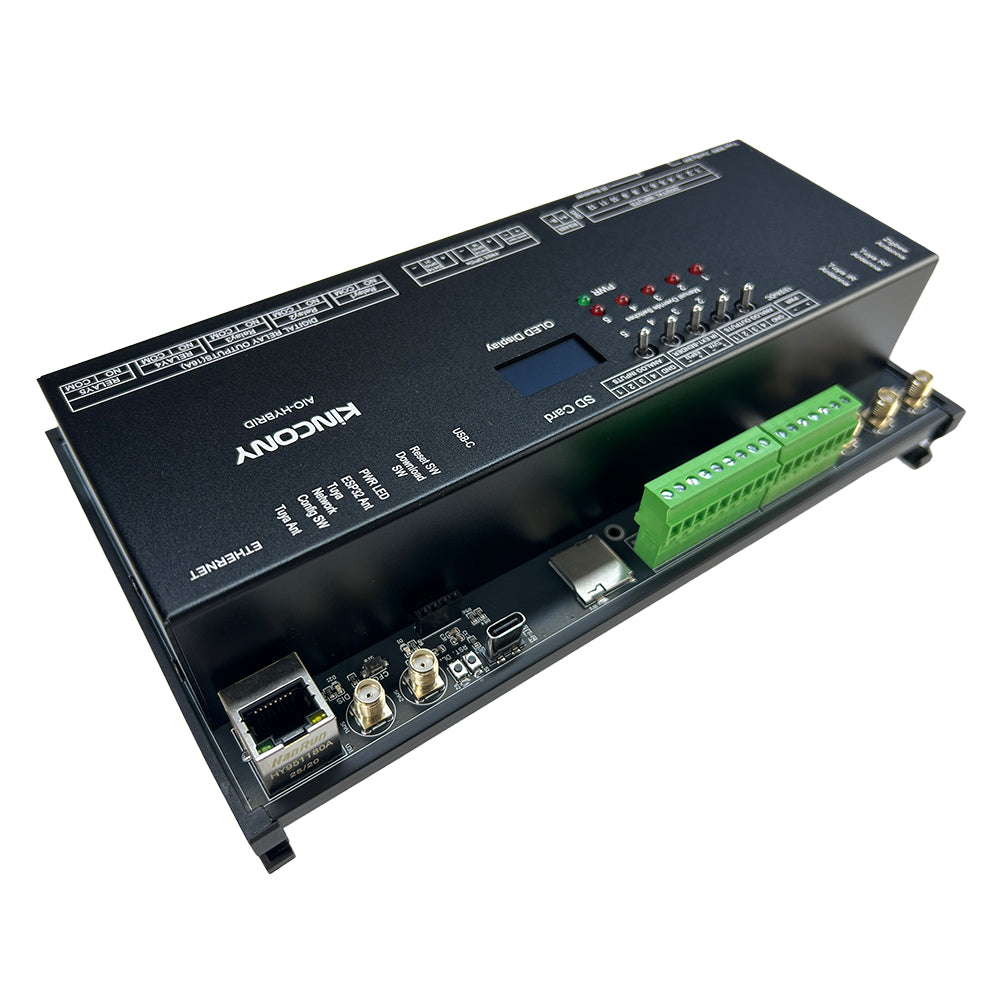

ESP32S3 All In One Smart Controller – AIO Hybrid

KinCony AIO Hybrid ESP32 smart controller based on ESP32-S3-WROOM-1U (N16R8) wifi chip. It’s ALL IN ONE module. It have 5 manual control switch buttons can turn ON/OFF relay even if system is broken. 5 channel removable OMRON high-quality relay, 2 free GPIOs use for LED strip, such as WS2812B LED strip. 4 channel analog input ports. One SD card using SPI bus. KinCony AIO Hybrid include DS3231 high precision RTC clock chip. OLED display will show wifi and ethernet IP address and Tuya connection state. AIO Hybrid have RS485 port and RF433MHz RF receiver. 4 channel DAC 0-10v output user for dimmer or control motor speed. Tuya APP support work with IR and RF 433MHz devices. IR receiver use for ESP32 and Tuya module. Two IR senders use for ESP32S3 module and Tuya module.

You can define RF and IR buttons to control TV or air conditioner or other IR devices by IR signal.

AIO Hybrid can pair with zigbee3.0 standard protocol products. create IFTTT command for zigbee sensor, so that zigbee sensor automatic send command to relay board or other devices using customize command.

You can write any code by Arduino IDE / MicroPython / ESP-IDF development tool to ESP32 module. We will supply Arduino / ESP-IDF demo code for different samples. Everyone can modify and change the code for your own smart home automation system project. it support use by ESPHome for home assistant or tasmota firmware for smart home automation DIY. AIO Hybrid use KCS v3 firmware, it support home assistant auto discovery function by MQTT, so without write any config code (zero code) for home assistant.

Model No. KinCony AIO Hybrid
Description: KinCony ALL IN ONE ESP32-S3 Controller – AIO Hybrid
Power supply: 12/24V DC (Default install by 12V OMRON relay)
Processor: ESP32-S3-WROOM-1U (N16R8)
Size: 218mm*127mm*64mm
interfaces: Ethernet(RJ45)-LAN 100Mbps IPv4/IPv6,WiFi,RS485,Bluetooth,USB-C,OLED, Tuya Module,Zigbee
RTC: DS3231 high precision chip (battery socket on PCB)
SD Card: SPI bus

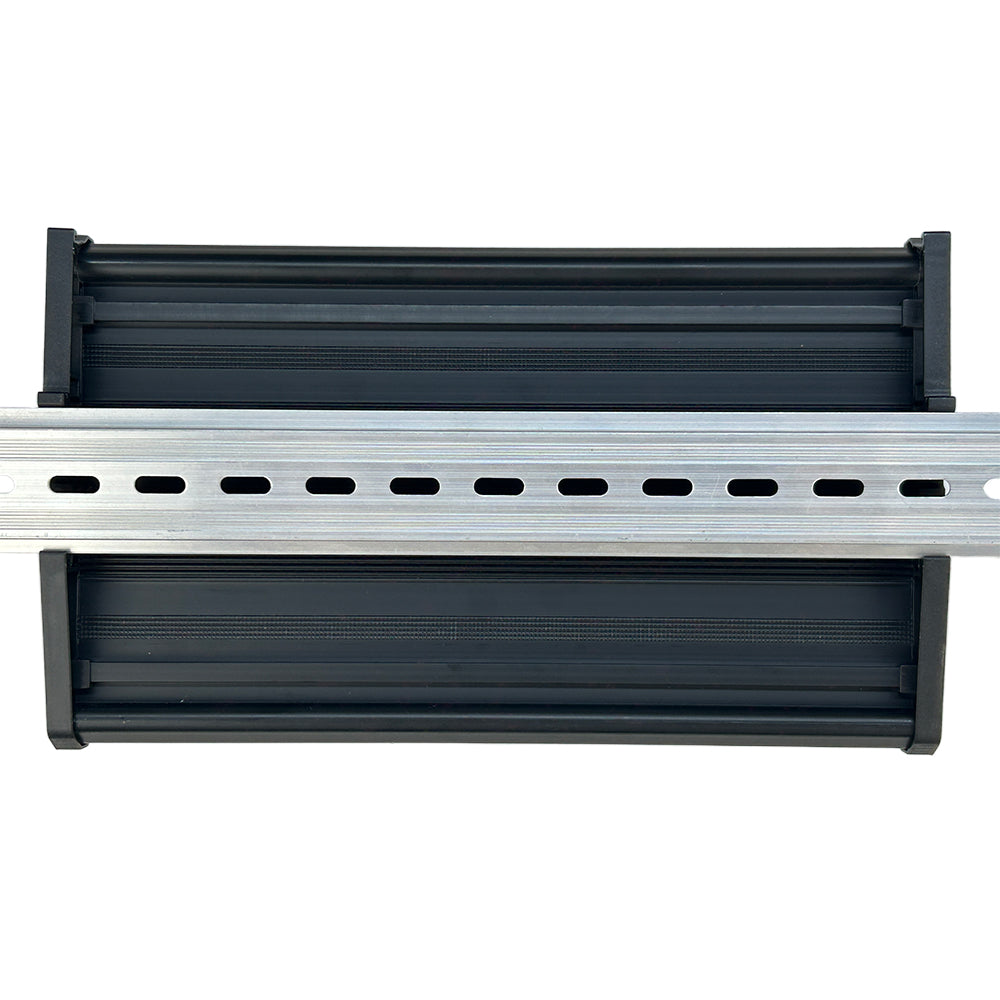

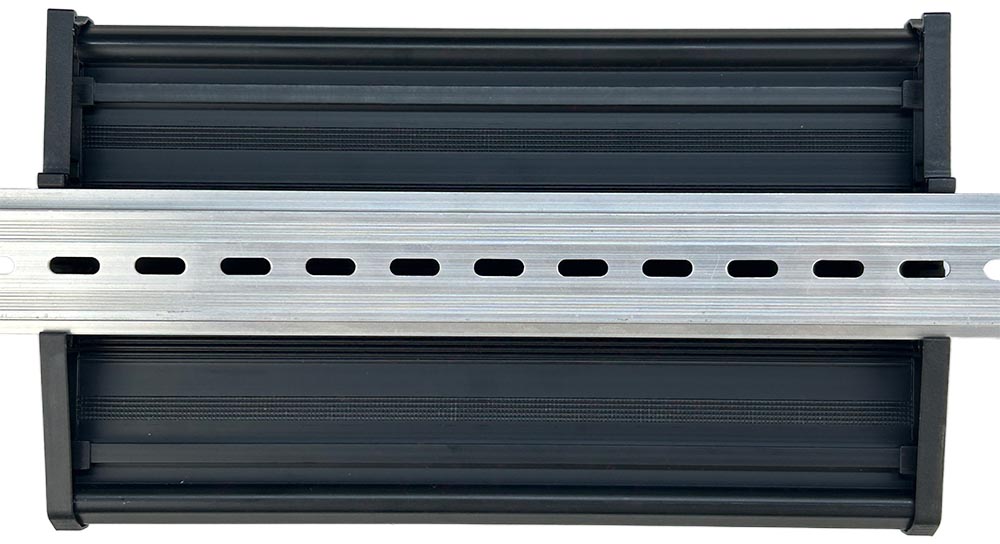

Installation method: DIN RAIL
OLED: SSD1306 I2C display

Outputs:
5CH OMRON removable relay, every channel have “COM”(common) and “NO”(normal open) ports.
MAX load 250VAC/16A 30VDC/16A
4CH DAC 0-10V output
Tuya IR sender
ESP32S3 IR sender
Tuya RF433MHz sender

Inputs:
4CH analog input DC0-5V (A1,A2) 2CH analog input 4-20mA (A3,A4)
12CH dry contact inputs (optocoupler isolation, long distance circuit for MAX 500 meters cable)
3 buttons: 1:ESP32 Reset 2:ESP32 Download 3:Tuya relay config, 4:Tuya IR/RF module config
free GPIO: 2CH (without pull-up resistance on PCB, connect with ESP32 pin directly)
RF receiver socket: 433MHz RF receiver
Tuya RF433MHz receiver

software solution:

1. download KinCony KCS firmware, so that work with multi protocol: HTTP, MQTT, TCP, RS485 modbus, Tuya app, config OUTPUT for “momentary” and “interlock” group functions. use Tuya mobile phone app directly, support voice control by Alexa and Google home speaker directly. “KCS” support IFTTT function work locally without internet. It also support use by KinCony cloud server. KCS v3 support home assistant auto discovery function by MQTT, so without any config file for home assistant.

2. download firmware by ESPHome, integrate to home assistant or use by web service.

3. download tasmota firmware.

4. write your own arudino code for your own requirements.

5. It is recommended to use home assistant and Tuya mobile phone app at the same time. So that remote control by internet using Tuya app, local control by LAN using home assistant app.

Related technical information
———————————

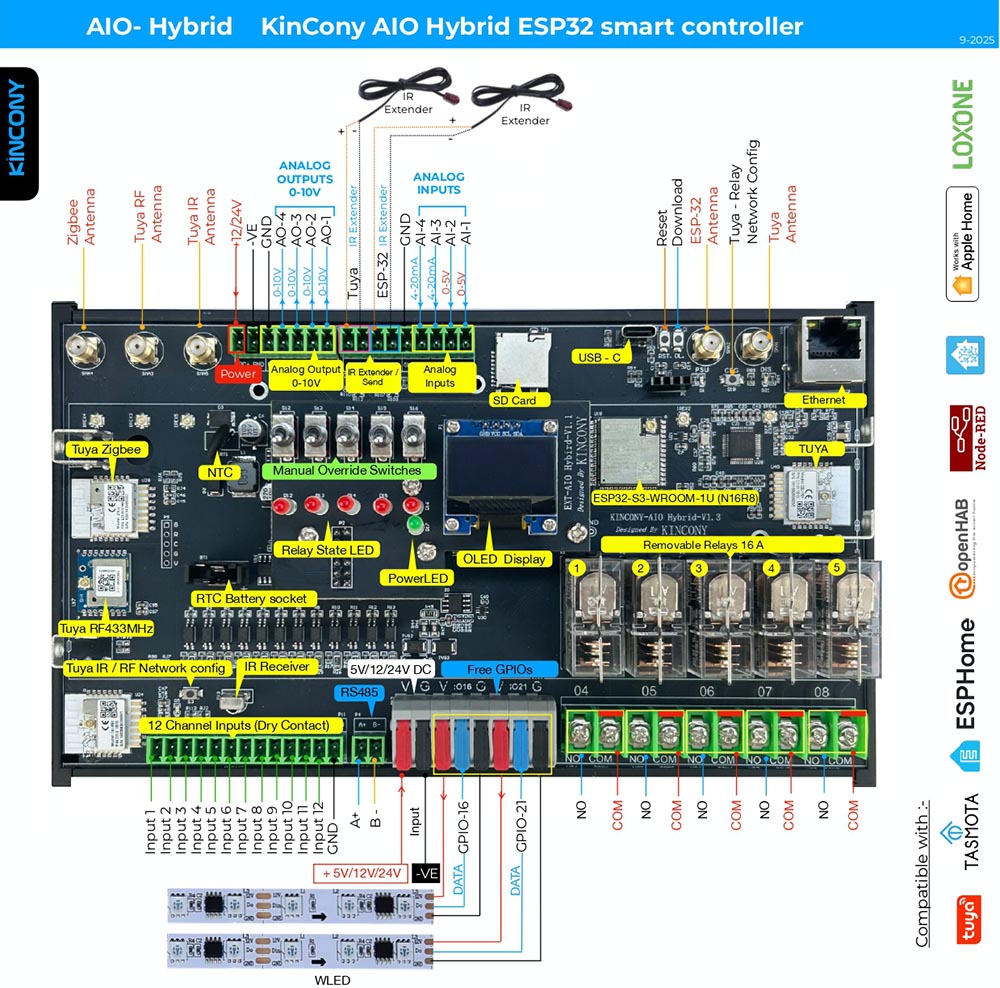

ESP32 I/O pin define: https://www.kincony.com/forum/showthread.php?tid=8532
config yaml file for ESPHome: https://www.kincony.com/forum/showthread.php?tid=8534
ESPHome official supportted list:
arduino demo source code: https://www.kincony.com/forum/forumdisplay.php?fid=94
KCS v3 firmware online guide: https://www.kincony.com/how-to-use-kcsv3-firmware-esp32-board.html

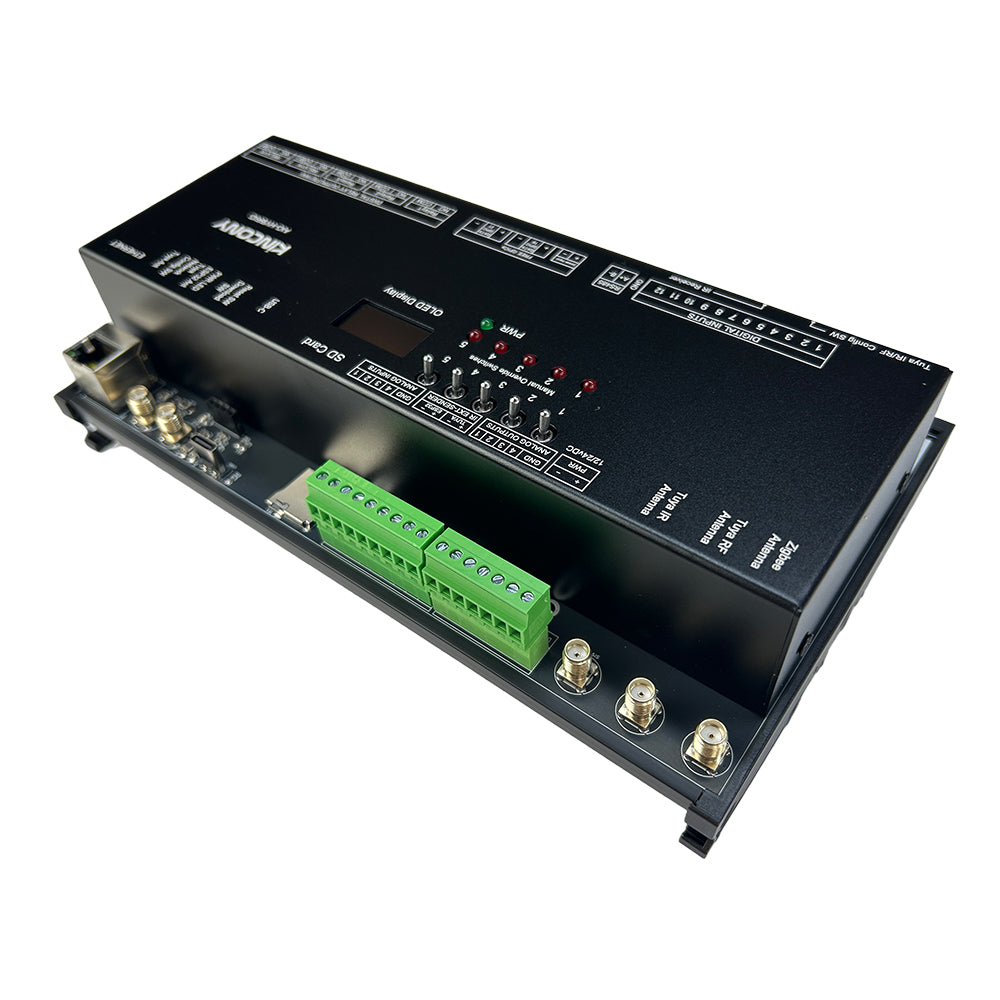

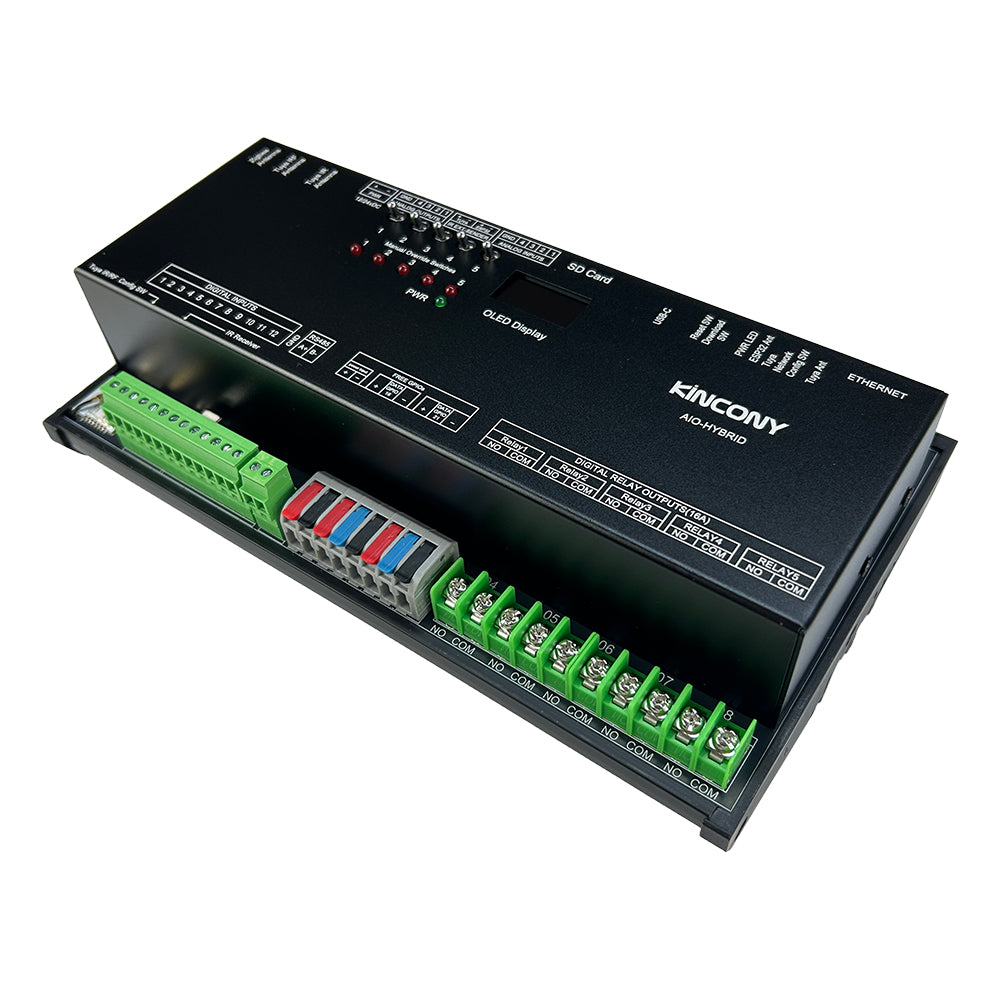

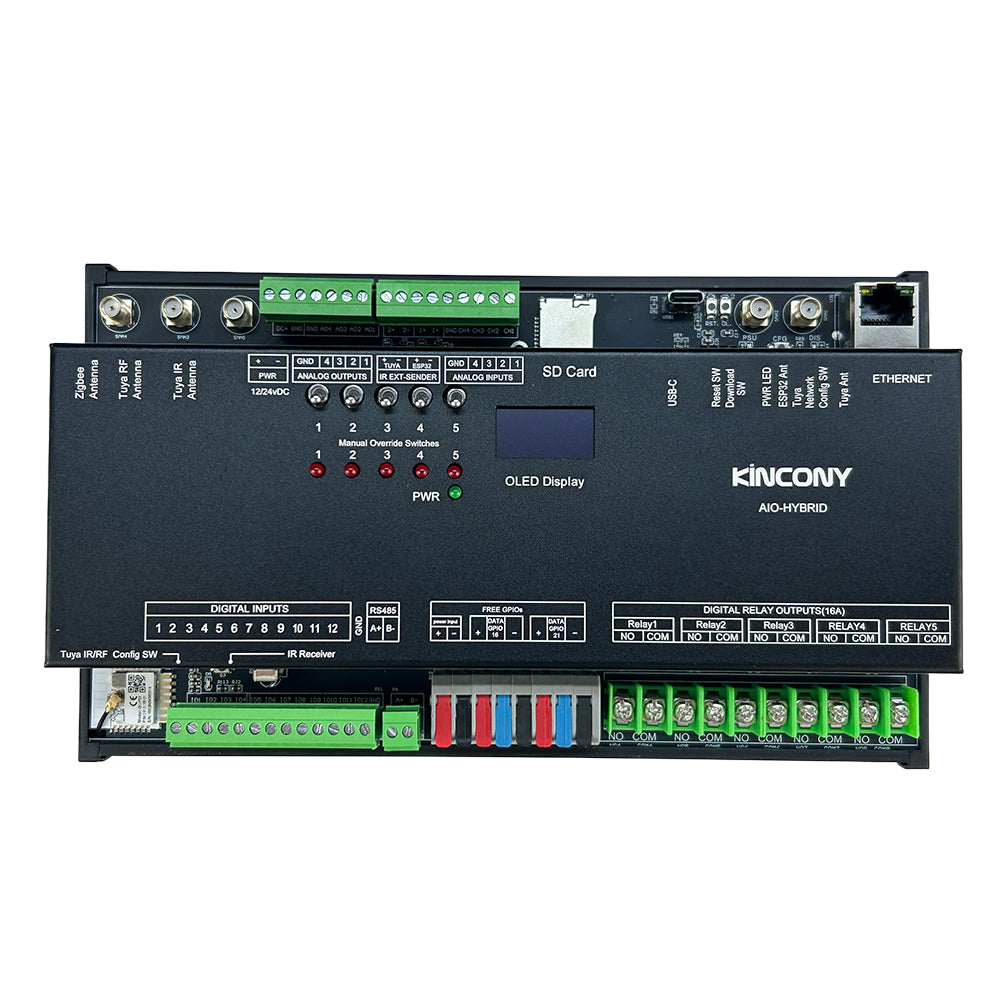

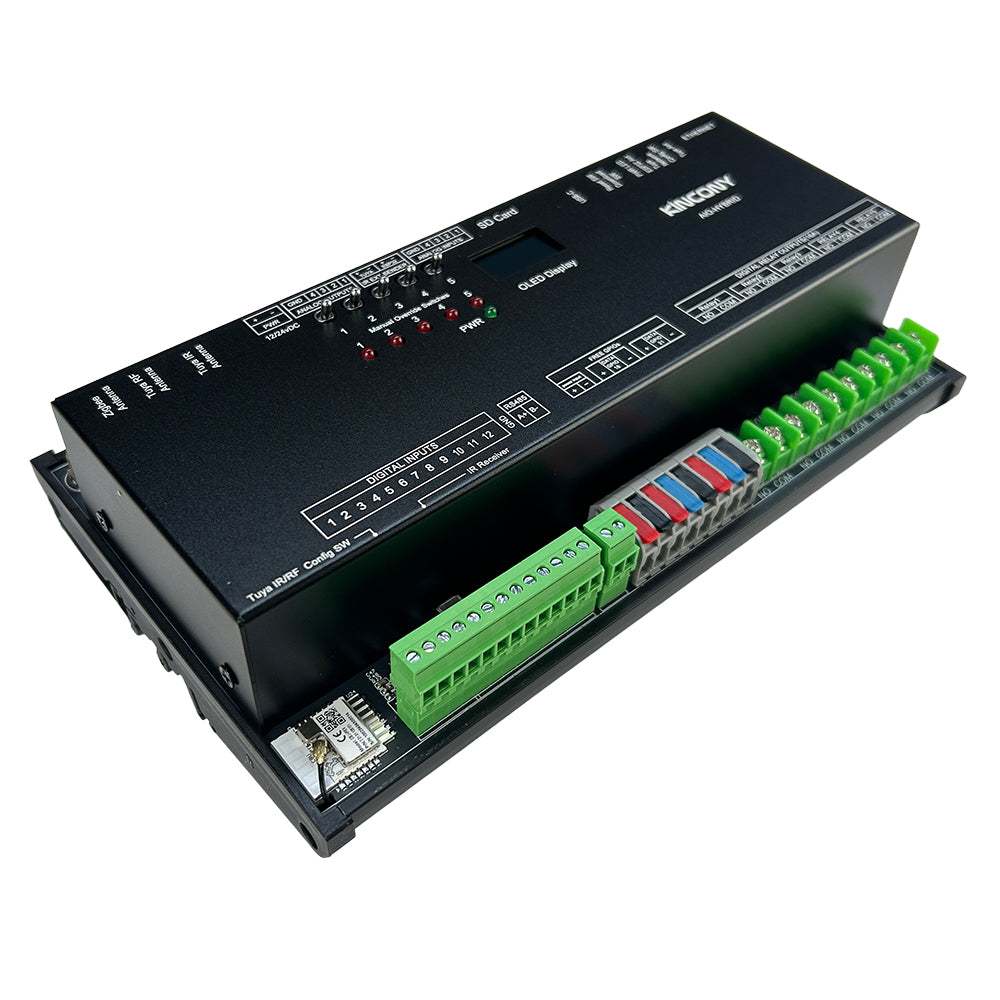

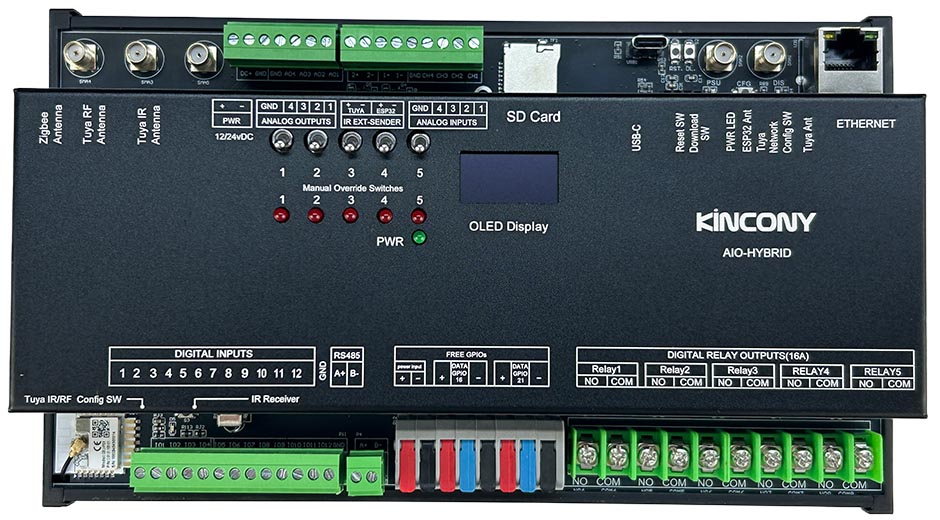

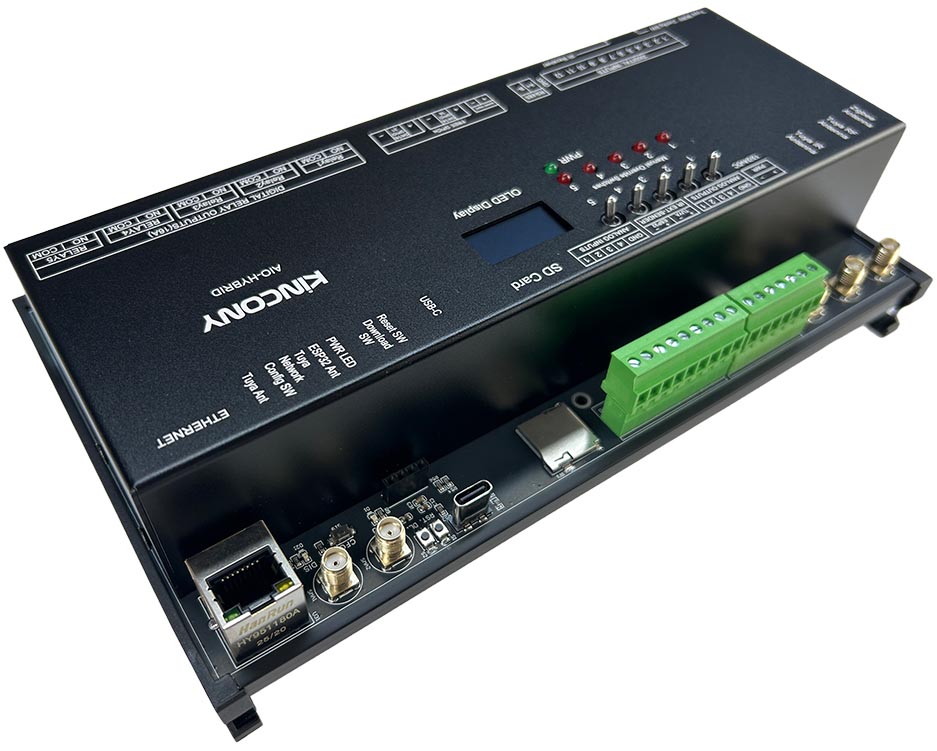

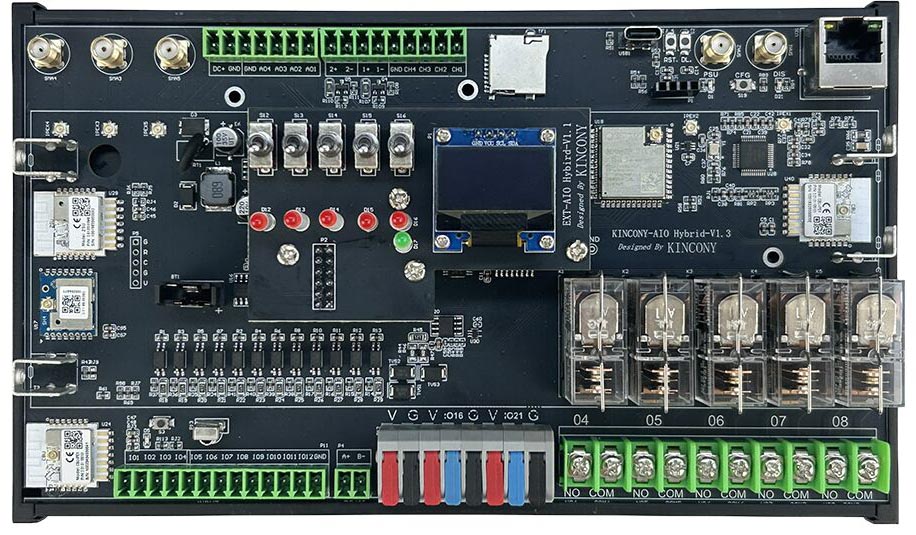

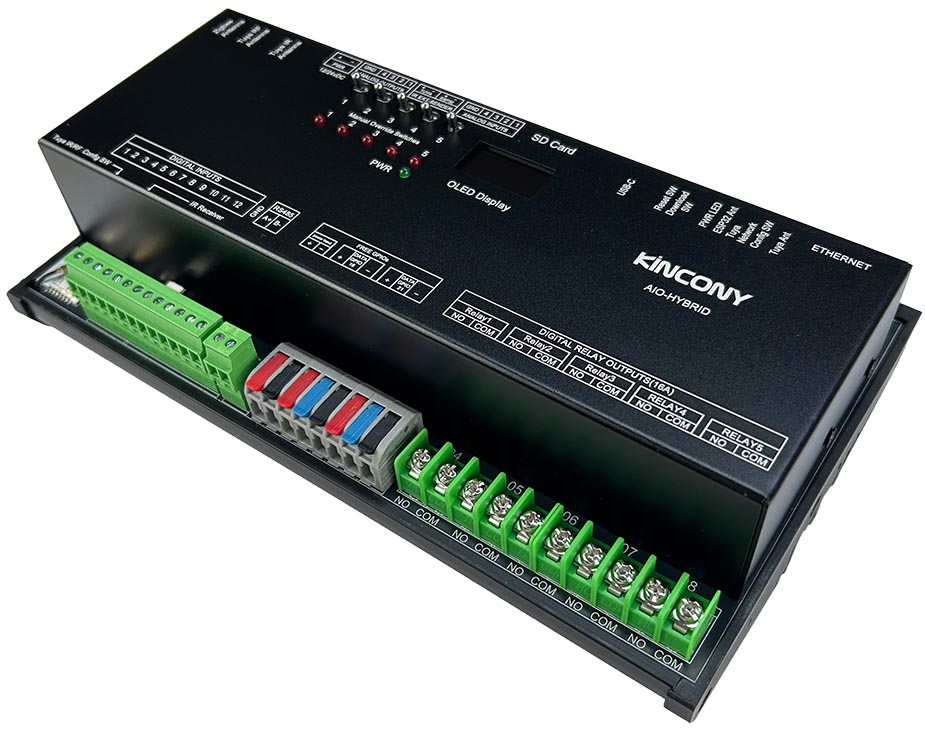

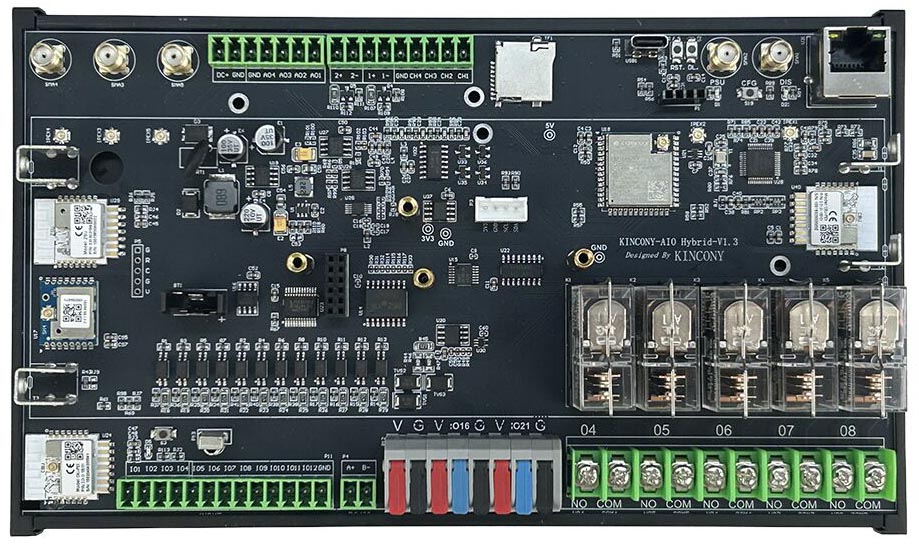

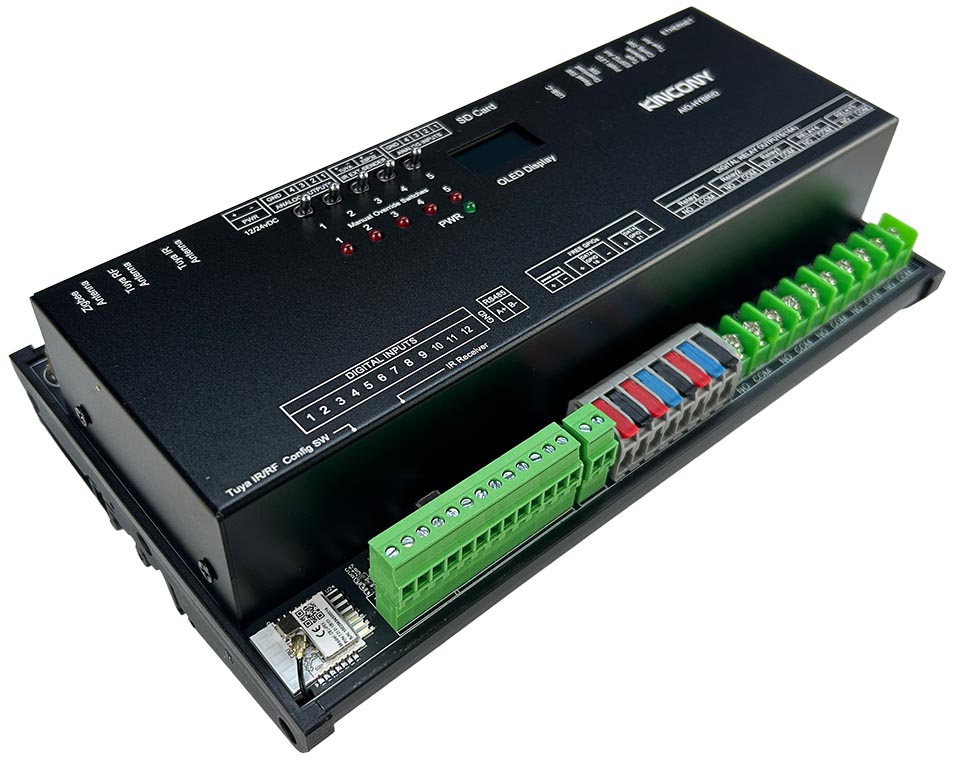

more details of photo:

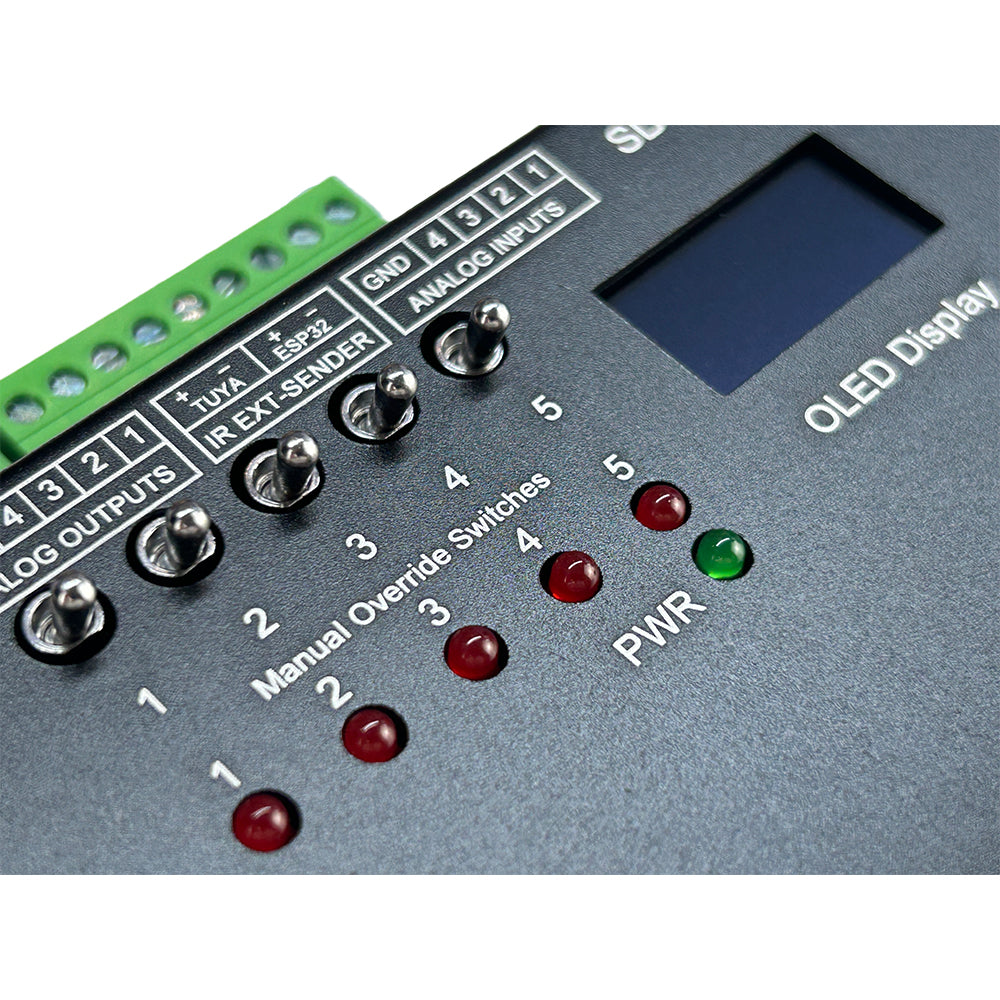

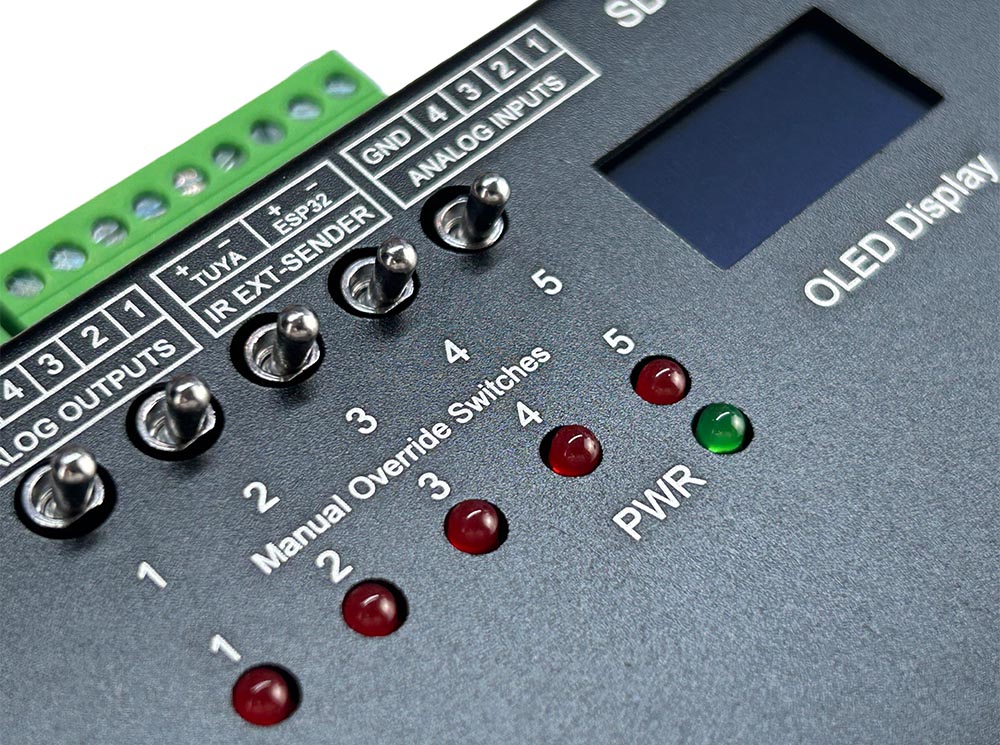

manual control switch can work with software. Even if controller is broken, also can work well.

Order bundles:

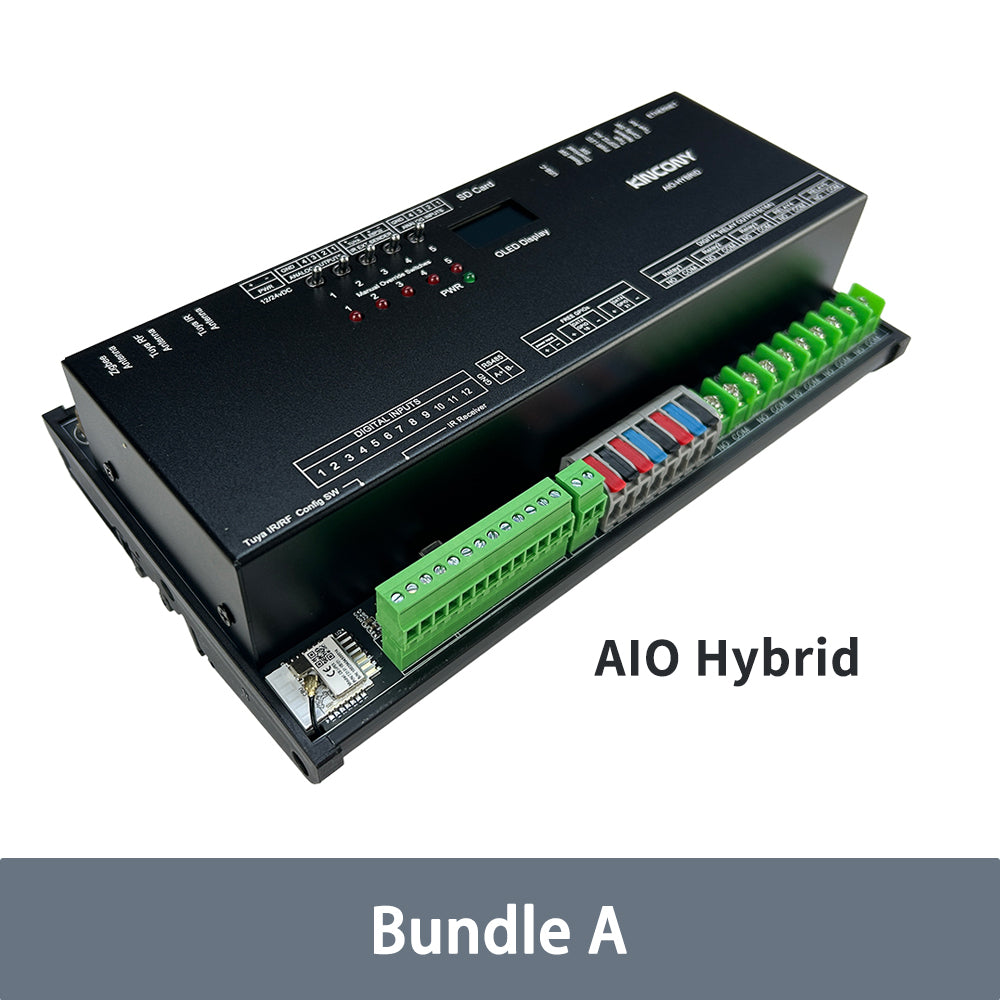

Bundle A: AIO Hybrid

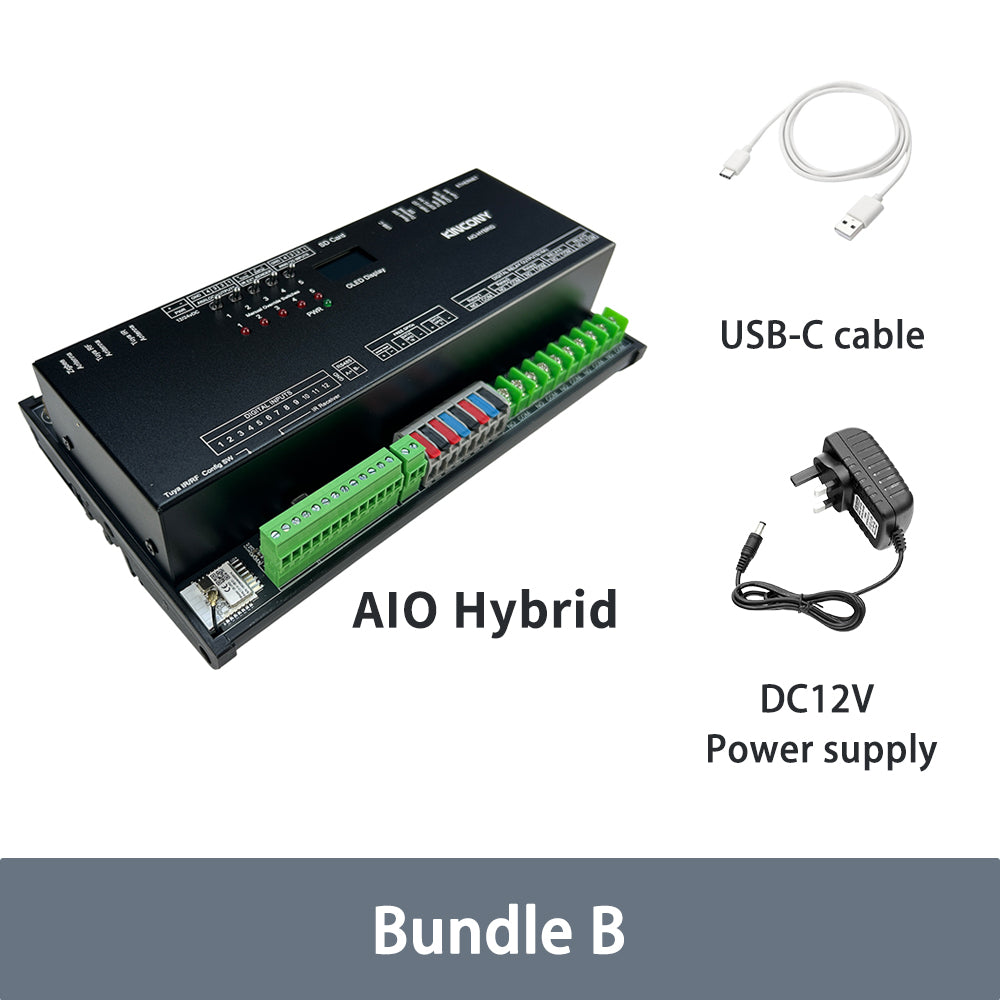

Bundle B: AIO Hybrid + USB-C cable + power supply
