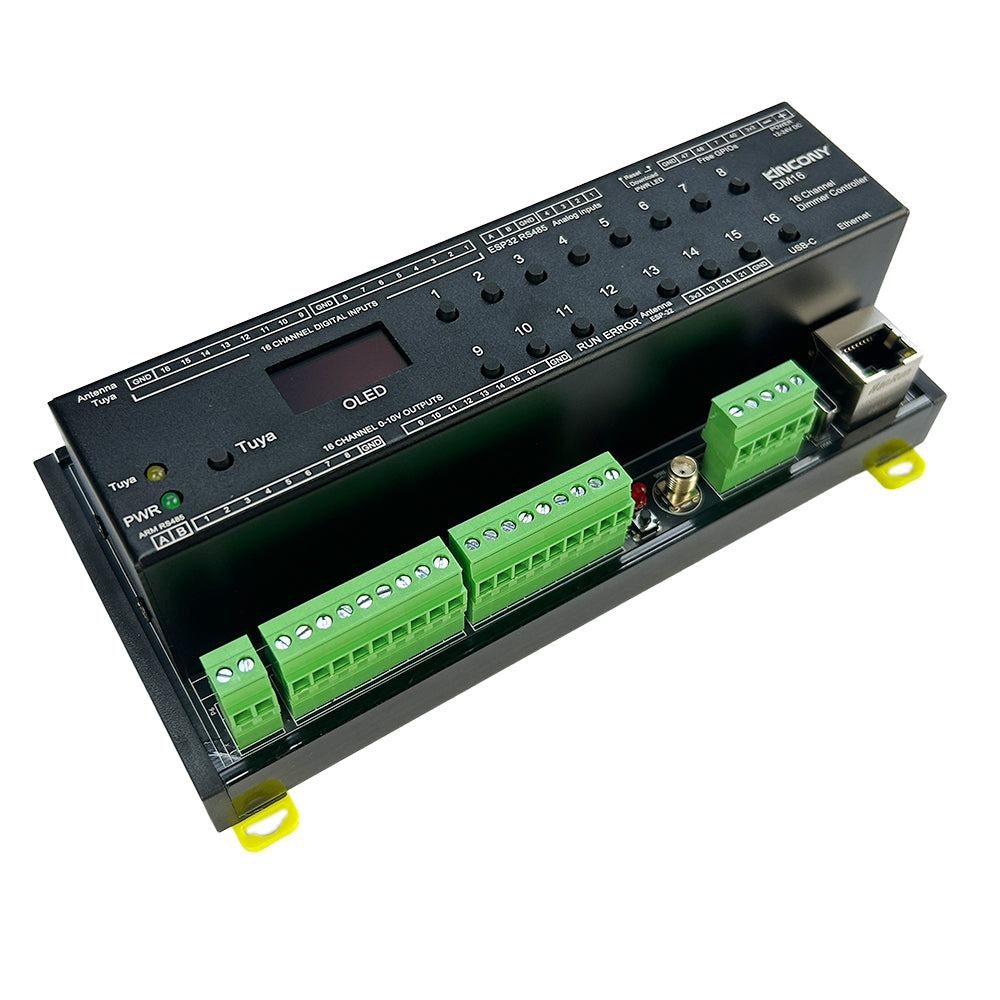

ESP32S3 Dimmer Module – DM16 (16CH Dimmer)

KinCony DM16 ESP32 smart dimmer controller based on ESP32-S3-WROOM-1U (N16R8) wifi chip. Support 16 channel DC 0-10v output, 7 channel 1-wire GPIOs, 4 channel ADS1115 16bit analog input ports. One SD card using SPI bus. DM16 include DS3231 high precision RTC clock chip. OLED display will show wifi and ethernet IP address and Tuya connection state. DM16 have 2pcs of RS485 port. one RS485 connect with ARM CPU, support use by modbus directly. Another RS485 work with ESP32. You can write any code by Arduino IDE / MicroPython / ESP-IDF development tool to ESP32 module. We will supply Arduino / ESP-IDF demo code for different samples. Everyone can modify and change the code for your own smart home automation system project. it support use by ESPHome for home assistant or tasmota firmware for smart home automation DIY. DM16 use KCS v3 firmware, it support home assistant auto discovery function by MQTT, so without write any config code (zero code) for home assistant. KCS v3 support KinCony cloud service (official shop customer free 2 years), remote monitor and control device by webpage in anywhere. KCS v3 support KinCony board integrate to Loxone Miniserver. Support Apple HomeKit for Siri.

Model No. KinCony DM16
Description: KinCony 16 Channel ESP32-S3 Smart Dimmer Controller – DM16
Power supply: 12-24V DC
Processor: ESP32-S3-WROOM-1U (N16R8)
Size: 174mm*83mm*59mm
interfaces: Ethernet(RJ45)-LAN 100Mbps IPv4/IPv6,WiFi,RS485,Bluetooth,USB-C,OLED,Tuya Module
RTC: DS3231 high precision chip (battery socket on PCB)
SD Card: SPI bus

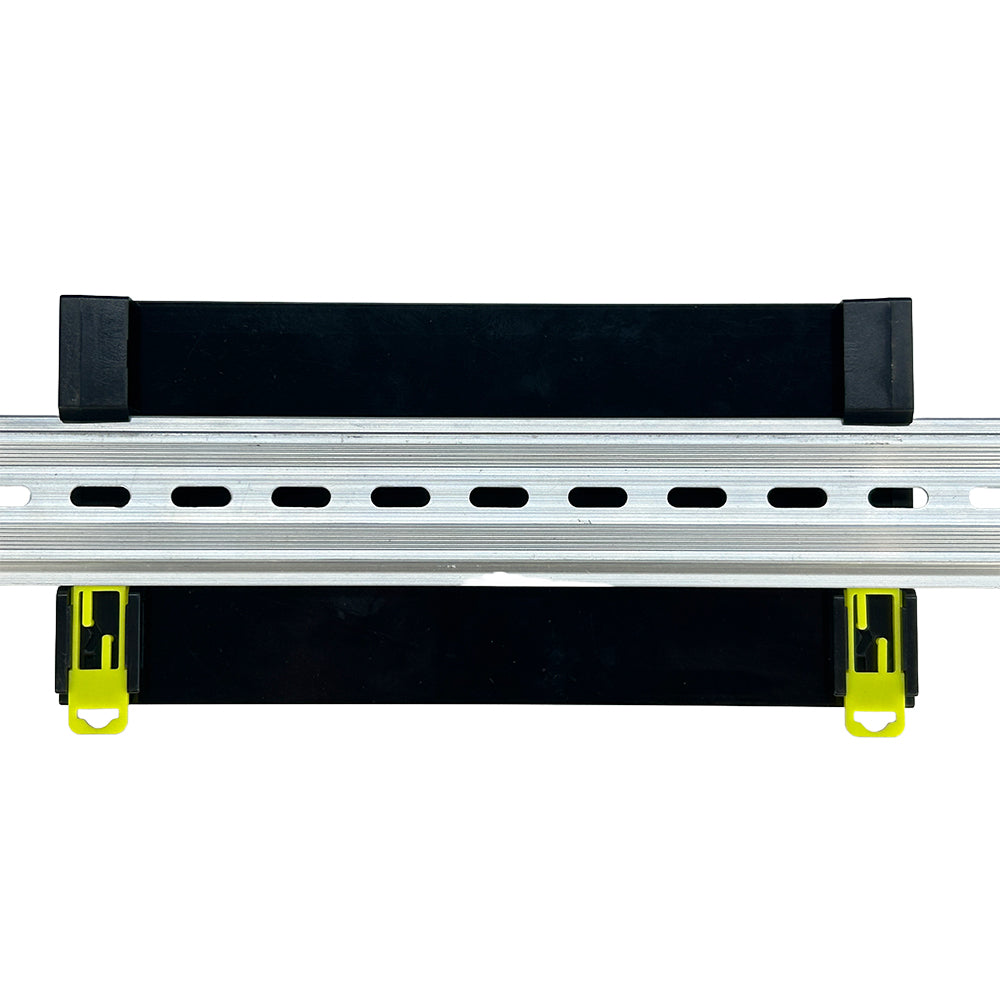

Installation method: DIN RAIL
OLED: SSD1306 I2C display

Outputs:
16CH 0-10v Outputs.

Inputs:
ADS1115 16bit ADC: 2CH analog input DC0-5V (A1,A2) 2CH analog input 4-20mA (A3,A4)
16CH dry contact inputs (optocoupler isolation, long distance circuit for MAX 500 meters cable)
4 buttons: 1:ESP32 Reset 2:ESP32 Download 3:Tuya config 4: ARM CPU Reset
1-Wire GPIO: 4CH (with pull-up resistance on PCB)
Free GPIO: 4CH (ESP32 pin directly, without pull-up resistance on PCB)

software solution:

1. download KinCony KCS v3 firmware, so that work with multi protocol: HTTP, MQTT, TCP, RS485 modbus, Tuya app, config OUTPUT for “momentary” and “interlock” group functions. use Tuya mobile phone app directly, support voice control by Alexa and Google home speaker directly. if you want local voice control without internet, you can add KinCony AS voice assistant. “KCS” support IFTTT function work locally without internet. It also support use by KinCony cloud server. KCS v3 support home assistant auto discovery function by MQTT, so without any config file for home assistant.

2. download firmware by ESPHome, integrate to home assistant or use by web service.

3. download tasmota firmware.

4. write your own arudino or ESP-IDF code for your own requirements.

5. It is recommended to use home assistant and Tuya mobile phone app at the same time. So that remote control by internet using Tuya app, local control by LAN using home assistant app.

Order bundles:

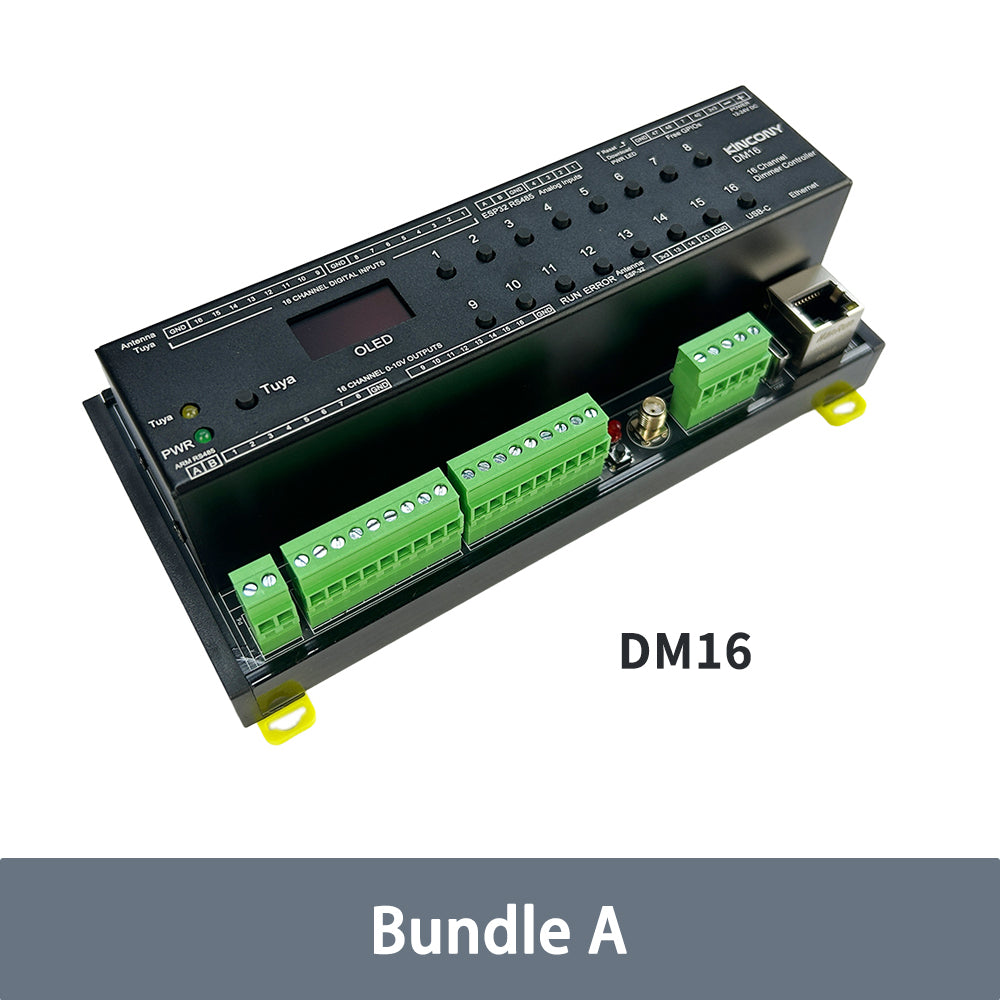

Bundle A: DM16

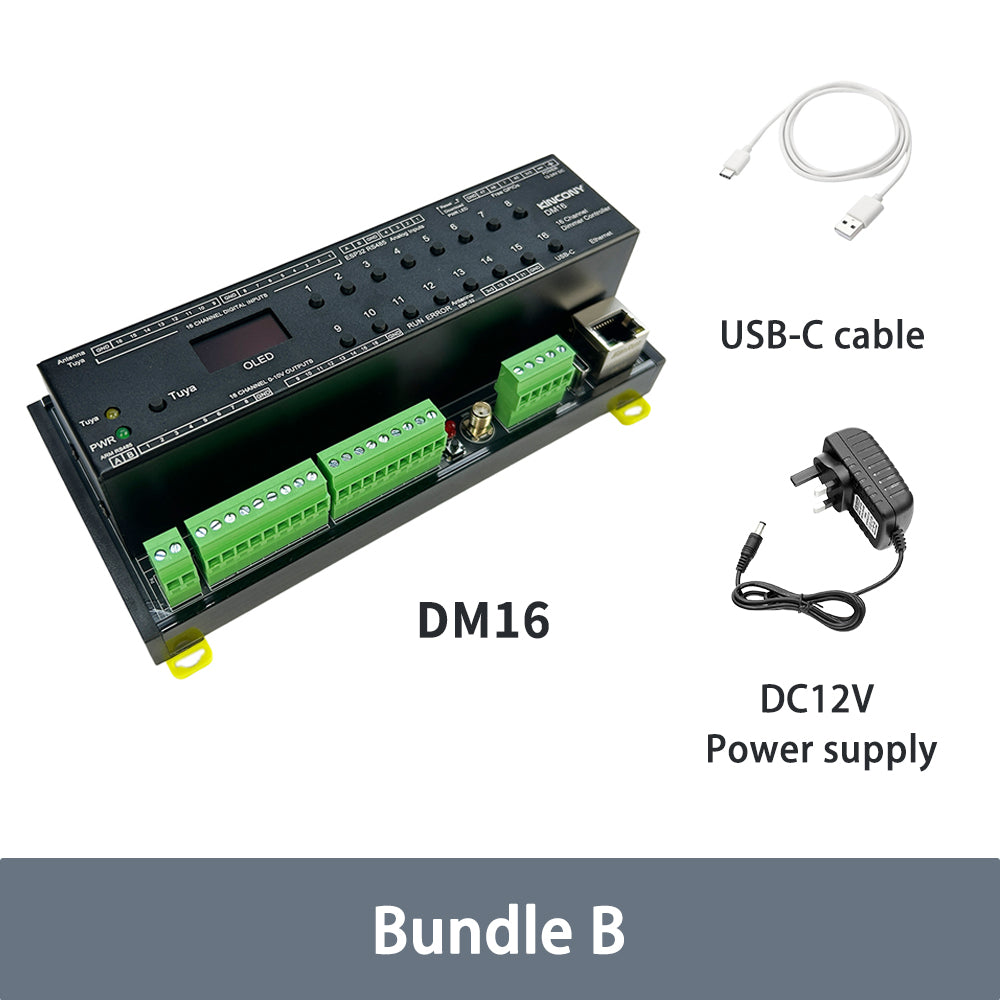

Bundle B: DM16 + USB-C cable+ DC12V power supply

Related technical information
———————————
ESP32 I/O pin define: https://www.kincony.com/forum/showthread.php?tid=8499
config yaml file for ESPHome: https://www.kincony.com/forum/showthread.php?tid=8505
ESPHome official supportted list:
arduino demo source code: https://www.kincony.com/forum/forumdisplay.php?fid=92
KCS v3 firmware online guide: https://www.kincony.com/how-to-use-kcsv3-firmware-esp32-board.html

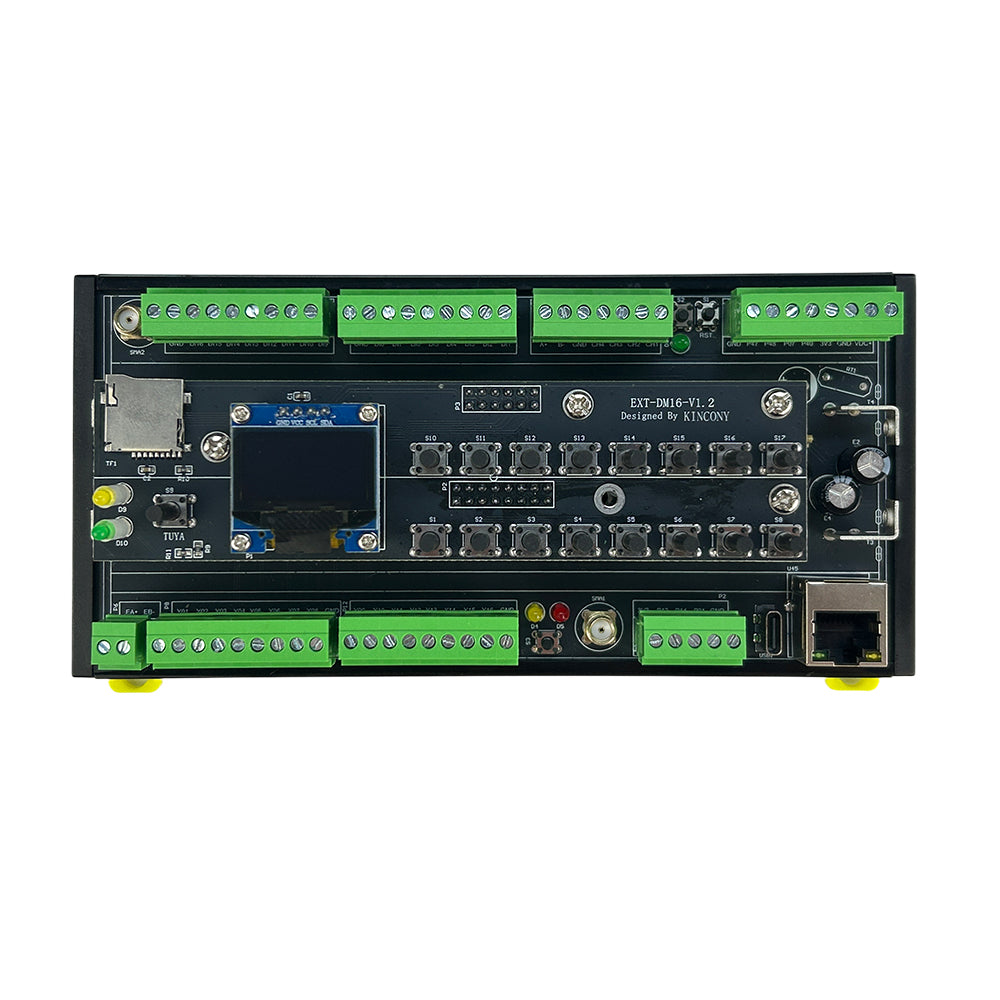

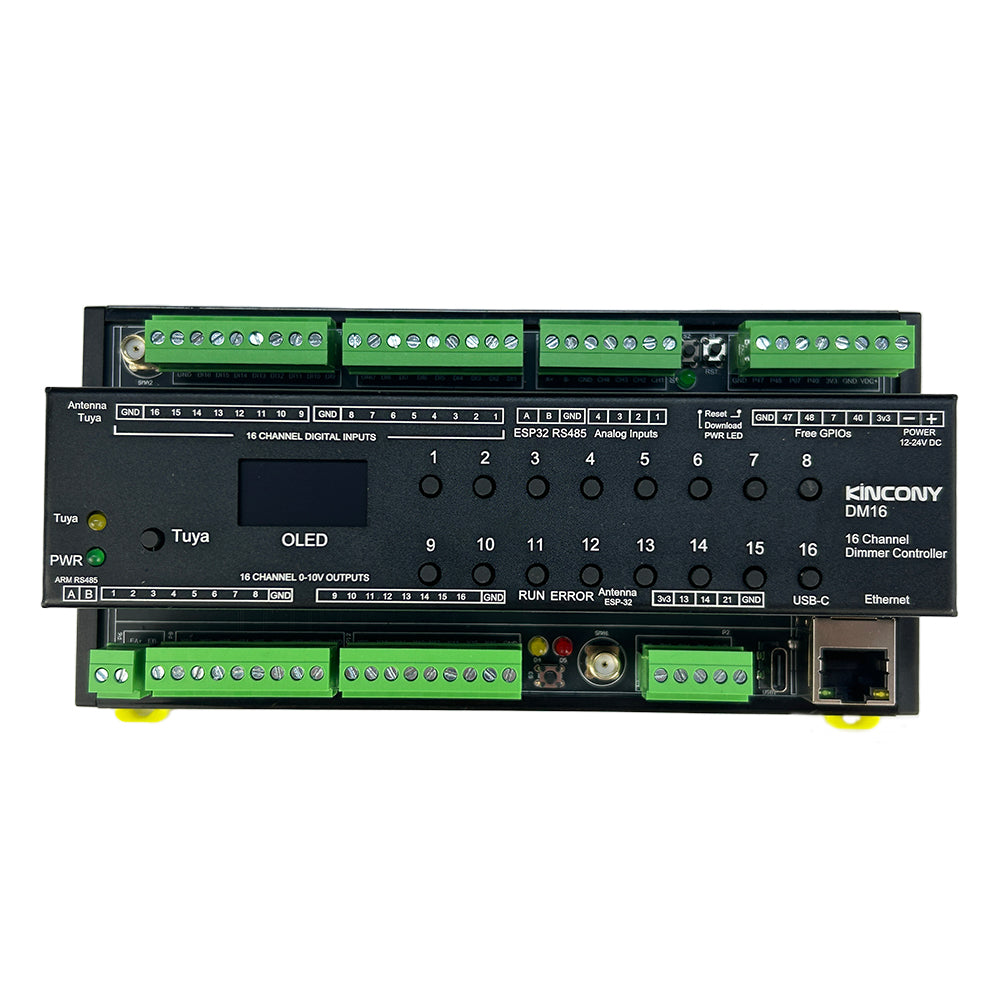

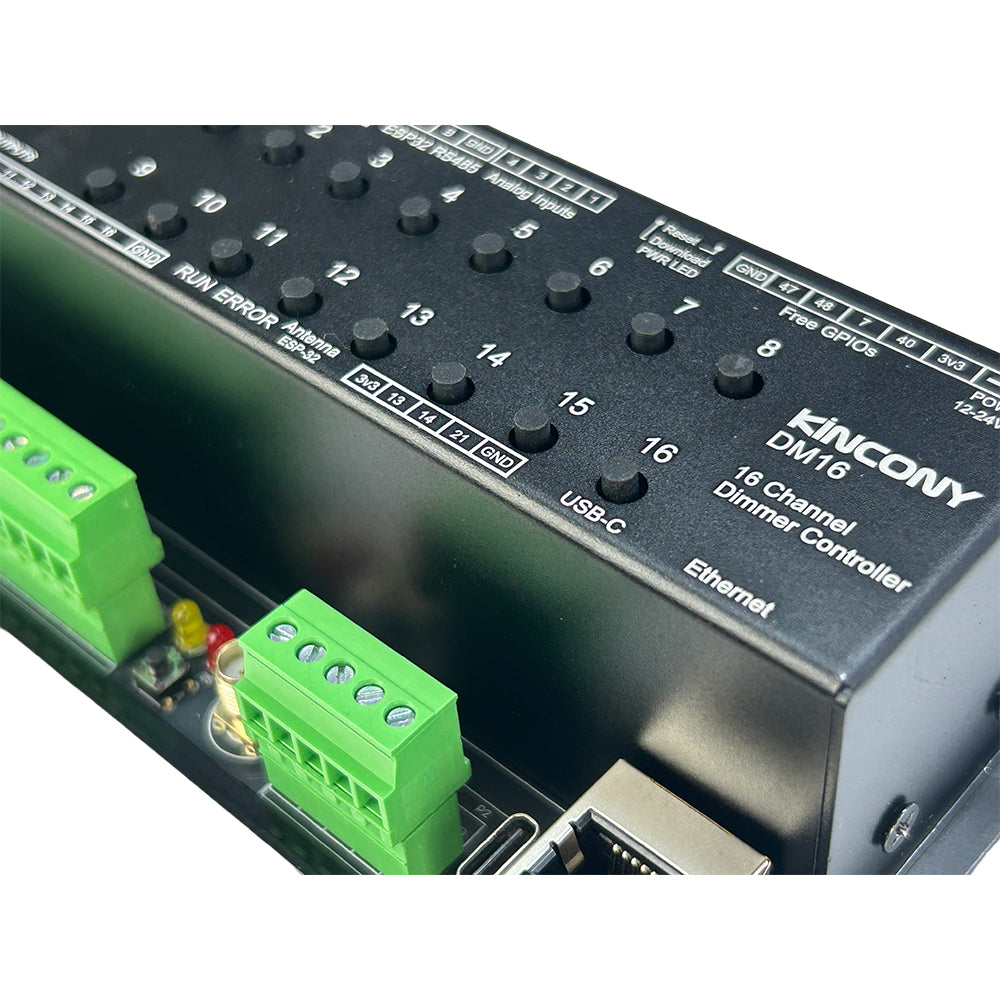

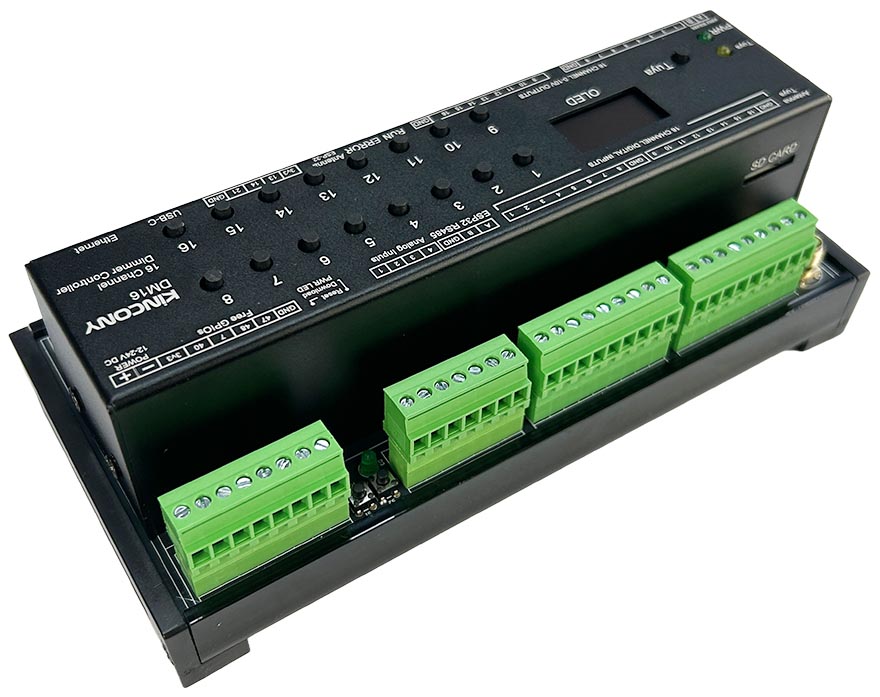

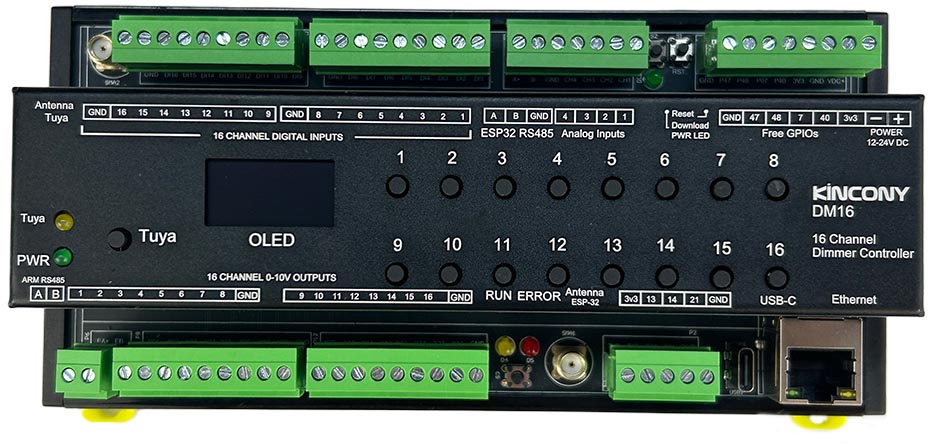

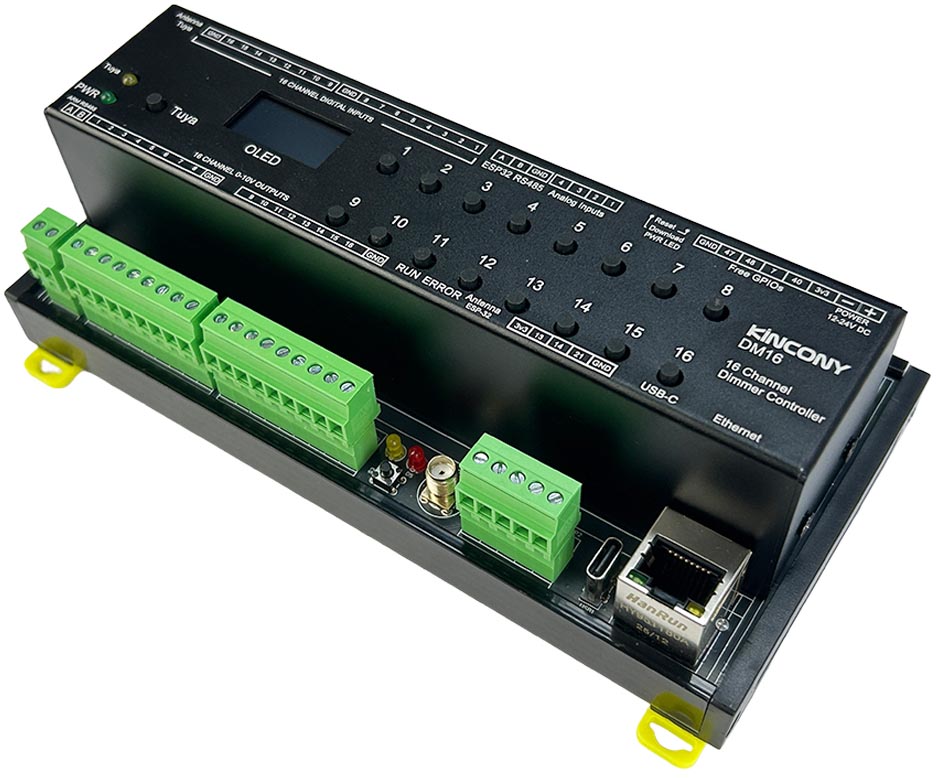

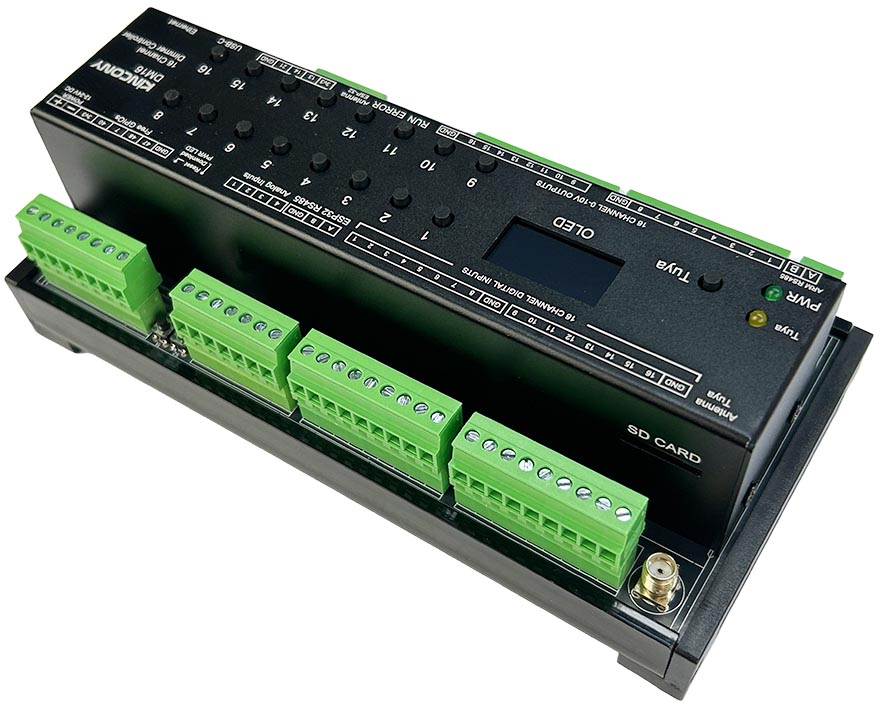

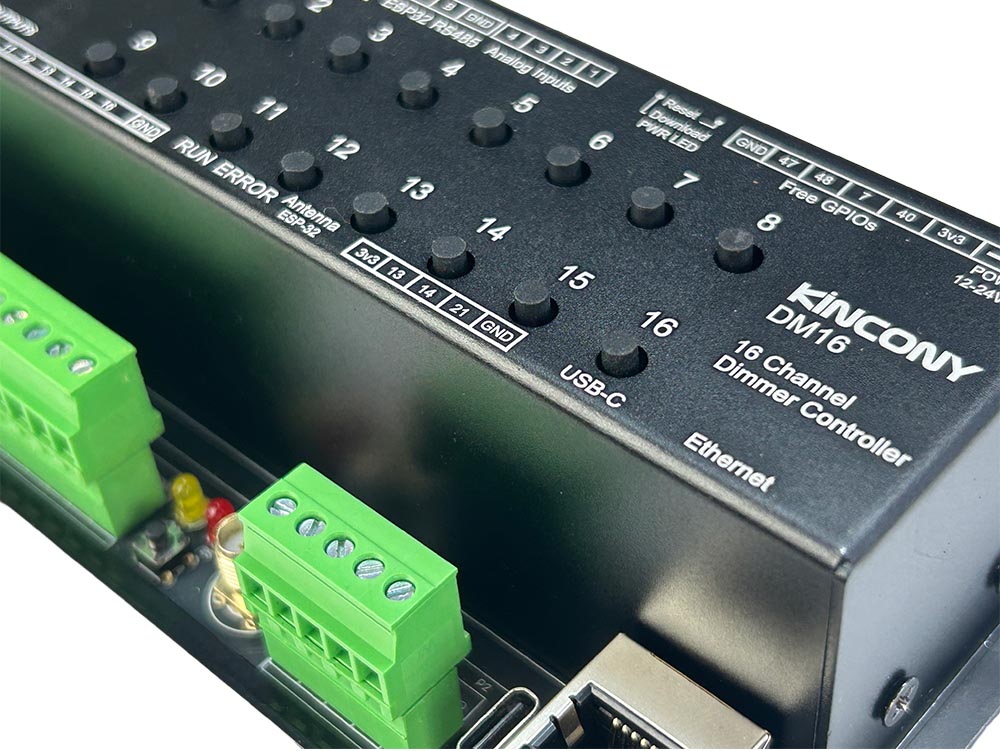

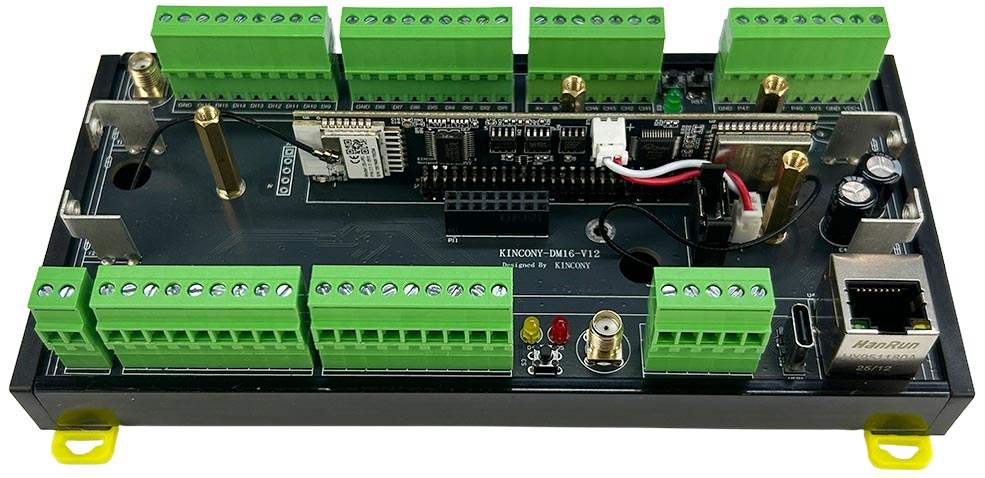

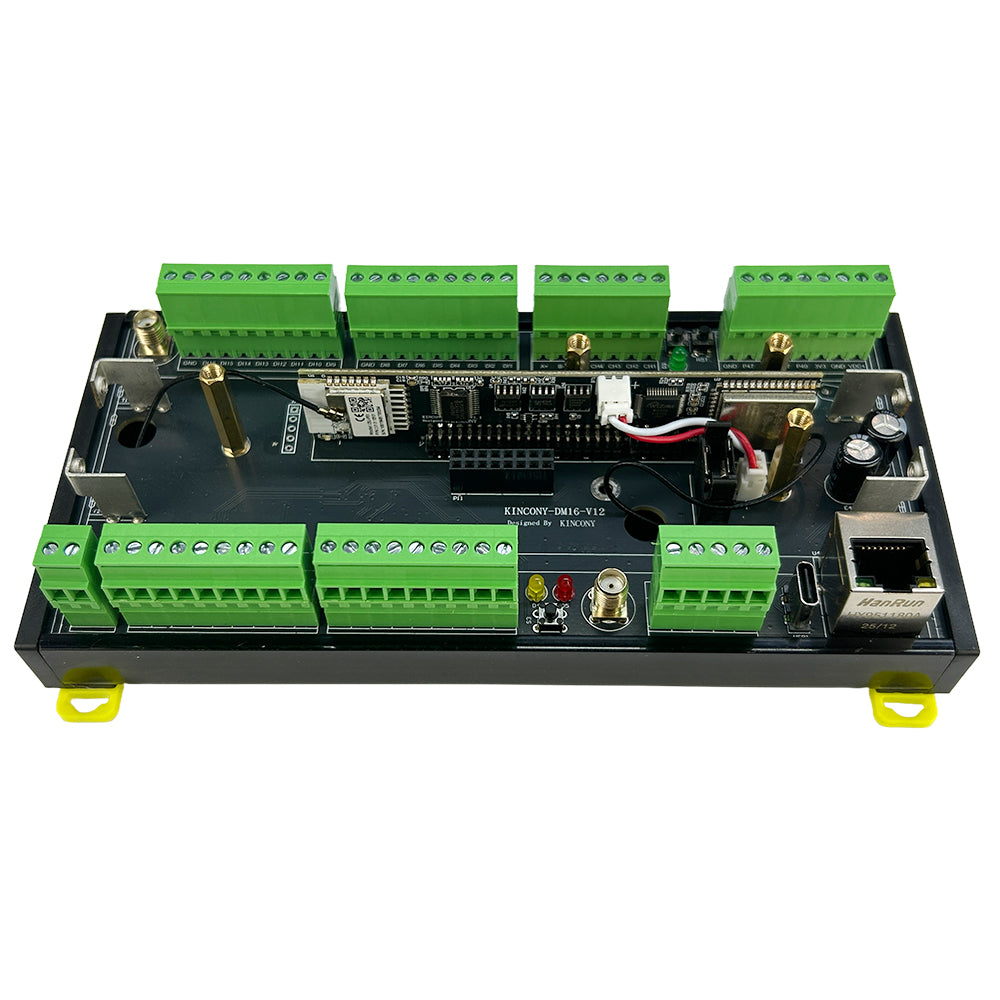

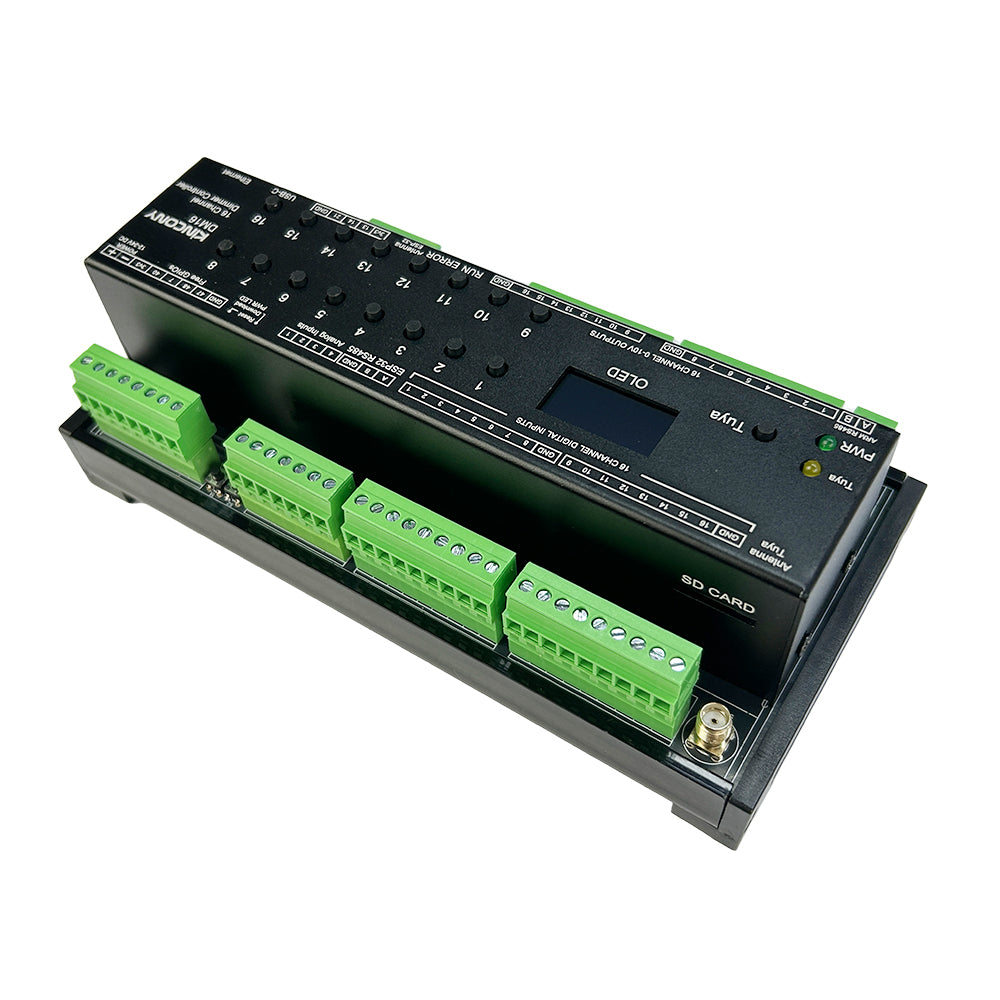

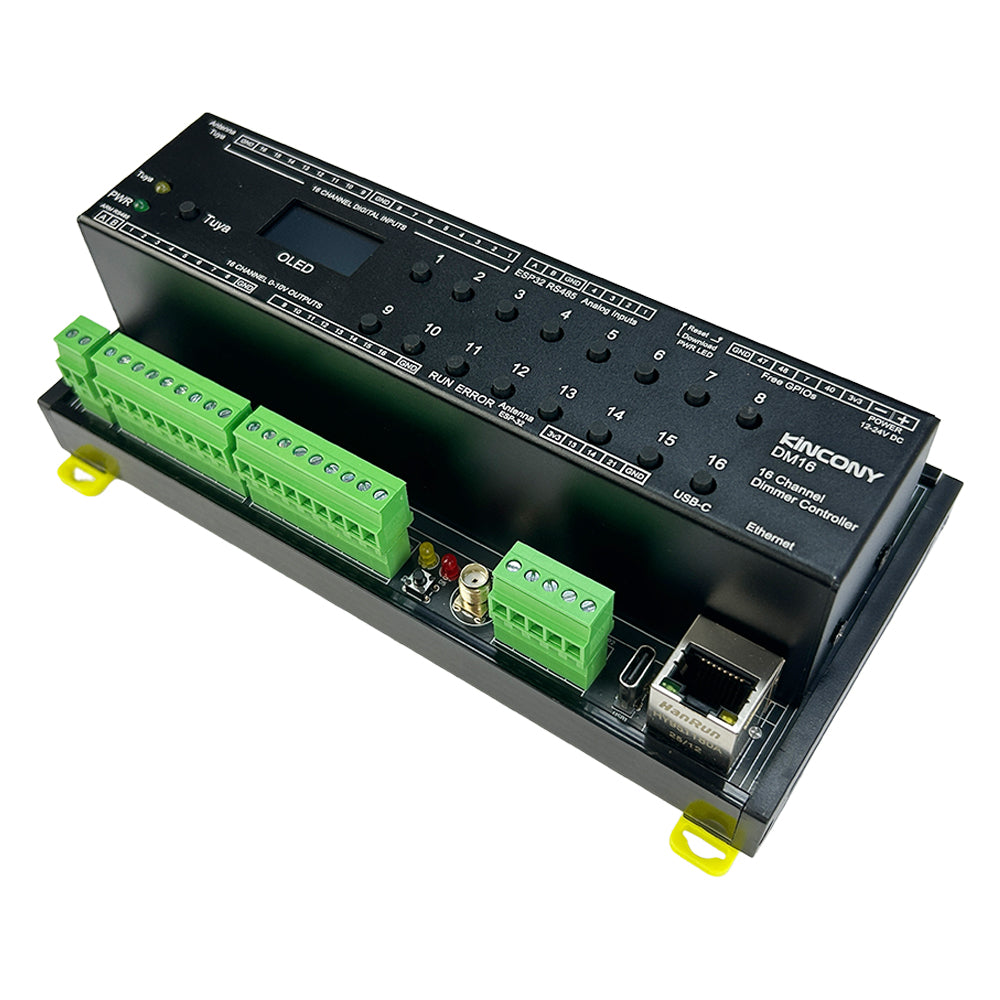

more details of photo:

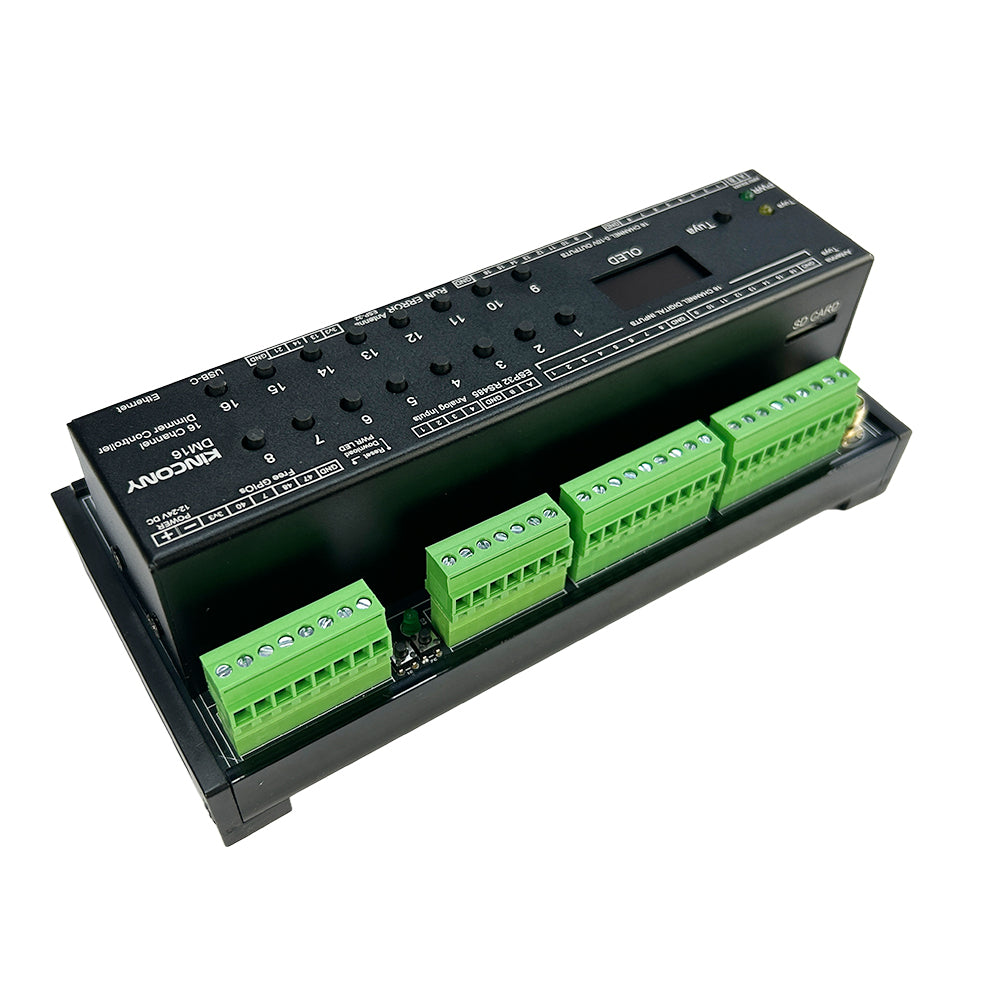

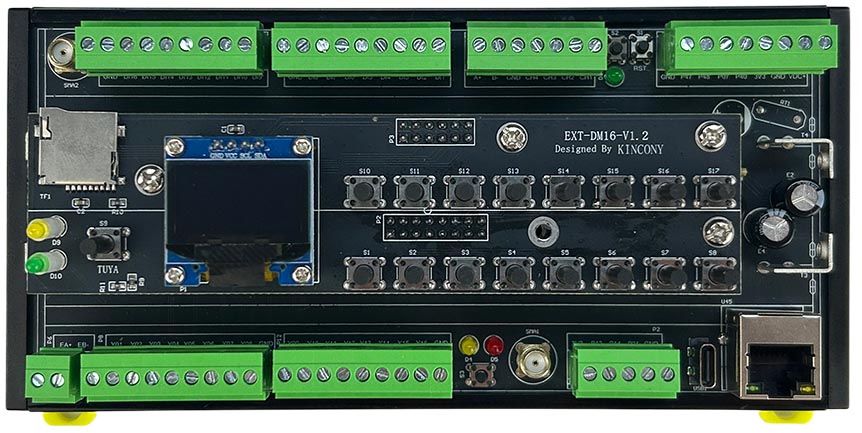

16 switch buttons on cover as same as 16 channel GREEN color digital input ports.
