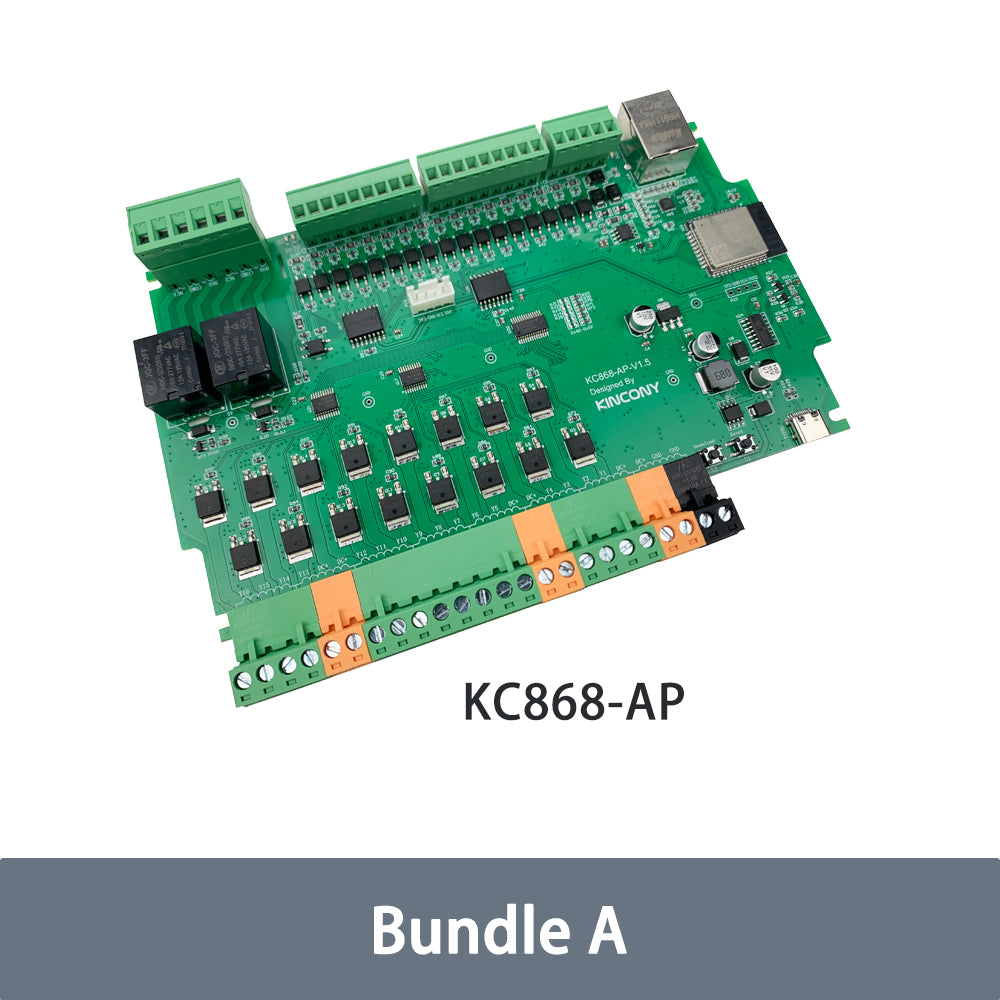

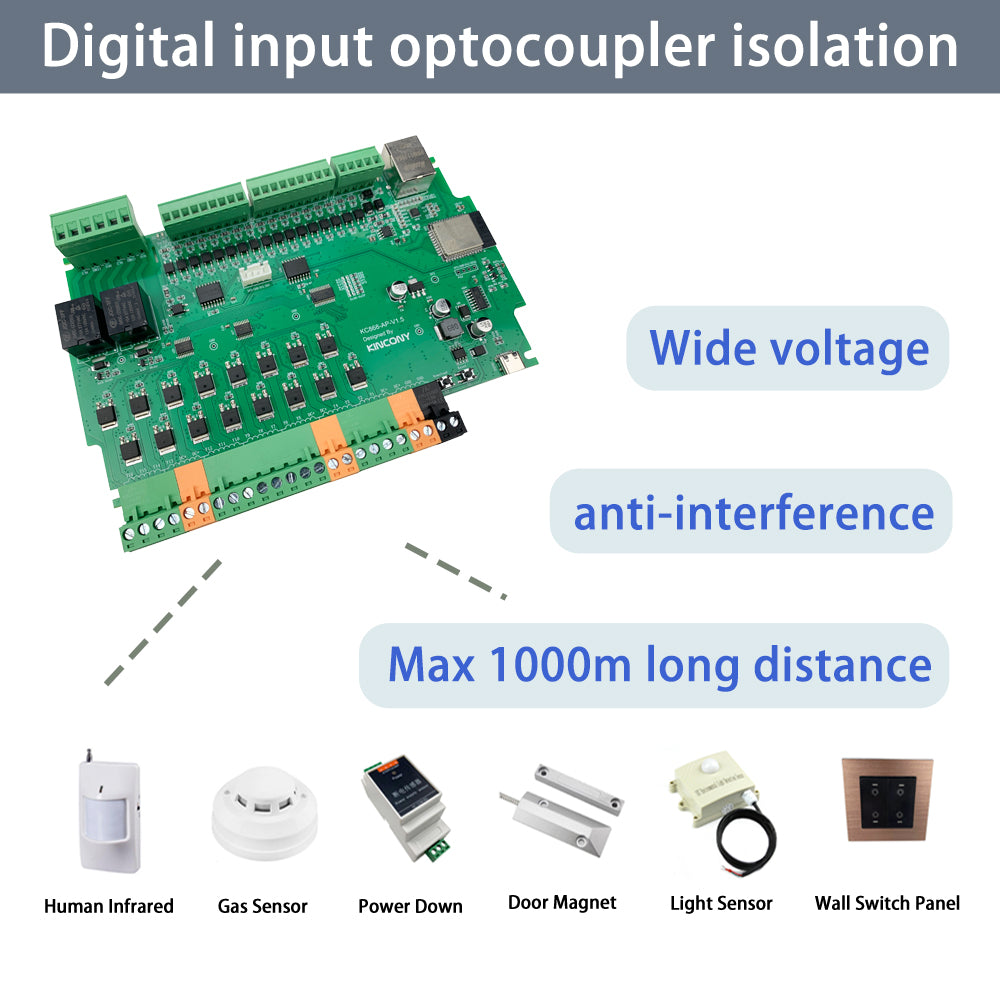

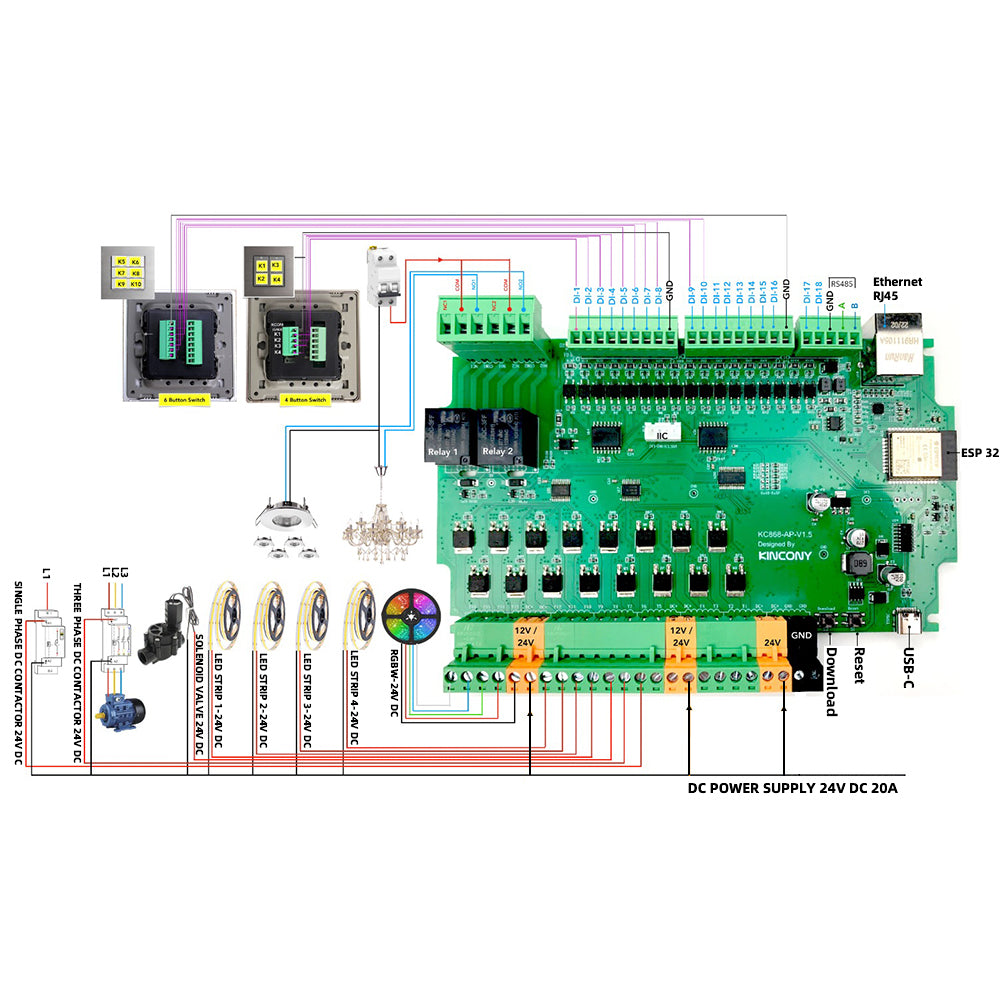

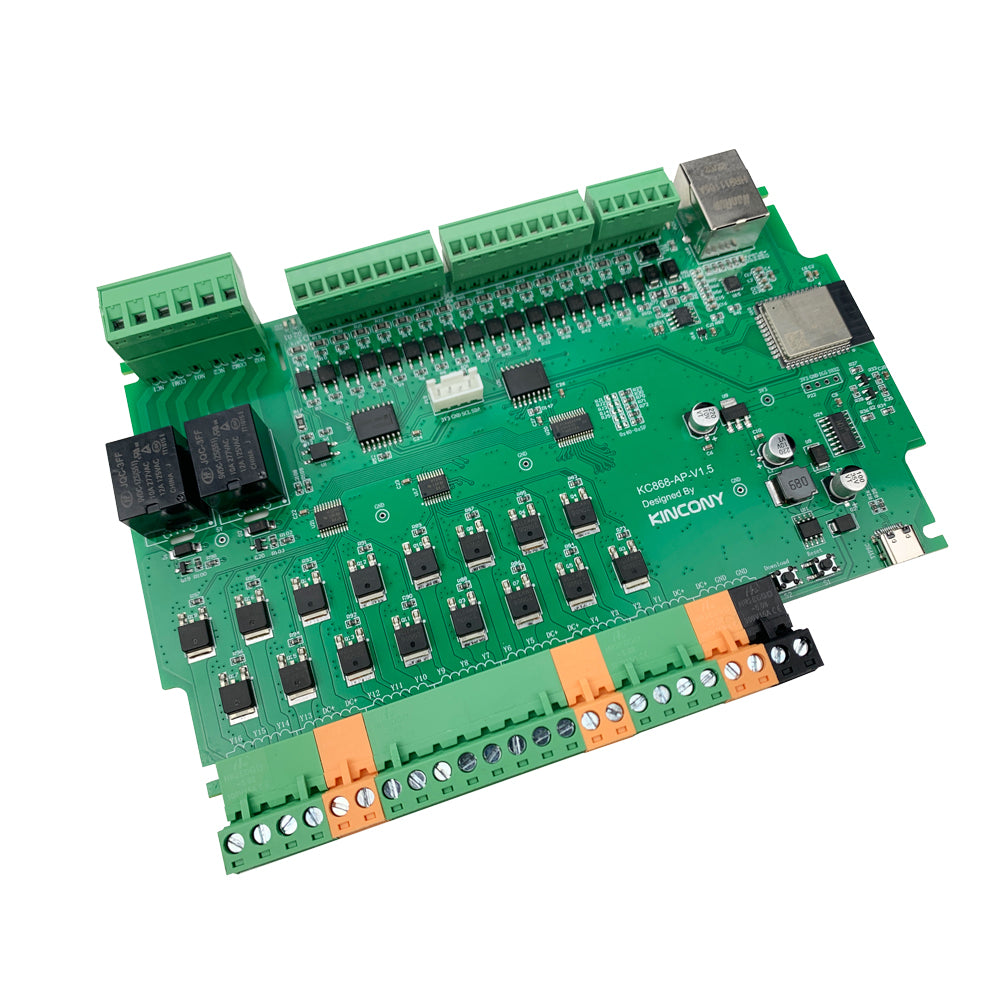

KC868-AP is a ESP32 16 channel PWM dimmer board. It use PCA9685. The PCA9685 component represents a PCA9685 12-bit PWM driver. It uses I²C Bus for communication. every channel output have MAX 3A driver chip. KC868-AP support use by ESPHome in home assistant. It also have digital input and relay output.
Product features: 1. Hardware open source, install on DIN RAIL 2. Made for ESPHome work with home assistant 3. Support arduino IDE / MicroPython / ESP-IDF program tool 4. Support KinCony KCS firmware use by web service 5. Support HTTP, MQTT, TCP, RS485 modbus protocol, Tuya app (need Tuya license)
