KinCony AG8 ESP32-S3 Smart IR Controller

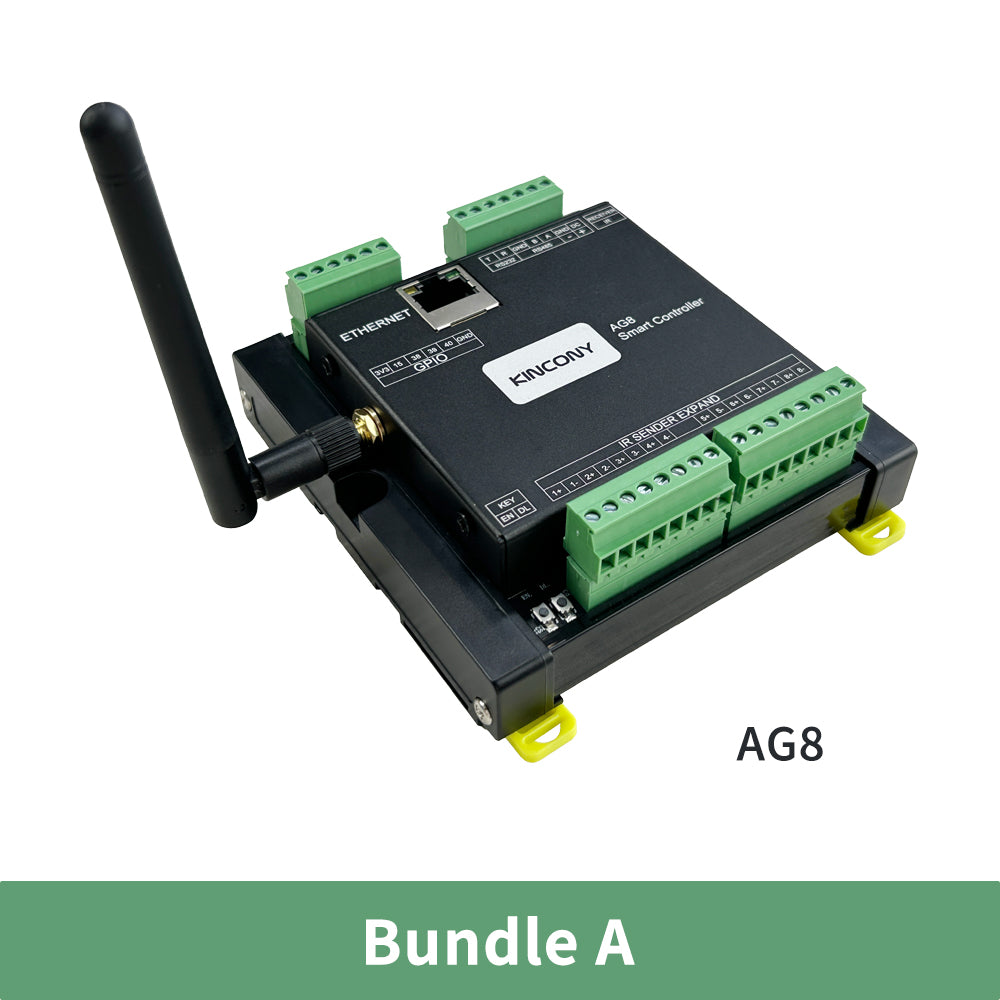

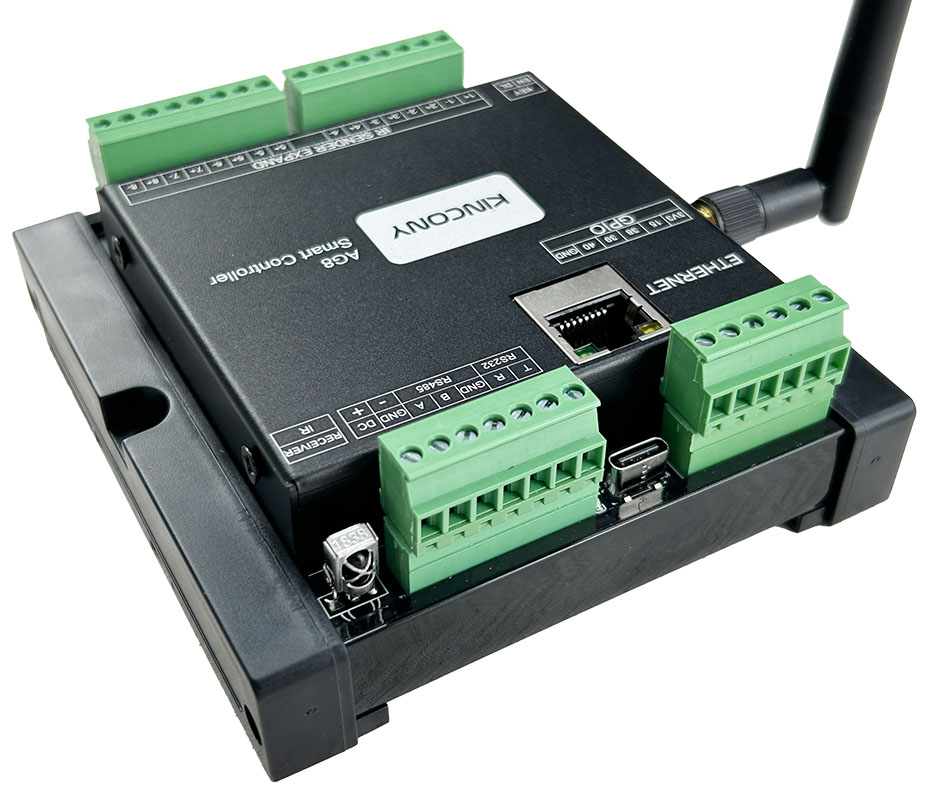

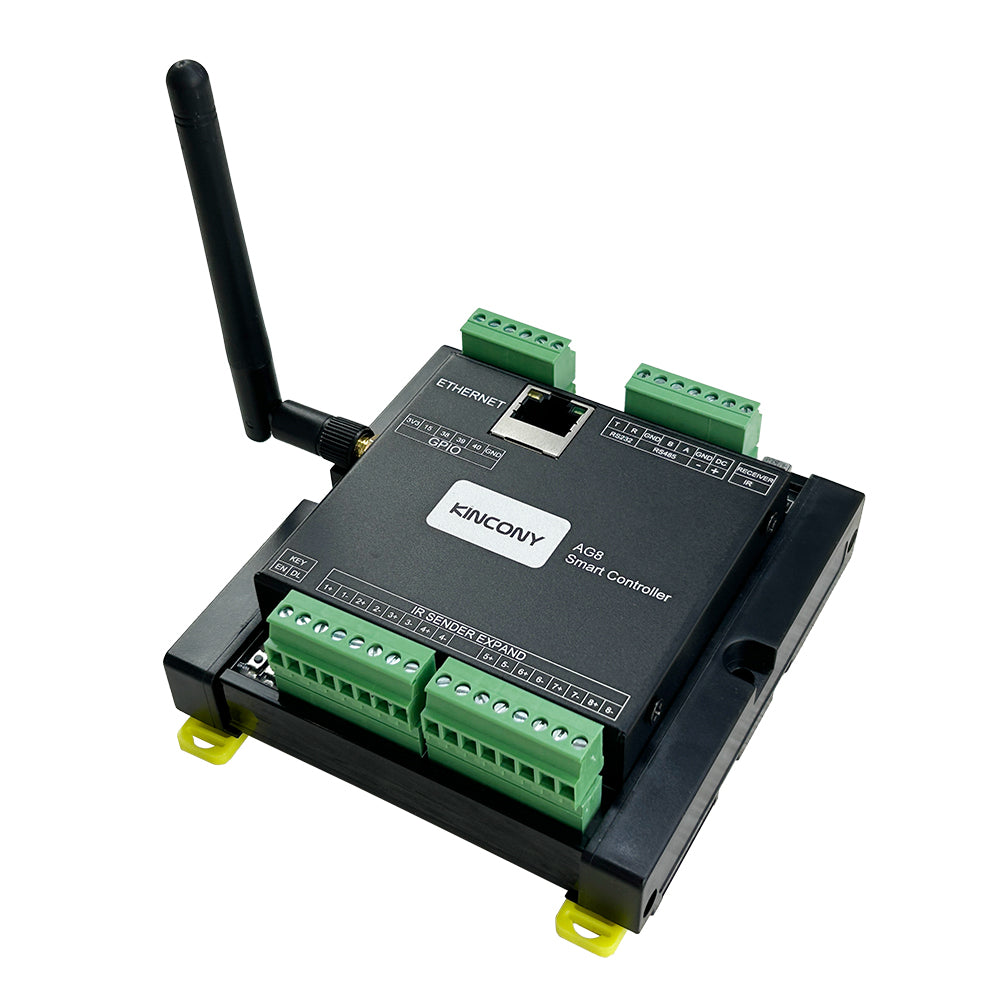

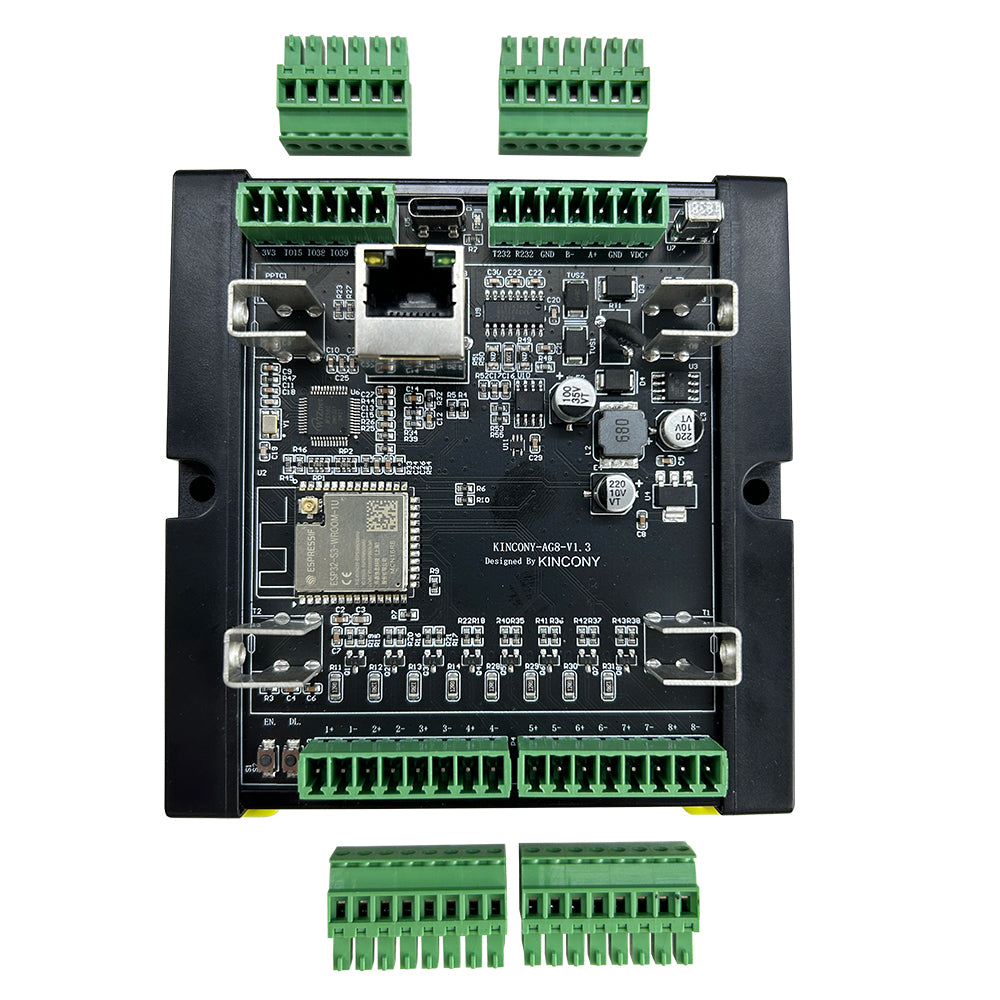

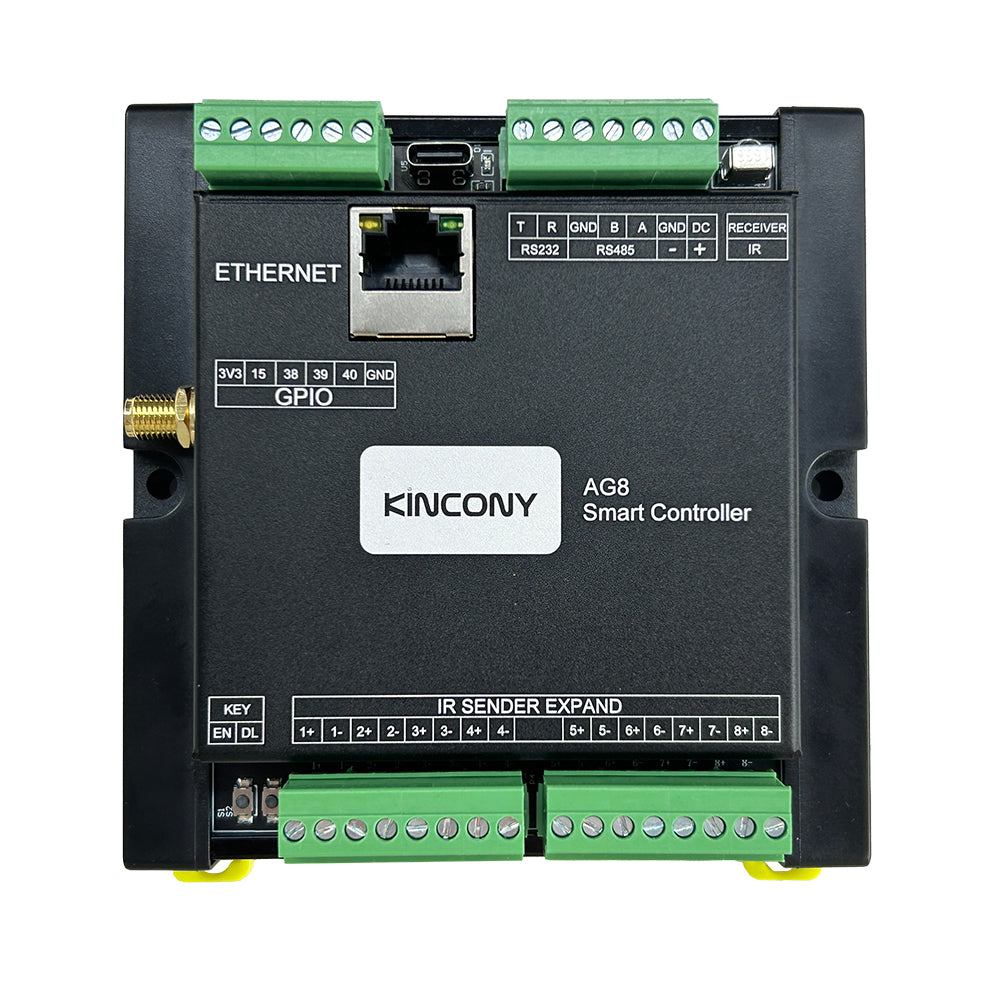

We have designed ESP32-S3 Smart IR Controller – KinCony AG8. it support install by DIN RAIL. it use ESP32-S3-WROOM-1U N16R8 chip. small PCB with RS485, RS232, 1-wire GPIOs, 8 channel IR sender terminal.  Support expand infrared emission tube for long distance cable. board support both wifi and ethernet port. It can use for smart home IoT project use by home assistant, you can config ymal by ESPHome. ESP32-S3 also support arduino IDE / MicroPython / ESP-IDF development tool.

note: Node: ESP32-S3 chip support 4 channel IR sender work at the same time. here is details by ESPHome webpage:
https://esphome.io/components/remote_transmitter.html

PCB size: 83mm*100mm
Power supply: DC 9-24V
RS232:1
RS485:1
Free GPIOs:14
IR Receiver:1
IR Sender:8

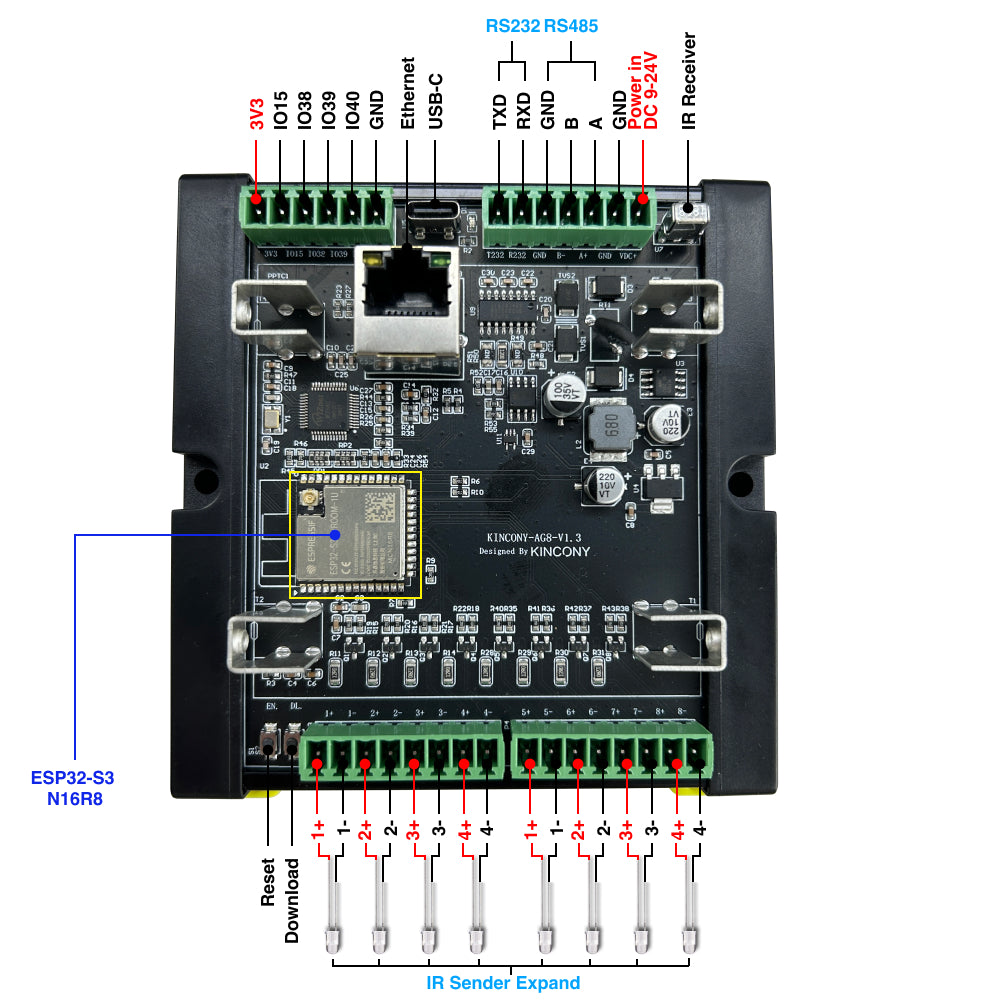

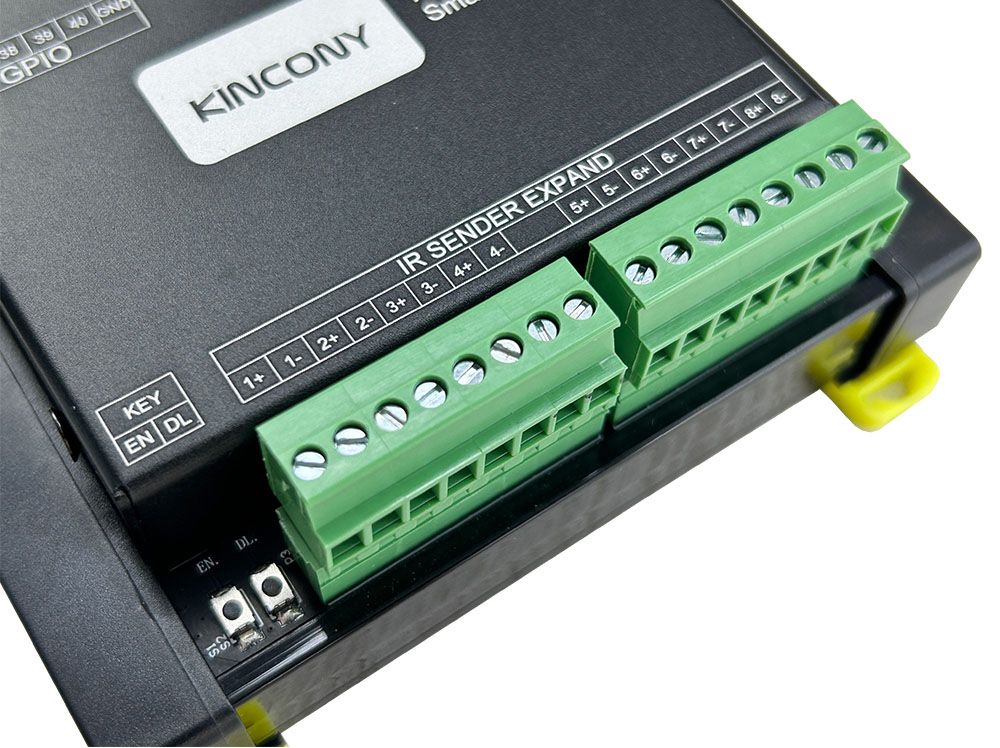

IR sender can be extend by cable. here are tested photo:

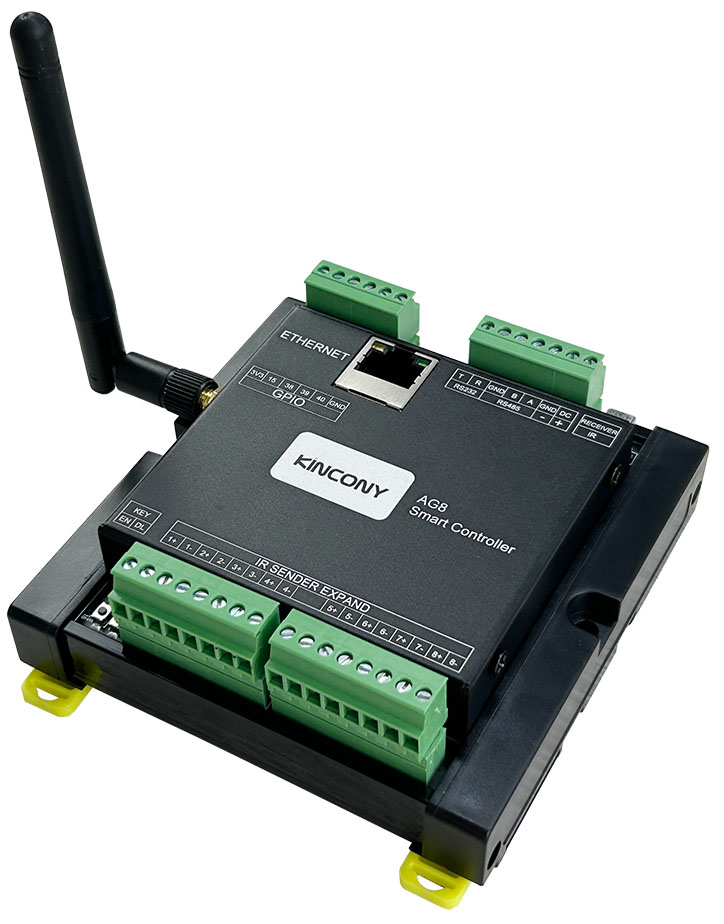

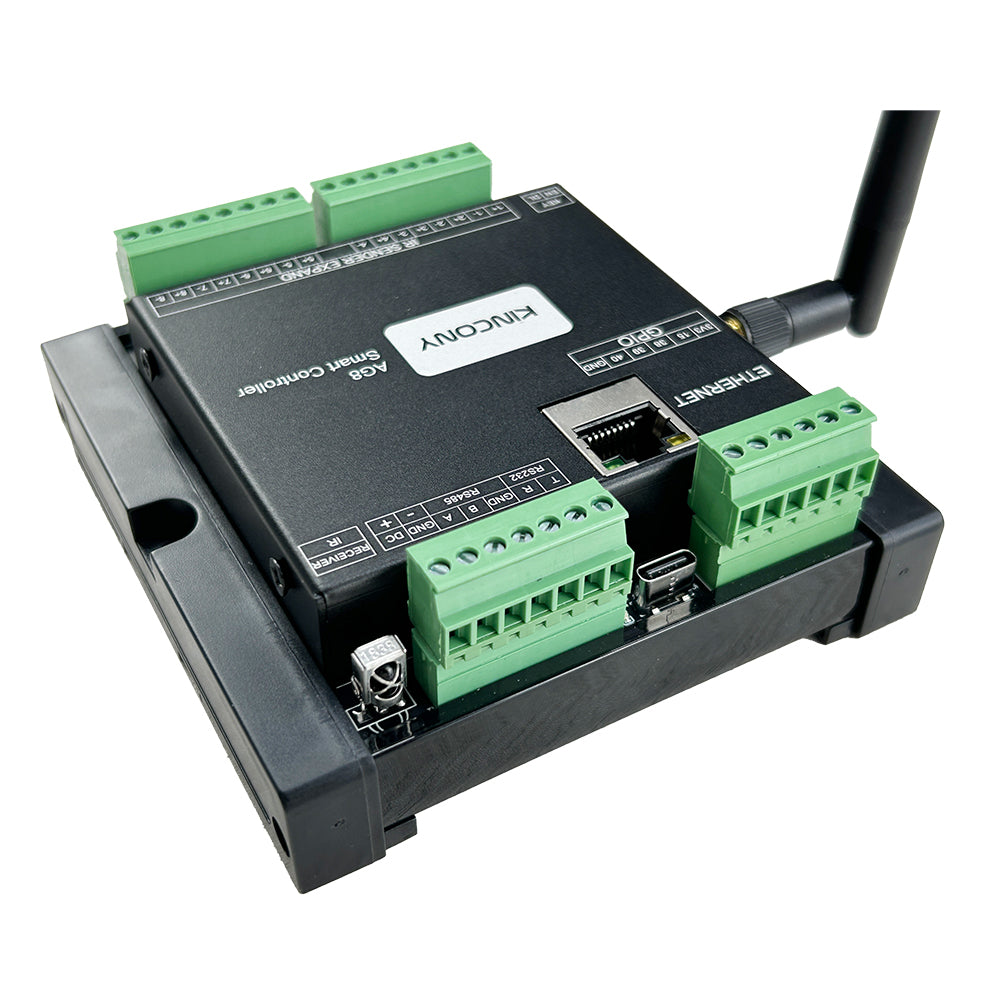

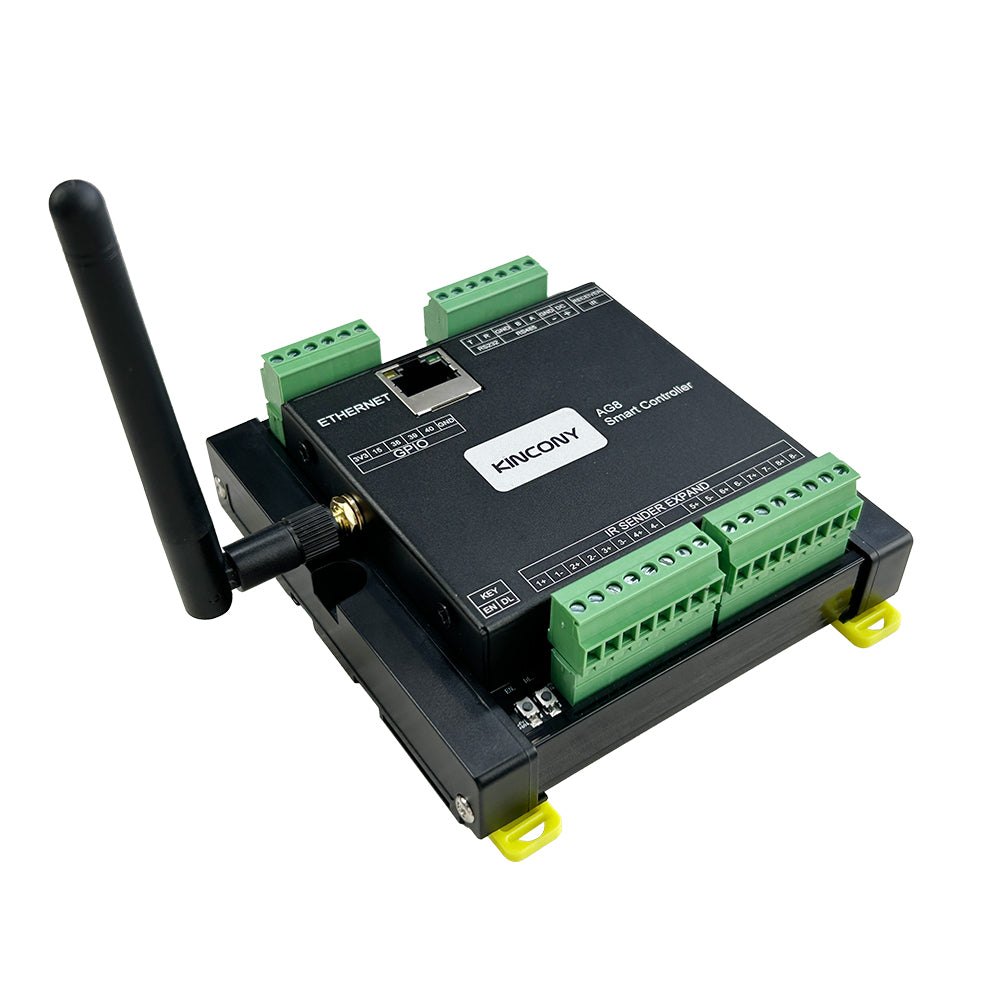

support install on DIN RAIL

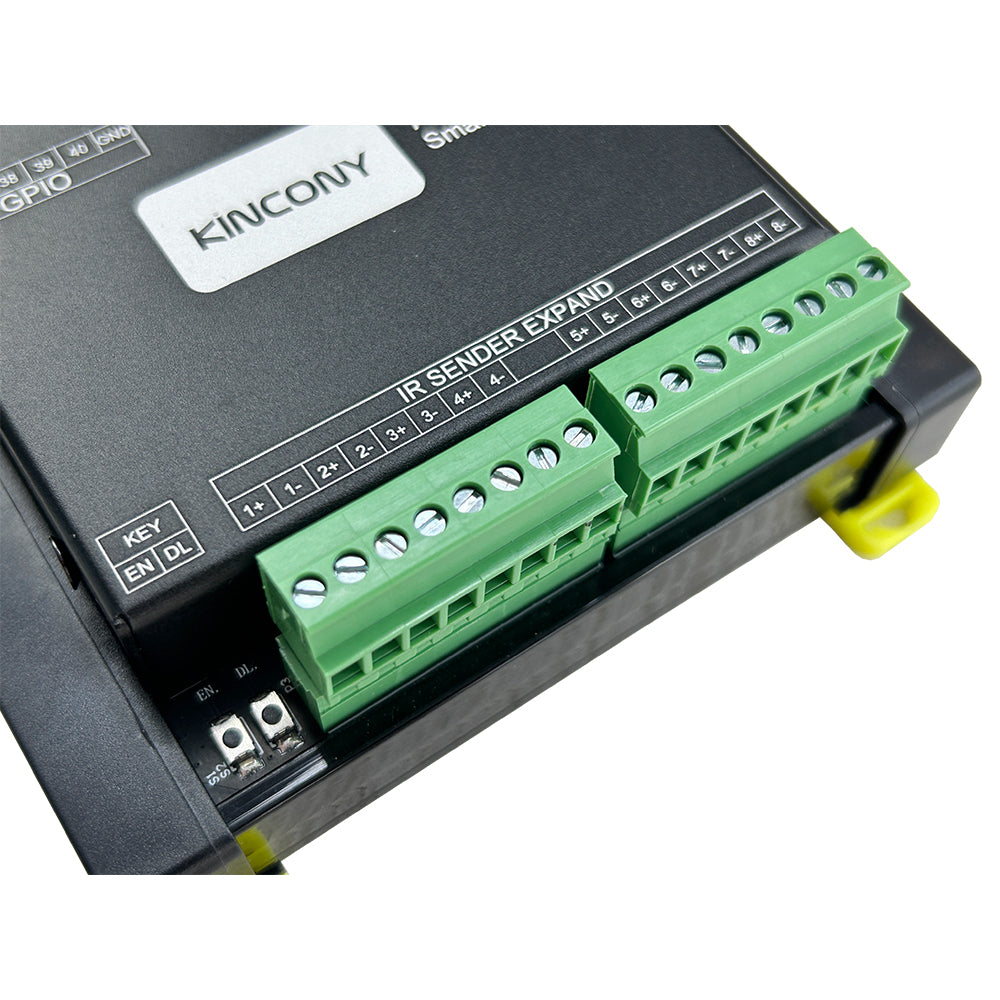

use removable terminal

Related technical information
———————————
schematic: https://www.kincony.com/download/AG8-schematic.pdf
ESP32 I/O pin define: https://www.kincony.com/forum/showthread.php?tid=5888
config yaml file for ESPHome: https://www.kincony.com/forum/showthread.php?tid=5889
