KinCony ESP32-S3-WROOM-1U N16R8 Core Development Board

KinCony ESP32-S3-WROOM-1U N16R8 Core Development Board

Regular price $40.00 USD
Regular price Sale price $40.00 USD
Sale Sold out
Shipping calculated at checkout.

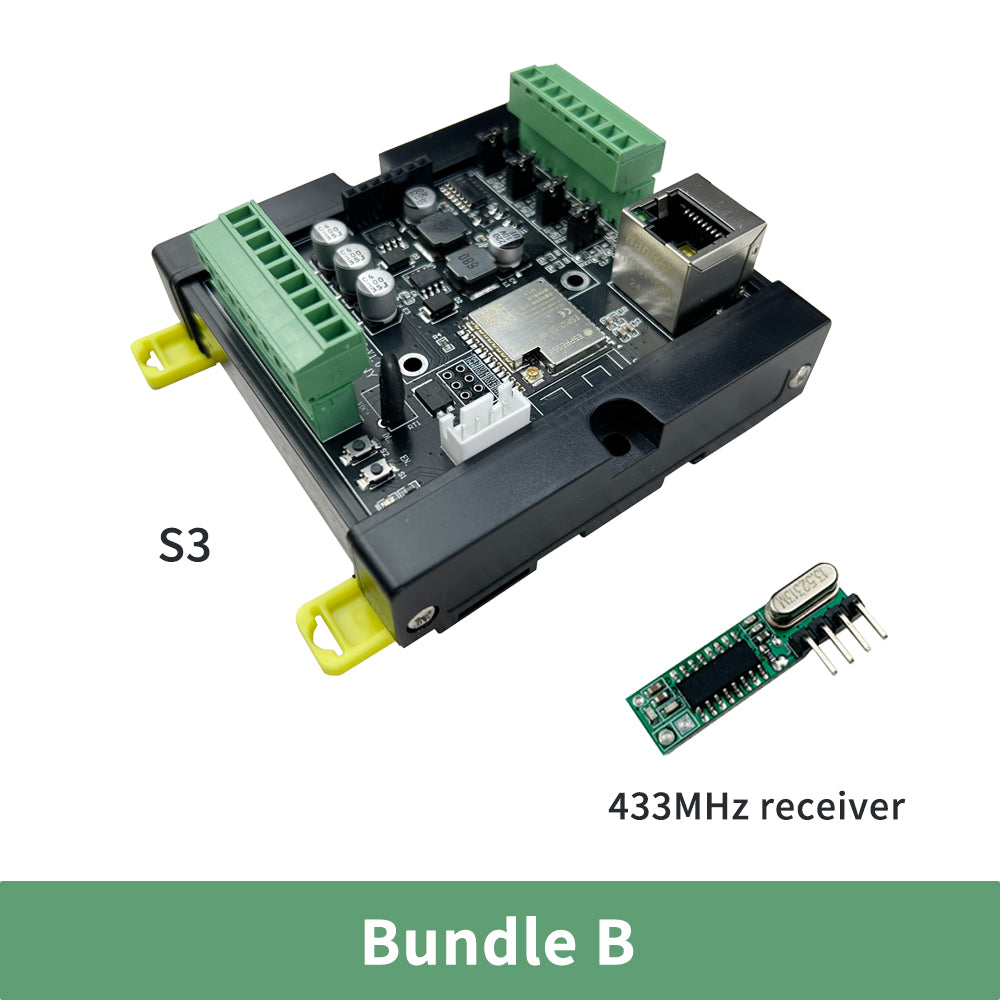

Bundle

We have designed ESP32-S3 Core Board – KinCony S3. it’s mini PCB, support install by DIN RAIL. it use ESP32-S3-WROOM-1U N16R8 chip. small PCB with RS485, I2C bus, 1-wire, analog input ports. analog input port can use for VOLTAGE / CURRENT signal set by jumper. It have ethernet port, also have SIM7600 4G module and RF 433MHz reciever interface. It can use for smart home IoT project use by home assistant, you can config ymal by ESPHome. S3 also support arduino IDE / MicroPython / ESP-IDF development tool.

esp32 core board

PCB size: 80mm*65mm
Power supply: DC 9-24V

esp32-s3 schematic
esp32-s3 core board
esp32s2 core board
esp32-s3 dev board
esp32-s3-wroom-1u board

support install SIM7600 4G mdoule
esp32s3 development board
esp32-s3 board

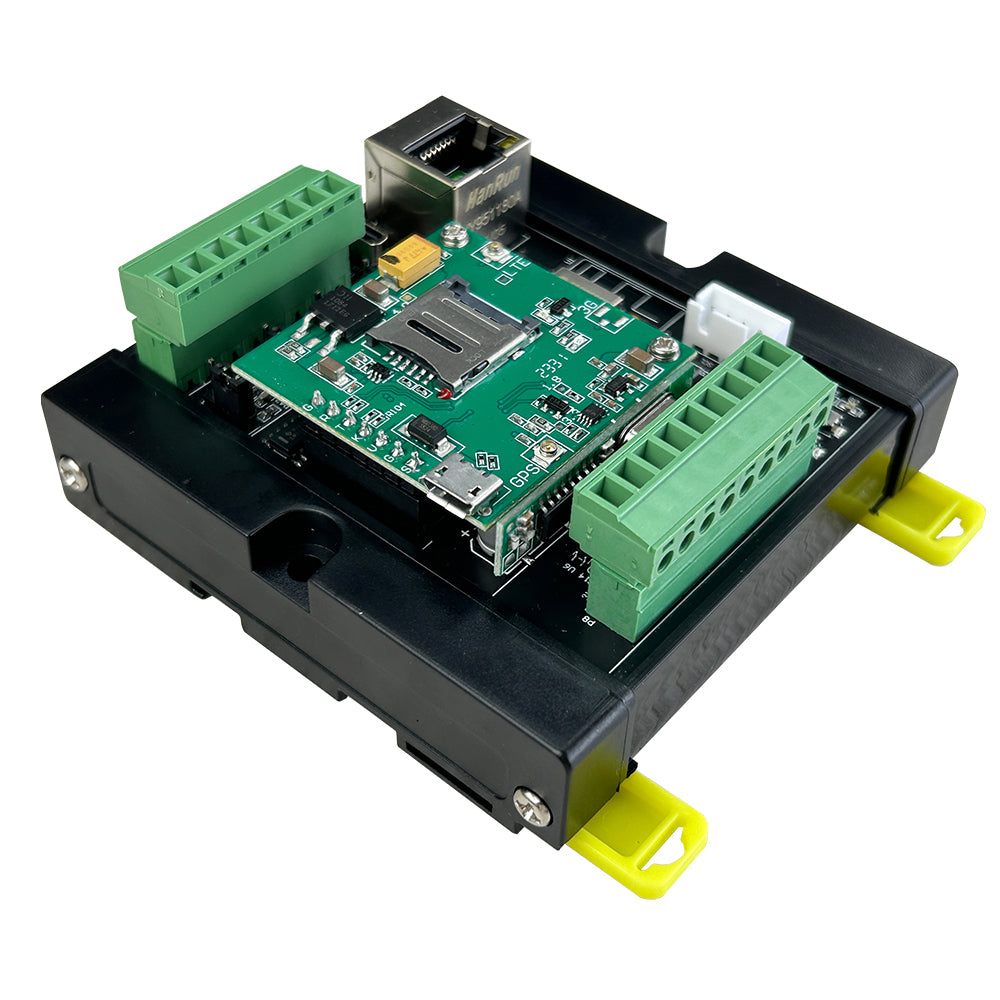

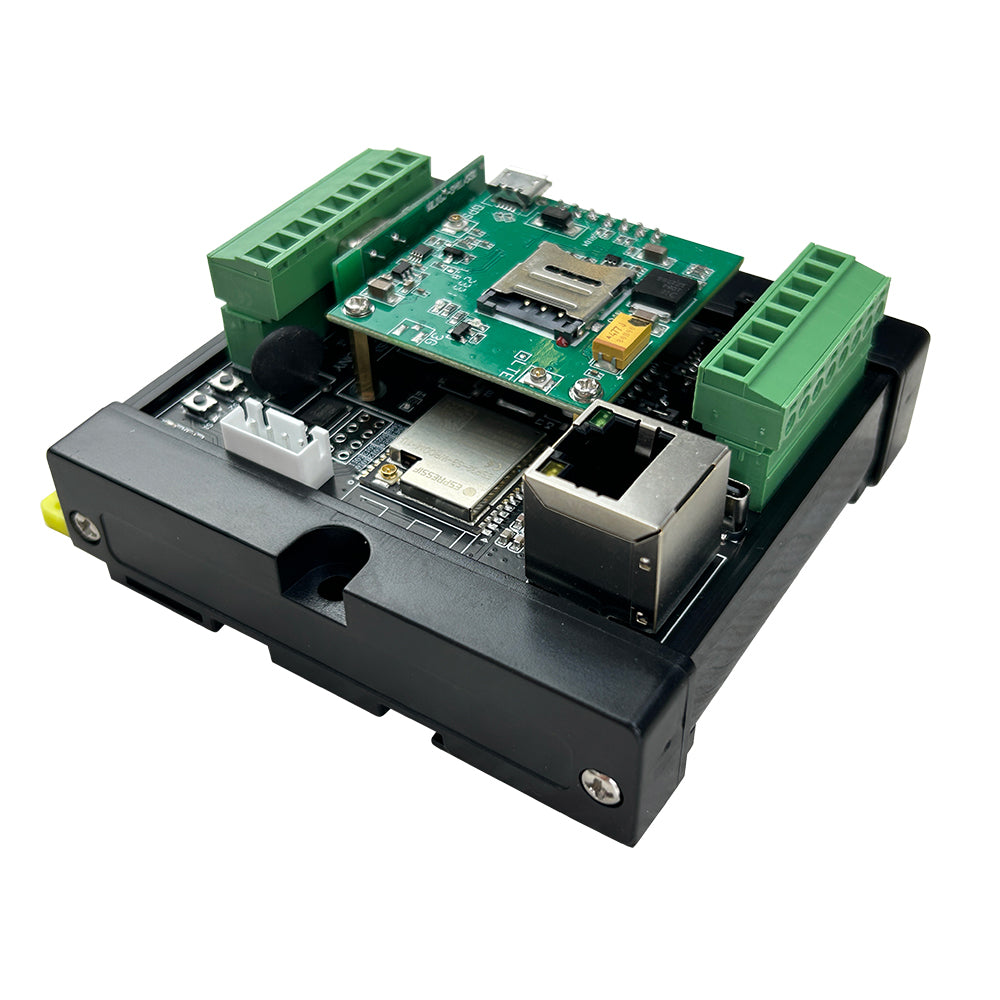

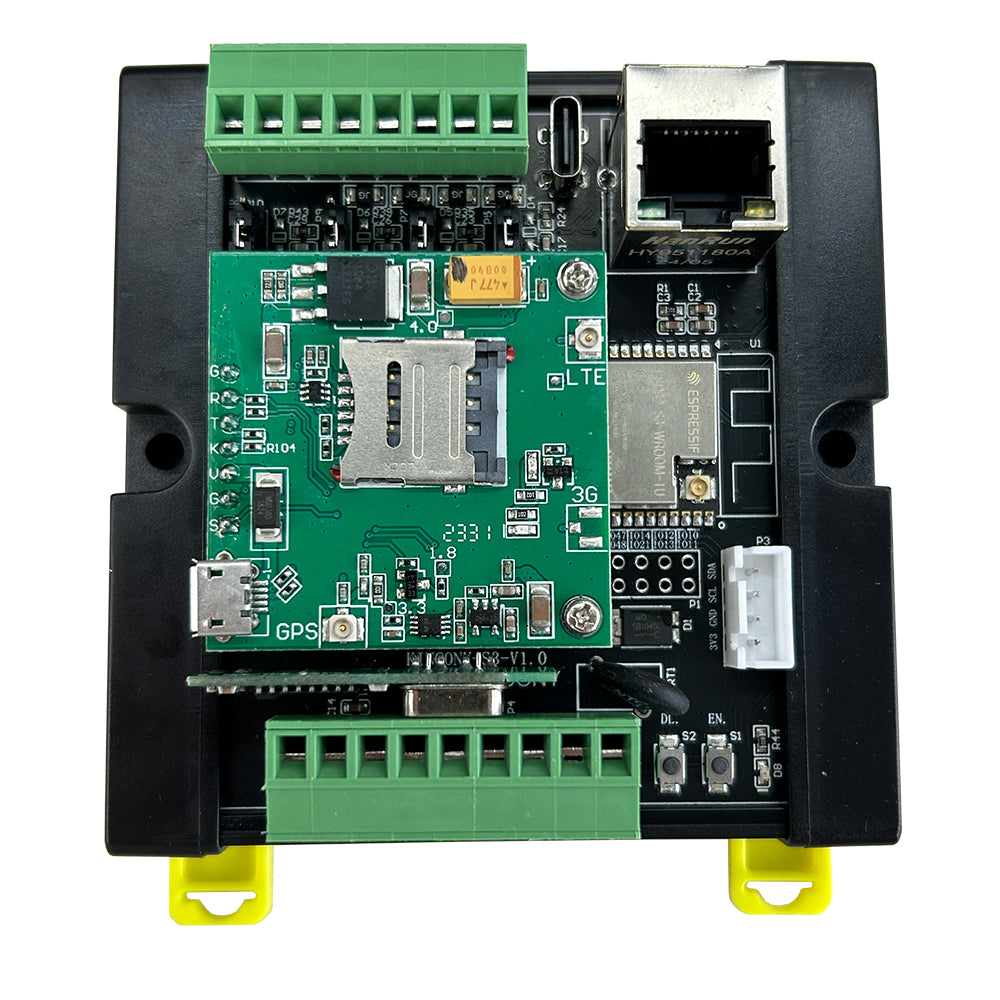

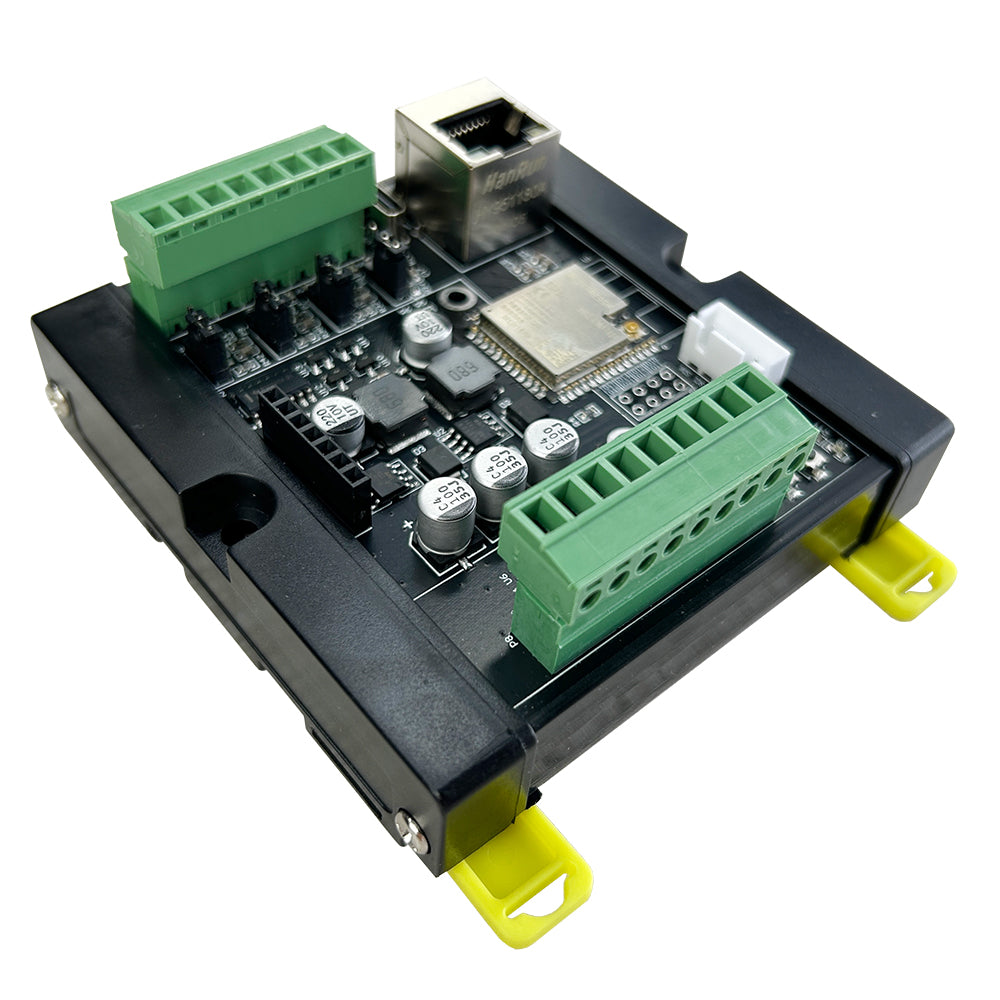

this photo installed SIM7600 4G module and RF 433MHz receiver module.

Related technical information
———————————
schematic: https://www.kincony.com/download/S3-schematic.pdf
ESP32 I/O pin define: https://www.kincony.com/forum/showthread.php?tid=5715
config yaml file for ESPHome: https://www.kincony.com/forum/showthread.php?tid=5716

View full details
