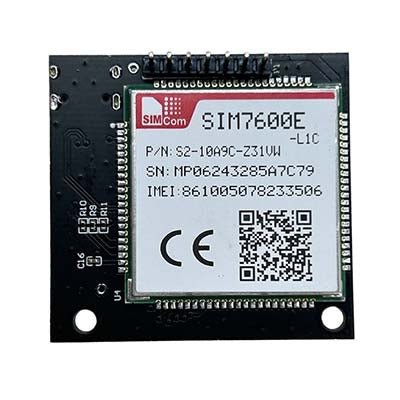

KinCony SIM7600E-L1C 4G breakout LTE core module
KinCony SIM7600E-L1C 4G breakout LTE core module
Couldn't load pickup availability
The SIM7600E-L1C is a versatile and cost-effective 4G LTE module that integrates multiple communication functionalities, making it suitable for a wide range of IoT and M2M applications. Developed by KinCony, this module provides robust connectivity and high-speed data transmission capabilities, ensuring seamless integration into IoT ecosystems.

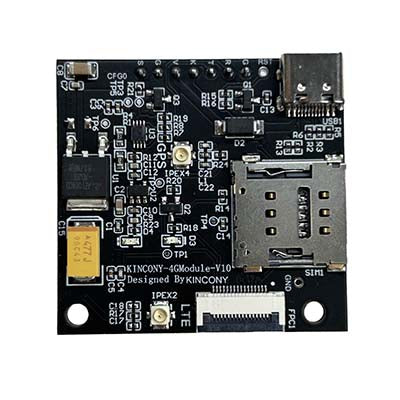

USB-C: connect with SIM7600E’s USB port , debug by AT command
pin-S (SLEEP): set module to SLEEP mode
pin-G (GROUND): GND
pin-V (VCC): power supply DC 5-10V
pin-K (KEY): power on/off module
pin-T (TXD): send data
pin-R (RXD): receive data
pin-G (GROUND): GND
pin-RST: SIM7600 chip RESET pin
power chip: AZ1084CD
IPEX2: 4G antenna
IPEX4: GPS antenna
SIM card: Drawer SIM card holder (NANO)
TP1: DC4V power test point
How to install SIM card:
installed on KinCony’s smart relay controller.
SIM7600 network LED indicator: if blink means network registration successful
1: LED always ON: Searching network/call connect
2: LED 200ms ON, 200ms OFF: Data transmit
3: LED 800ms ON, 800ms OFF: Registered network
4: LED OFF: power off/Sleep
FPC1(16 pins) extender pins define:

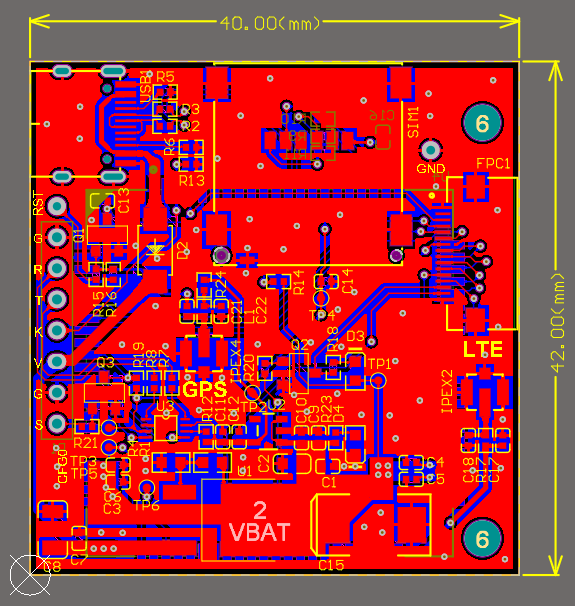

PCB size: 40mm*42mm
after installed sim7600e USB driver, you will see all resource in Device Manager:
PC uart debug tool work with USB-C cable:
send AT command debug by “SimTech HS-USB AT Port 9001”
SIM7600 development document download:
SIM7600_Reference_Design_V1.1.pdf
SIM7500_SIM7600_Series_AT_Command_Manual_V2.00.pdf
SIM7100_SIM7600M22_Series_TTS_Application_Note_V1.02.pdf
SIM7600E_SIM7600E-H Hardware Design_V1.01.pdf
