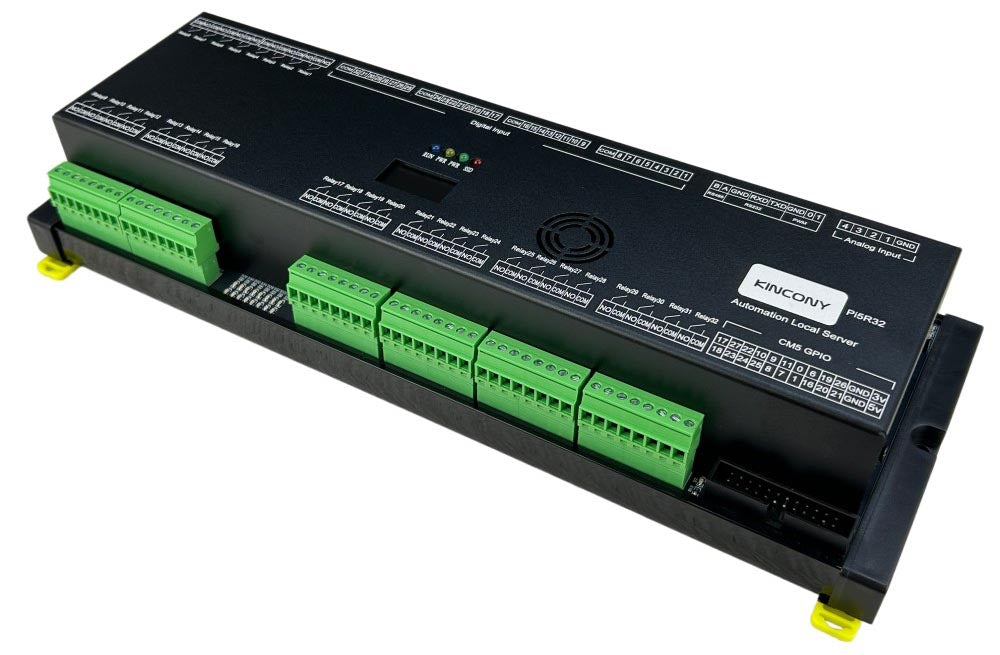

Raspberry Pi CM5 Relay Controller for Smart Home & Industrial Automation - KinCony Pi5R32

$500.00 USD

Sale Sold out

Shipping calculated at checkout.

Bundle Bundle A: Pi5R32 without CM5 + heatsink + fan Bundle B: Pi5R32 with CM5(CM5004000):RAM:4G-Lite + heatsink + fan

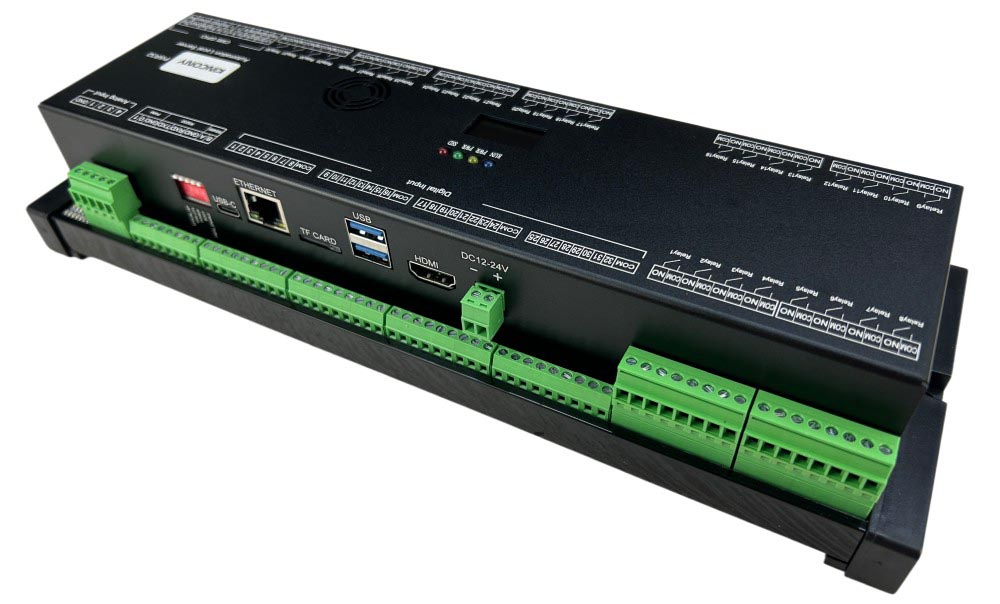

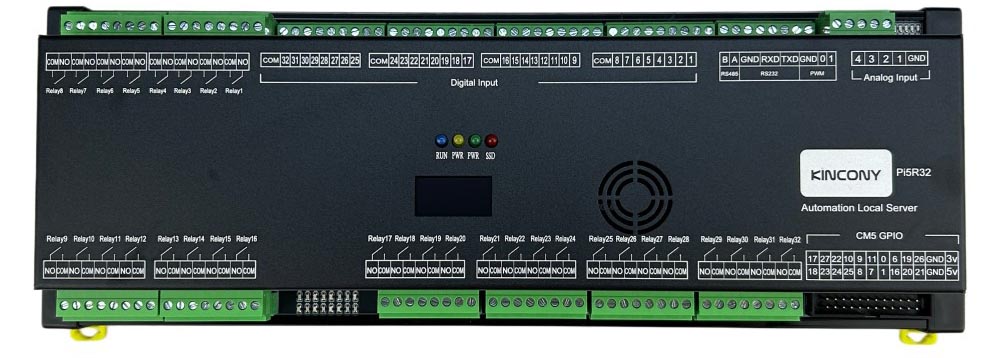

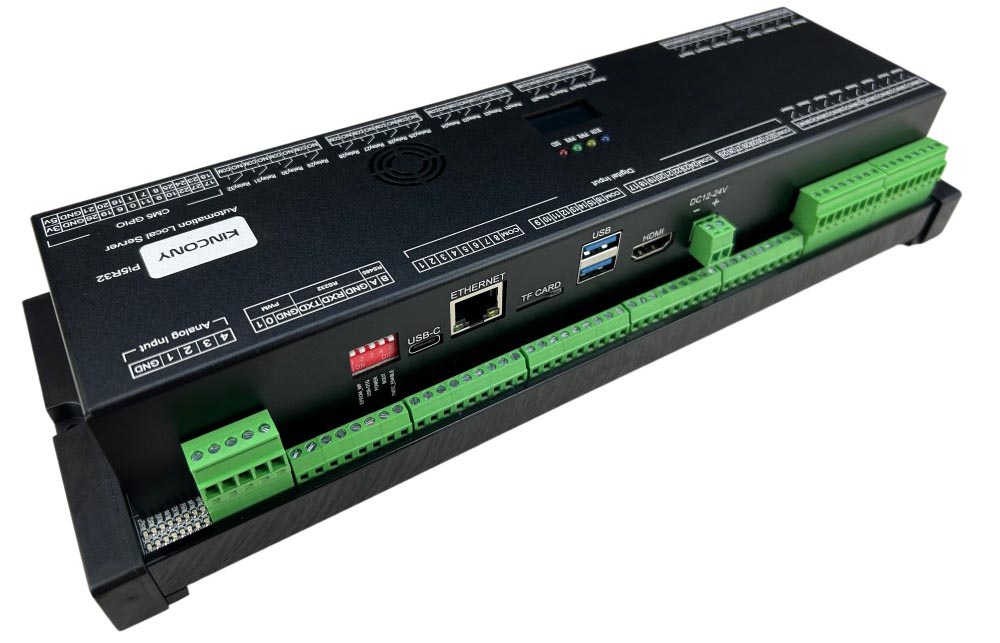

KinCony Pi5R32 – Raspberry Pi CM5 DIN Rail 32-Channel Relay Controller for Smart Home & Industrial Automation

Product Overview

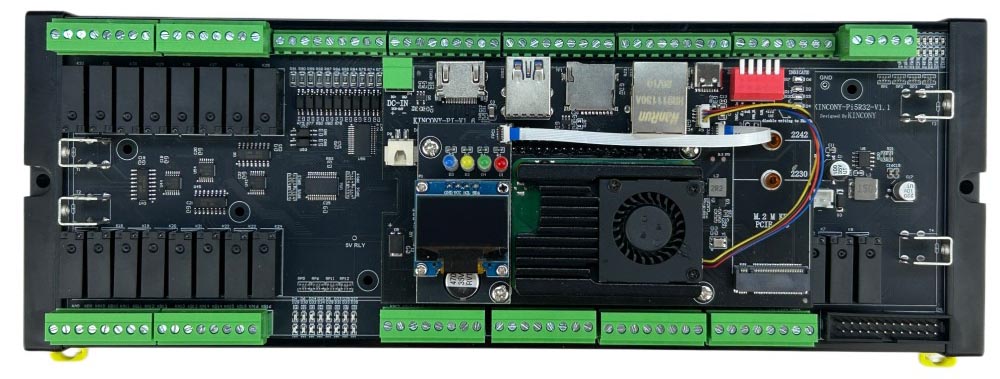

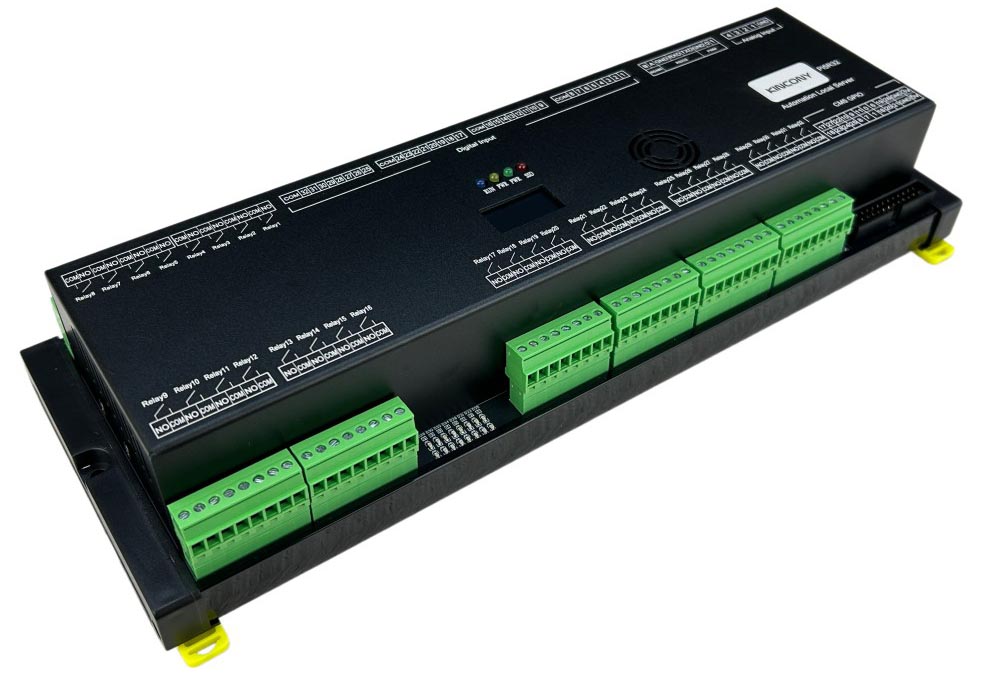

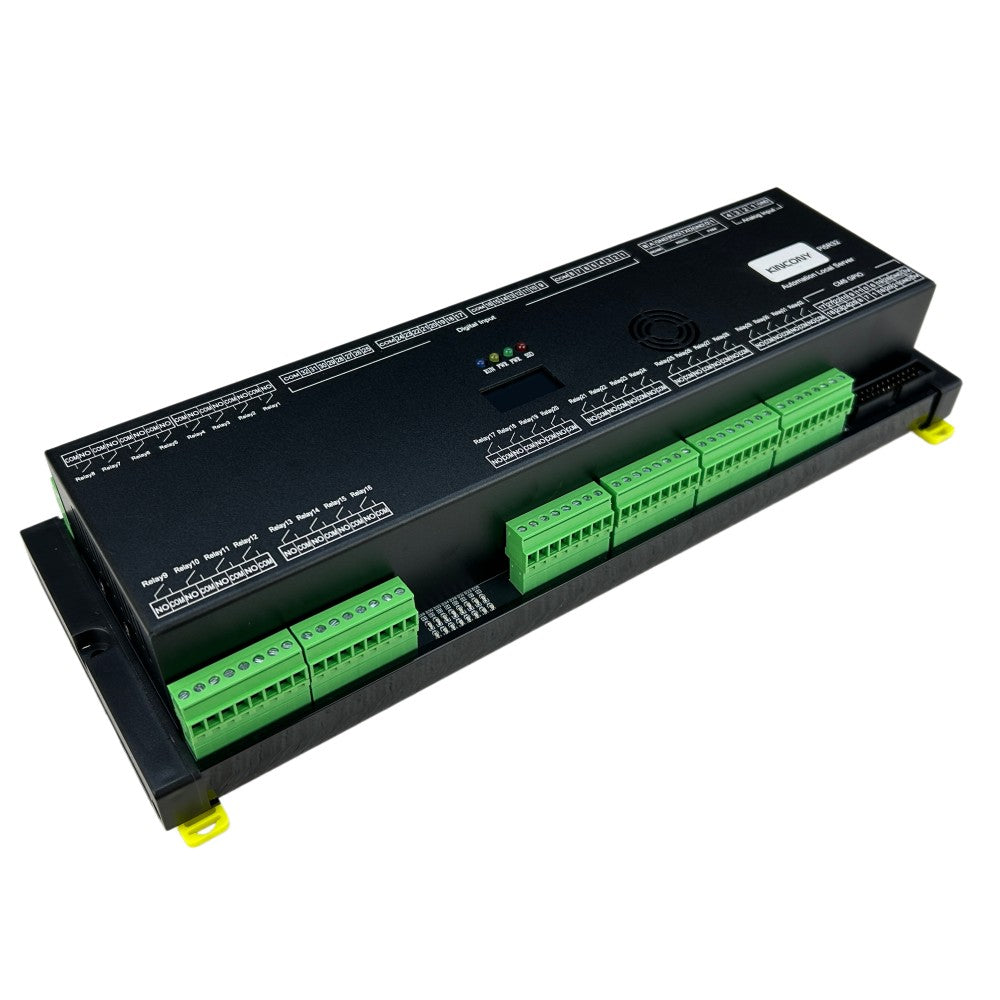

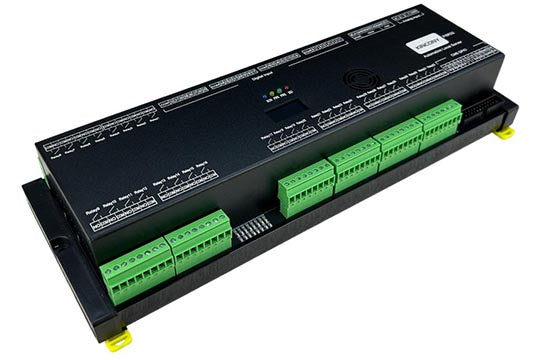

KinCony Pi5R32 is a powerful Raspberry Pi-based IoT gateway and automation controller designed for smart home, building automation, and industrial control applications. Powered by the Raspberry Pi Compute Module 5 (CM5), it integrates 32 relay outputs, 32 optocoupler-isolated digital inputs, analog inputs, PWM outputs, RS232/RS485 communication interfaces, and multiple expansion interfaces into a rugged DIN rail aluminum enclosure.

The Raspberry Pi CM5 directly controls all relay outputs, digital inputs, analog inputs, PWM outputs, and communication interfaces. Users can easily deploy automation projects using Home Assistant, Node-RED, MQTT, Modbus, Docker, Python, and other Linux-based software platforms.

Pi5R32 is ideal for large-scale automation projects requiring high-density I/O control while maintaining the flexibility of a Raspberry Pi platform.

Key Features

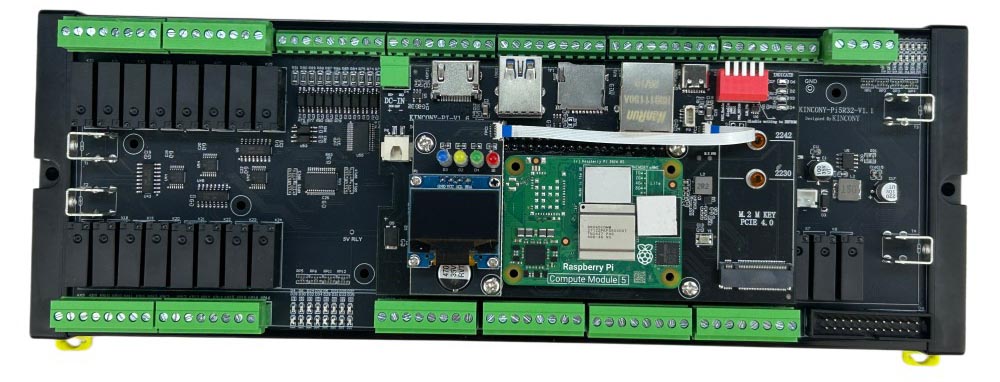

Powered by Raspberry Pi Compute Module 5 (CM5)
32-channel relay outputs
32-channel optocoupler-isolated digital inputs
Supports Home Assistant and Node-RED
RS232 and RS485 communication ports
2-channel PWM outputs
2 × DC 0-5V analog inputs
2 × 4-20mA analog inputs
20 free GPIO expansion pins
Gigabit Ethernet support

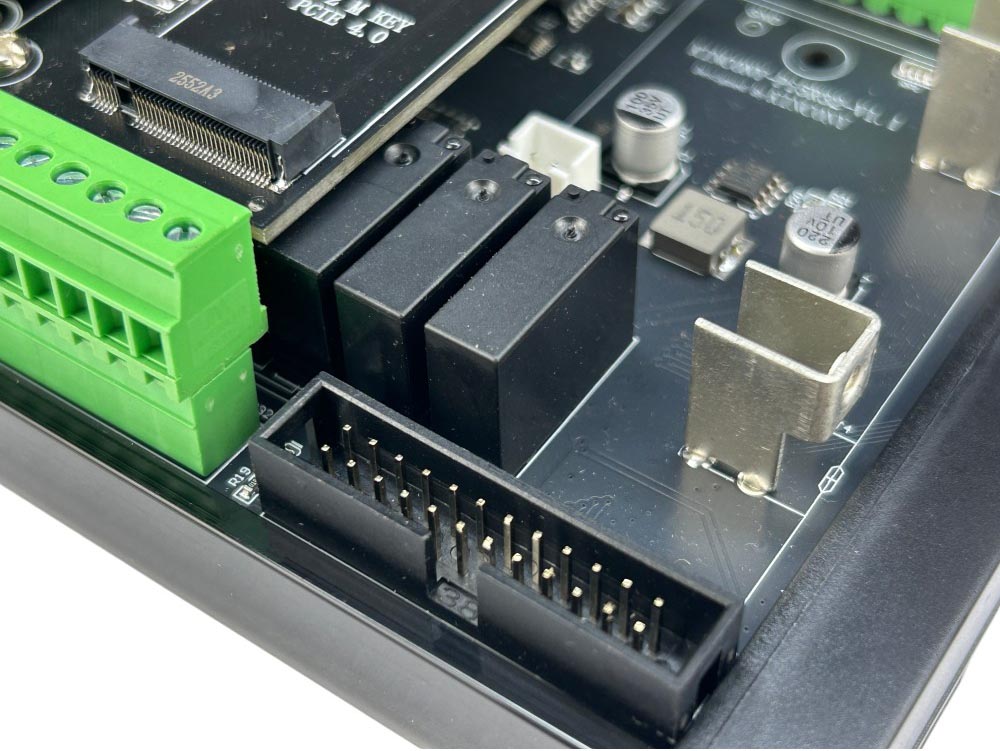

M.2 M-Key PCIe expansion socket
SSD1306 I2C OLED display
Industrial DIN rail aluminum enclosure
Designed for smart home and industrial automation systems

Product Specifications

Item	Specification
Model	KinCony Pi5R32
Description	KinCony Automation Local Server – Pi5R32
Processor	Raspberry Pi Compute Module 5
Dimensions	298mm × 105mm × 58mm

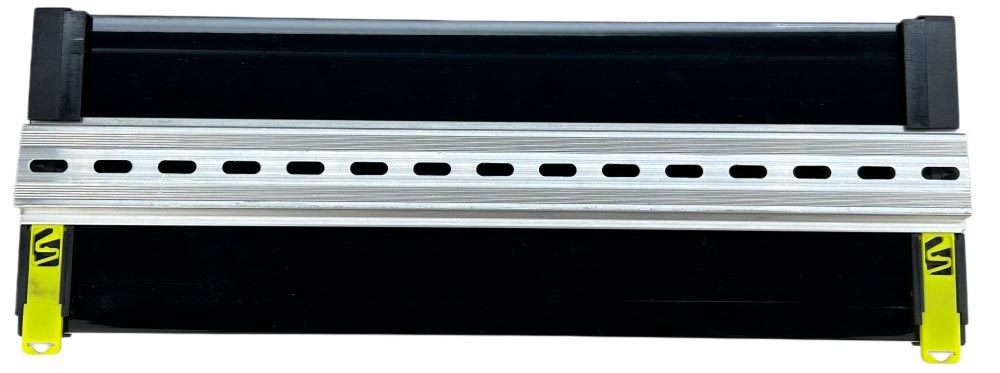

Installation	DIN Rail
Material	Aluminum Shell
Power Supply	DC 12V–24V
Operating Temperature	-20°C to 70°C
Operating Humidity	20%–80%

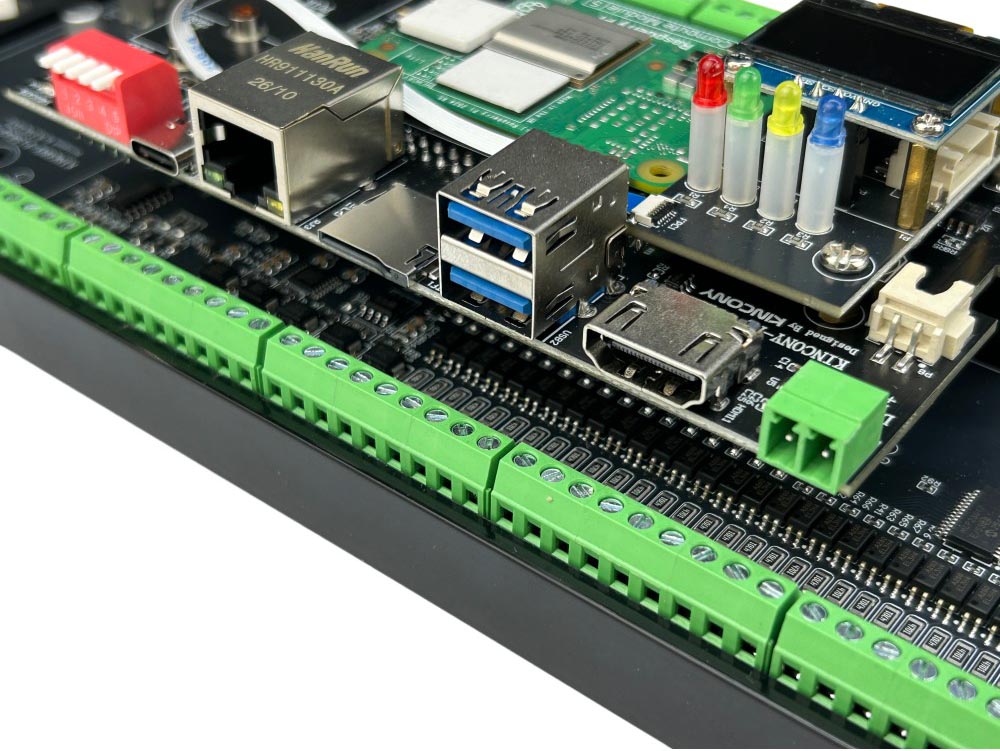

Ethernet	1 × RJ45 Gigabit Ethernet (IPv4/IPv6)
USB	2 × USB 3.0
HDMI	1 × Full-size HDMI 2.0
USB-C	1 × USB-C
microSD	1 × microSD Card Slot (Lite version only)
RS232	1 Port
RS485	1 Port
OLED Display	SSD1306 I2C OLED
Expansion	M.2 M-Key PCIe Socket
GPIO Expansion	CM5 GPIO Extender
Cooling	Heatsink + Fan

Relay Output Specifications

Item	Specification
Relay Channels	32
Contact Type	COM / NO

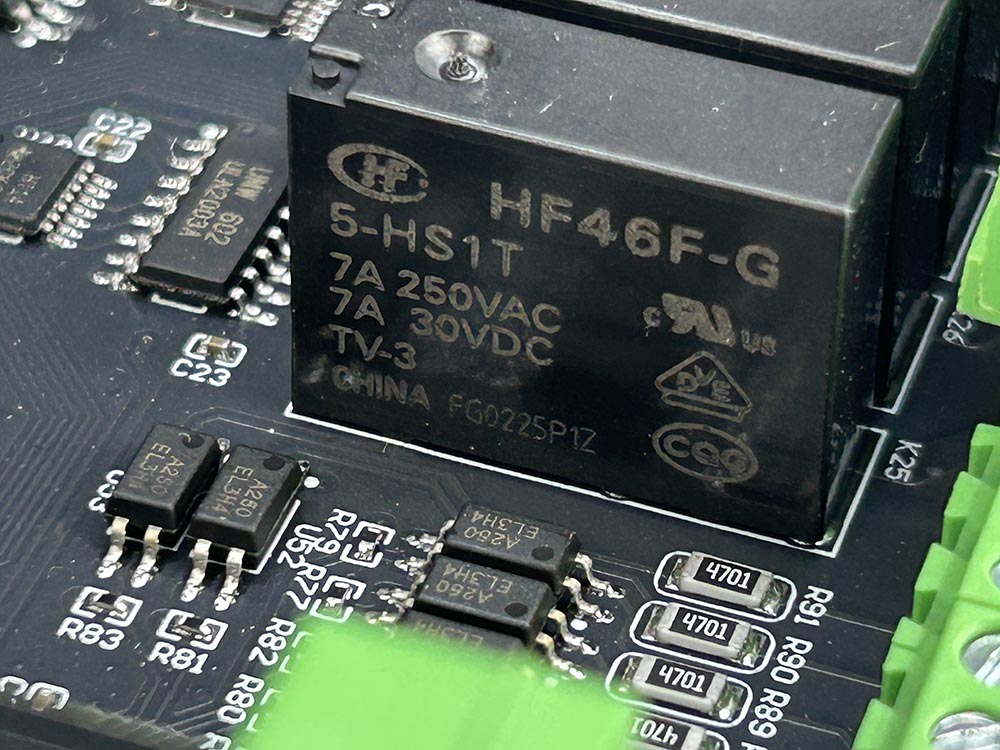

Maximum AC Load	AC250V / 7A per channel
Maximum DC Load	DC30V / 7A per channel
Applications	Lighting, HVAC, pumps, contactors, motors, industrial equipment

Digital Input Specifications

Item	Specification
Input Channels	32
Isolation	Optocoupler Isolation
Signal Type	Dry Contact
Maximum Cable Length	500 meters
Logic "1"	DC 0V
Logic "0"	DC 12V

Analog Inputs

Type	Channels
Voltage Input	2 × DC 0-5V
Current Input	2 × 4-20mA

PWM Outputs

Item	Specification
PWM Channels	2

Communication Interfaces

1 × Gigabit Ethernet
1 × RS232
1 × RS485
2 × USB 3.0
1 × HDMI 2.0
1 × USB-C
1 × microSD Card Slot
2 × PWM Outputs
2 × 0-5V Analog Inputs
2 × 4-20mA Analog Inputs

Free GPIO Expansion

The Pi5R32 provides 20 free GPIOs from the Raspberry Pi CM5 module for custom hardware expansion and software development.

GPIO21, GPIO20, GPIO16, GPIO01, GPIO07, GPIO08, GPIO25, GPIO24, GPIO23, GPIO18,
GPIO26, GPIO19, GPIO06, GPIO00, GPIO11, GPIO09, GPIO10, GPIO22, GPIO27, GPIO17

Default CM5 Configuration

CM5004000
4GB RAM
Lite Version
No WiFi
No Bluetooth

Important Notes

microSD Card Support

If you are using a CM5 module with onboard eMMC storage, the microSD card slot cannot be used.

The microSD card slot is only available when using a CM5 Lite module.

Programming the CM5

To access the CM5 eMMC or microSD storage through USB-C:

Connect the Pi5R32 to your computer using a USB-C cable.
Run the Raspberry Pi rpiboot utility.
The eMMC or microSD storage will appear as a removable drive.
Flash Raspberry Pi OS or other Linux distributions directly.

Package Options

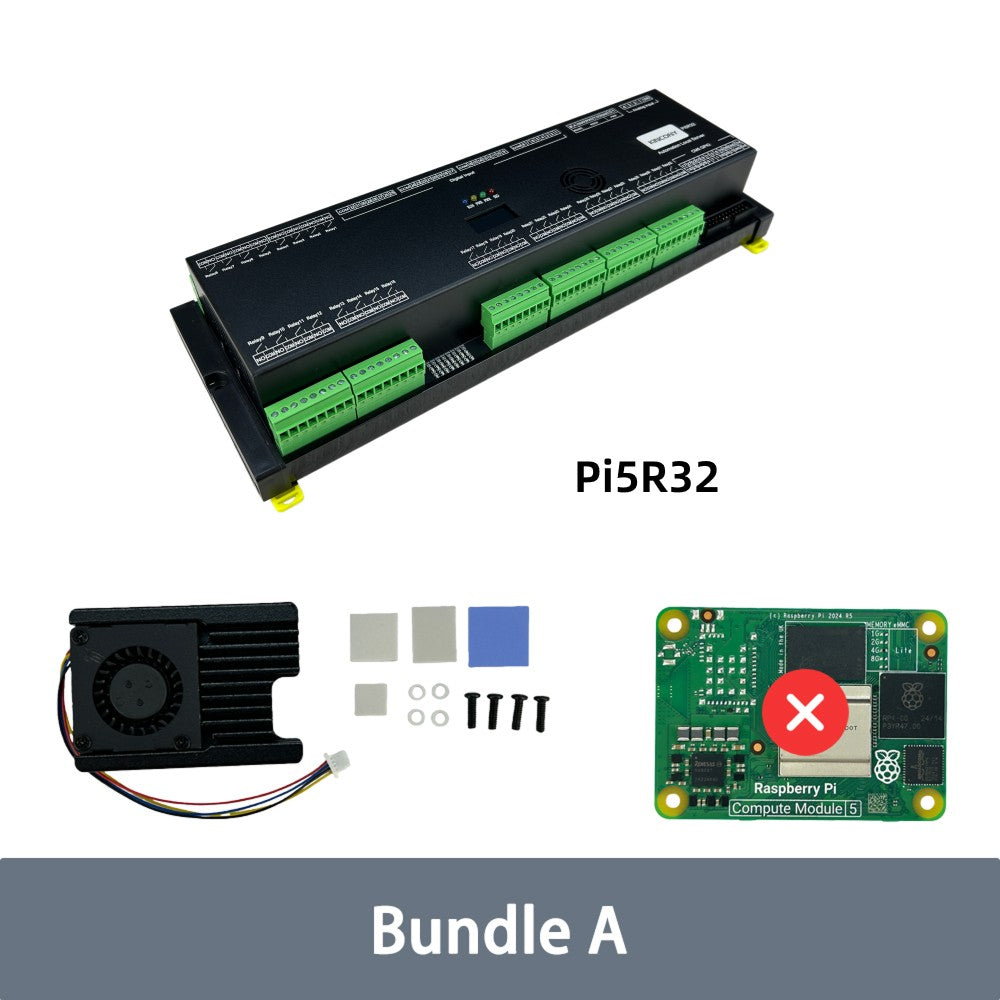

Bundle A

Pi5R32 Mainboard
Without CM5 Module
Heatsink
Cooling Fan

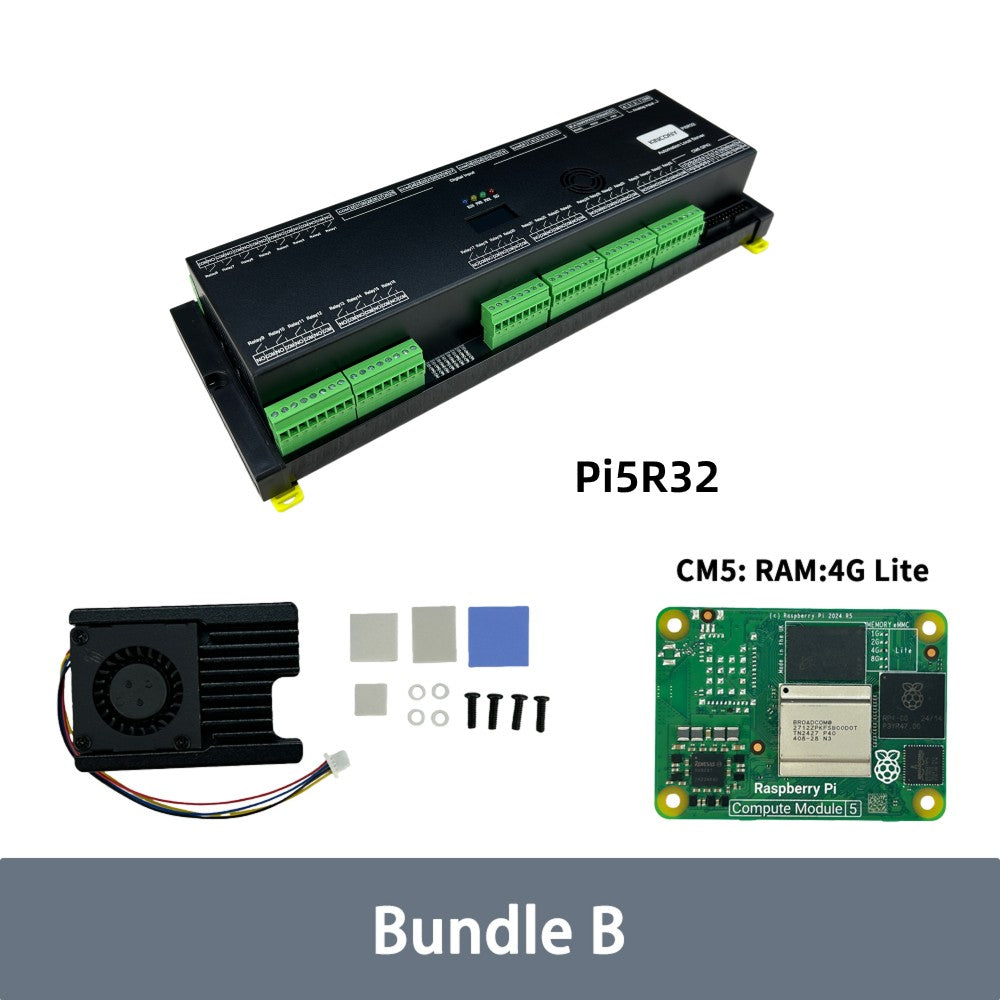

Bundle B

- Pi5R32 Mainboard
- CM5 Module (CM5004000)
- 4GB RAM Lite Version
- Heatsink
- Cooling Fan

Typical Applications

Home Assistant Local Server
Node-RED Automation Controller
Industrial Automation Systems
Smart Building Control
Lighting Automation
HVAC Management
Pump and Motor Control
Factory Equipment Control
Energy Management Systems
MQTT and Modbus Gateway
IoT Edge Computing Applications

Software Support

Home Assistant
Node-RED
Raspberry Pi OS
MQTT
Modbus RTU/TCP
Docker
Python
Linux-based Automation Software

Why Choose Pi5R32?

The KinCony Pi5R32 combines the computing power of Raspberry Pi CM5 with 32 industrial relay outputs, 32 isolated digital inputs, analog inputs, PWM outputs, and industrial communication interfaces in a single DIN rail enclosure.

Unlike traditional PLCs or relay controllers, Pi5R32 can run Home Assistant, Node-RED, Docker containers, MQTT brokers, and custom Linux applications directly on the device, making it a complete automation server and high-density I/O controller.

Whether you are building a smart home, commercial building automation system, industrial control cabinet, or IoT gateway, Pi5R32 offers a powerful, reliable, and expandable automation platform.
