KinCony Pi5R8 – Raspberry Pi CM5 DIN Rail Relay Controller for Smart Home & Industrial Automation

Product Overview

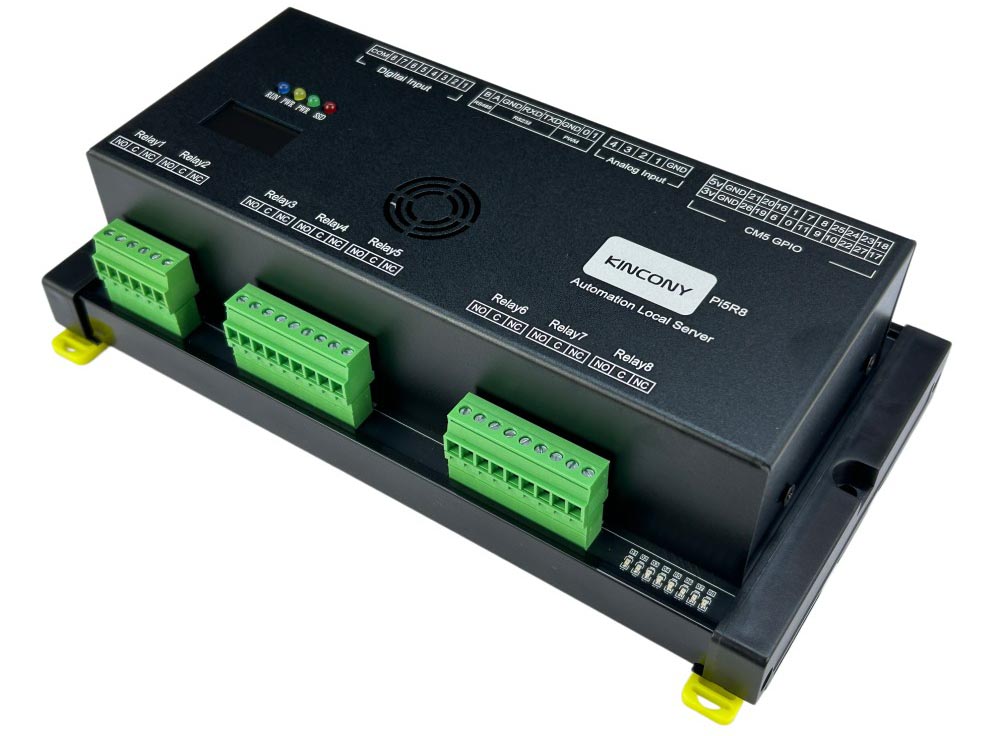

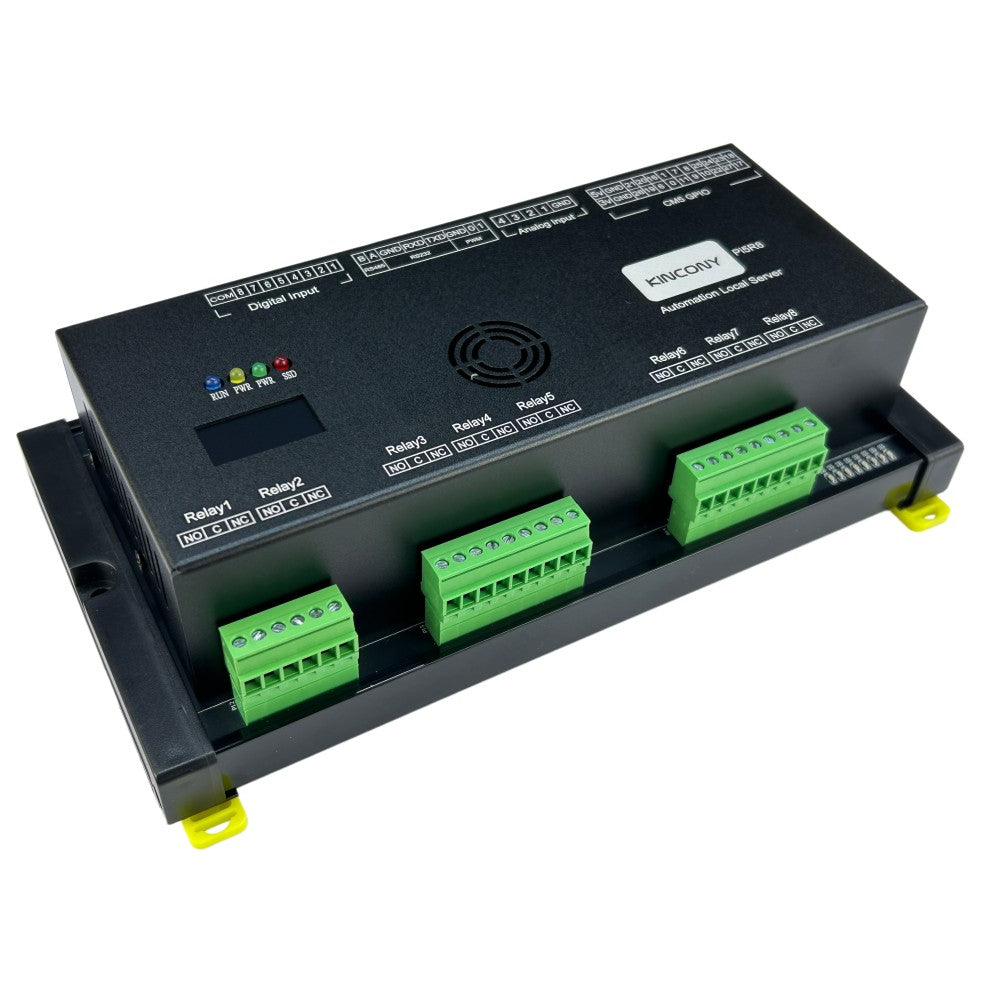

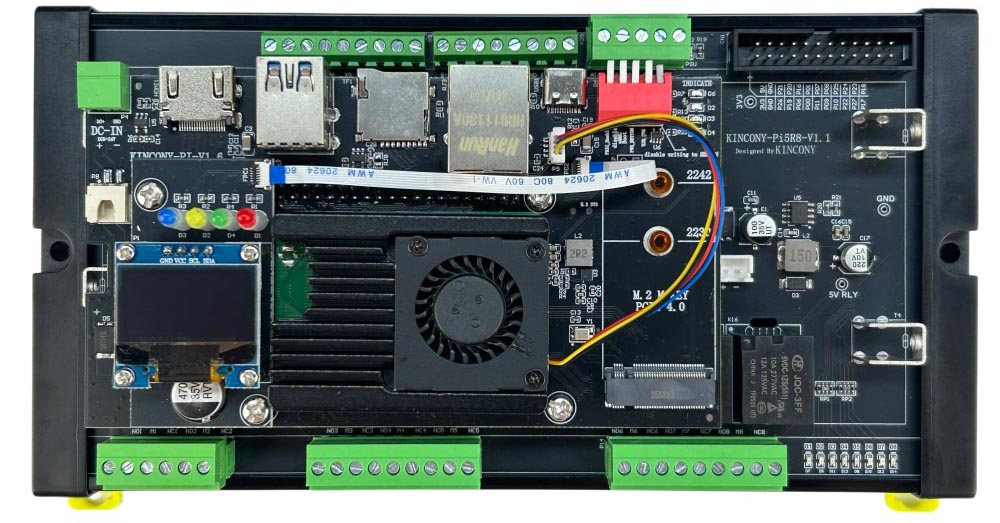

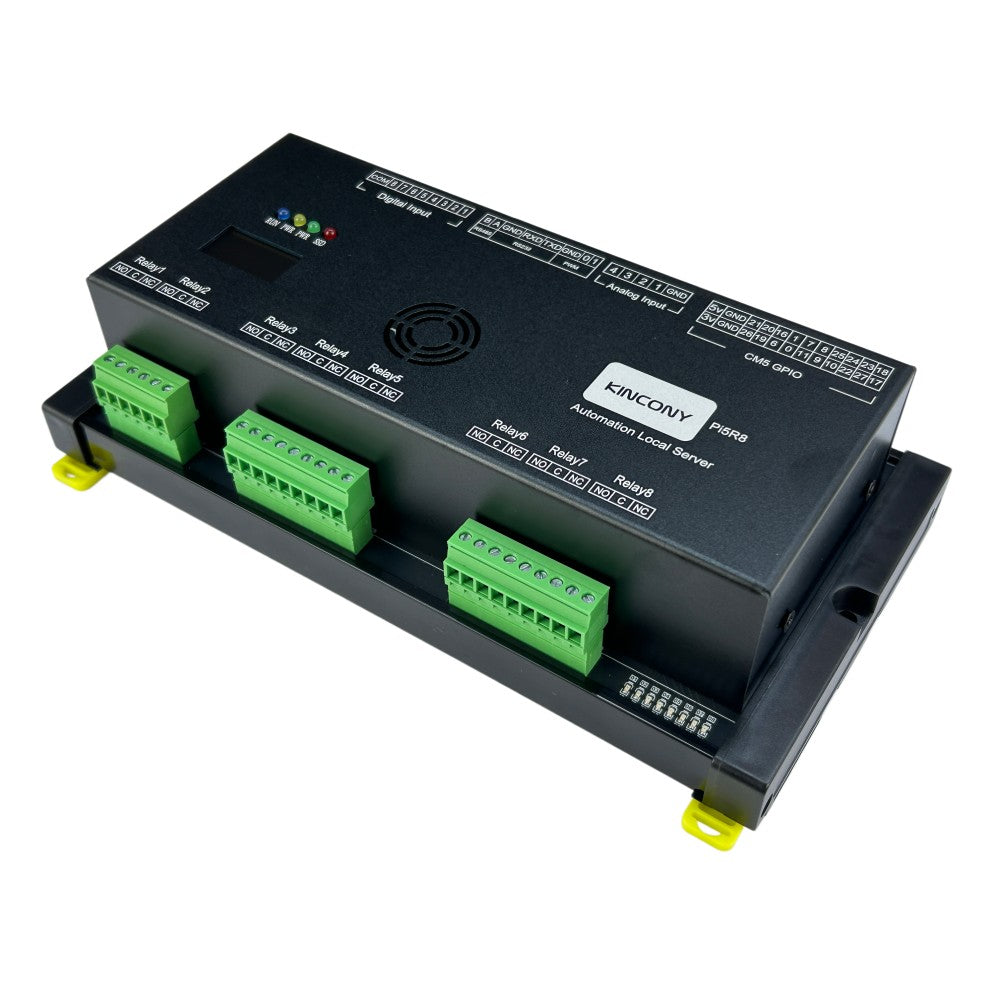

KinCony Pi5R8 is a powerful Raspberry Pi-based IoT gateway designed for smart home automation and industrial control applications. Powered by the Raspberry Pi Compute Module 5 (CM5), it integrates relay outputs, optocoupler-isolated digital inputs, analog inputs, RS232/RS485 communication interfaces, PWM outputs, and expansion interfaces into a compact DIN rail aluminum enclosure.

The Raspberry Pi CM5 directly manages relay outputs, digital inputs, analog inputs, PWM outputs, and communication interfaces, making it easy to deploy automation solutions using Home Assistant, Node-RED, MQTT, Modbus, Docker, Python, and other Linux-based software.

Pi5R8 is an ideal platform for smart homes, industrial automation, energy management systems, and IoT edge computing applications.

Key Features

• Powered by Raspberry Pi Compute Module 5 (CM5)

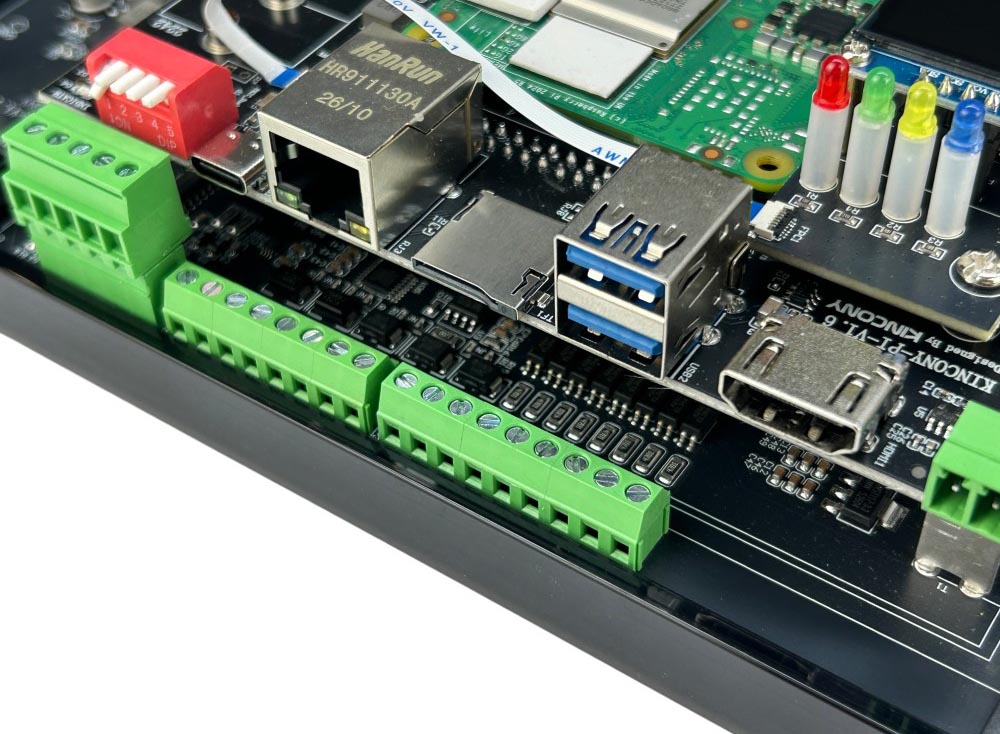

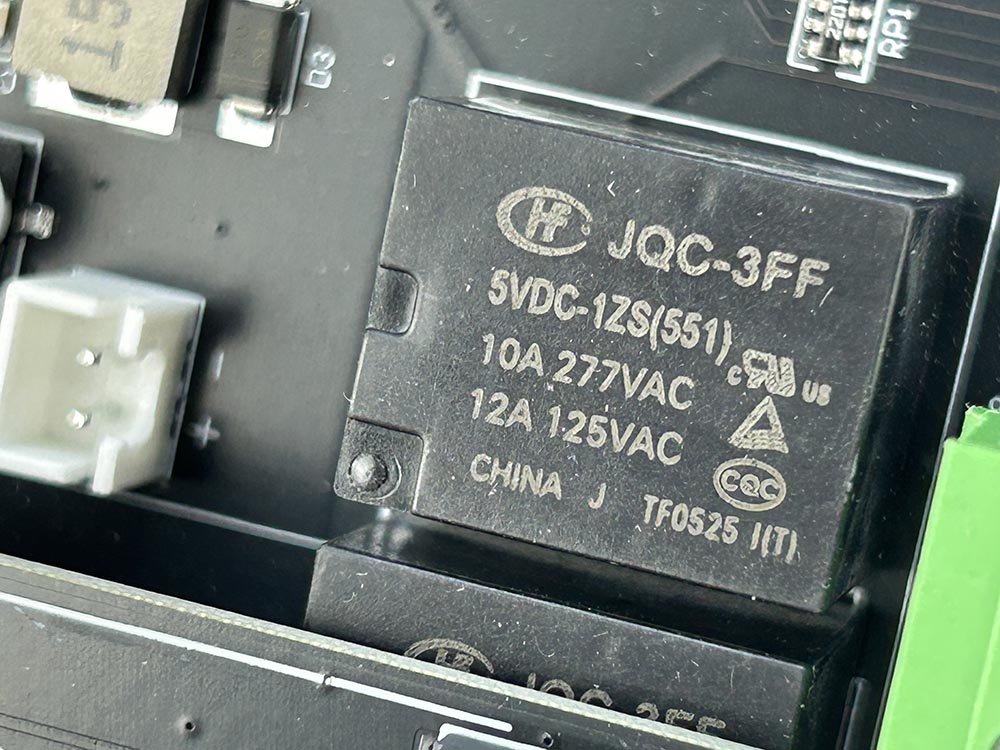

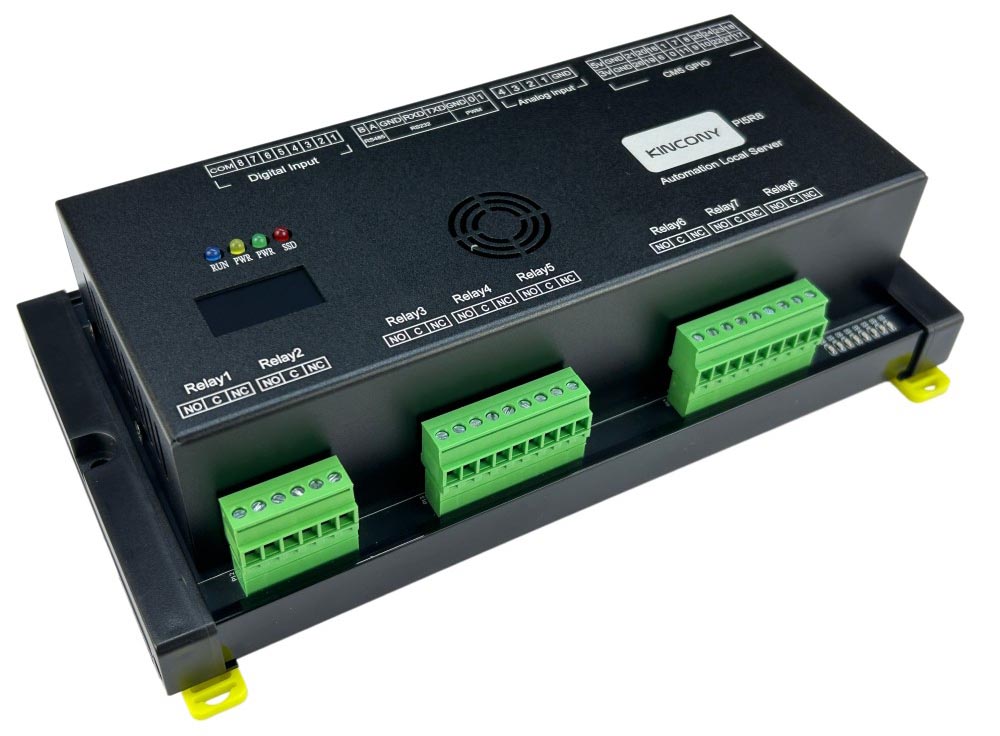

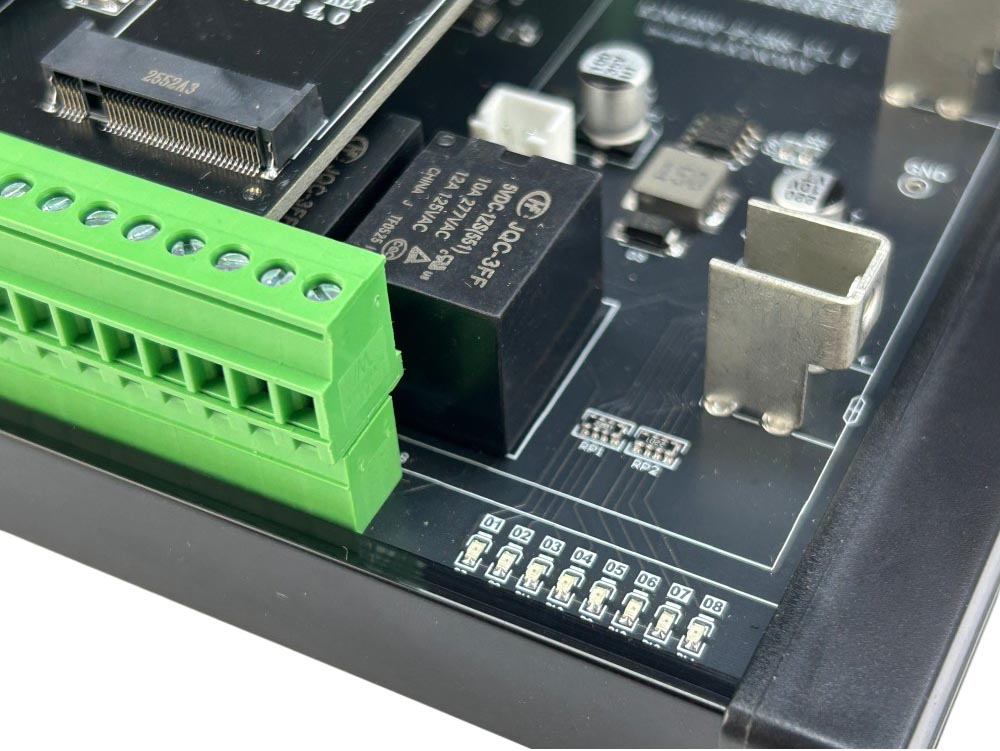

• 8-channel industrial relay outputs
• 8 optocoupler-isolated digital inputs
• Supports Home Assistant and Node-RED
• RS232 and RS485 communication interfaces
• 2-channel PWM outputs
• 2 × DC 0-5V analog inputs
• 2 × 4-20mA analog inputs
• 20 free GPIO expansion pins
• Gigabit Ethernet support
• M.2 PCIe expansion socket
• SSD1306 OLED display

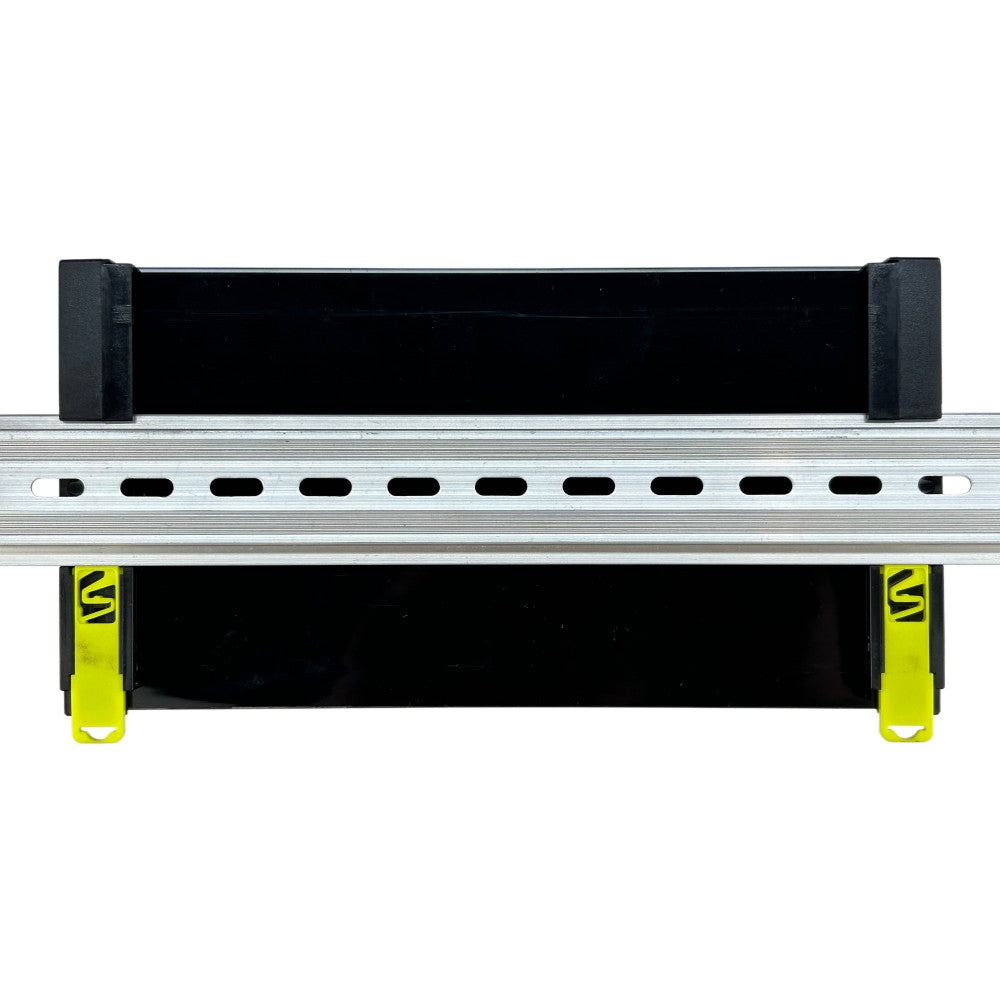

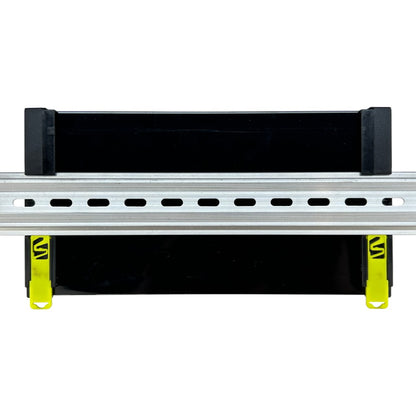

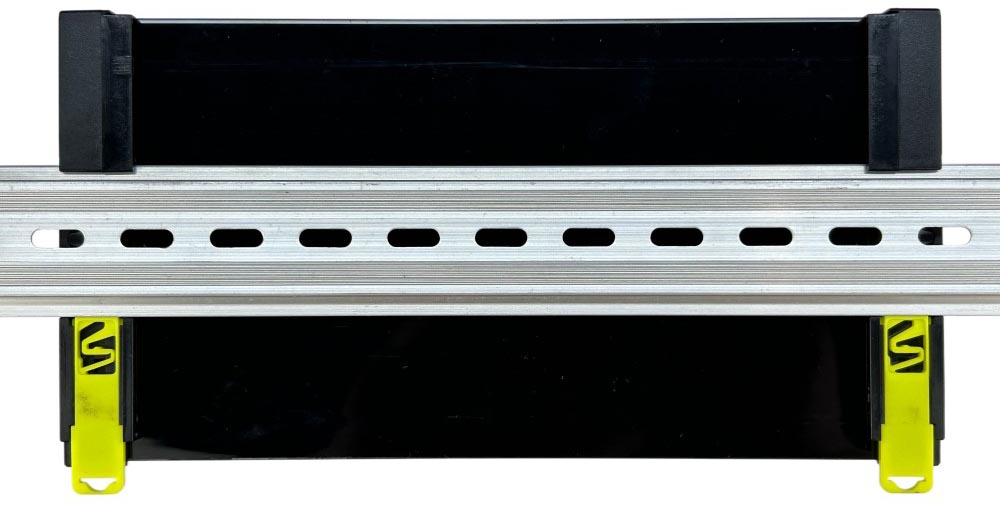

• Industrial aluminum DIN rail enclosure
• Ideal for smart home and industrial automation projects

Product Specifications

Relay Output Specifications

Digital Input Specifications

Analog Inputs

PWM Outputs

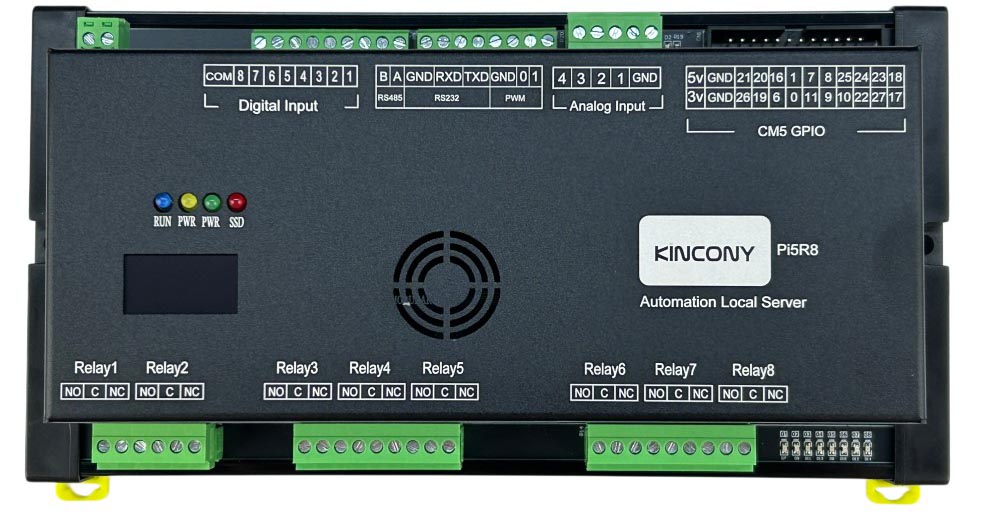

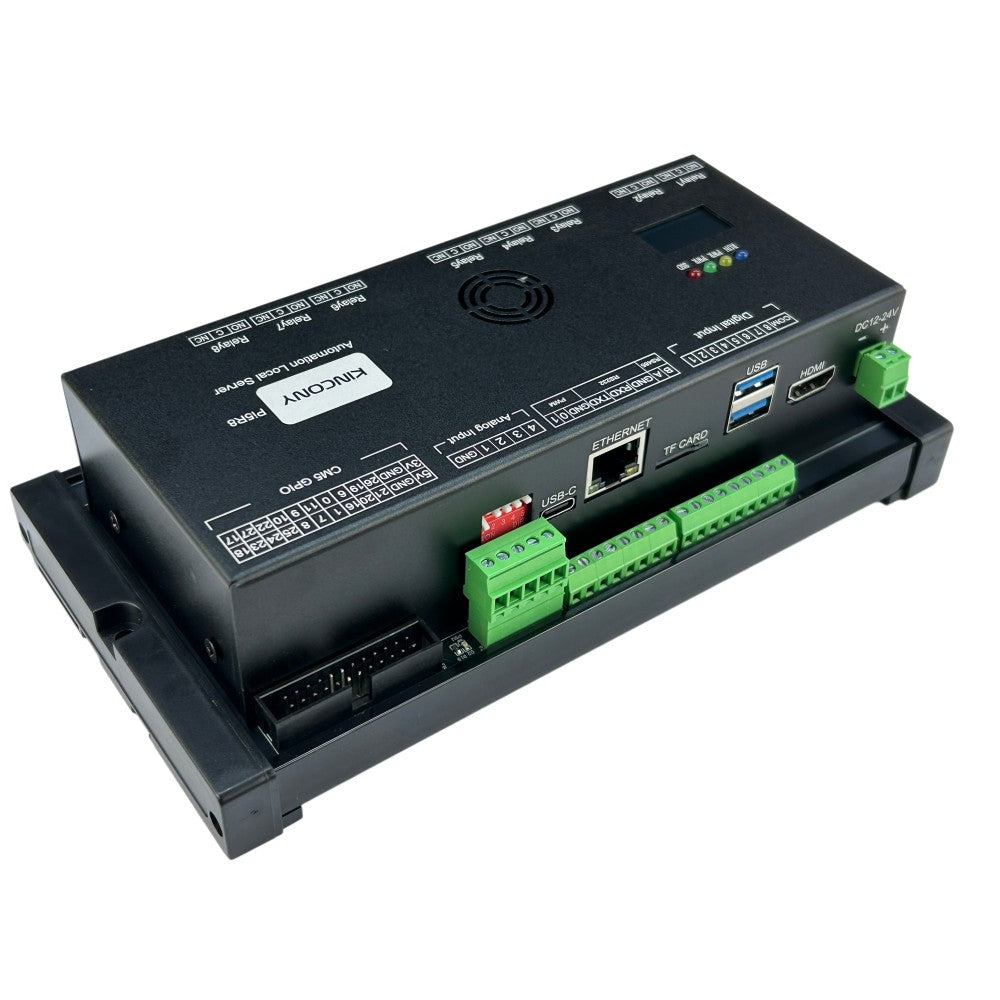

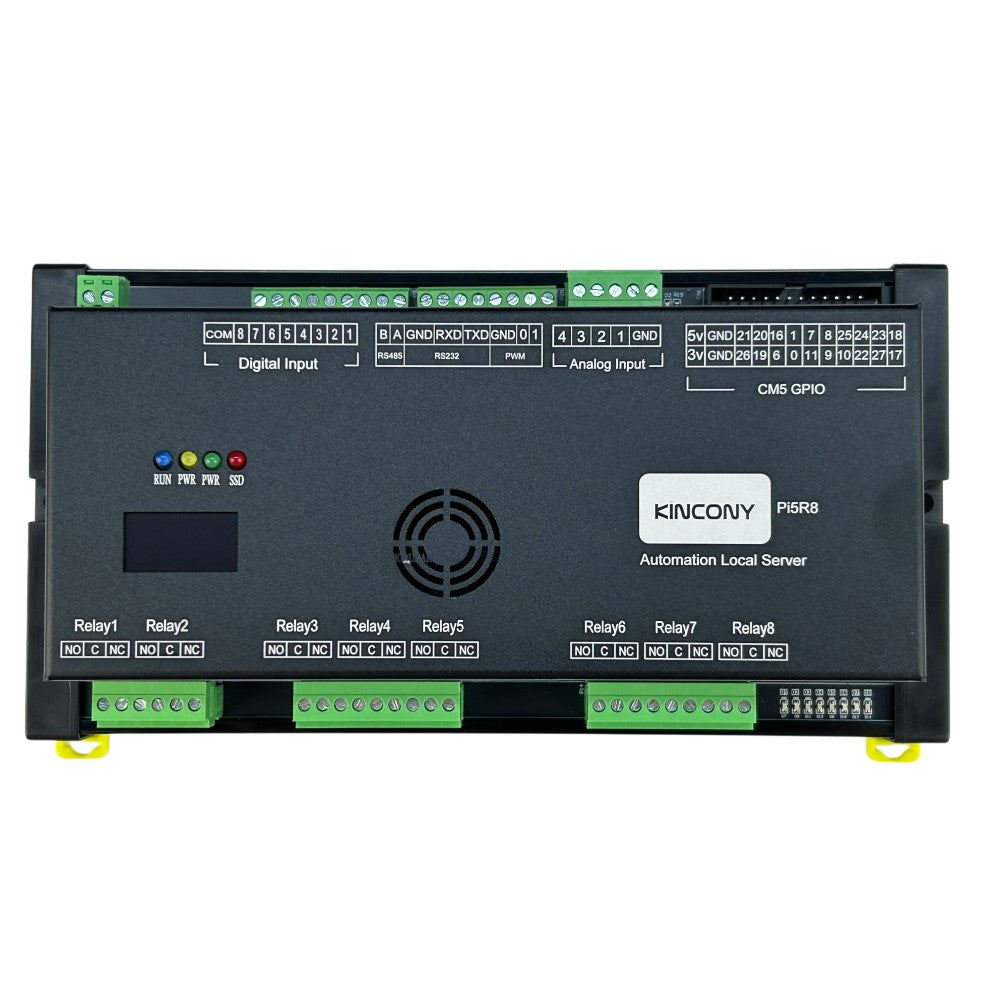

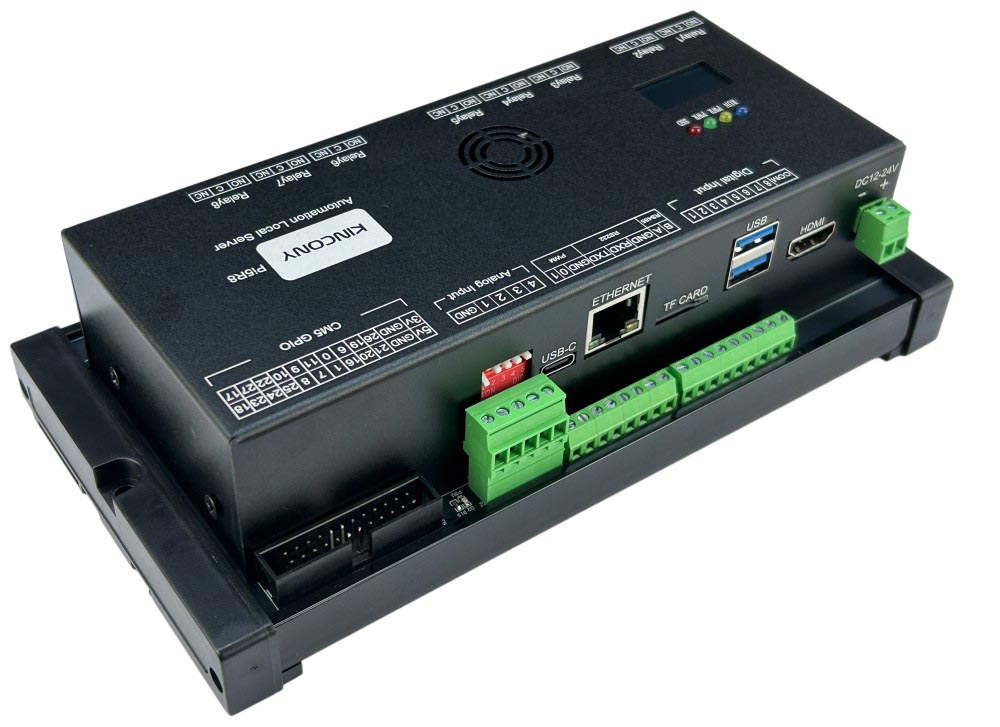

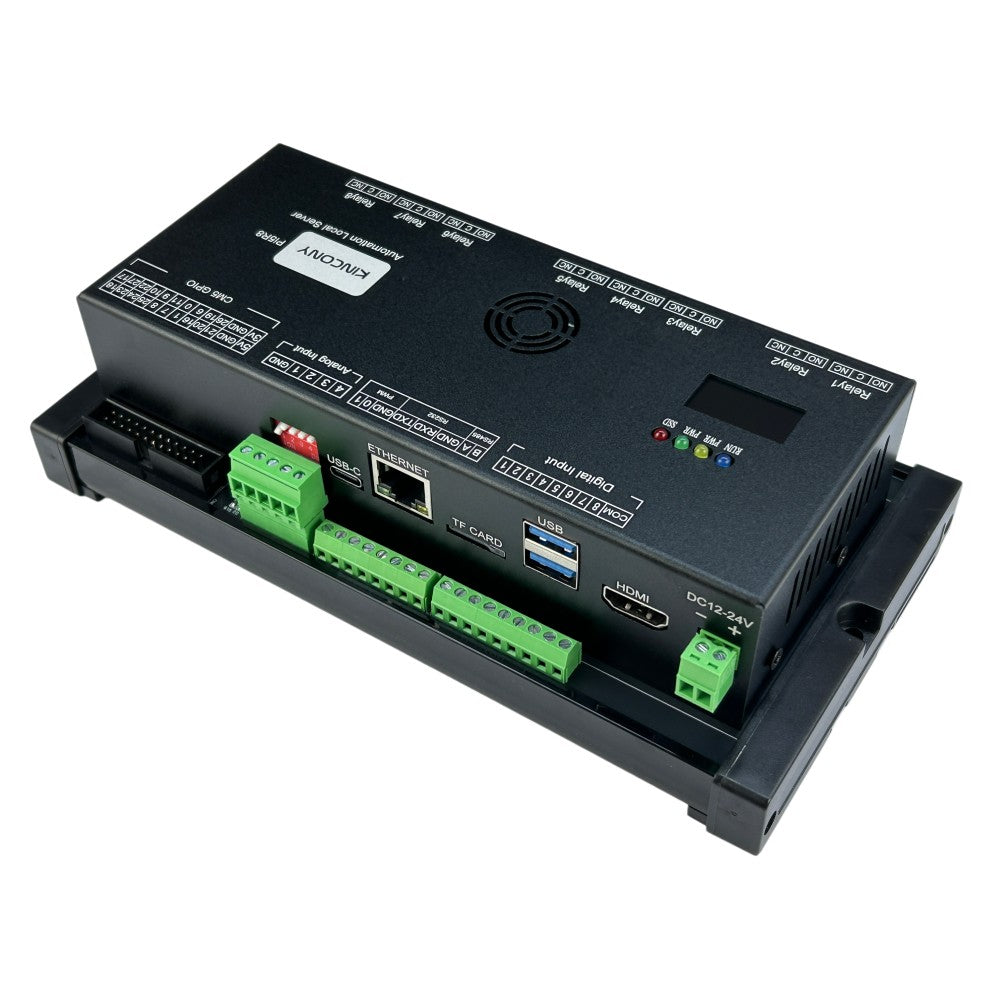

Communication Interfaces

• 1 × Gigabit Ethernet
• 1 × RS232
• 1 × RS485
• 2 × USB 3.0
• 1 × HDMI 2.0
• 1 × USB-C
• 1 × microSD Card Slot
• 2 × PWM Outputs
• 2 × 0-5V Analog Inputs
• 2 × 4-20mA Analog Inputs

Free GPIO Expansion

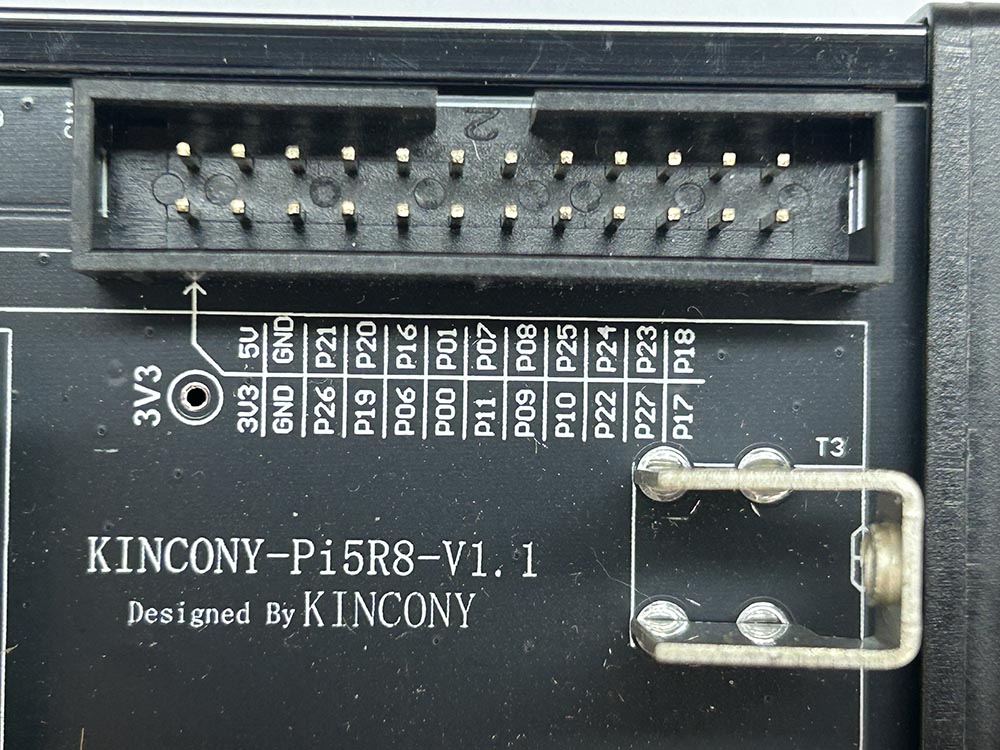

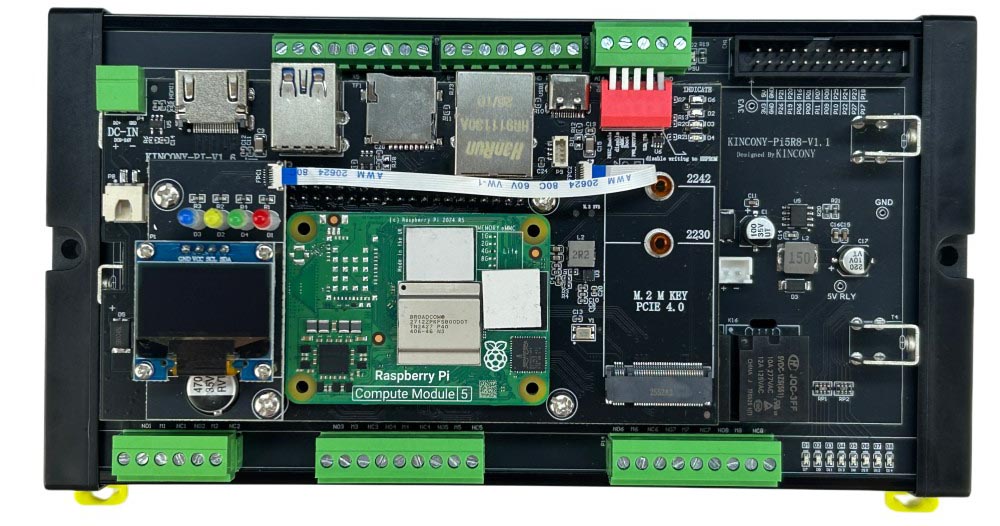

The Pi5R8 provides 20 free GPIOs from the Raspberry Pi CM5 module for custom hardware expansion and software development.

GPIO21, GPIO20, GPIO16, GPIO01, GPIO07, GPIO08, GPIO25, GPIO24, GPIO23, GPIO18,
GPIO26, GPIO19, GPIO06, GPIO00, GPIO11, GPIO09, GPIO10, GPIO22, GPIO27, GPIO17

Default CM5 Configuration

• CM5004000
• 4GB RAM
• Lite Version
• No WiFi
• No Bluetooth

Important Notes

microSD Card Support

If you are using a CM5 module with onboard eMMC storage, the microSD card slot cannot be used.

The microSD card slot is only available when using a CM5 Lite module.

Programming the CM5

To access the CM5 eMMC or microSD storage through USB-C:

1. Connect the Pi5R8 to your computer using a USB-C cable.
2. Run the Raspberry Pi rpiboot utility.
3. The eMMC or microSD storage will appear as a removable drive.
4. Flash Raspberry Pi OS or other Linux distributions directly.

Package Options

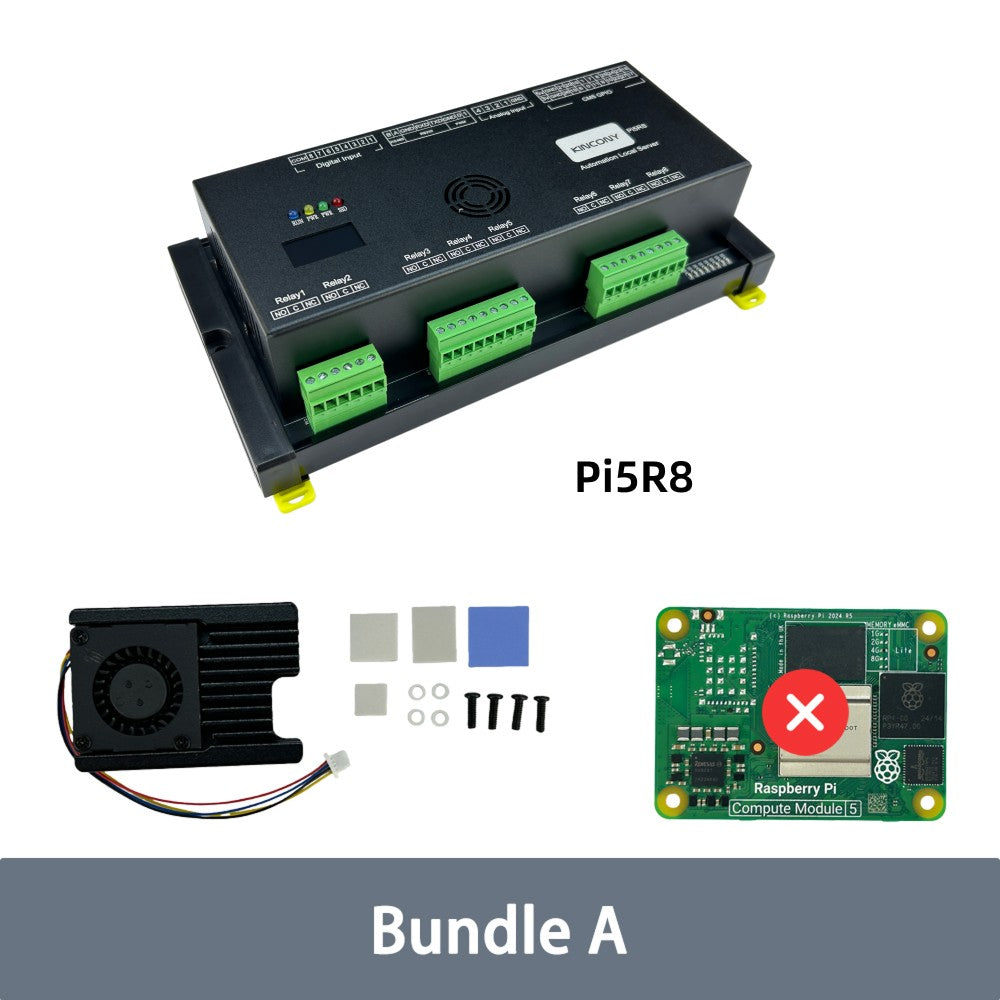

Bundle A

• Pi5R8 Mainboard
• Without CM5 Module
• Heatsink
• Cooling Fan

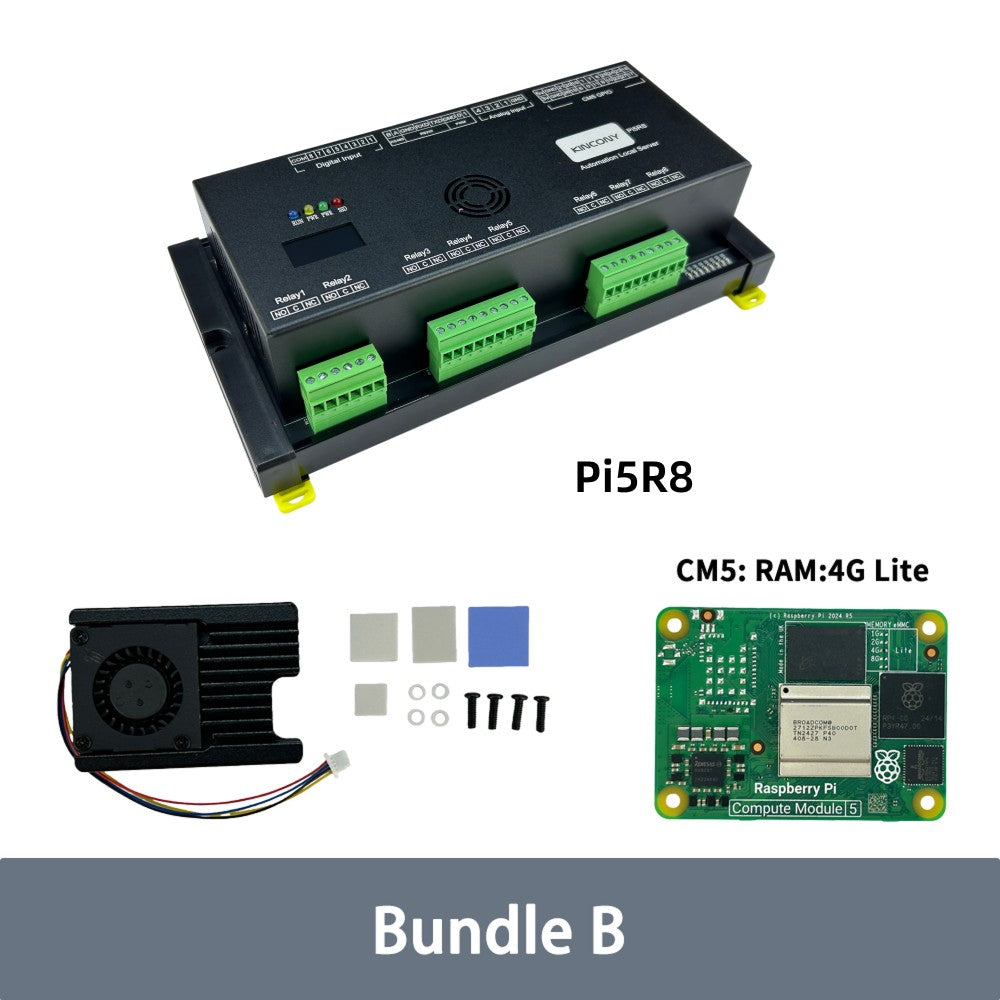

Bundle B

• • Pi5R8 Mainboard
  • CM5 Module (CM5004000)
  • 4GB RAM Lite Version
  • Heatsink
  • Cooling Fan

Typical Applications

• Home Assistant Local Server
• Node-RED Automation Controller
• Industrial Automation Systems
• Building Automation
• Smart Lighting Control
• HVAC Automation
• Pump and Motor Control
• Energy Management Systems
• MQTT and Modbus Gateway
• IoT Edge Computing Applications

Software Support

• Home Assistant
• Node-RED
• Raspberry Pi OS
• MQTT
• Modbus RTU/TCP
• Docker
• Python
• Linux-based Automation Software

Why Choose Pi5R8?

The KinCony Pi5R8 combines the processing power of Raspberry Pi CM5 with industrial-grade relay outputs, isolated digital inputs, analog inputs, and communication interfaces in a single DIN rail enclosure.

Unlike traditional PLCs or relay boards, Pi5R8 can run Home Assistant, Node-RED, Docker containers, MQTT brokers, and custom Linux applications directly on the device, making it a complete automation server and controller in one unit.

Whether you are building a smart home, industrial control system, or IoT gateway, Pi5R8 offers a flexible, reliable, and expandable platform.
