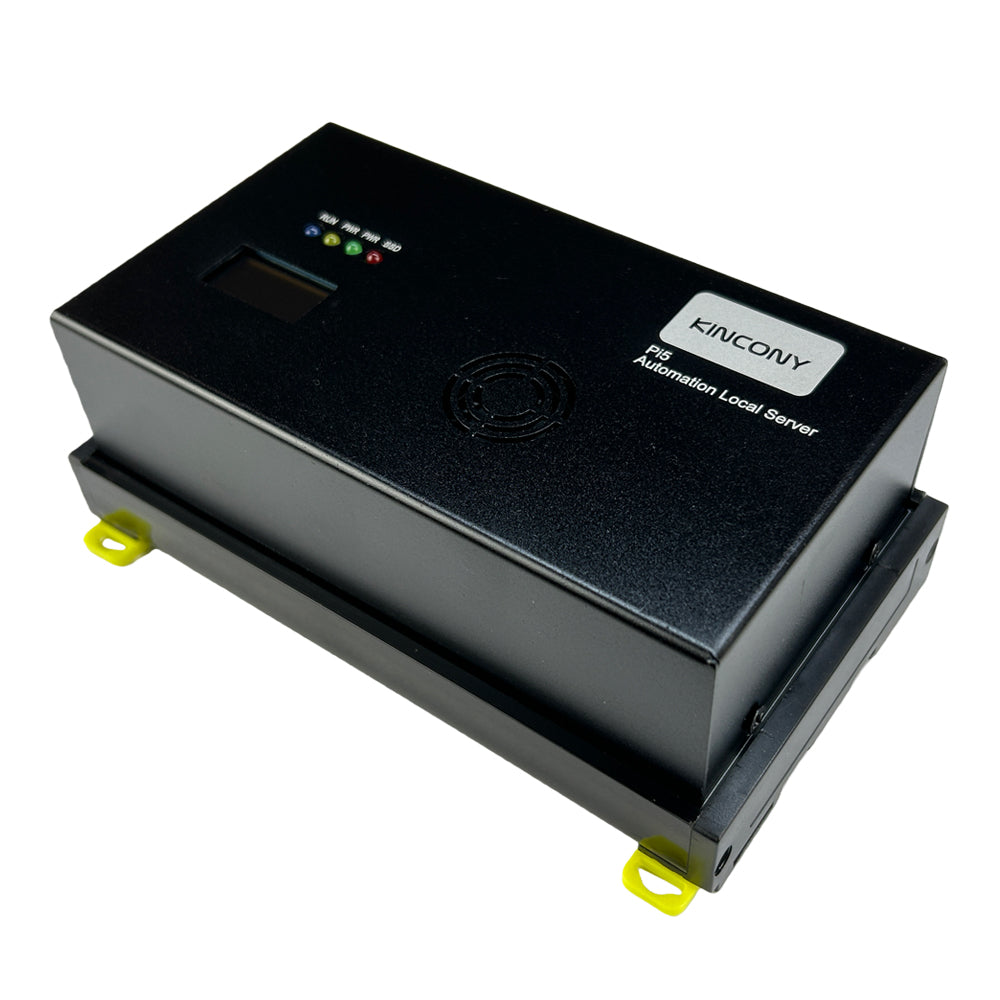

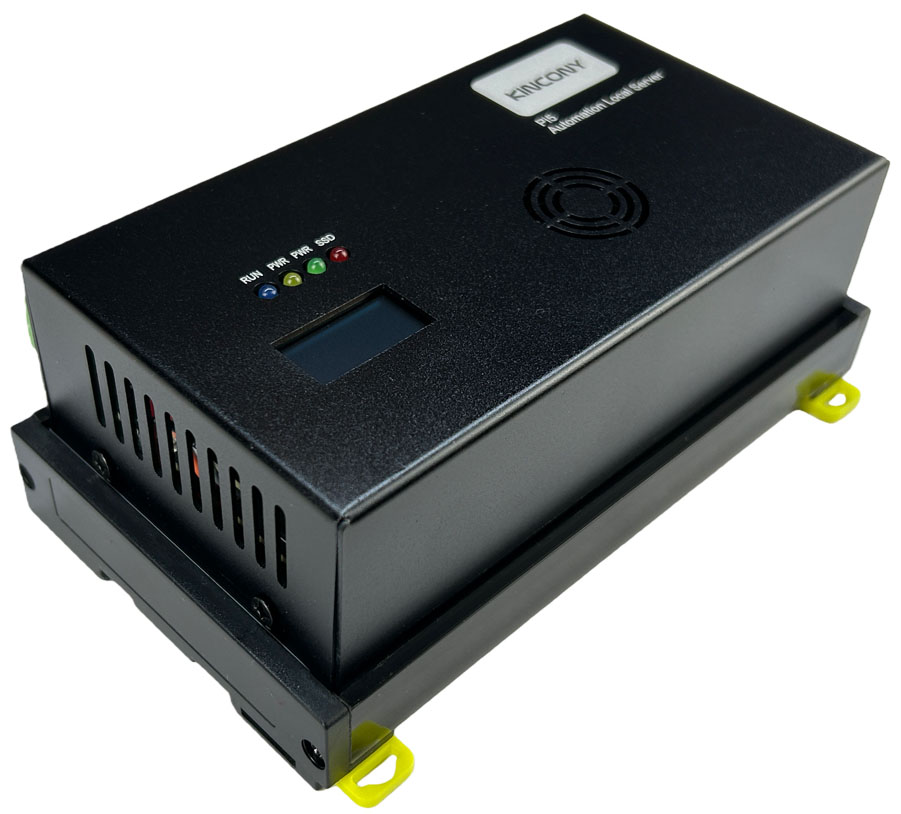

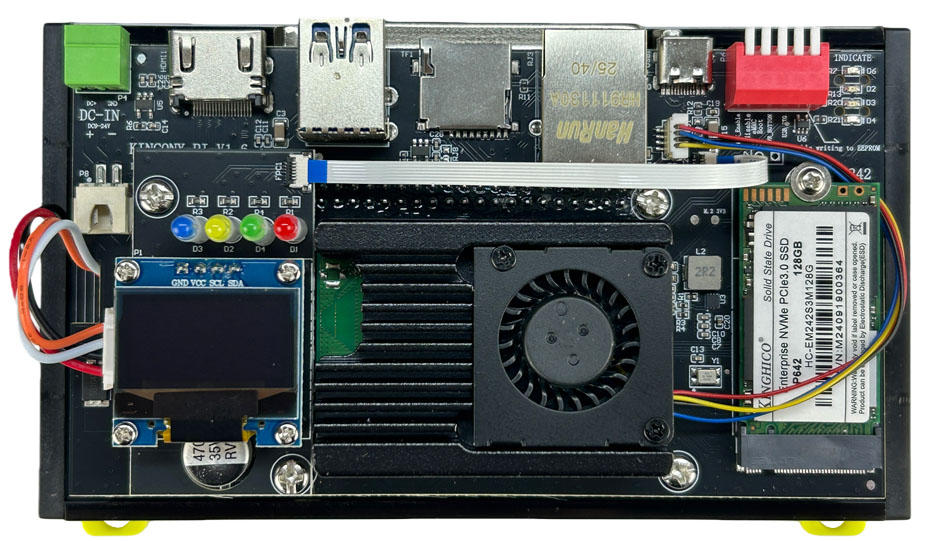

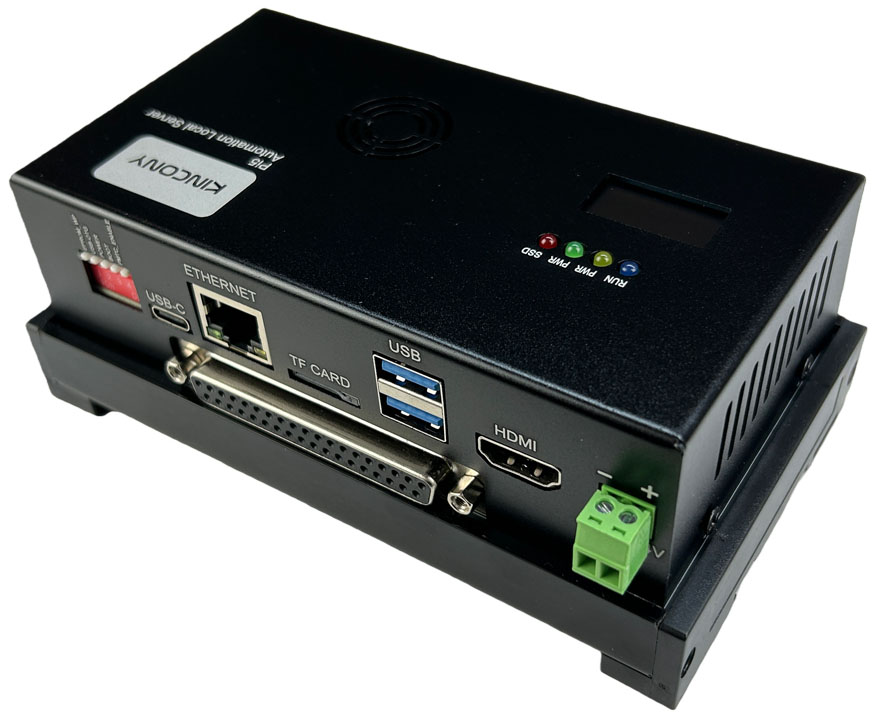

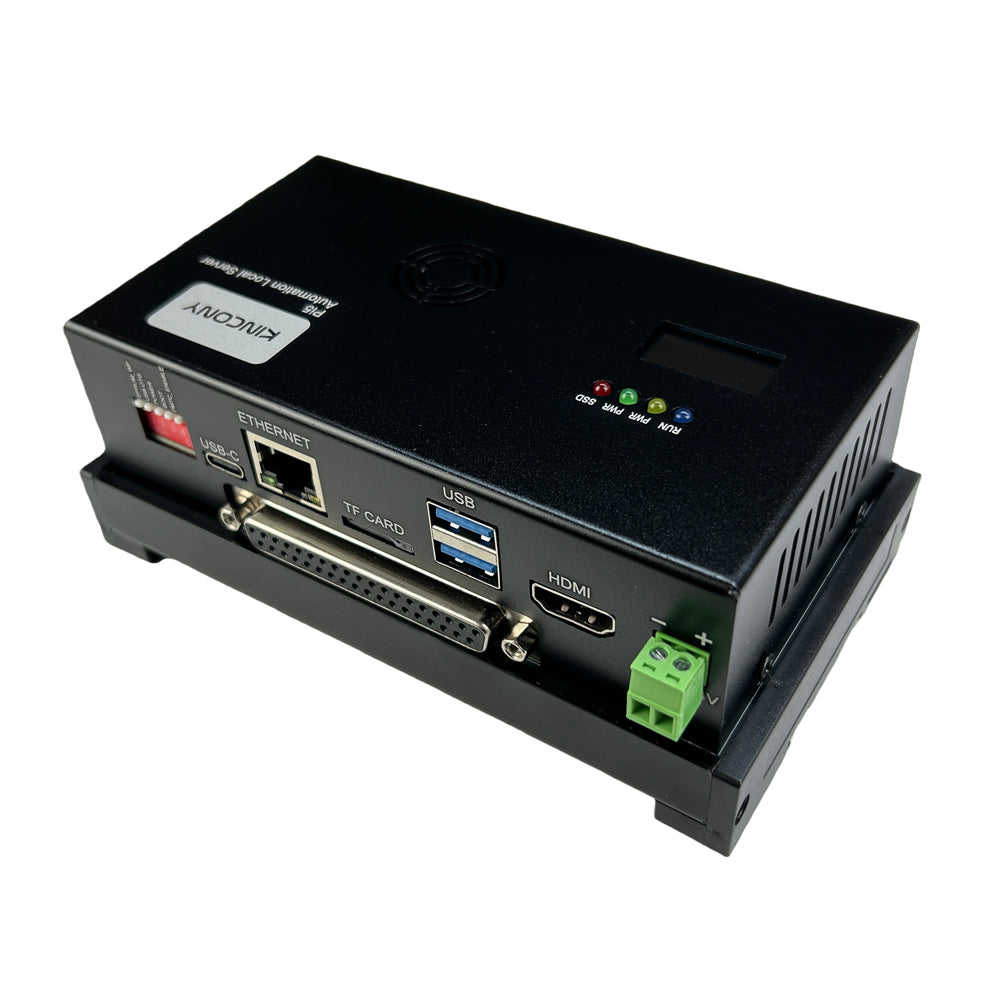

Raspberry Pi Compute Module 5 IoT Server V2

KinCony Pi5 is a Raspberry Pi CM5 server for smart home automation and industrial automation control. It can use for home assistant local server. It’s a Linux computer, you can install software by yourself, such as Node red. The product default CM5 version is CM5004000. It without Bluetooth and wifi, RAM:4G Lite version.

Model No. KinCony Pi5
Description: KinCony Automation Local Server – Pi5
Power supply: 12-24V DC

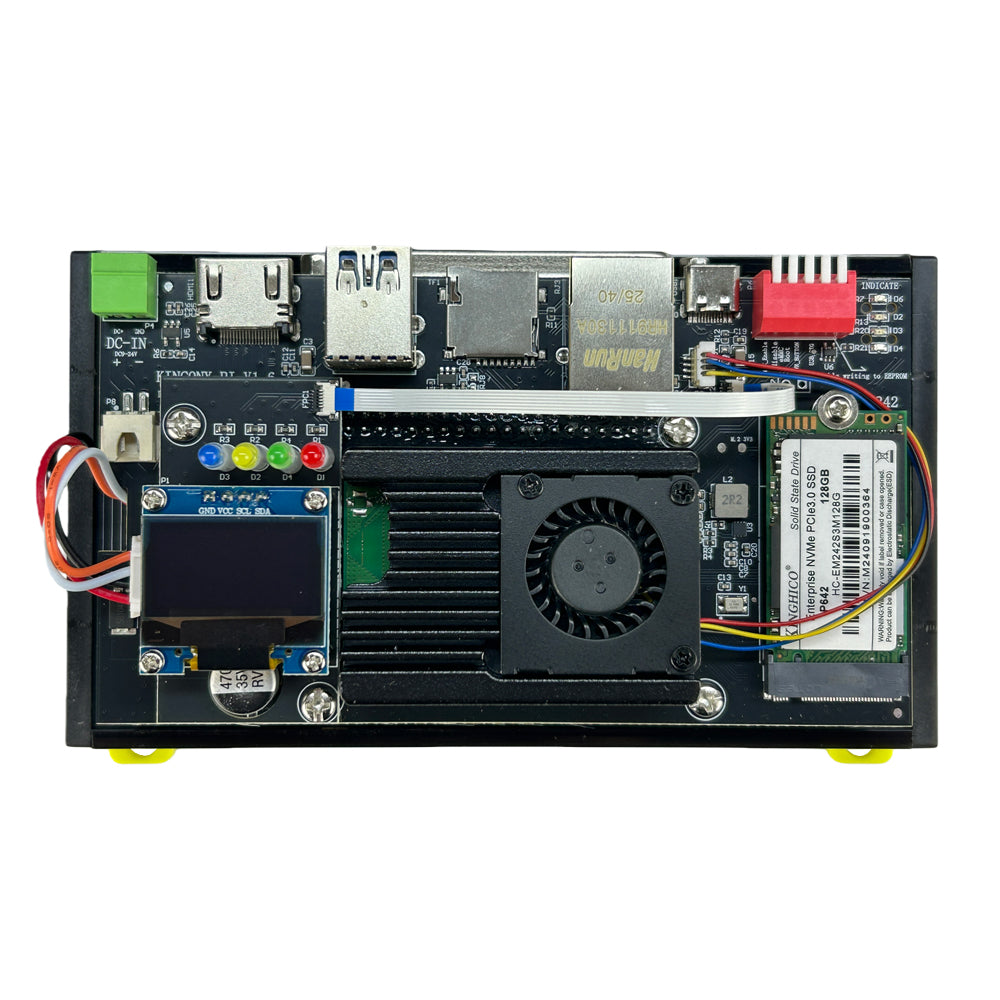

Processor: Raspberry Pi Compute Module 5
Size: 146mm*83mm*56mm

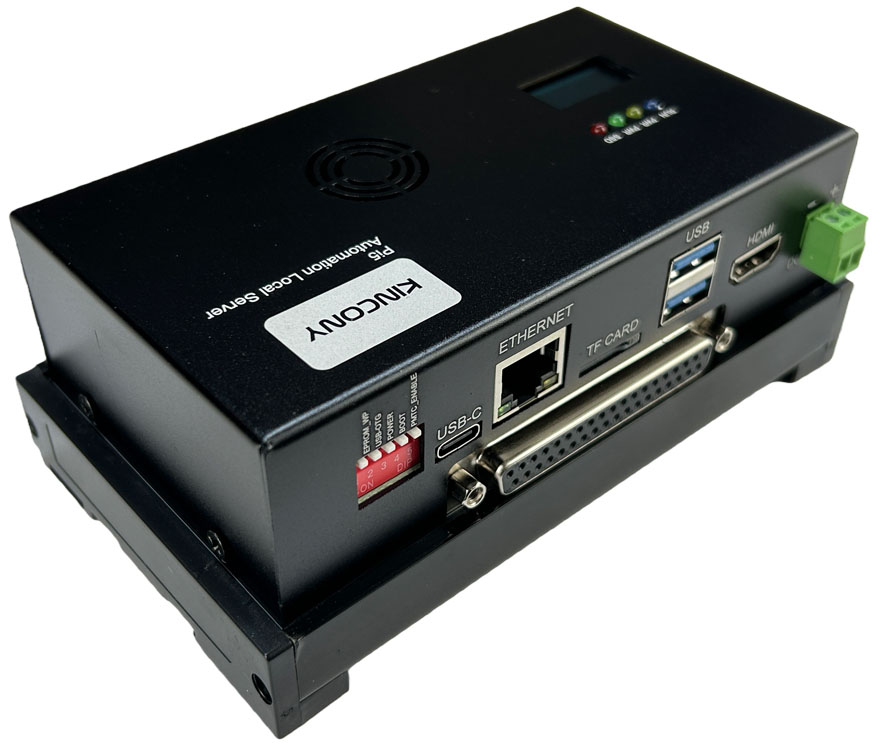

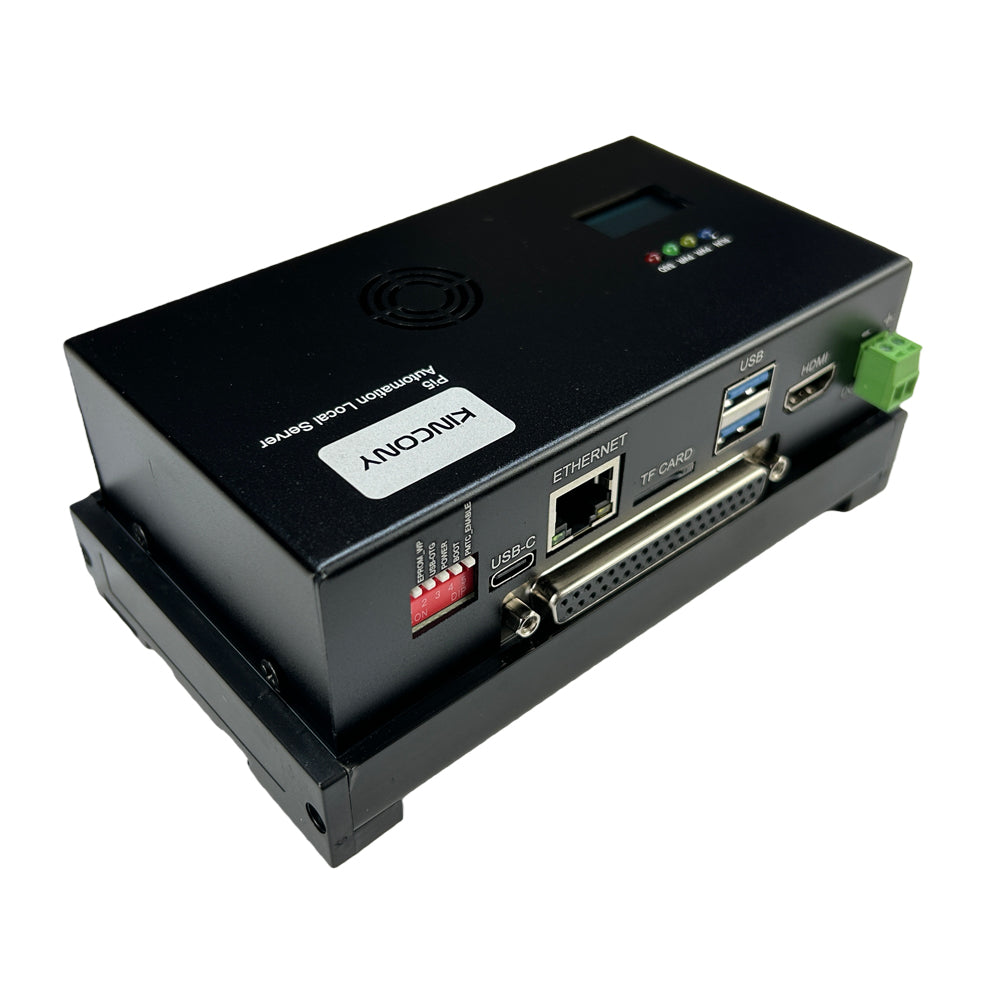

interfaces: Ethernet(RJ45)-LAN 1000Mbps IPv4/IPv6,USB-C

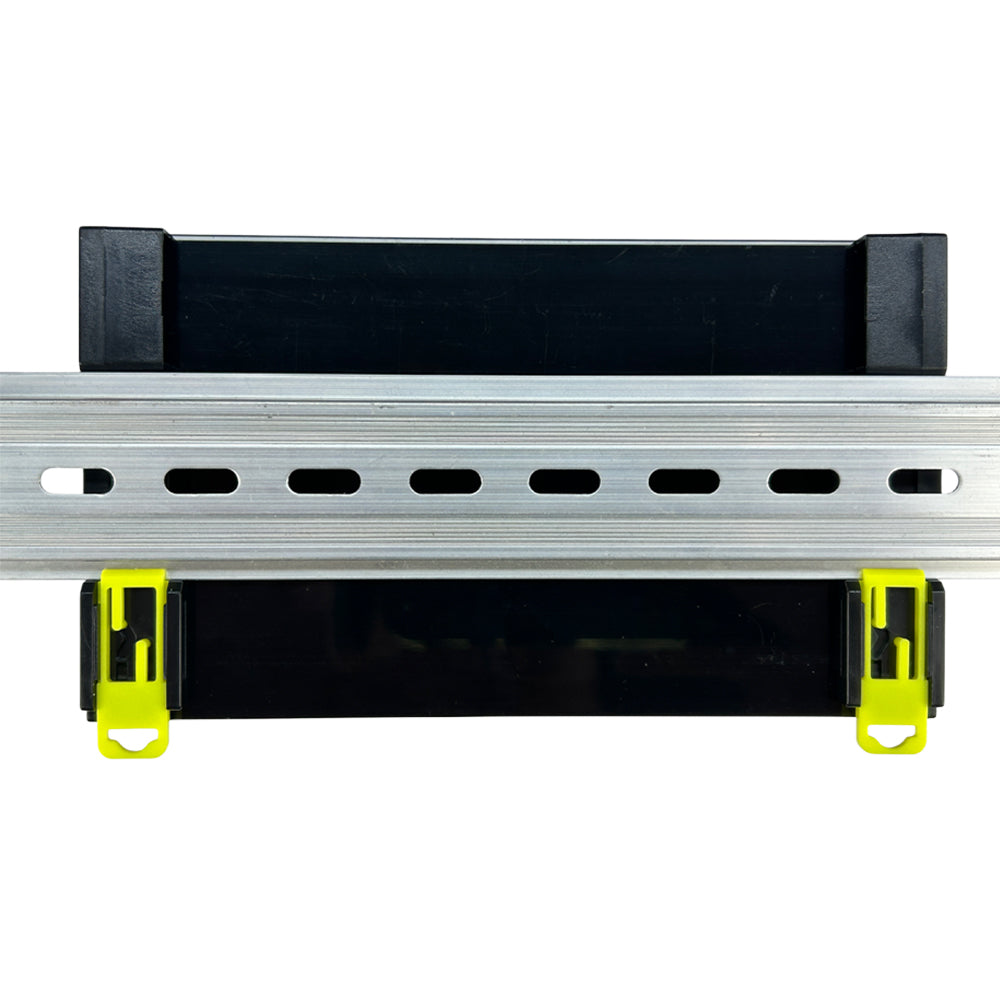

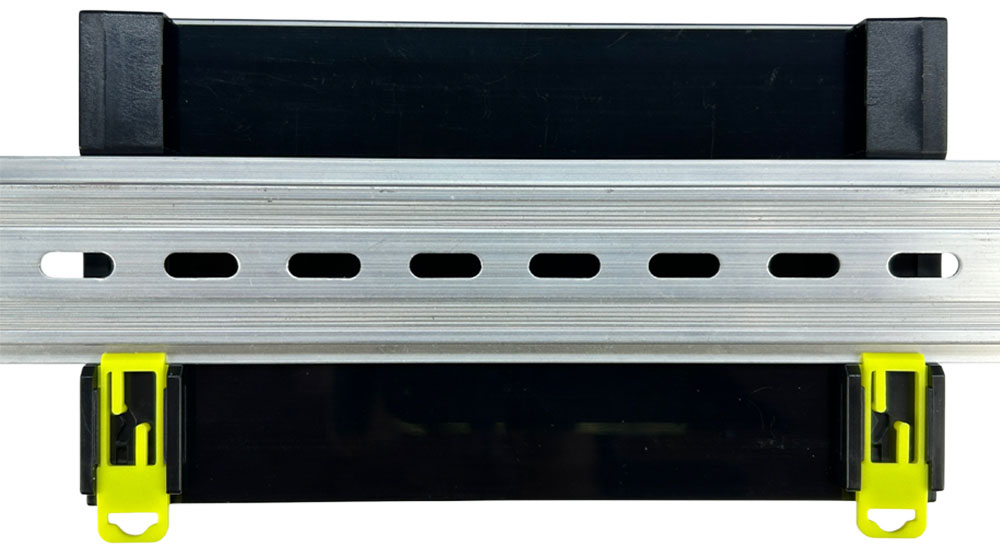

Installation method: DIN RAIL
2 × USB 3 sockets
microSD card socket for CM5 Lite modules

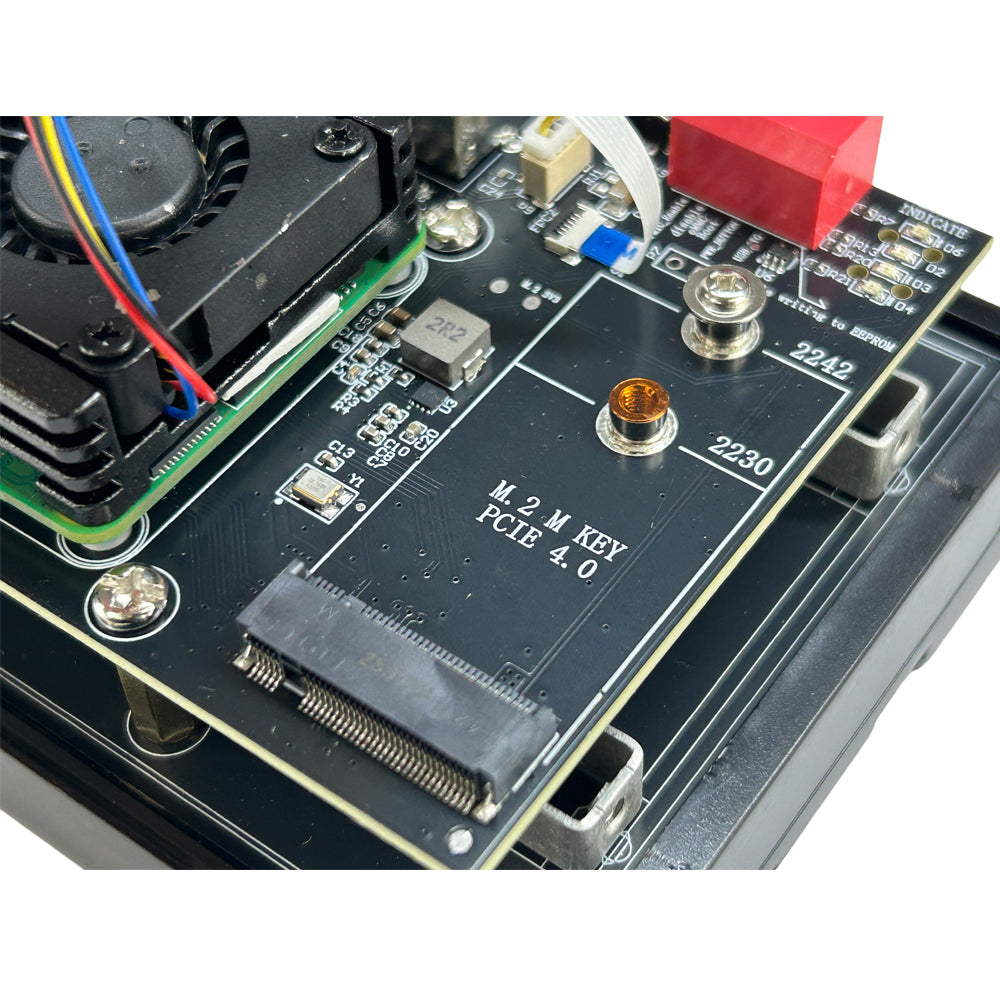

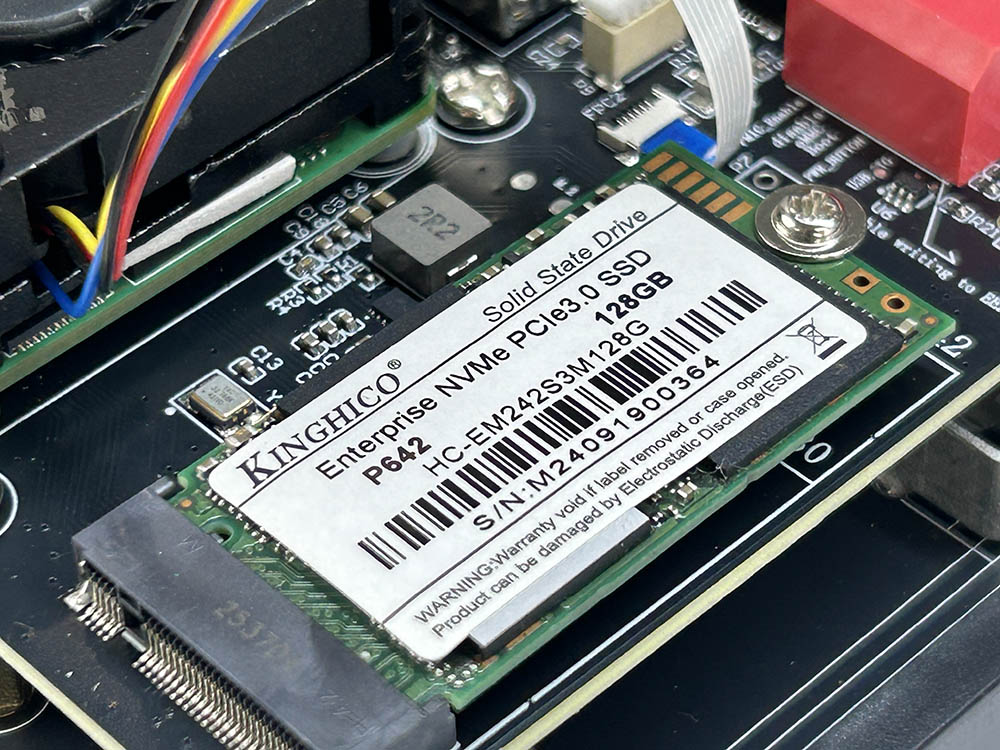

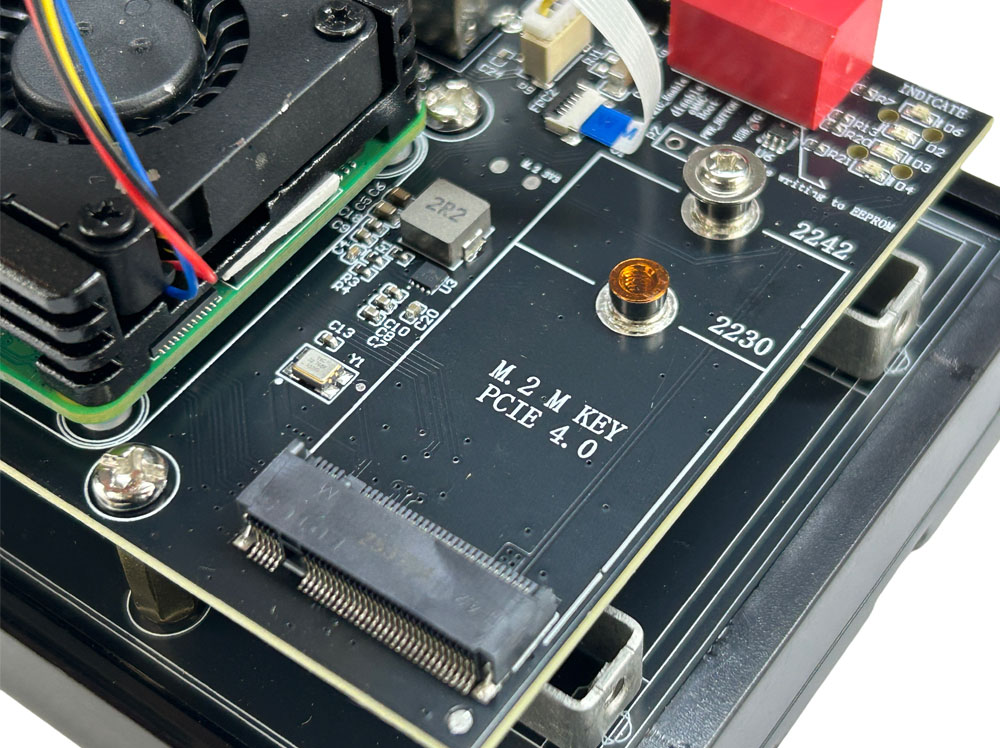

M.2 M key PCIe socket
1 × full-size HDMI 2.0 connectors
DIP SWITCH for jumpers

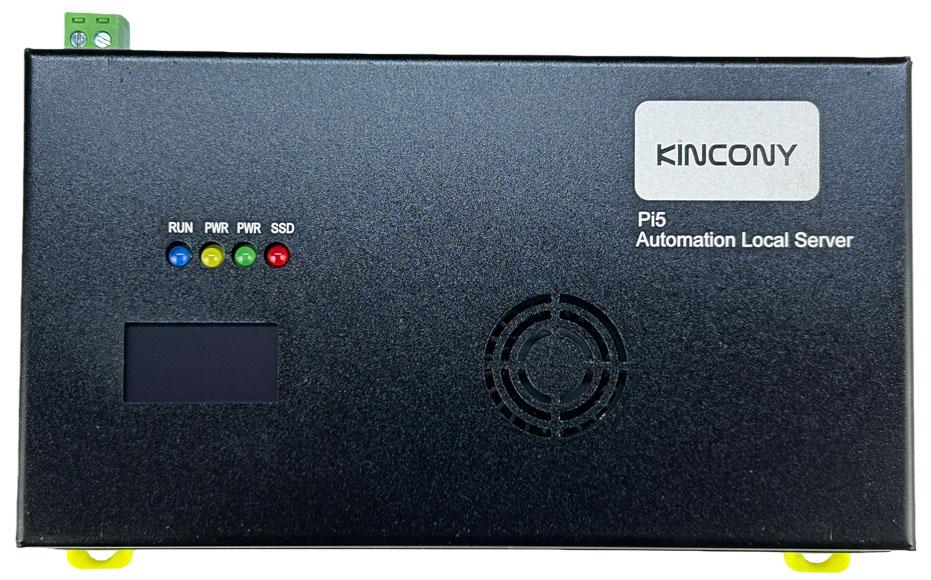

SSD1306 i2c OLED displayer
CM5 GPIO extender

Order bundles:

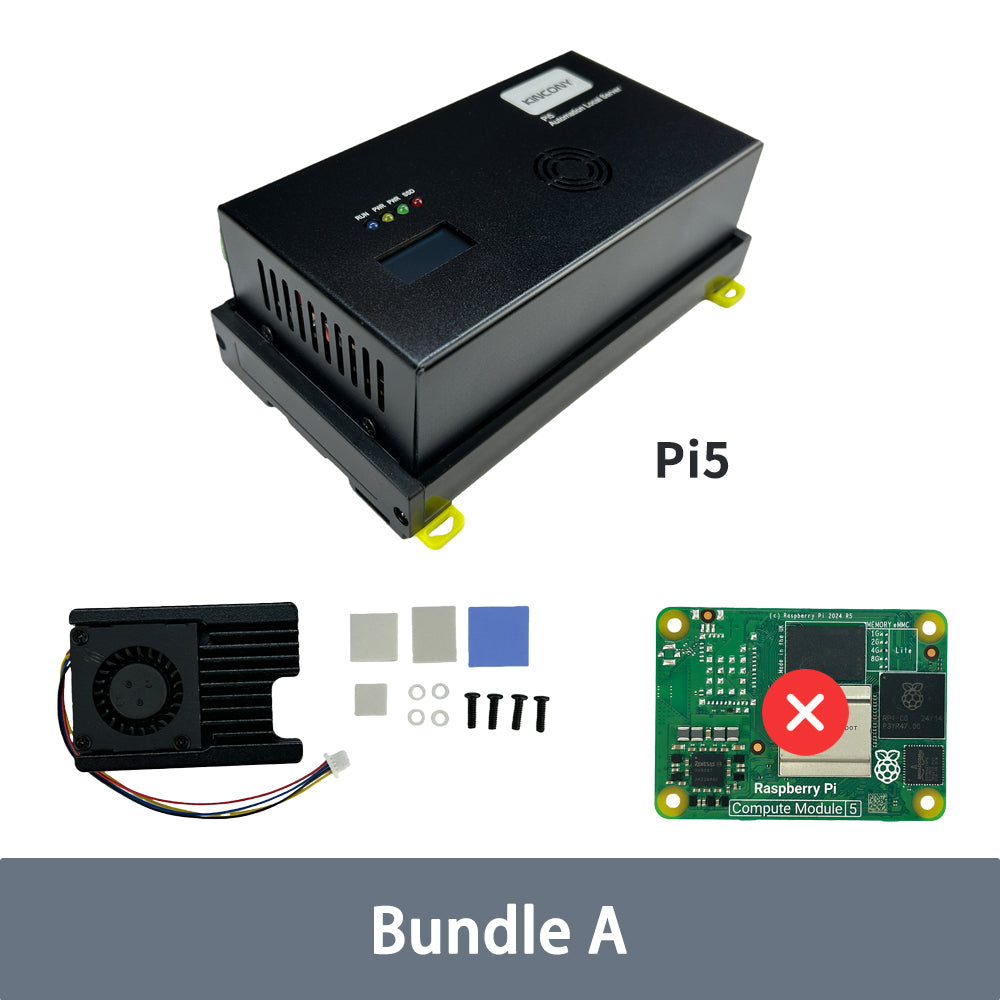

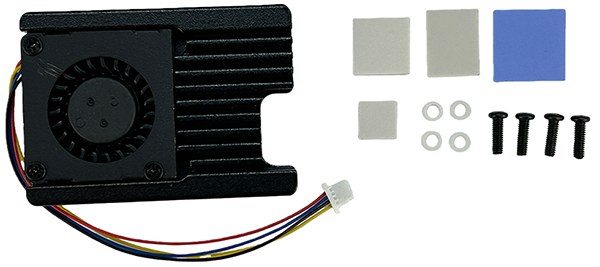

Bundle A: Pi5 without CM5 + heatsink + fan

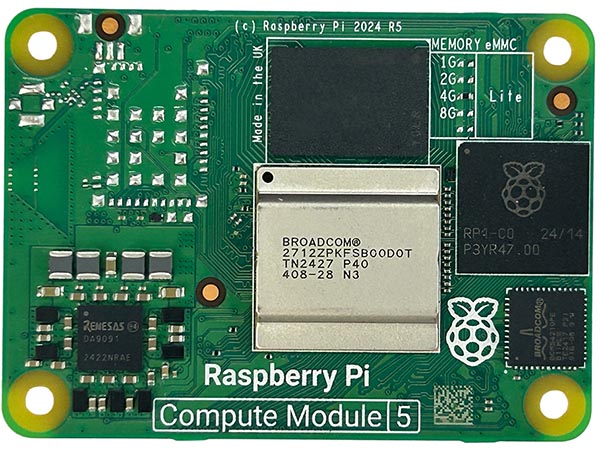

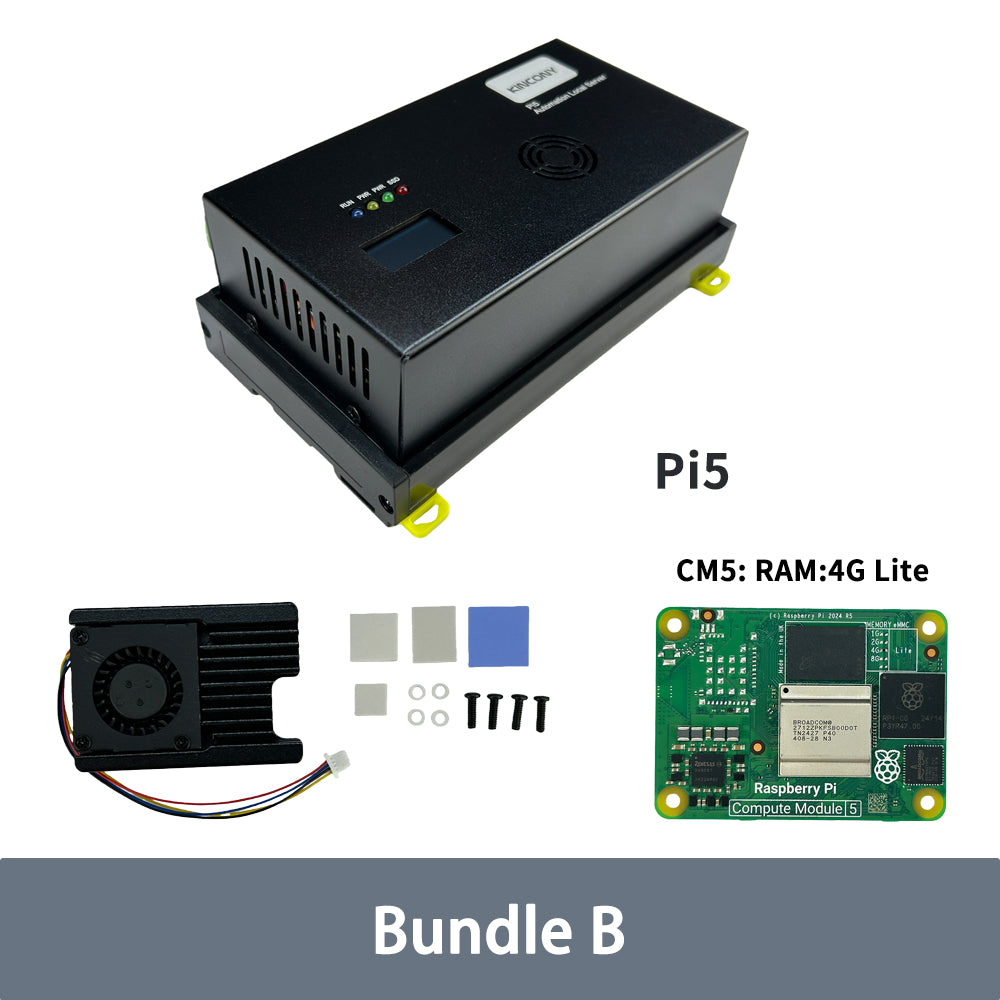

Bundle B: Pi5 with CM5(CM5004000):RAM:4G-Lite + heatsink + fan

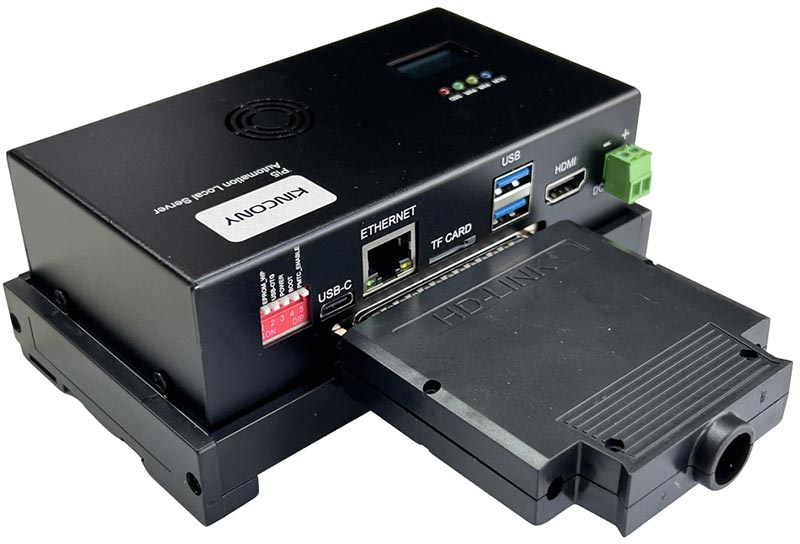

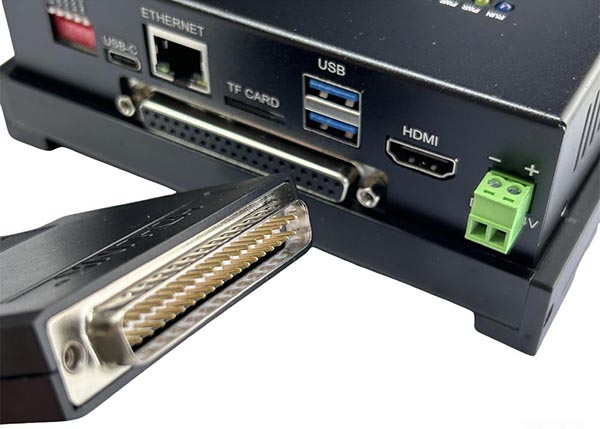

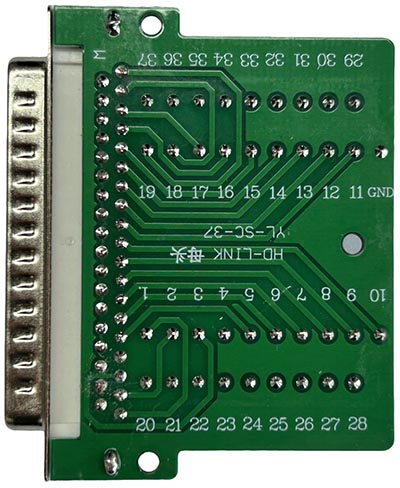

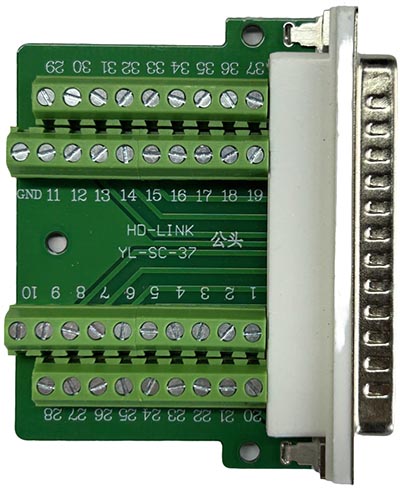

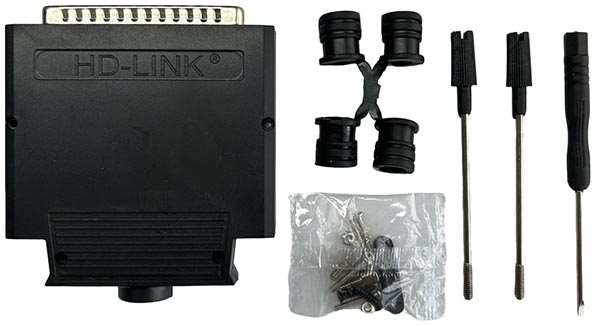

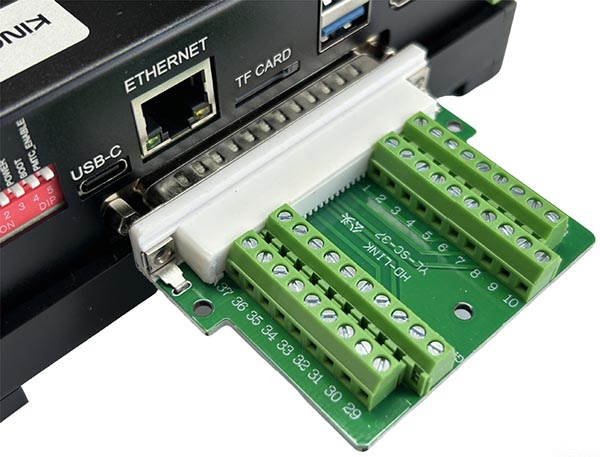

if you want to use CM5 free GPIOs, you can add this CM5 GPIO extender
