Tiny Smart Home Security Alarm System - TA

KinCony TA (Tiny Alarm System) ESP32-S3 smart controller based on ESP32-S3-WROOM-1U (N16R8) wifi chip and Tuya module. It have 12 channel digital input (12-zone) and 2 channel relay output for sirens or strobe lights, 12 channel 1-wire GPIOs, DS3231 high precision RTC clock chip.TA added Power over Ethernet (PoE). TA have RS485 port and RF433MHz RF receiver. You can write any code by Arduino IDE / MicroPython / ESP-IDF development tool to ESP32 module. We will supply Arduino demo code for different samples. Everyone can modify and change the code for your own smart home automation system project. it support use by ESPHome for home assistant or tasmota firmware for smart home automation DIY. TA use KCS v3 firmware, it support home assistant auto discovery function by MQTT, so without write any config code (zero code) for home assistant. KCS v3 support Apple HomeKit. Tuya mobile phone APP remote monitor 12 channel digital input port state, 12 channel temperature sensors and control 2 channel relay by internet.

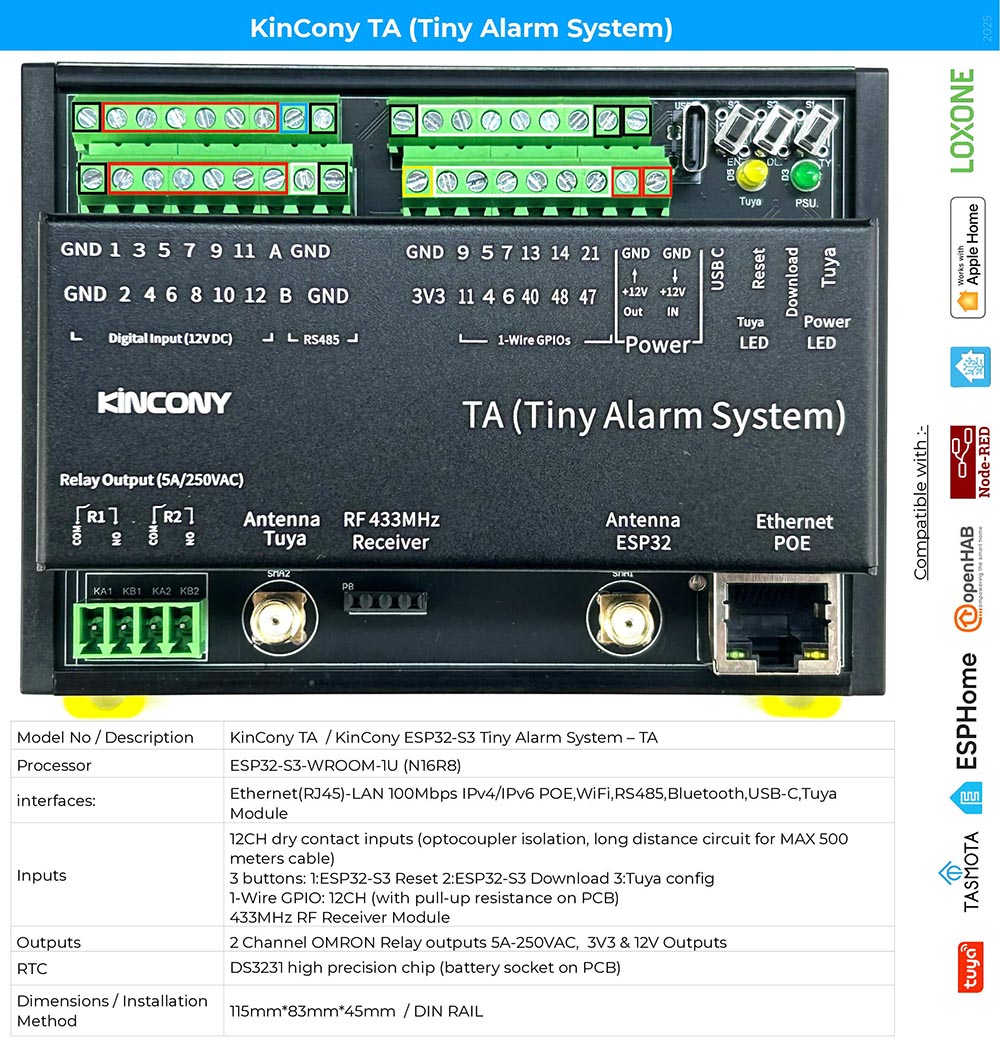

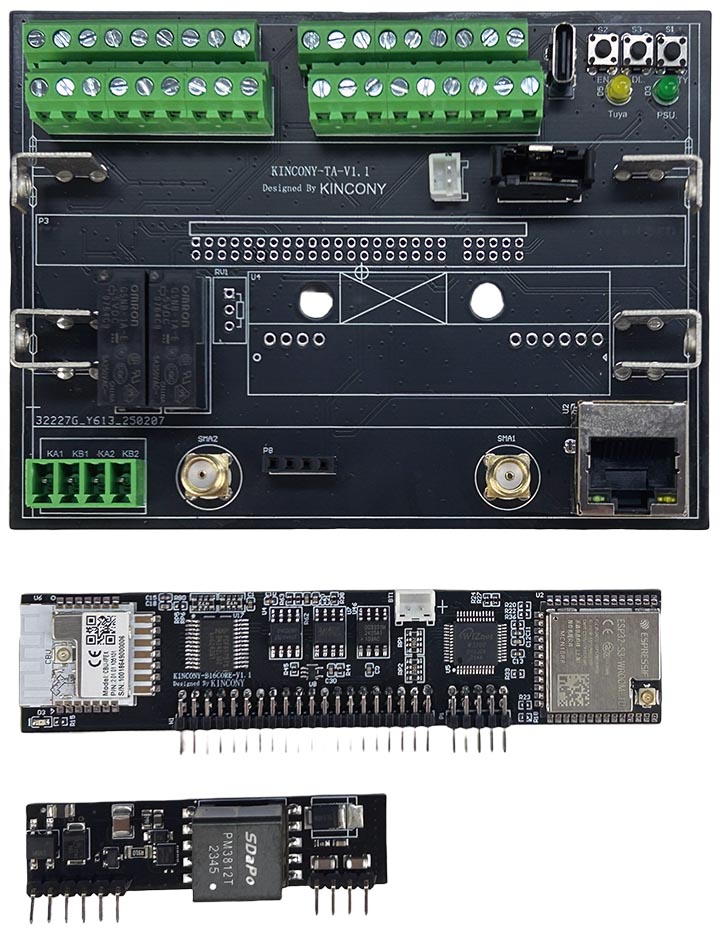

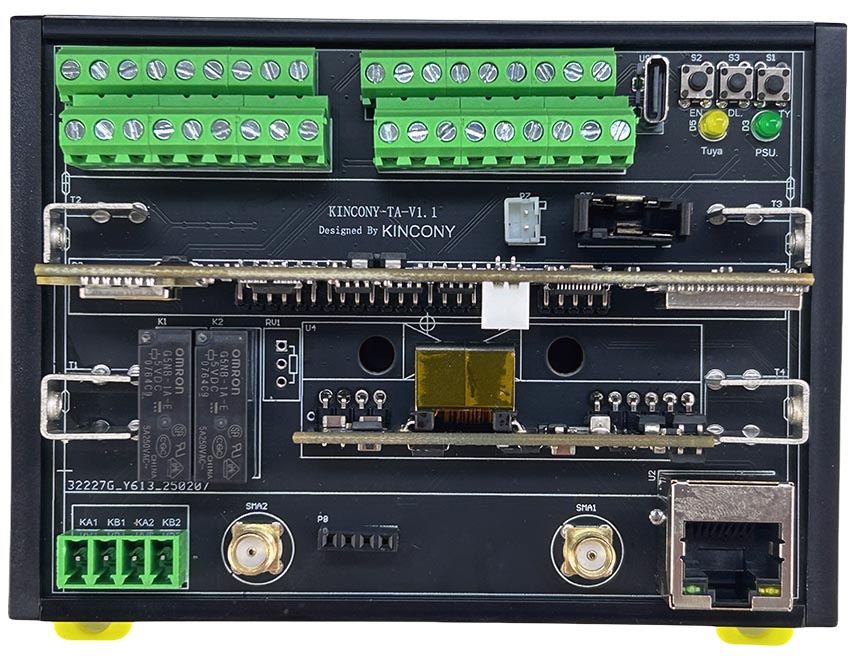

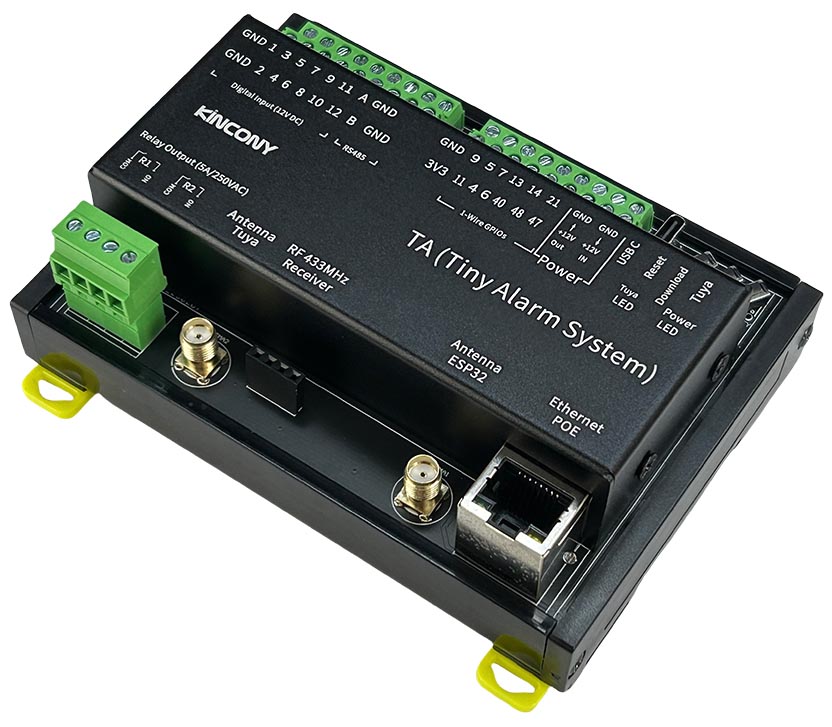

Model No. KinCony TA

Description: KinCony ESP32-S3 Tiny Alarm System – TA
Power supply: 12V DC

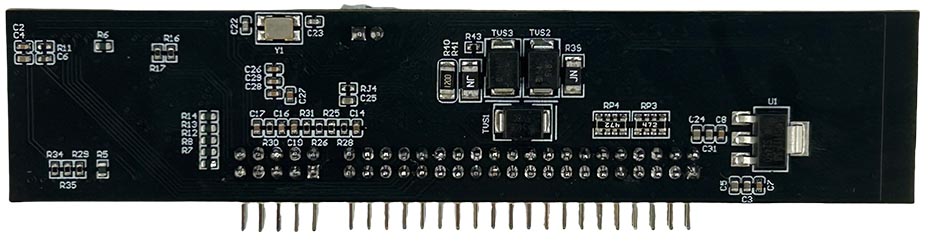

Processor: ESP32-S3-WROOM-1U (N16R8)
Size: 115mm*83mm*45mm
interfaces: Ethernet(RJ45)-LAN 100Mbps IPv4/IPv6 POE,WiFi,RS485,Bluetooth,USB-C,Tuya Module
RTC: DS3231 high precision chip (battery socket on PCB)
Installation method: DIN RAIL

Outputs:
2CH OMRON Relay Outputs, every channel use MAX 5A with COM, NO

Inputs:
12CH dry contact inputs (optocoupler isolation, long distance circuit for MAX 500 meters cable)
3 buttons: 1:ESP32-S3 Reset 2:ESP32-S3 Download 3:Tuya config
1-Wire GPIO: 12CH (with pull-up resistance on PCB)
433MHz RF Receiver Module

support install on DIN RAIL

software solution:

1. download KinCony KCS firmware, so that work with multi protocol: HTTP, MQTT, TCP, RS485 modbus, Tuya app, config OUTPUT for “momentary” and “interlock” group functions. use Tuya mobile phone app directly, support voice control by Alexa and Google home speaker directly. “KCS” support IFTTT function work locally without internet. It also support use by KinCony cloud server. KCS v3 support home assistant auto discovery function by MQTT, so without any config file for home assistant.

2. download firmware by ESPHome, integrate to home assistant or use by web service.

3. download tasmota firmware.

4. write your own arudino code for your own requirements.

5. It is recommended to use home assistant and Tuya mobile phone app at the same time. So that remote control by internet using Tuya app, local control by LAN using home assistant app.

Related technical information
———————————
ESP32 I/O pin define: https://www.kincony.com/forum/showthread.php?tid=7896
config yaml file for ESPHome: https://www.kincony.com/forum/showthread.php?tid=7897
ESPHome official supportted list:
arduino demo source code: https://www.kincony.com/forum/forumdisplay.php?fid=76
KCS v3 firmware online guide: https://www.kincony.com/how-to-use-kcsv3-firmware-esp32-board.html
