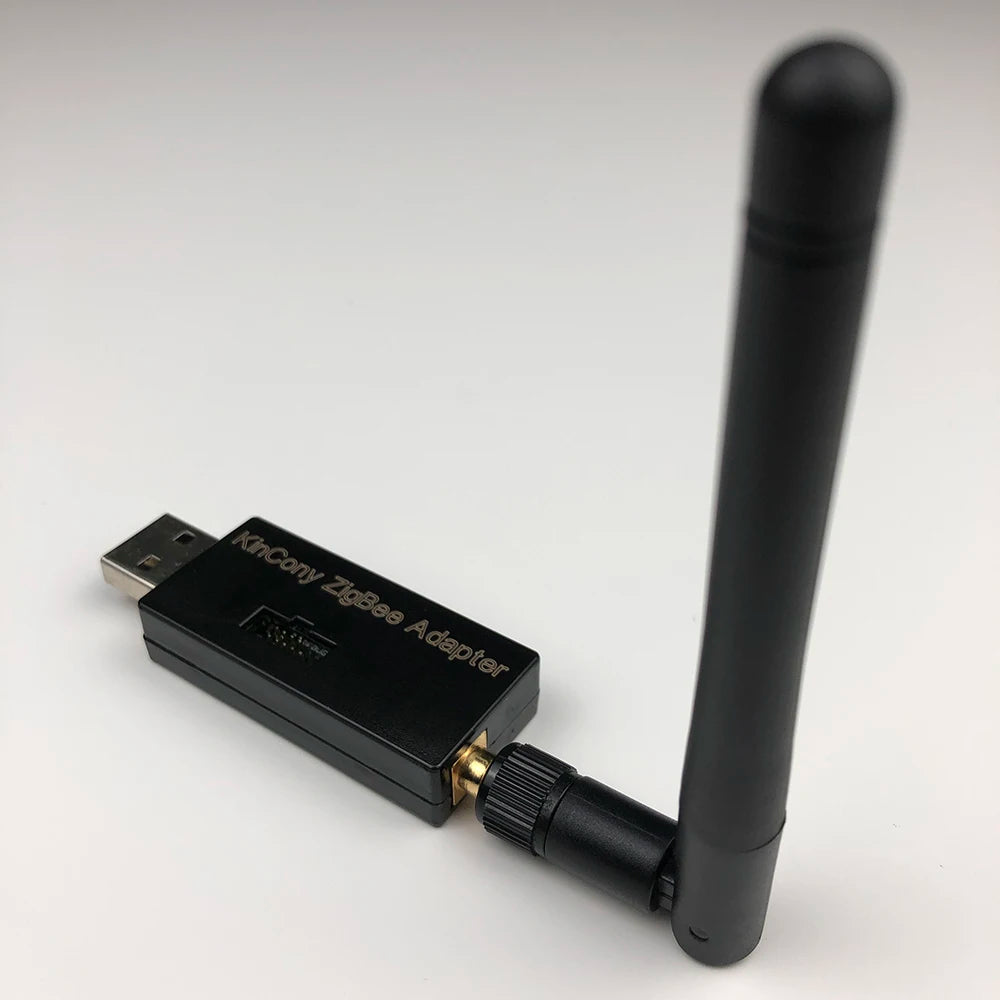

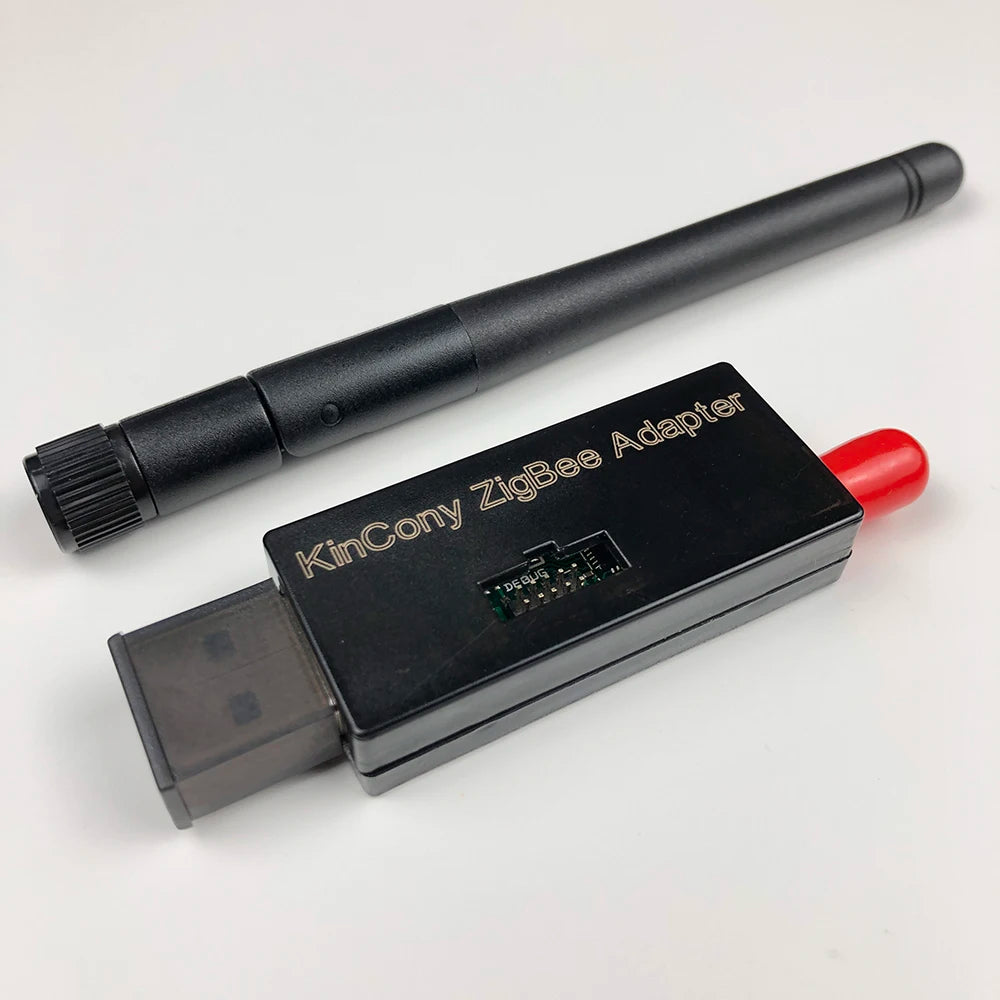

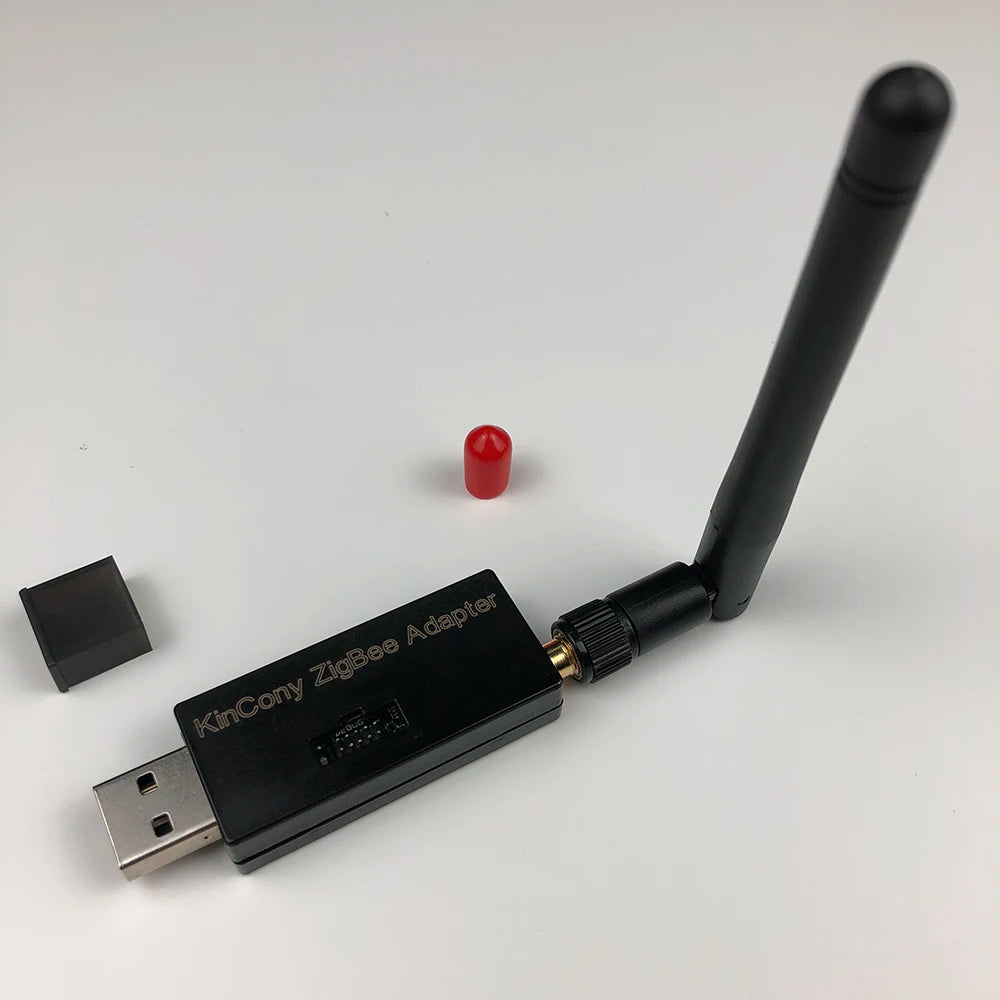

USB Interface Wireless ZigBee CC2531 CC2540 Sniffer Board Packet Protocol Analyzer Dongle Capture Packet Module

Added program analysis for CC2650 / CC2630 / cc2538 chips! Theoretically, the equipment using 802.15.4 protocol can be analyzed. ​1. Environmentally friendly solder paste and gold sink process, customers can use or recommend with confidence; ​2. Quality assurance, components are designated labels; ​3. Small size: 4.1 * 1.6 cm, ultra-narrow design, avoid conflict with other USB devices; ​4. The product is small and sturdy, with a thickness of 1.6MM, 8 IO ports, and DEBUG pin headers. And can increase the shell; ​5. The working frequency is 2.405-2.485GHz, and the wireless transmission rate reaches 250Kbaud; ​6. Power consumption: receiving current <20mA, transmitting current <25mA; ​7. Cooperate with firmware to realize the function of protocol analyzer; ​8. Choose BALUN design (2450BM15A0002E), the distribution parameter has little influence, and the performance is superior, stable and reliable
